Compact Skid Steer Track
Extremely Compact & Agile: Weighs only 880kg with a compact footprint, ideal for navigating tight spaces and working in confined urban or indoor environments.
Efficient Bucket Performance: Equipped with a 0.15m³ bucket and a maximum lifting force of 200kg, balancing material handling capacity and operational precision.
Versatile Working Reach: Offers a maximum working height of 2100mm, enabling effective performance in various loading, lifting, and material placement tasks.
Reliable & Powerful Engine: Powered by a 16.8kW Rato gasoline engine with fan cooling, delivering dependable power suitable for small-scale operations.
Product Introduction
The LRT23 is a highly agile and efficient compact track loader engineered for productivity in confined spaces and versatile work environments. With a working weight of only 880 kg and an overall width of 1090 mm, it excels in accessibility while delivering reliable performance for landscaping, construction support, municipal maintenance, and agriculture.
Powered by a robust Rato gasoline engine offering 16.8 kW at 3600 rpm with fan cooling, the LRT23 ensures dependable operation under varied conditions. It features a travel speed of 4 km/h, a bucket capacity of 0.15 m³, and a maximum lifting force of 200 kg, enabling smooth handling of materials across different terrains. The loader also achieves a maximum working height of 2100 mm and an unloading height of 1480 mm, providing excellent reach and placement flexibility.
Designed with user convenience and durability in mind, the LRT23 comes equipped with 200×72×32 rubber tracks for enhanced traction and reduced ground disturbance. Its 18 L fuel tank and 30 L hydraulic oil tank support extended operation, while compatibility with standard 92# gasoline ensures easy refueling. Whether used for loading, digging, or lifting, the LRT23 combines compact mobility with functional strength to meet the demands of modern worksites.
Product Details

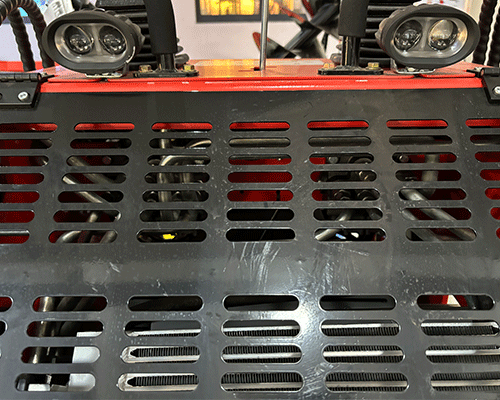

Optimized Heat Dissipation System The radiator efficiently accelerates cooling to minimize potential damage to mechanical accessories and ensure long-term operational stability. |  |

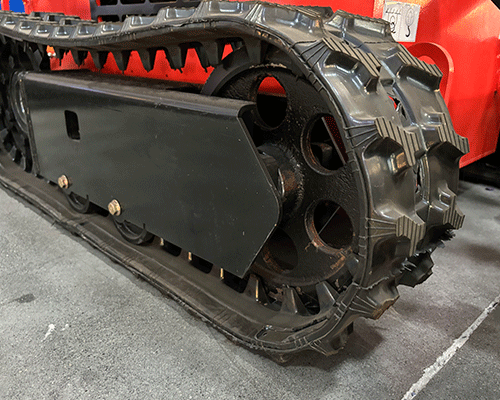

Variable Speed Travel Motor This travel motor supports both high and low-speed operation, delivering enhanced power and performance. |  |

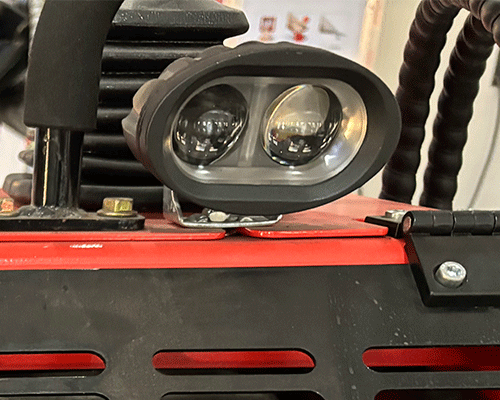

New LED Boom Work Light Equipped with LED headlights, this work light provides superior illumination compared to traditional halogen lamps, enhancing visibility and operational safety. |  |

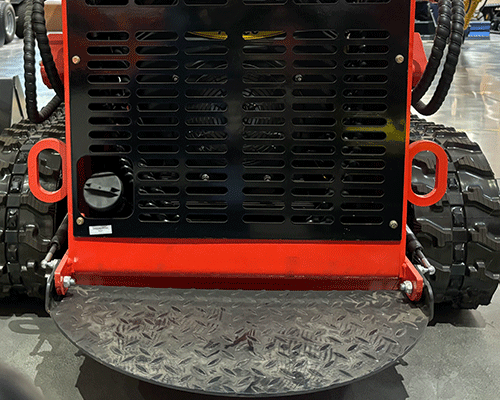

Spacious & Comfortable Driving Experience Generous legroom and intuitive controls ensure effortless operation, while the driver's seat features front-and-back adjustability for personalized comfort. |  |
Full Opening Engine Cover The tilt‑up engine cover fully exposes most of the engine, ensuring convenient access for inspection and maintenance of internal components. |  |

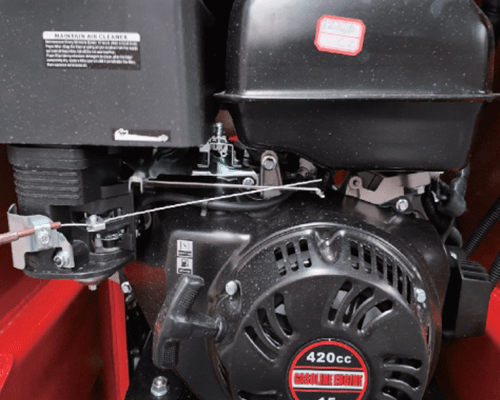

RATO Engine Powerful and dependable, the LRT23 Rato gasoline engine delivers superior horsepower and performance. It offers low noise and vibration levels, excactional fuel efficiency. |  |
Product Specifications
| Model Information Configuration Status √Standard, △Optional , ×None | LRT23 | |
| Basic Performance Parameters | ||
| Working Weight(kg) | 880 | |
| Bucket capacity(m³) | 0.15 | |
| Travel speed low/high speed(Km/h) | 4 | |
| Maximum lifting force (Kg) | 200 | |
| C Maximum working height(mm) | 2100 | |
| B Maximum pin height (mm) | 1800 | |
| A Maximum unloading height(mm) | 1480 | |
| G Loading distance at maximum unloading height (mm). | 430 | |
| H Wheelbase(mm) | 760 | |
| F Ground clearance(mm) | 110 | |
| L Bucket discharge angle | 30° | |
| Equipment Body | ||
| E Bucket width(mm) | 1150 | |
| J/K Overall Length(mm) | 2055/2285 | |
| Overall Width(mm) | 1090 | |
| Body width(mm) | 810 | |
| D Overall Height(mm) | 1270 | |
| M Slewing radius(mm) | 1300 | |
| Engine | ||
| Engine Brand | Rato | |
| Maximum power(Kw) | 16.8 | |
| Max. speed(rpm) | 3600 | |
| Cooling method | Fan cooling | |
| Engine oil change quantity(L) | 1.6 | |
| Fuel Type | Gasoline | |
| Fuel Grade | 92# | |
| Tracks | ||
| △-Rubber (bandwidth*pitch*number of sections) | 200*72*32 | |
| Fuel tank | ||
| Fuel tank(L) | 18 | |
| Hydraulic oil tank(L) | 30 | |
Applications
Landscaping & Garden Operations
Designed for efficient garden and landscape work, this compact skid-steer loader effectively handles material delivery, shallow excavation, surface leveling, and turf restoration. Its small turning circle and responsive control allow operation in private gardens, public parks, and maintained green zones with minimal soil compaction and landscape disruption.
Trenching & Utility Assistance
With refined steering and accurate movement control, this equipment delivers reliable support for utility tasks including trench refilling, supply transport, and conduit installation. Frequently deployed in agricultural watering networks and metropolitan subsurface utility projects, it enhances work pace in constrained or limited-access areas.
Indoor & Restricted Area Work
The machine’s low overall height and distributed track pressure permit productive use in interior dismantling, cellar clearing, and building renovation. Able to enter compact zones unsuitable for larger equipment, it performs reliably in difficult indoor environments such as storage facilities, production plants, and refurbishment sites.
Roadway & City Services
Suited to public infrastructure maintenance, the loader assists with pavement repairs, waste pickup, winter snow clearance, and general municipal care. Its modest size and easy maneuvering enable efficient operation in dense urban layouts without significant road disruption, while optional illumination ensures visibility in early morning or evening conditions.
Material Movement & Site Rehabilitation
When configured with accessories like demolition hammers, fork attachments, or cleanup buckets, the unit capably manages light structural breakdown, channel cleaning, sediment extraction, and refuse collection. It serves as an adaptable resource for ecological recovery projects, hydrological system maintenance, and construction area remediation.
Packaging & Shipping
Export-Ready Packaging & Global Delivery Assurance
KMX understands that secure transportation from production line to worksite is critical for protecting your equipment investment. Each machine receives export-grade protective packaging and is supported by a comprehensive global logistics network, guaranteeing intact condition and timely delivery to destinations worldwide.
Professional Container Loading & In-Transit Security
Every loader is systematically prepared for overseas shipping using specialized equipment for precise positioning inside standard containers (20GP/40HQ). Industrial-strength nylon straps, customized timber bracing, and wheel blocking systems are applied to create a multi-angle securing solution that prevents any movement during extended maritime and land transportation. This ensures your equipment maintains its as-built quality throughout the entire shipping process.
Tailored Logistics Solutions & Flexible Supply Chain
We deliver customized logistics strategies designed to match your project timeline and cost requirements. From dedicated FCL shipments and grouped LCL arrangements to expedited air freight options, our logistics specialists develop and implement the most practical and cost-effective routing plan—whether to your designated port or directly to your job site.
