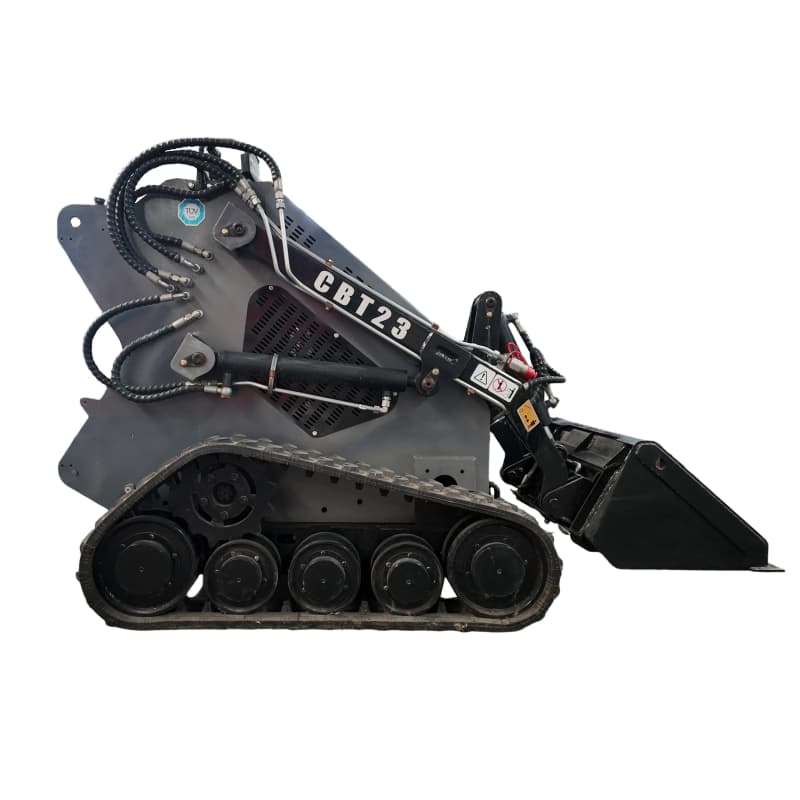

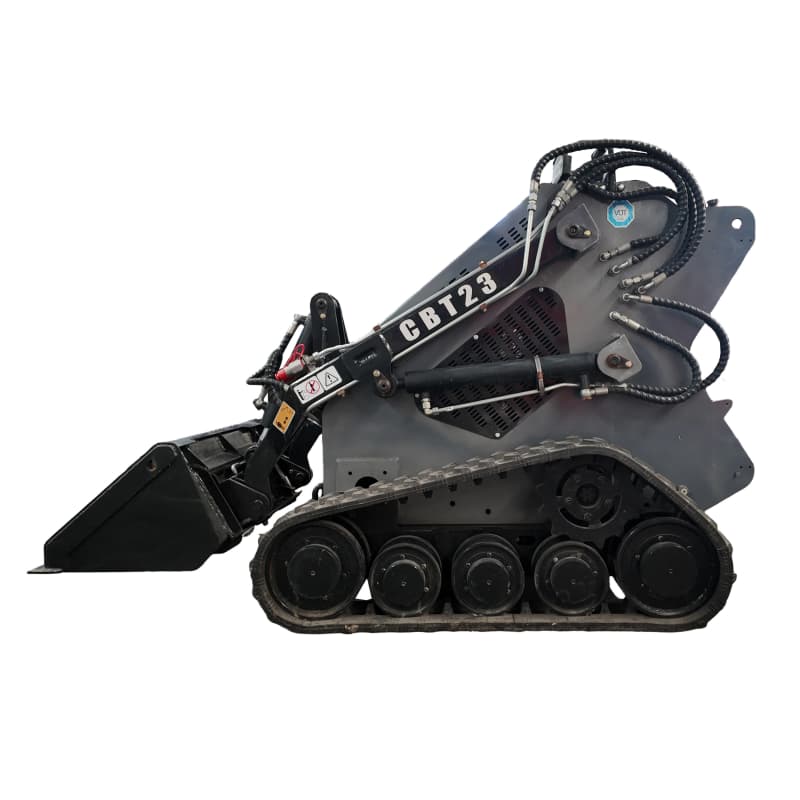

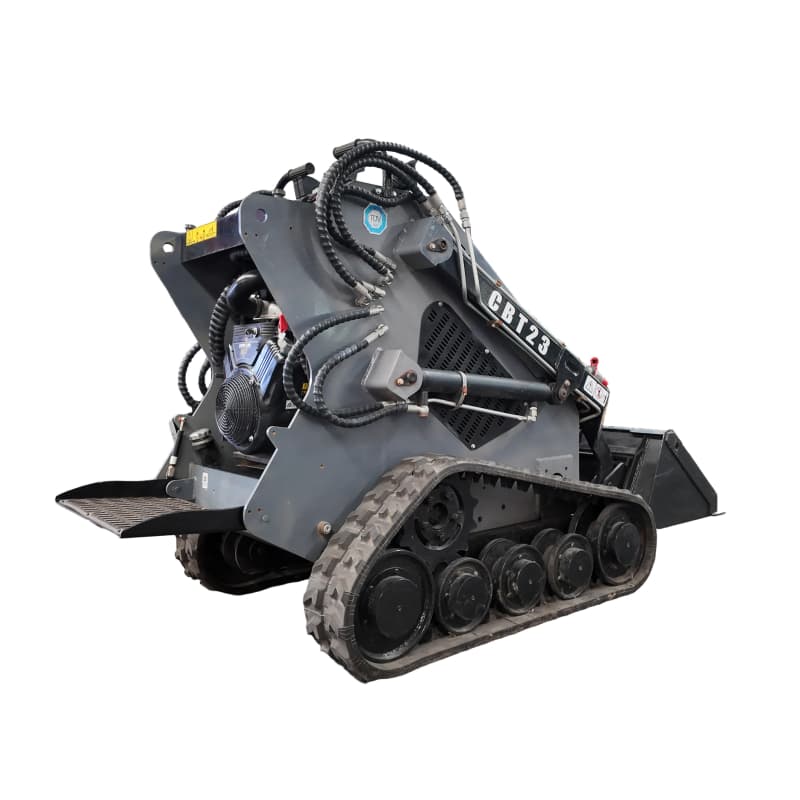

Compact Track Loader
Compact & Versatile Design：With an overall length of 2181 mm, width of 1120 mm, and a compact turning radius of 1500 mm, the CBT23 excels in confined and narrow workspaces while remaining highly maneuverable.
Stable & Efficient Performance：Powered by a Briggs & Stratton 16.79 kW gasoline engine with fan cooling, it delivers reliable performance across diverse working conditions.
Optimized Loading & Lifting Capability：With a 0.1 m³ bucket and 200 kg lifting capacity, along with a 1,612 mm unloading height and 611 mm working radius, it adapts precisely to diverse material handling needs.
Product Introduction

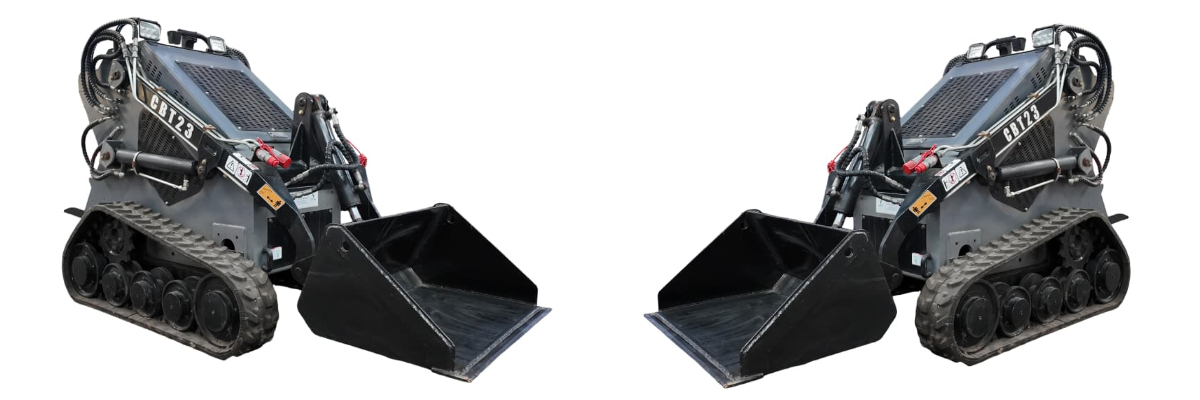

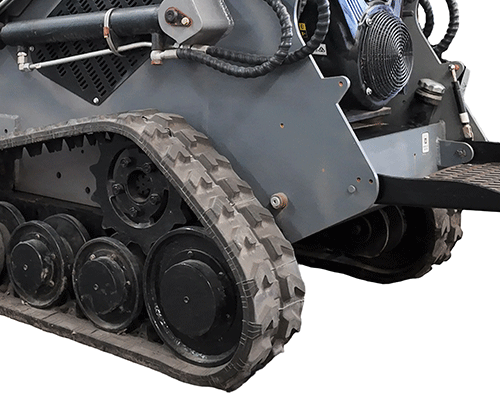

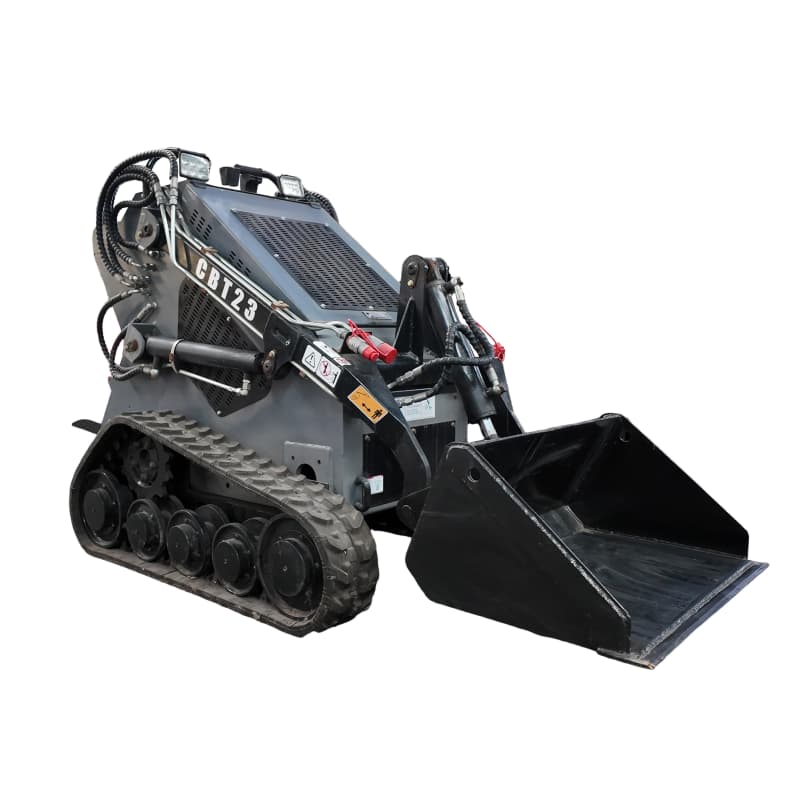

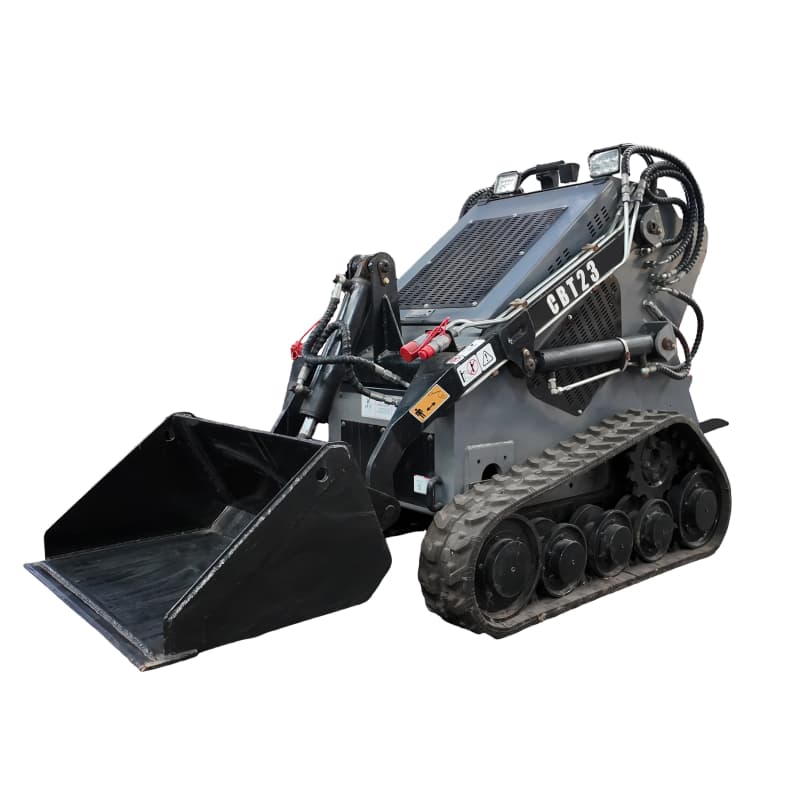

The CBT23 compact track loader is engineered to deliver reliable and efficient performance across a variety of working environments. Powered by a Briggs & Stratton gasoline engine with a maximum output of 16.79 kW and supported by effective fan cooling, it ensures consistent operation even under demanding conditions. The machine's compact dimensions—2181 mm in length, 1120 mm in width, and a turning radius of just 1500 mm—enable it to navigate confined spaces with agility, while its rubber track design provides stable traction and minimizes ground disturbance.
Equipped with a 0.1 m³ bucket and a rated lifting capacity of 200 kg, the CBT23 excels in material handling tasks. Its practical maximum unloading height of 1612 mm and loading reach of 611 mm allow for precise and efficient loading operations. Combined with a travel speed of 4 km/h and a balanced working weight of 950 kg, the loader offers operators enhanced control, safety, and ease of use during detailed tasks.
Designed for versatility, the CBT23 is well-suited for applications ranging from landscaping and agriculture to light construction and utility maintenance. Its durable construction includes ample fuel and hydraulic oil tank capacities—31 L and 33 L respectively—supporting extended operation with minimal downtime. With its combination of power, precision, and adaptability, the CBT23 stands as a dependable solution for professionals seeking a compact yet capable track loader.
Product Details

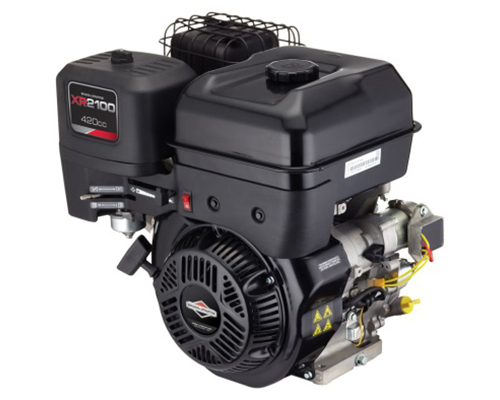

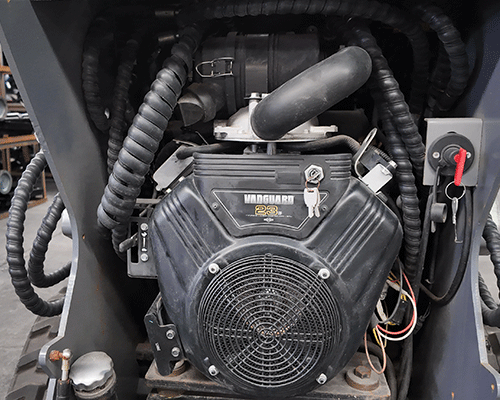

Briggs & Stratton engine the CBT23 Briggs & Stratton engine with a maximum output of 16.79 kW and supported by effective fan cooling, it ensures consistent operation even under demanding conditions. |
|

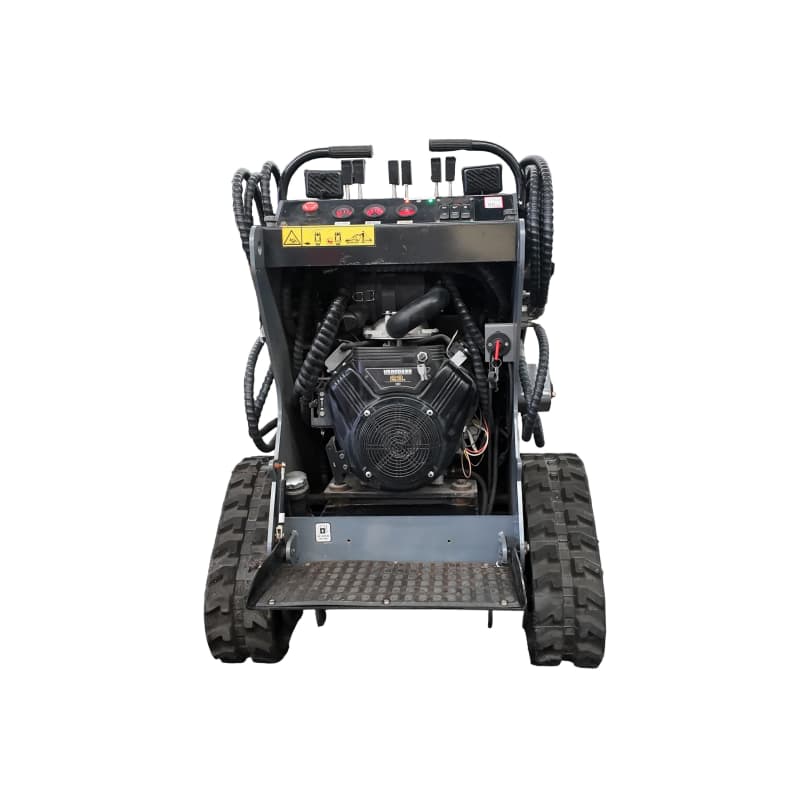

Full-opening Engine Hood The full-opening hood is designed for easy maintenance and inspection, as its upward-tilting design provides complete access to the majority of engine components. |
|

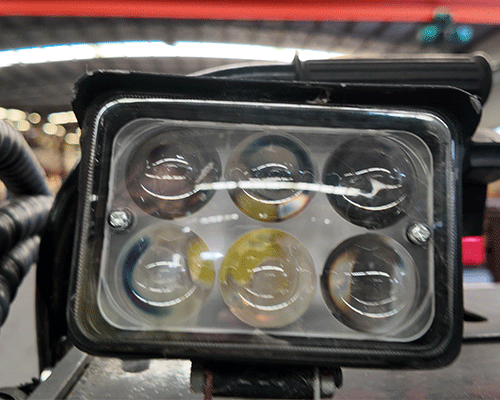

New LED Boom Work Light LED headlights, non-halogen design. |
|
Comfort-Oriented Cabin, Efficient Operation The spacious cabin features an intuitively arranged control layout for smooth and effortless handling. Combined with an adjustable fore-aft driver’s seat, it significantly enhances comfort during long working hours, supporting sustained productivity. |
|
Dual-Range Travel Motor A variable-speed motor offers switchable high/low modes, delivering adaptable power and optimal efficiency for varied terrains and tasks. |
|

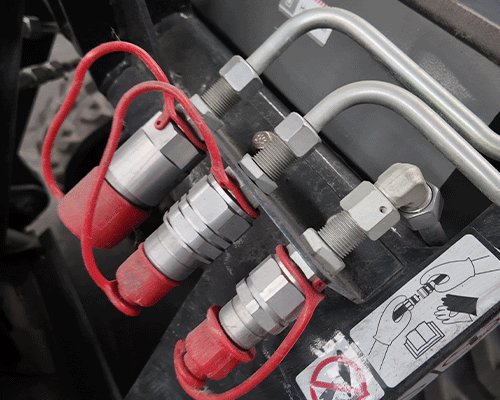

Hydraulic auxiliary tool joint Plug-type hydraulic auxiliary tool joint, hydraulic quick chang |
|
Product Specifications
| Model Information Configuration Status √Standard, △Optional , ×None | CBT23 | |
| Basic Performance Parameters | ||
| Working Weight(kg) | 950 | |
| Bucket capacity(m³) | 0.1 | |
| Travel speed low/high speed(Km/h) | 4 | |
| Maximum lifting force (Kg) | 200 | |
| C Maximum working height(mm) | 2323 | |
| B Maximum pin height (mm) | 2007 | |
| A Maximum unloading height(mm) | 1612 | |
| G Loading distance at maximum unloading height (mm). | 611 | |
| H Wheelbase(mm) | 965 | |
| F Ground clearance(mm) | 203 | |
| L Bucket discharge angle | 23° | |
| Equipment Body | ||
| E Bucket width(mm) | 1120 | |
| J/K Overall Length(mm) | 2181 | |
| Overall Width(mm) | 1120 | |
| D Overall Height(mm) | 1383 | |
| Body width(mm) | 826 | |
| M Slewing radius(mm) | 1500 | |
| Engine | ||
| Engine Brand | B&S | |
| Maximum power(Kw) | 16.79 | |
| Cooling method | Fan cooling | |
| Fuel Type | Gasoline | |
| Tracks | ||
| △-Rubber (bandwidth*pitch*number of sections) | 180*72*41 | |
| Fuel tank | ||
| Fuel tank(L) | 31 | |
| Hydraulic oil tank(L) | 33 | |

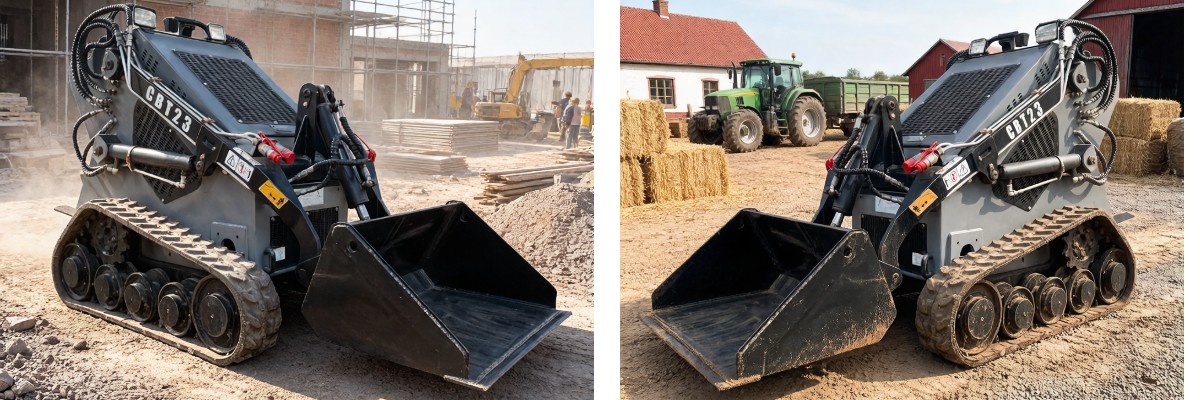

Applications
Landscaping & Garden Construction
Perfect for soil management, planting trees, leveling lawns, and preparing earth in gardens, parks, and green spaces. Its tracked chassis allows operation on turf, soft soil, and wet ground without causing surface damage. The compact design enables easy maneuverability in tight spots such as flower beds, courtyards, and urban landscape zones.
Residential & Small-Scale Building Projects
Ideal for foundation digging, site grading, light concrete mixing, and material transport. It can enter basements, garages, narrow lots, and confined construction areas inaccessible to larger machinery.
Agricultural & Facility Operations
Effective for moving fertilizers, soil, feed, and light farm equipment across fields, greenhouses, orchards, and vegetable tunnels. The tracked undercarriage ensures reliable traction and stability on muddy or loose terrain.
Municipal & Infrastructure Maintenance
Well-suited for small pipeline work, sewer repairs, curb installation, and other minor public works. Its compact footprint enables flexible use along streets, sidewalks, and narrow alleys, reducing disruption to urban activity.
Light Demolition & Material Handling
When equipped with breakers or grapples, it performs light demolition, debris clearing, and material stacking tasks with high efficiency. Its agility supports quick completion of small demolition or renovation jobs.
Indoor & Specialized Environments
Capable of operating inside warehouses, factories, or underground parking structures for cleanup, loading, and unloading duties. Low noise and vibration output make it suitable for projects with strict environmental or noise restrictions.
Packaging & Shipping
Transportation Logistics
Small skid steer loaders are commonly transported over long distances via flatbed trucks or shipping containers. They can be shipped as fully assembled units within containers or secured in batches using transport frames for consolidated delivery. Container transport offers protection against rainfall, dust, and vibration-related damage during transit.
Packaging Solutions

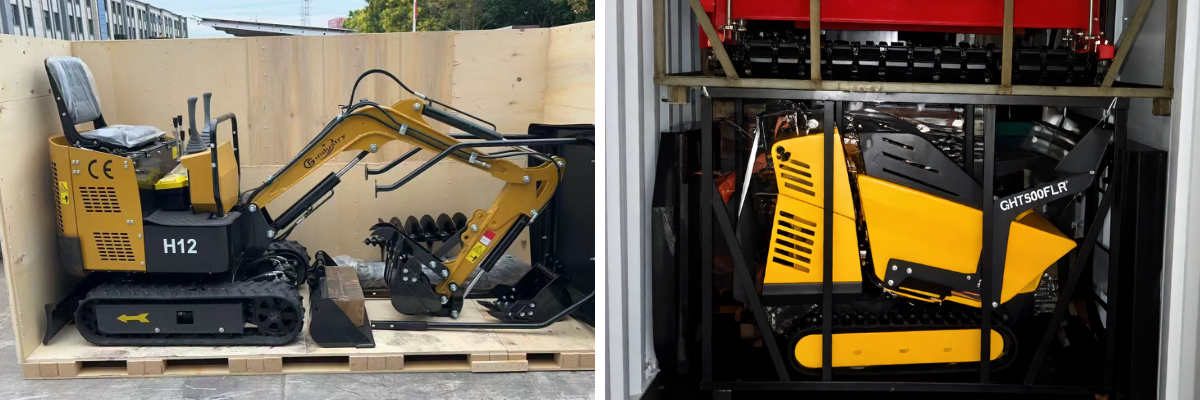

Wooden Crate Packaging: Offers fully enclosed protection for complete machines or critical components, making it ideal for long-distance or international shipments. This method safeguards against physical impacts and adverse weather conditions.
Metal Frame Packaging: Secures the entire machine within a sturdy metal framework, optimizing space efficiency and simplifying loading and unloading processes. It is particularly suitable for batch shipments.
Supplementary Protection: Key parts such as hydraulic arms, control levers, and tires are often cushioned or wrapped with protective materials to prevent damage during handling and transit.
Loading and Securing Procedures
Prior to shipment, equipment is firmly fastened onto wooden crates or metal frames to prevent shifting or tipping during transport operations. While smaller models may be stacked for efficient shipping, larger units must be loaded individually to ensure safety. All packaging must be finalized before transportation commences.
Company Profile

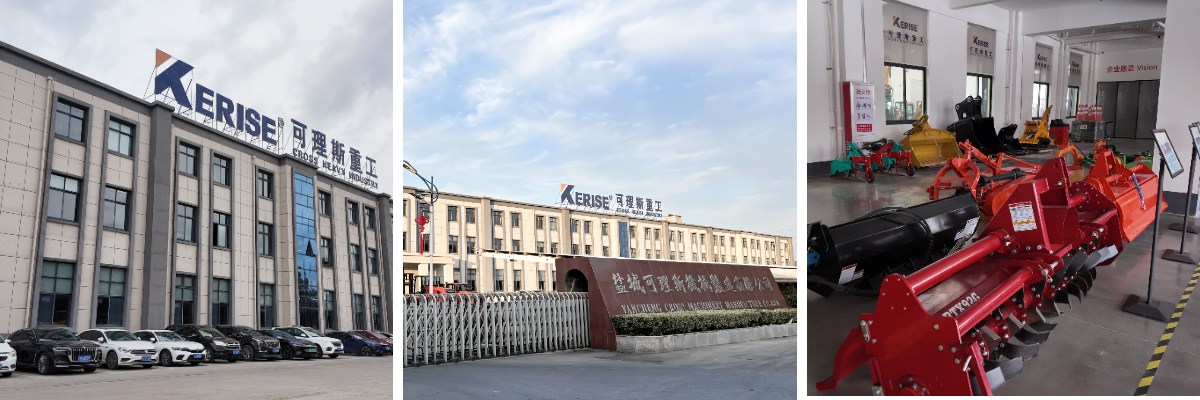

Yancheng KMX Machinery Manufacturing Co., Ltd., founded in 2009, has become a prominent manufacturer specializing in construction and landscaping machinery. Through integrated capabilities in R&D, production, international sales, and after-sales service, the company delivers robust and high-performance equipment to customers worldwide.
