Compact Skid Steer Loader
Strong Power: Delivers robust performance for efficient work.
Unique Vertical Lifting: Offers innovative lifting capabilities.
Emergency Descent Function: Ensures safe operation during use.
Standard Quick Coupler: Facilitates quick attachment changes.
Double-Accelerator Control: Enhances maneuverability and control.
Product Introduction

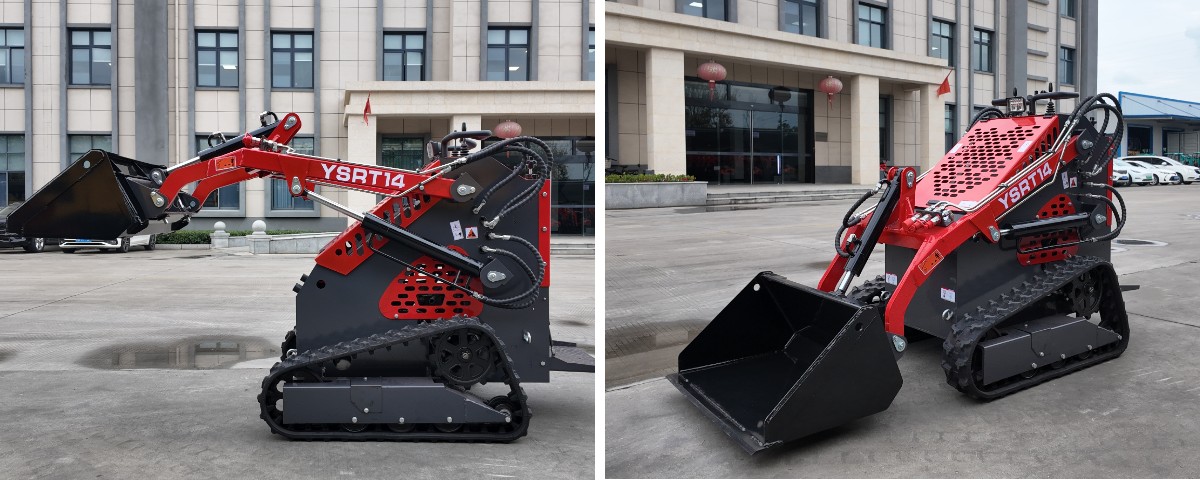

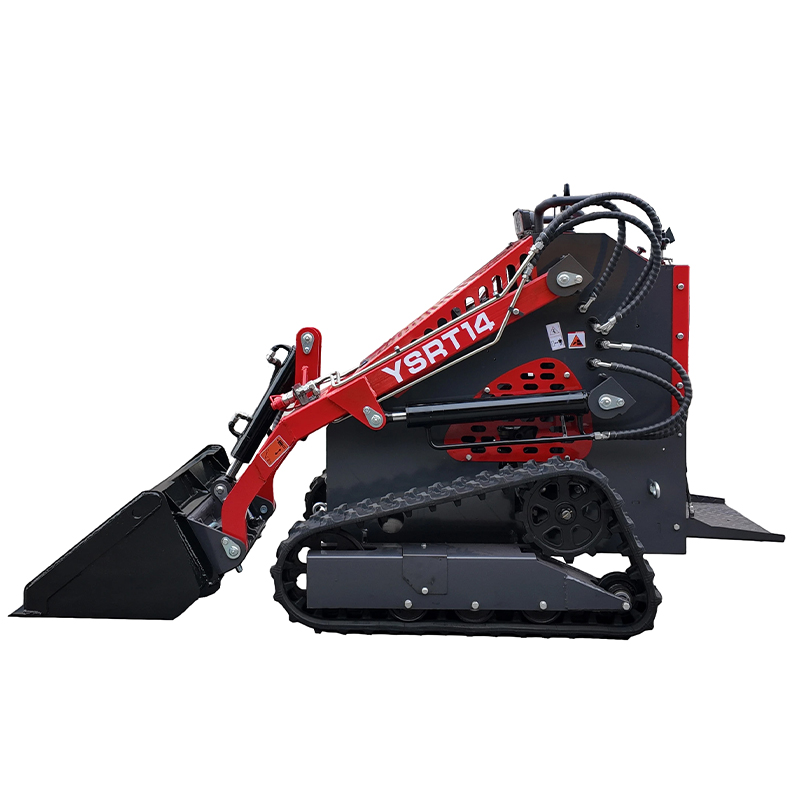

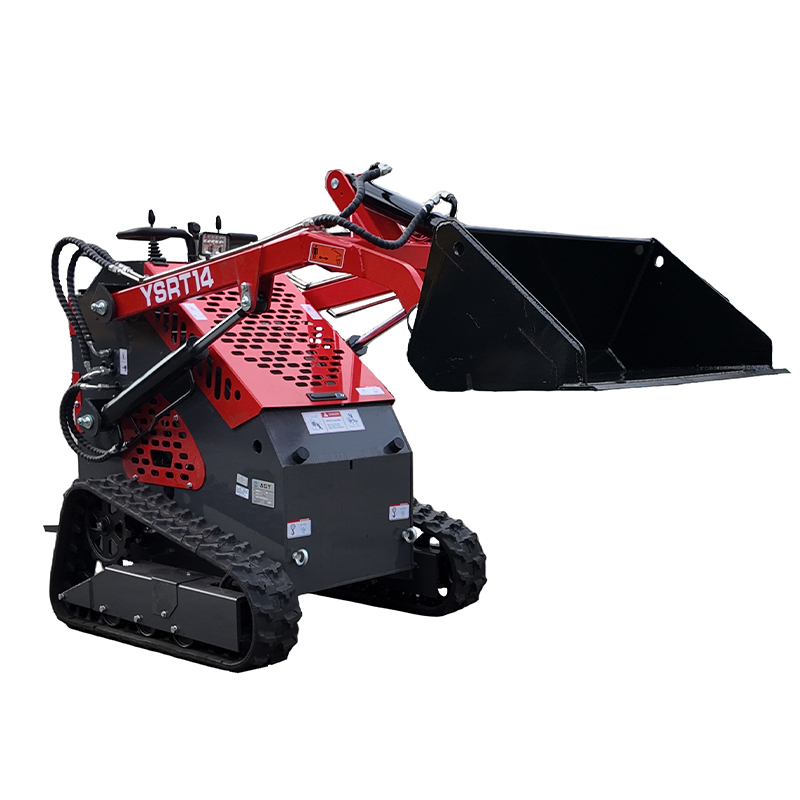

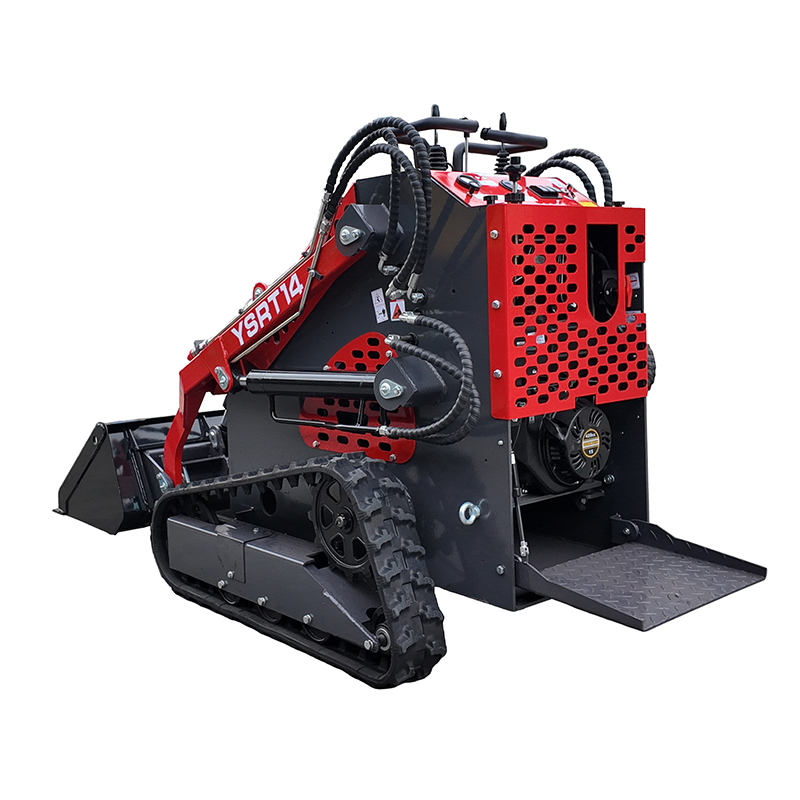

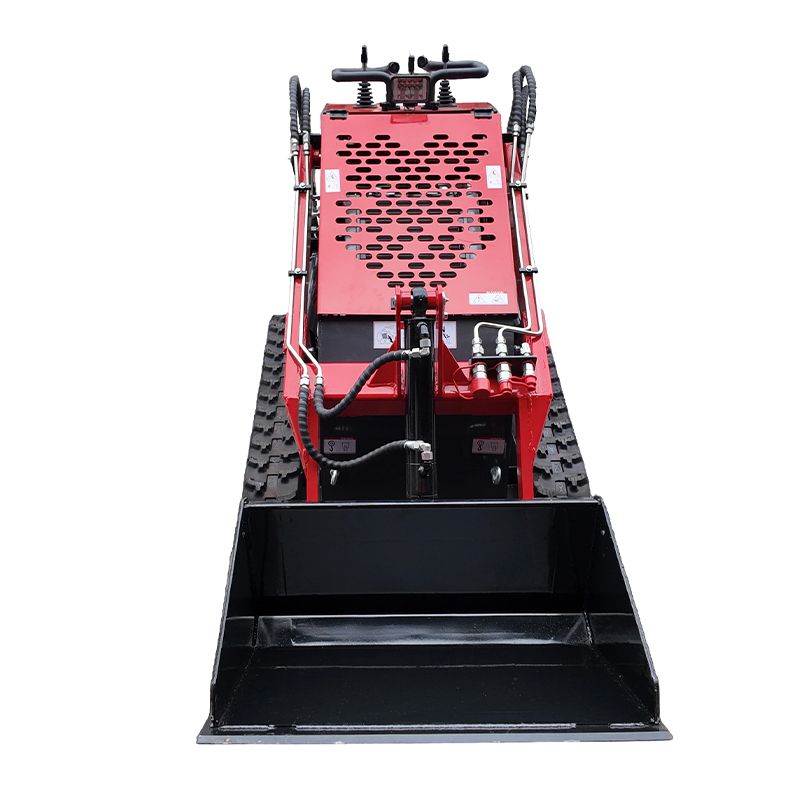

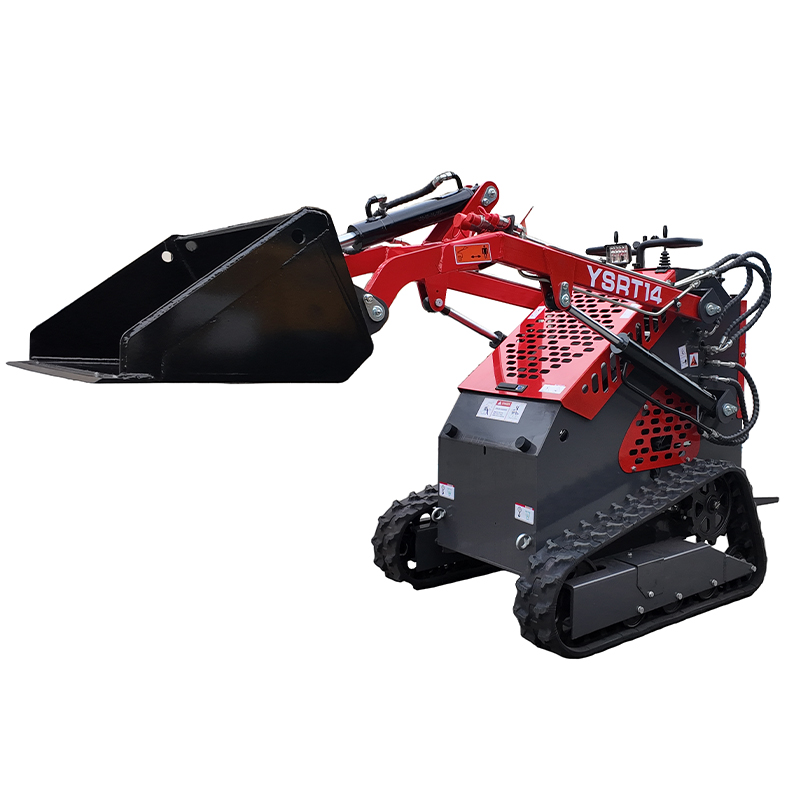

The YSRT14 compact track loader is engineered to deliver precision, power, and agility in confined and demanding workspaces. Built for versatility and reliability, it excels in landscaping, material handling, urban construction support, and light excavation tasks.
With an overall width of just 920 mm and a turning radius of 1500 mm, the YSRT14 is highly maneuverable, making it ideal for operation in tight spaces such as residential yards, greenhouses, warehouses, and narrow construction sites.Powered by a reliable Rato gasoline engine delivering 8.6 kW max power, the loader offers responsive performance with smooth low-speed travel (4 km/h) for precise control. Its rubber track configuration (150×72×36) ensures low ground pressure and superior traction across varied terrains.Equipped with a maximum lifting capacity of 220 kg and a working height of up to 2490 mm, the YSRT14 handles stacking, loading, and material placement tasks with ease. The bucket discharge angle of 21° promotes efficient material release.
Featuring intuitive controls, a spacious operator area, and a compact yet durable body design, this loader ensures operator comfort during extended use while maintaining excellent visibility and accessibility.The machine meets international performance standards and is suitable for a range of climate and site conditions, backed by a robust cooling system, ample hydraulic capacity, and widely available fuel type (92# gasoline).
Designed for operators who value reliability, ease of use, and versatility in a compact machine, the YSRT14 is a dependable partner for daily tasks across landscaping, agriculture, municipal work, and light industrial applications.
Product Details

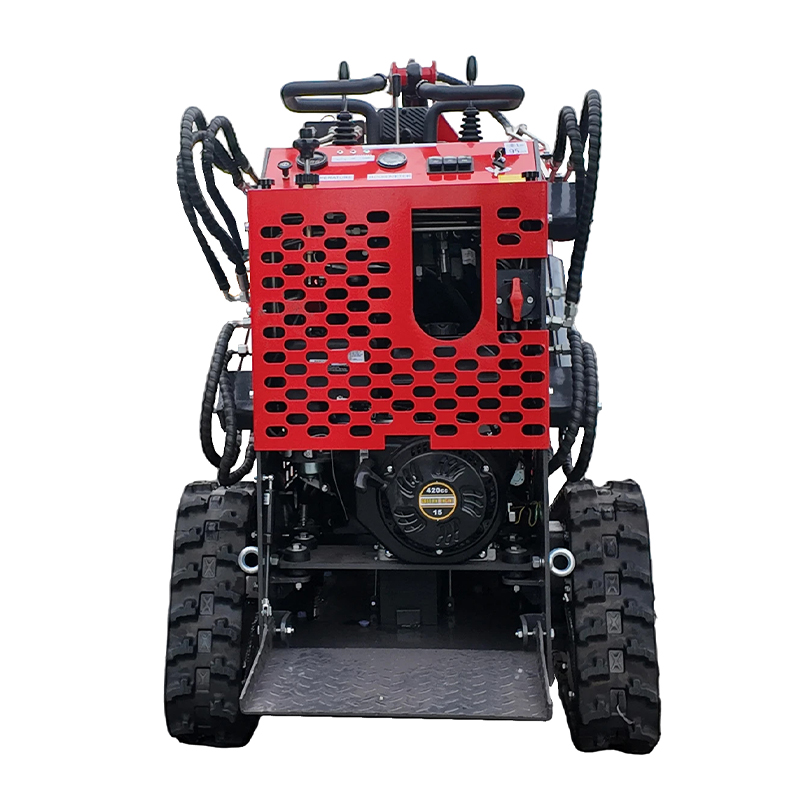

Full Opening Engine Cover The upward-tilting hood provides straightforward, unobstructed access to primary engine parts, significantly simplifying regular maintenance, inspection, and service tasks. |
|

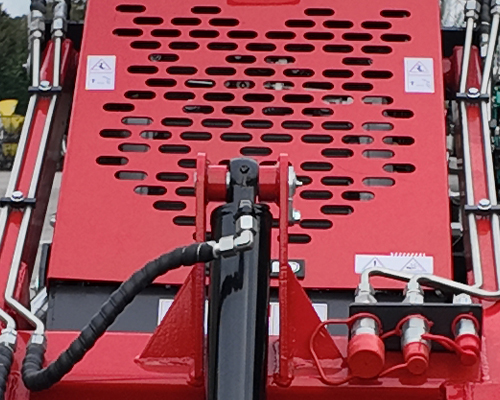

Heat Dissipation Fitted with an upgraded radiator, this system promotes rapid heat dissipation to safeguard core components and sustain high performance in challenging operating environments. |
|
Variable Speed Motor The drive motor enables smooth switching between high and low speed modes, supplying adaptable power and accurate control suited to varied tasks and site conditions. |
|

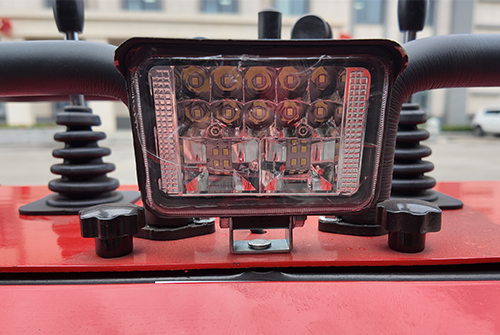

New LED Boom Work Light Integrated LED boom lights (non‑halogen) deliver brighter, more energy‑efficient, and longer‑lasting illumination, improving visibility and productivity in dimly lit work areas. |
|

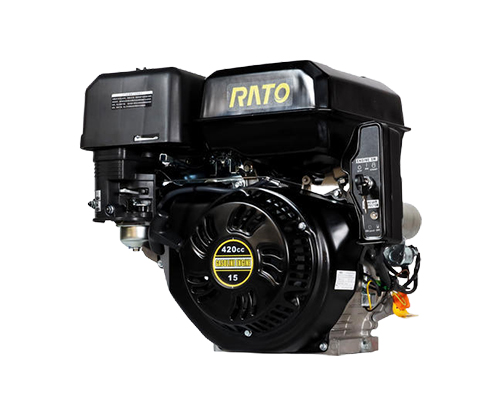

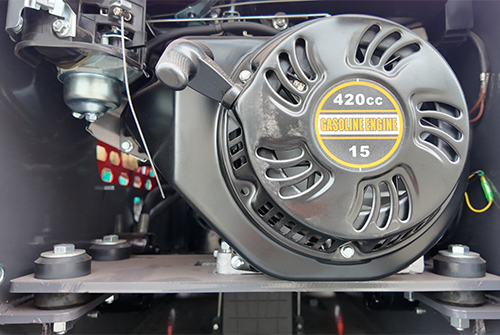

Rato Engine The RATO gasoline engine is designed to provide strong power output and dependable operation. It runs quietly with minimal vibration and offers excellent fuel economy. |
|

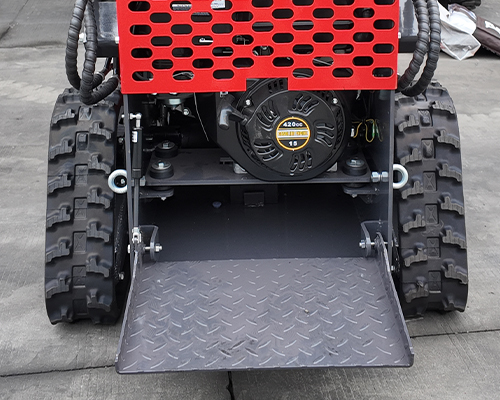

Spacious Operator Experience Offers ample legroom and user‑friendly controls for ease of use. The adjustable driver’s seat can be positioned forward or backward, allowing each operator to tailor their setup for comfort during long shifts. |
|
Product Specifications
Basic Performance Parameters | ||
Working Weight(kg) | 670 | |
Bucket capacity(m³) | 0.06 | |
Travel speed low/high speed(Km/h) | 4 | |
Maximum lifting force (Kg) | 220 | |
C Maximum working height(mm) | 2490 | |
B Maximum pin height (mm) | 1935 | |
A Maximum unloading height(mm) | 1564 | |
G Loading distance at maximum unloading height (mm). | 396 | |
H Wheelbase(mm) | 895 | |
F Ground clearance(mm) | 220 | |
L Bucket discharge angle | 21° | |
Equipment Body | ||
E Bucket width(mm) | 998 | |
J/K Overall Length(mm) | 2166 | |
Overall Width(mm) | 920 | |
D Overall Height(mm) | 1383 | |
Body width(mm) | 826 | |
M Slewing radius(mm) | 1500 | |
Engine | ||
Engine Brand | Rato | |
Maximum power(Kw) | 8.6 | |
Max. speed(rpm) | 3600 | |
Cooling method | Fan cooling | |
Engine oil change quantity(L) | 1.1 | |
Fuel Type | Gasoline | |
Fuel Grade | 92# | |
Tracks | ||

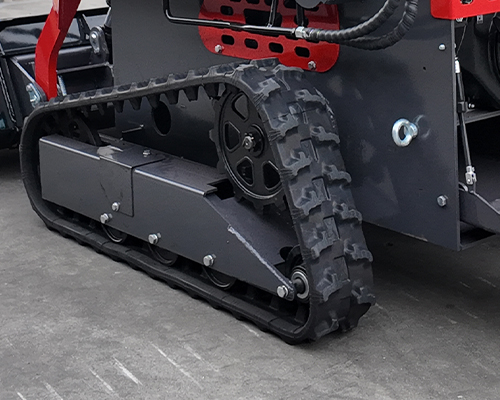

△-Rubber (bandwidth*pitch*number of sections) | 150*72*36 | |
Fuel tank | ||
Fuel tank(L) | 6.6 | |
Hydraulic oil tank(L) | 26 | |
Applications
Landscaping & Garden Operations
Designed for efficient garden and landscape work, this compact skid-steer loader effectively handles material delivery, shallow excavation, surface leveling, and turf restoration. Its small turning circle and responsive control allow operation in private gardens, public parks, and maintained green zones with minimal soil compaction and landscape disruption.
Trenching & Utility Assistance
With refined steering and accurate movement control, this equipment delivers reliable support for utility tasks including trench refilling, supply transport, and conduit installation. Frequently deployed in agricultural watering networks and metropolitan subsurface utility projects, it enhances work pace in constrained or limited-access areas.
Indoor & Restricted Area Work
The machine’s low overall height and distributed track pressure permit productive use in interior dismantling, cellar clearing, and building renovation. Able to enter compact zones unsuitable for larger equipment, it performs reliably in difficult indoor environments such as storage facilities, production plants, and refurbishment sites.
Roadway & City Services
Suited to public infrastructure maintenance, the loader assists with pavement repairs, waste pickup, winter snow clearance, and general municipal care. Its modest size and easy maneuvering enable efficient operation in dense urban layouts without significant road disruption, while optional illumination ensures visibility in early morning or evening conditions.
Material Movement & Site Rehabilitation
When configured with accessories like demolition hammers, fork attachments, or cleanup buckets, the unit capably manages light structural breakdown, channel cleaning, sediment extraction, and refuse collection. It serves as an adaptable resource for ecological recovery projects, hydrological system maintenance, and construction area remediation.
Packaging & Shipping
Export-Secure Packaging & Worldwide Logistics
KMX recognizes that safe transit from factory to jobsite is essential to your equipment investment. Every unit undergoes export-certified packaging and is supported by a fully integrated global logistics system, ensuring complete protection and reliable on-time delivery anywhere in the world.
Secure Containerization & Transit Fixing
Each loader is prepared for sea transport with precision loading into standard shipping containers (20GP/40HQ) using low-profile ramps and expert handling. Inside, machines are immobilized with industrial-grade nylon lashings, timber braces, and wheel stoppers—a multi-point restraint system that eliminates shifting during long-distance ocean and overland transit. Your equipment arrives in factory-fresh condition, ensuring shipment integrity from departure to destination.
Custom Logistics & Delivery Planning
We provide flexible supply-chain options aligned with your schedule and budget. Whether you need Full Container Load (FCL), consolidated LCL shipments, or time-critical air transport, our logistics team designs and executes the most efficient and economical routing—to your port of entry or straight to your project site.

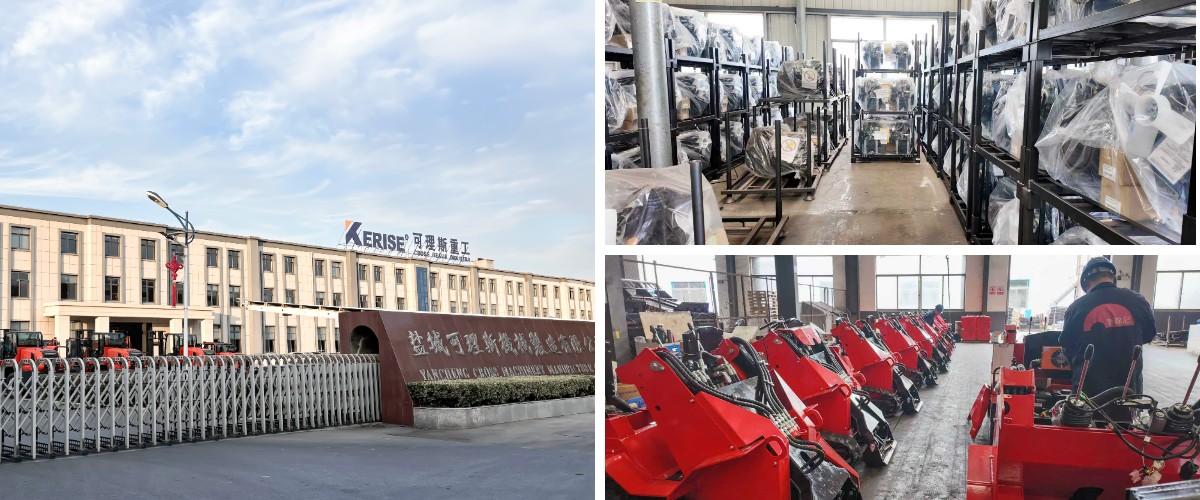

Company Profile
