Wheel Loader for sale
Kubota Engine – Provides high operating efficiency and reliable performance.
High Operating Efficiency – Meets the needs of agricultural material transportation.
Four-Wheel Drive System – Ensures stable driving on muddy fields and improved efficiency.
Adaptable Attachments – Supports quick replacement of more than 10 types of attachments.
Precision Material Transportation – Efficiently transports agricultural materials like fertilizers and seeds.
Product Introduction

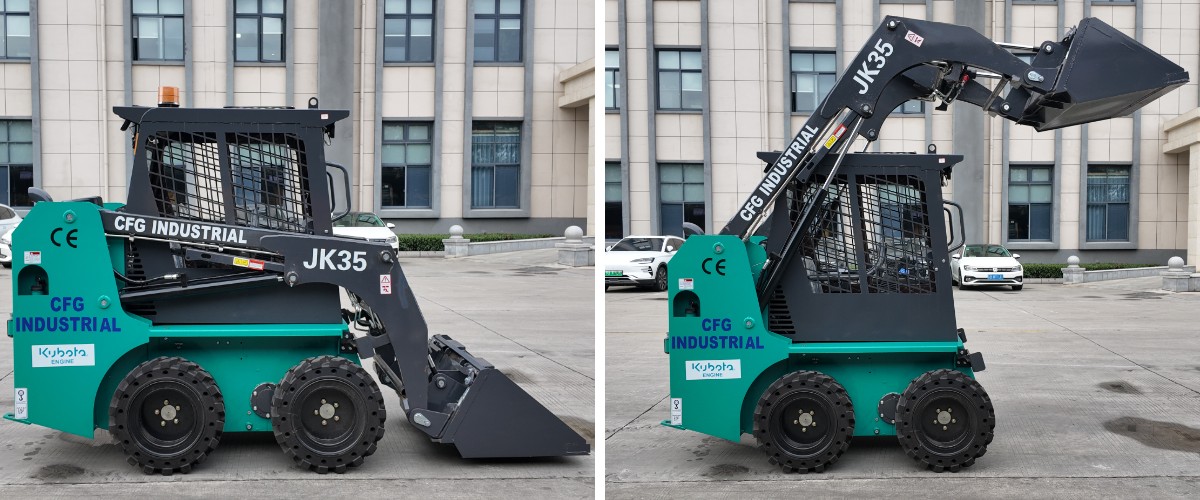

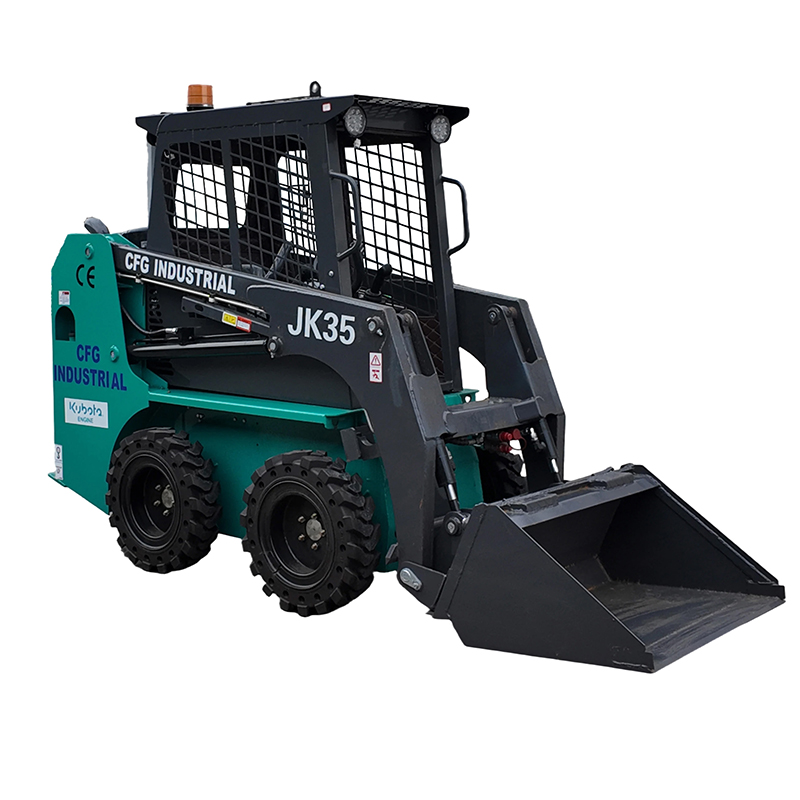

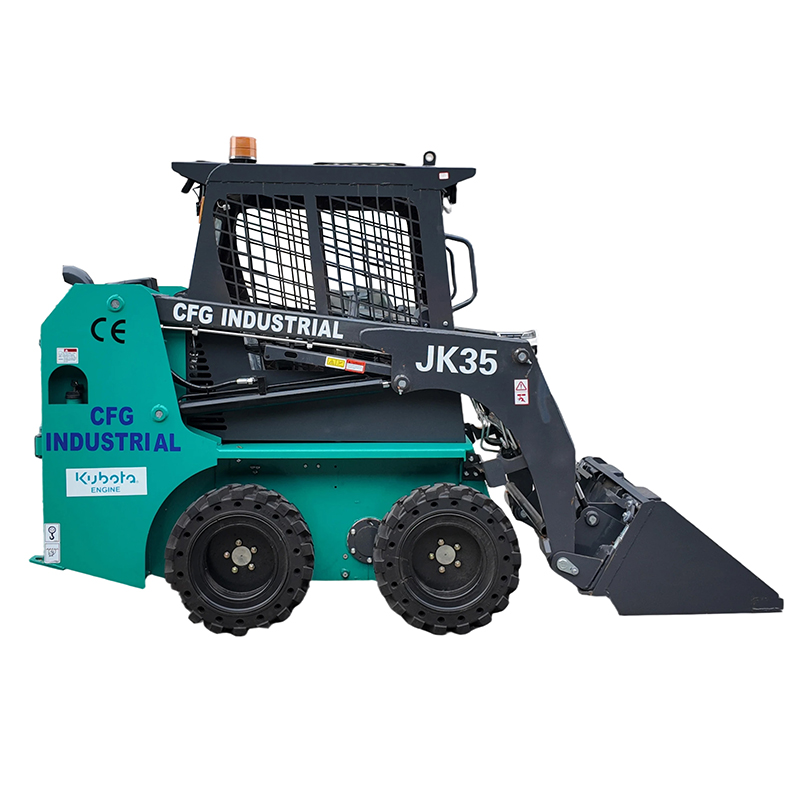

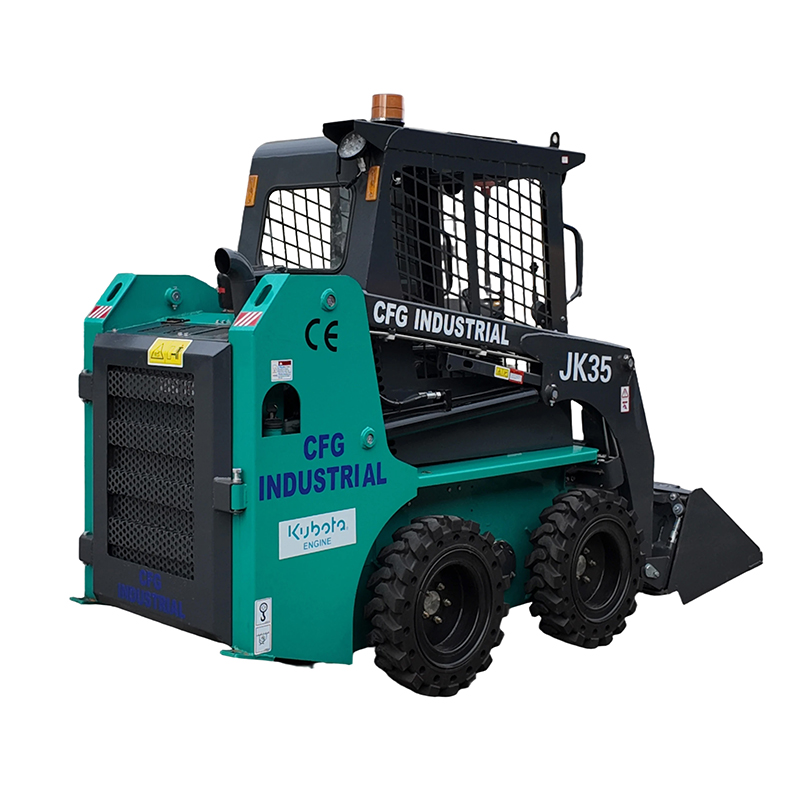

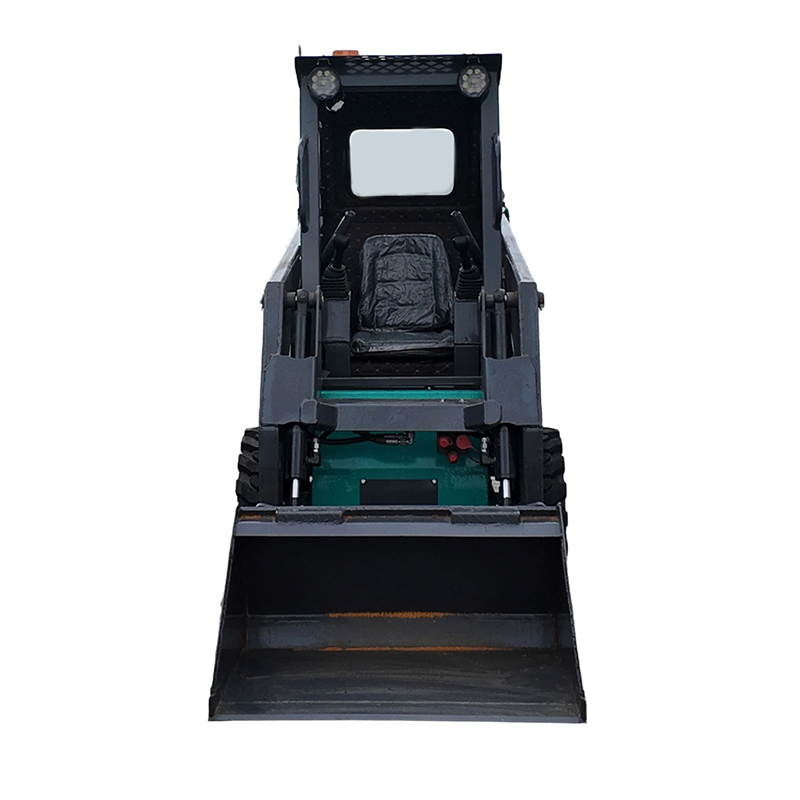

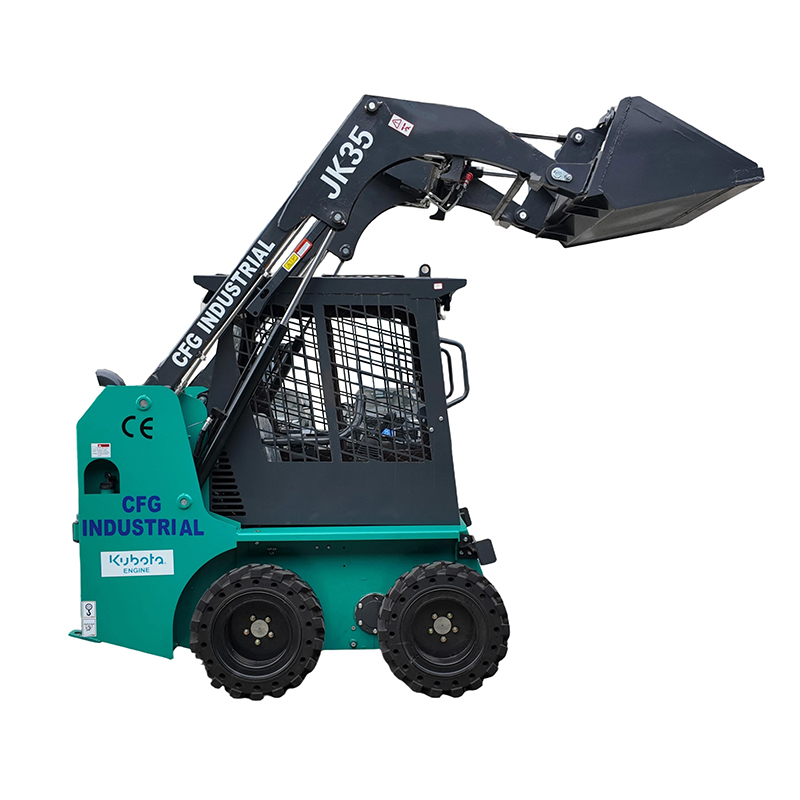

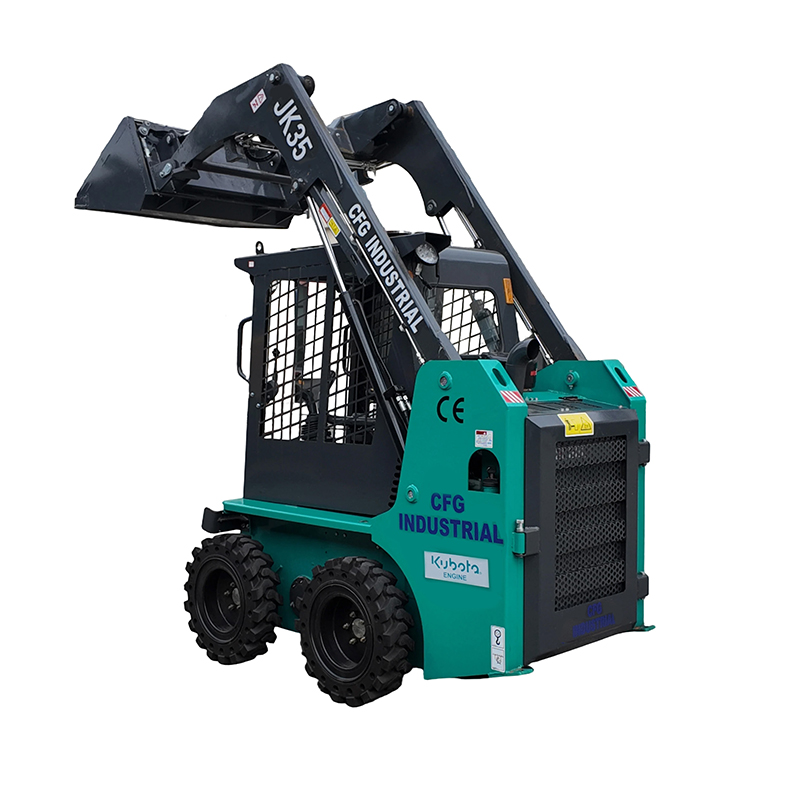

The JK35 Wheel Loader is a versatile, high-performance industrial machine engineered for precision and durability in demanding environments. Equipped with advanced automation capabilities, it delivers exceptional efficiency and reliability across a broad spectrum of applications.
Equipped with a Kubota 3-cylinder diesel engine with a displacement of 1123cc, delivering a maximum power output of 18.2kW (approximately 27 horsepower), ensuring powerful and reliable operation.With an operating weight of 1550kg and a standard 0.16m³ bucket, the JK35 achieves a maximum lifting capacity of 380kg and a maximum working height of 3040mm, enabling it to effortlessly handle daily material handling, lifting, and dumping tasks.
Thanks to its compact design (overall width of only 1080mm and upper structure width of 915mm), the JK35 offers exceptional maneuverability and mobility, with a minimum turning radius of 1730mm, allowing for agile steering in tight spaces. Its travel system provides a travel speed of 7.8km/h and a gradeability of 30%, ensuring operational efficiency and accessibility across various terrains.
Product Details

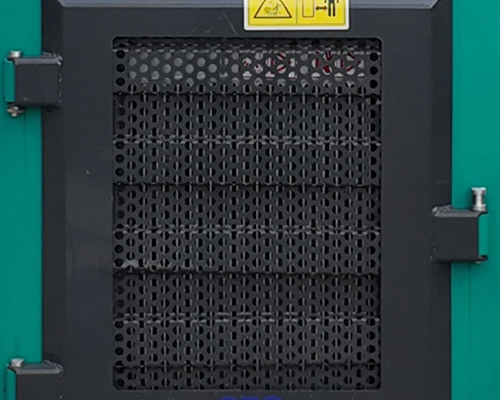

Full-Opening Engine Hood The tilt-up design of the hood provides maximum exposure to the engine, ensuring easy access to all key components and simplifying maintenance tasks. |
|

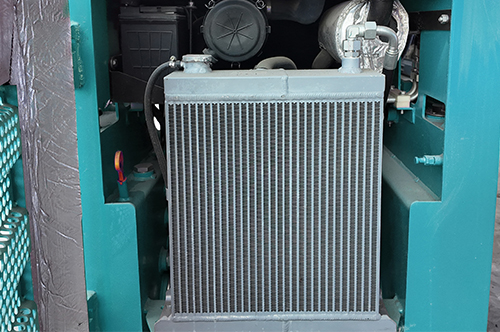

Advanced Cooling System Equipped with an optimized radiator, this system accelerates heat dissipation to protect critical accessories and maintain peak performance under demanding conditions. |
|

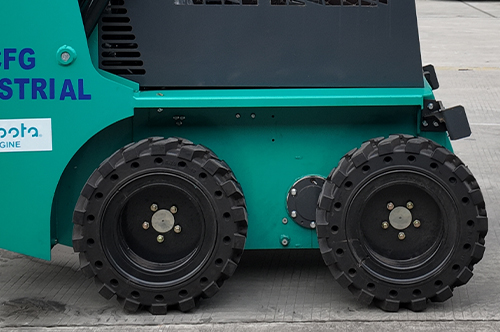

Two-Speed Drive Motor The intelligent travel motor offers both high and low speed modes, enhancing power output and operational flexibility across diverse working environments. |
|

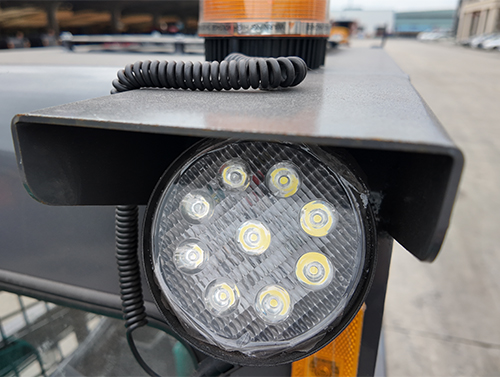

High-Performance LED Boom Light Featuring energy-efficient LED headlights, the machine replaces traditional halogen lighting with brighter, longer-lasting illumination to improve visibility and safety during night operations. |
|

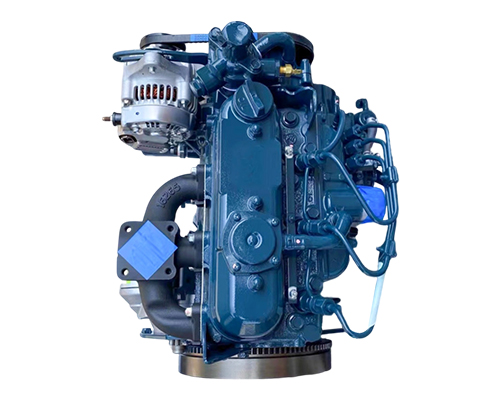

Kubota Diesel Engine Powered by the reliable KKT27 Kubota diesel engine, the loader delivers superior horsepower with exceptional fuel efficiency. Its low noise and vibration levels ensure smooth and quiet operation even under heavy loads. |
|

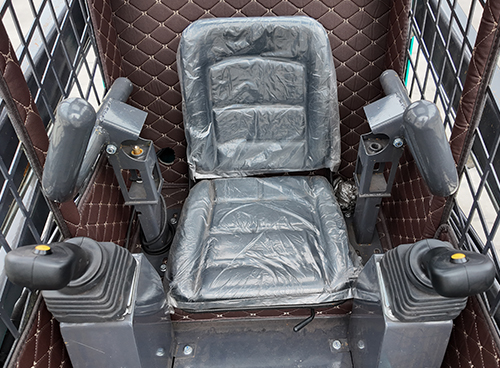

Spacious and Ergonomic Operator Environment The generously sized seating area and ergonomically designed operator platform deliver exceptional comfort during extended operation. Intuitive hydraulic controls enable smooth and precise maneuvering, enhancing overall productivity and ease of use. |
|
Product Specifications
Basic Performance Parameters | ||
Working Weight(kg) | 1550 | |
Bucket capacity(m³) | 0.16 | |
Travel high speed(Km/h) | 7.8 | |
Maximum lifting force (Kg) | 380 | |
Maximum working height(mm) | 3040 | |
Maximum pin height(mm) | 2712 | |
Unloading height(mm) | 2070 | |
Wheelbase(mm) | 800 | |
Ground clearance(mm) | 130 | |
Max. height unloading angle(°) | 30° | |
Equipment Body | ||
Bucket width(mm) | 915 | |
Overall Length(mm) | 2870 | |
Overall Width(mm) | 1080 | |
Overall Height(mm) | 1862 | |
Engine | ||
Engine Brand | KubotaD1105 | |
Maximum horsepower(PS) | 27 | |
Maximum power(Kw) | 18.2 | |
Cooling method | Water cooling | |
Fuel Type | Diesel | |
Fuel tank | ||
Fuel tank(L) | 40 | |
Hydraulic oil tank(L) | 40 | |
Applications of JK35 Wheel Loader
Landscape and Garden Construction
Versatile Groundwork: Perfect for soil handling, tree planting, lawn leveling, and soil preparation in gardens, parks, and green spaces.
Gentle Terrain Operation: The tracked design enables work on grass, soft soil, and wetlands without causing ground damage.
Tight Space Access: Compact dimensions allow easy maneuvering in confined areas like flower beds, courtyards, and urban green zones.

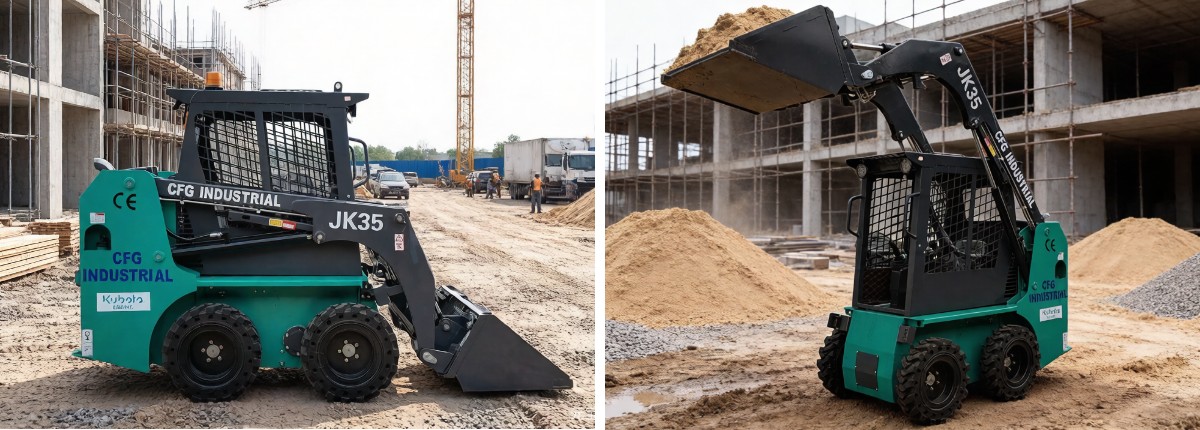

Residential and Small-Scale Construction
Multi-Purpose Utility: Ideal for foundation excavation, ground leveling, light concrete mixing, and material handling.
Exceptional Accessibility: Capable of accessing basements, garages, narrow sites, and temporary construction areas unreachable by larger equipment.
Agriculture and Facility Operations
Efficient Material Management: Handles fertilizers, soil, feed, and small agricultural machinery in fields, greenhouses, orchards, and vegetable tunnels.
Superior Traction: The tracked chassis ensures enhanced stability on muddy or soft terrain.
Municipal and Infrastructure Maintenance
Urban Works Solution: Suitable for small pipeline projects, sewer maintenance, curb installation, and minor municipal tasks.
Minimal Disruption: The compact body enables flexible operation on streets, sidewalks, and narrow alleys while reducing environmental impact.
Light Demolition and Material Handling
Attachment Versatility: Equipped with breakers or grapples for light demolition, debris removal, and material stacking.
Rapid Task Completion: High flexibility allows quick execution of small-scale renovation and demolition projects.
Indoor or Special Environment Operations
Confined Space Capable: Able to enter warehouses, factories, or underground parking lots for cleaning, loading, and unloading tasks.
Low-Impact Operation: Low noise and vibration levels make it suitable for projects with strict environmental requirements.
Packaging & Shipping
Transportation Methods
Small skid steer loaders are typically transported long distances via flatbed trucks or shipping containers.

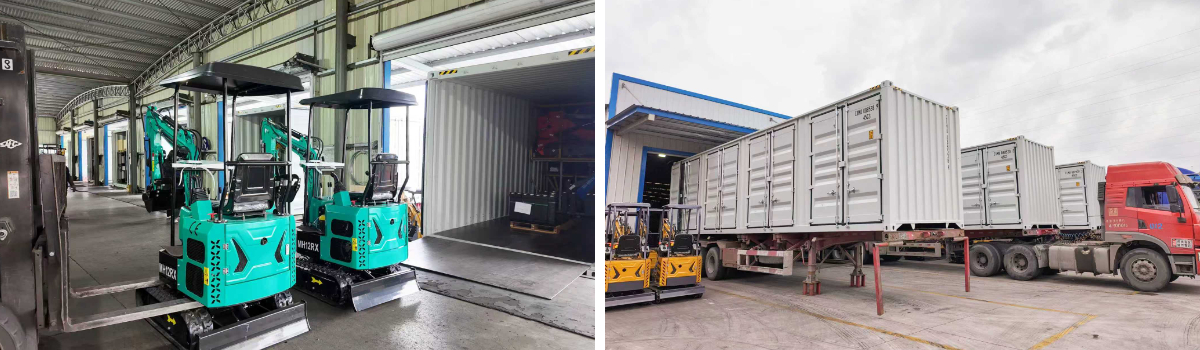

Container Shipping: Enclosed containers safeguard machines from rain, dust, and road vibrations, with options for single-unit or multi-unit transport using specialized frames.
Batch Shipping: Multiple units can be secured on transport frames for efficient group transportation, optimizing logistics costs.
Packaging Methods
Wooden Crate Packaging: Fully enclosed crates provide maximum protection for entire machines or critical components, ideal for long-distance or export shipments to prevent impact and weather-related damage.
Metal Frame Packaging: Space-efficient metal frames secure the machine while facilitating easy loading/unloading, suitable for batch transport where space optimization is key.
Additional Protection: Hydraulic arms, control handles, tires, and other vulnerable components are padded or wrapped with protective materials to minimize transit damage.
Loading and Securing
Pre-Transport Preparation: Equipment is firmly secured to wooden crates or metal frames to prevent shifting or tipping during handling and transit.
Stacking Guidelines: Smaller models may be stacked for shipment to maximize space utilization, while larger units require individual loading to ensure safety.
Packaging Protocol: All packaging must be completed prior to transportation to guarantee secure and damage-free delivery.
Company Profile

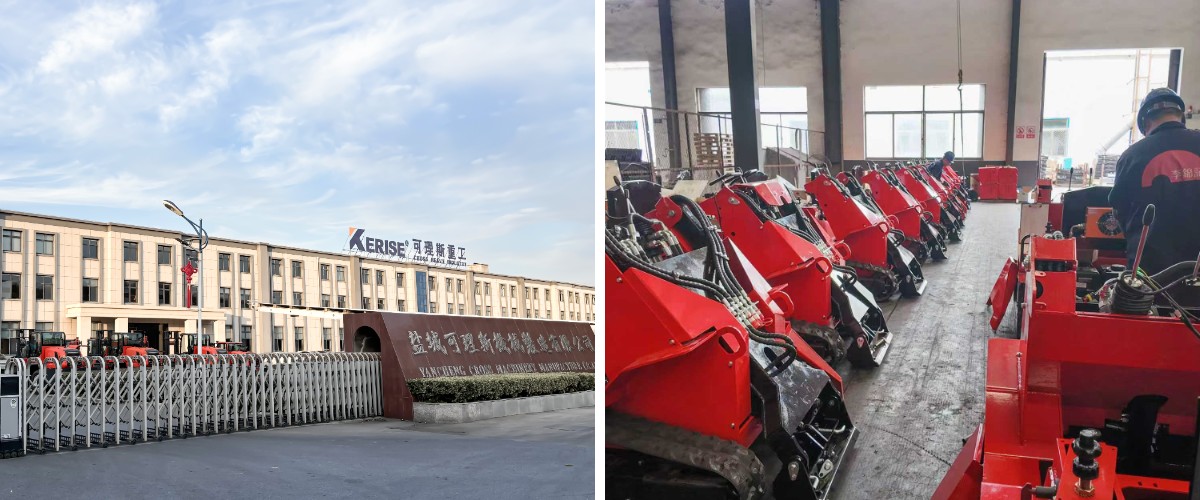

Founded in 2009, Yancheng KMX is a comprehensive engineering machinery manufacturer integrating R&D, production, export, and service. Spanning over 270,000 square meters, the company employs more than 500 professionals and operates three self-owned warehouses in Chicago and Houston, USA, covering 100,000 square meters.
