3 Ton Mini Excavator For Sale
Compact Size: Ideal for tight spaces like wastelands and sloping lands, making it perfect for land leveling and reclamation tasks.
Powerful Performance: Delivers robust digging and lifting capabilities suitable for various agricultural and landscaping projects.
High Efficiency: Operates efficiently with a maximum digging height of 4235mm and a maximum digging radius of 4780mm.
Versatile Applications: Suitable for tasks such as turning soil, leveling ground, and clearing shrubs and tree roots in farmlands and orchards.
Product Introduction

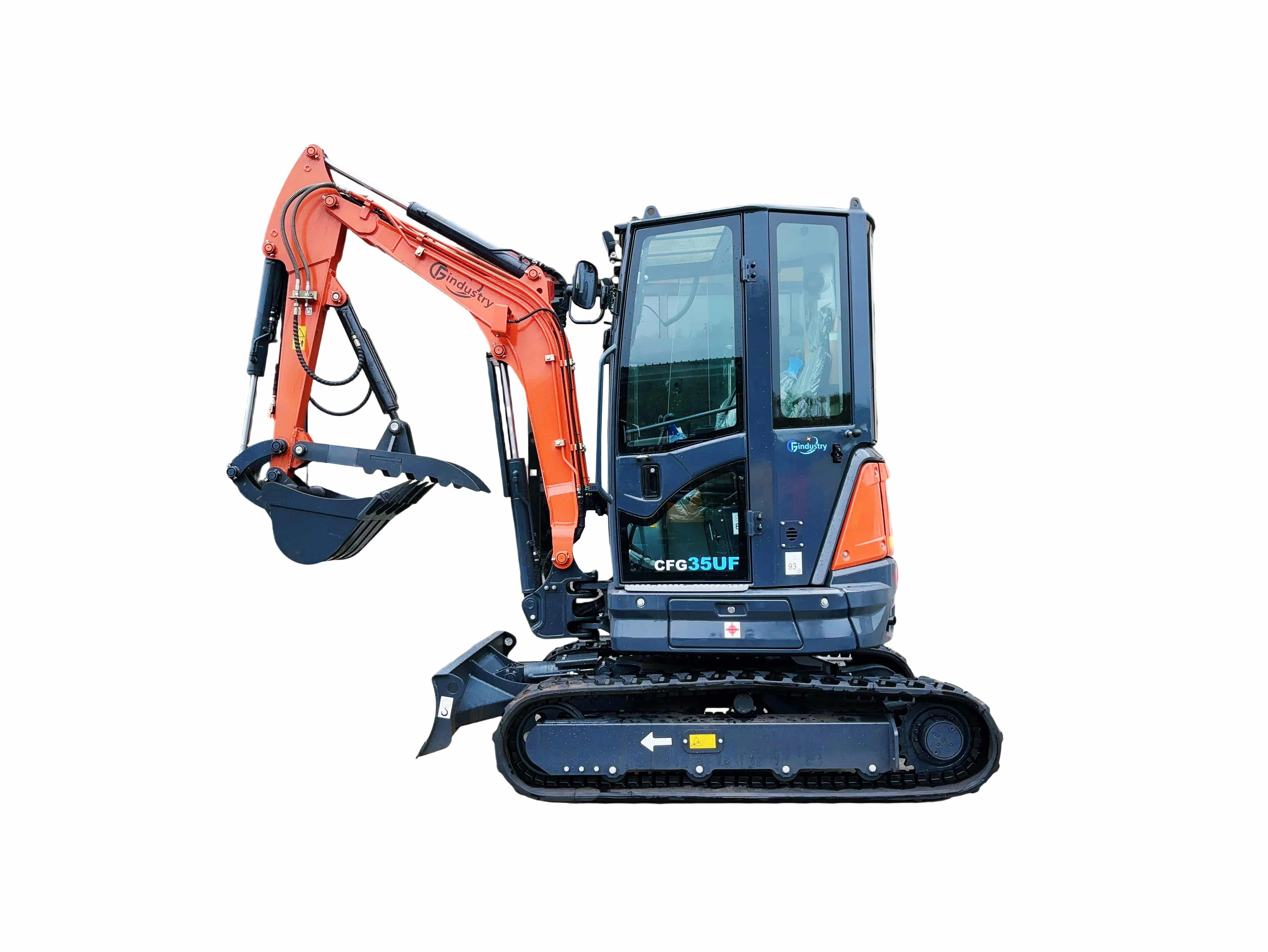

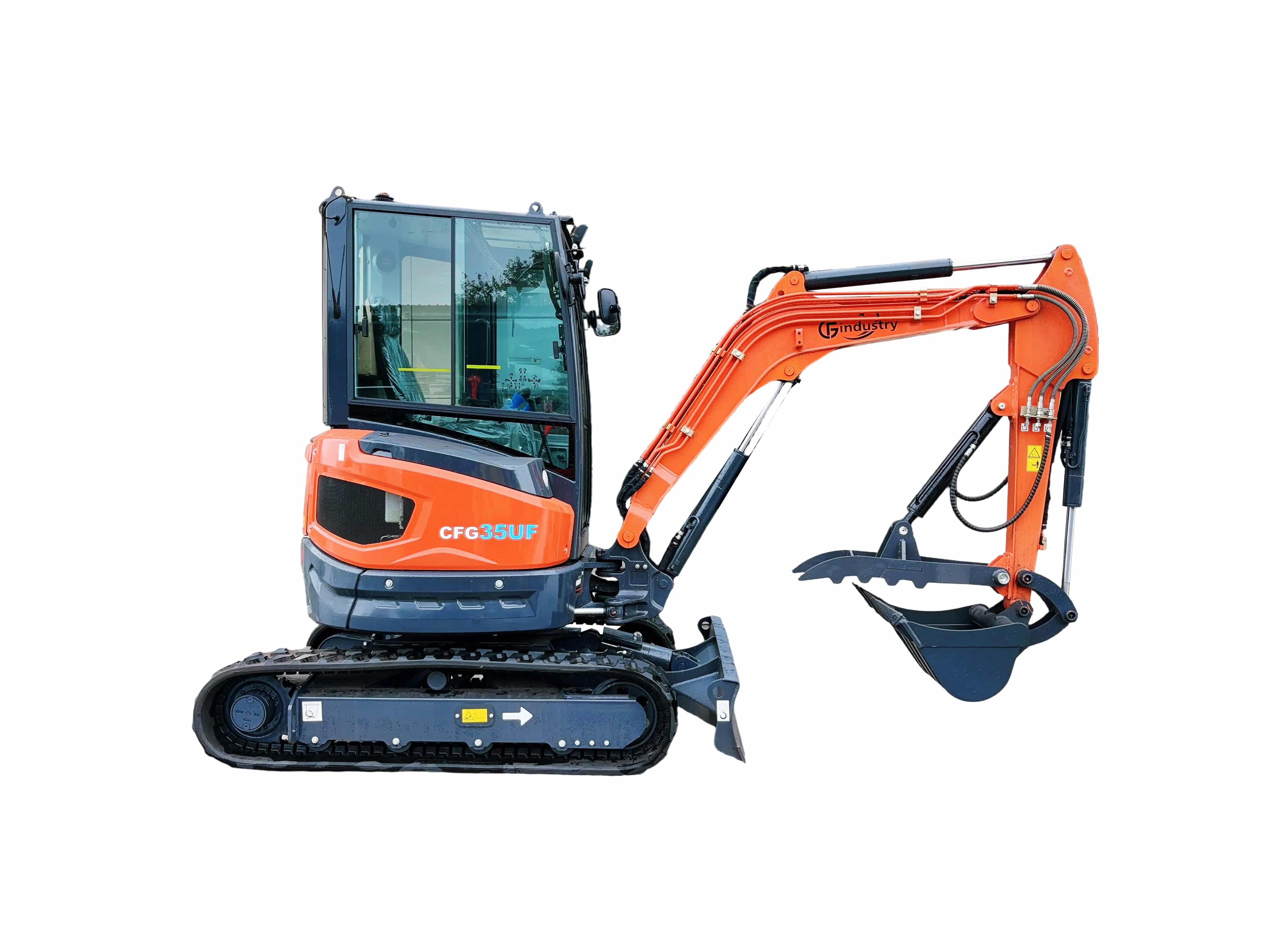

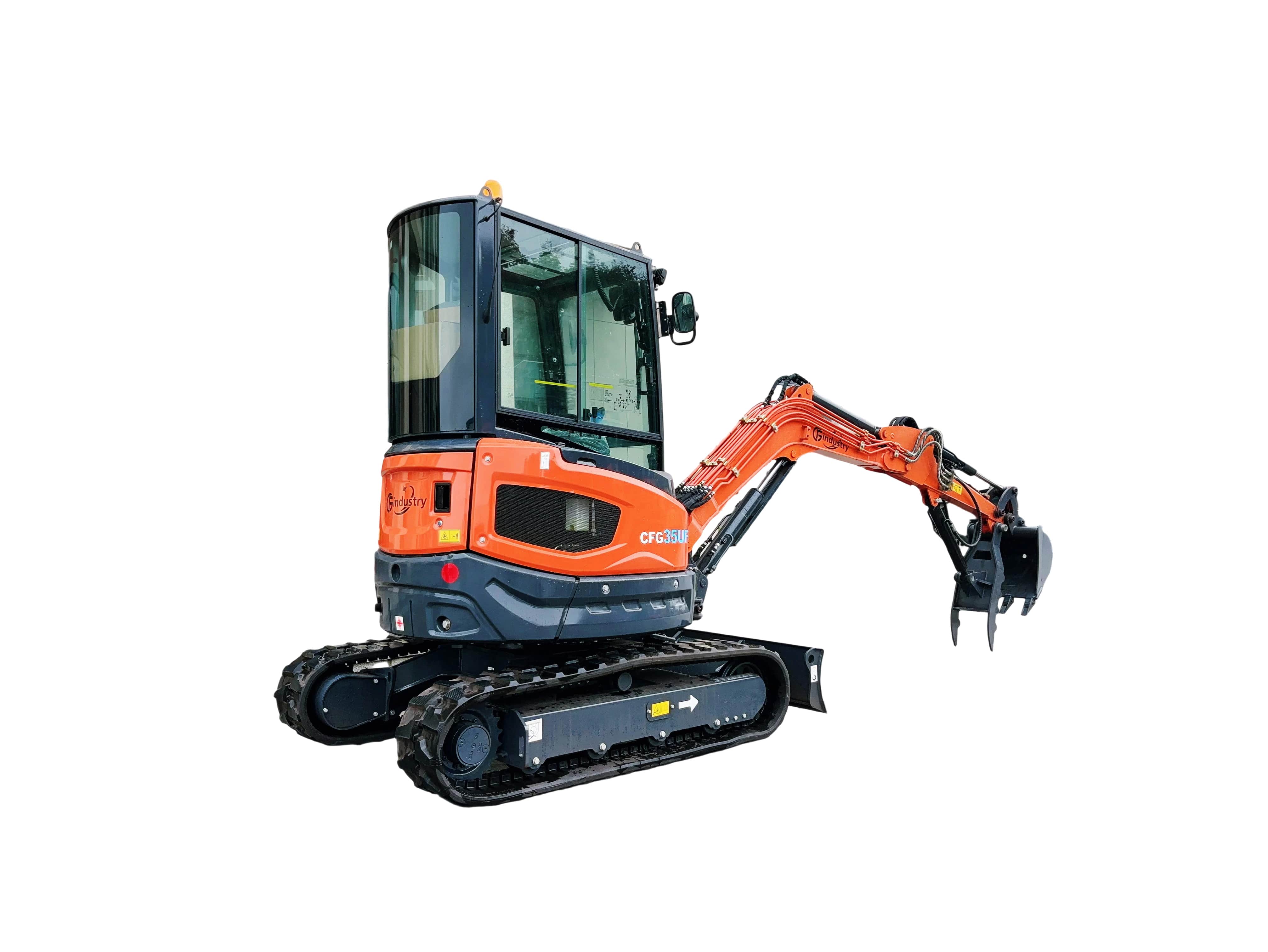

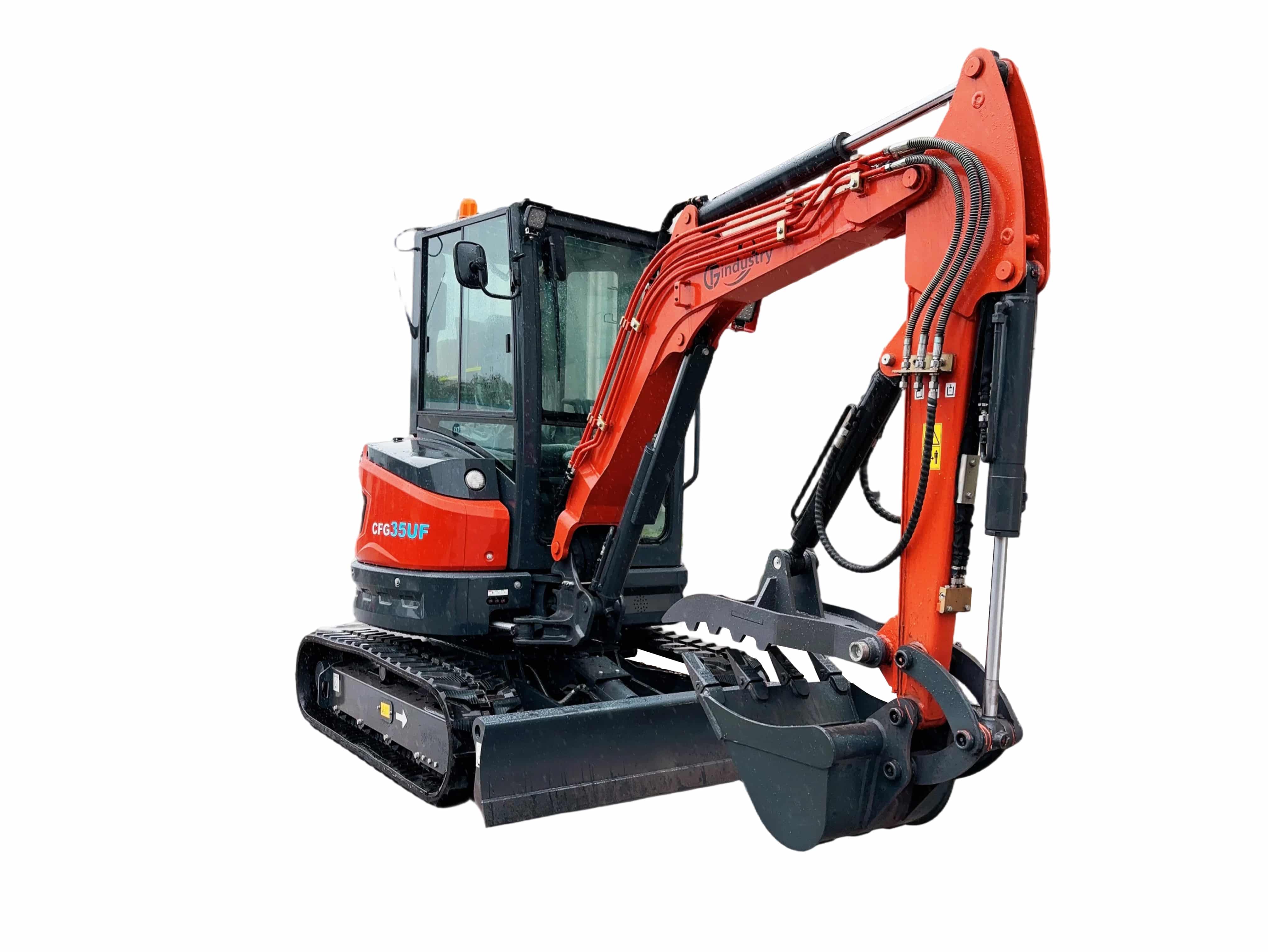

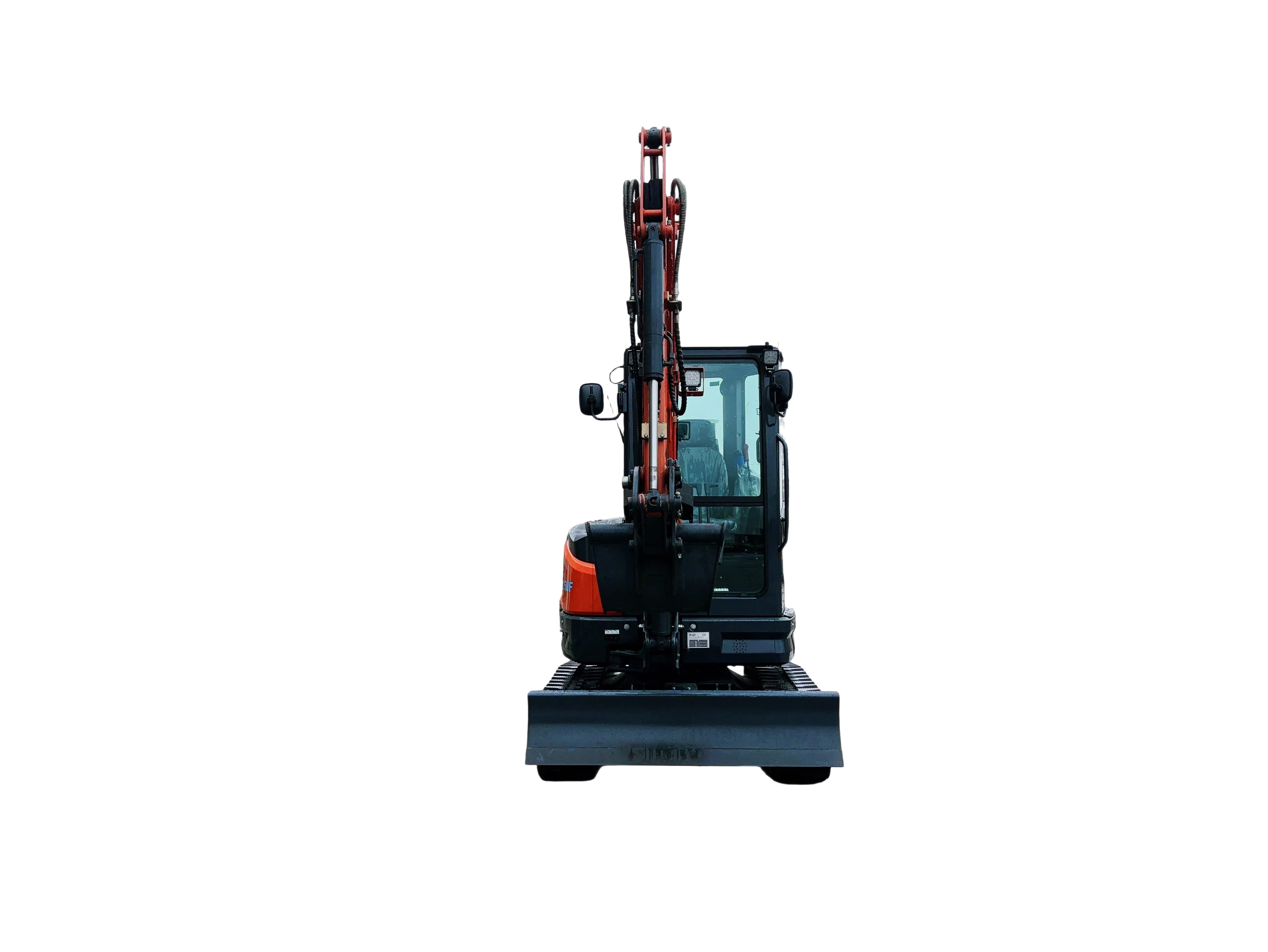

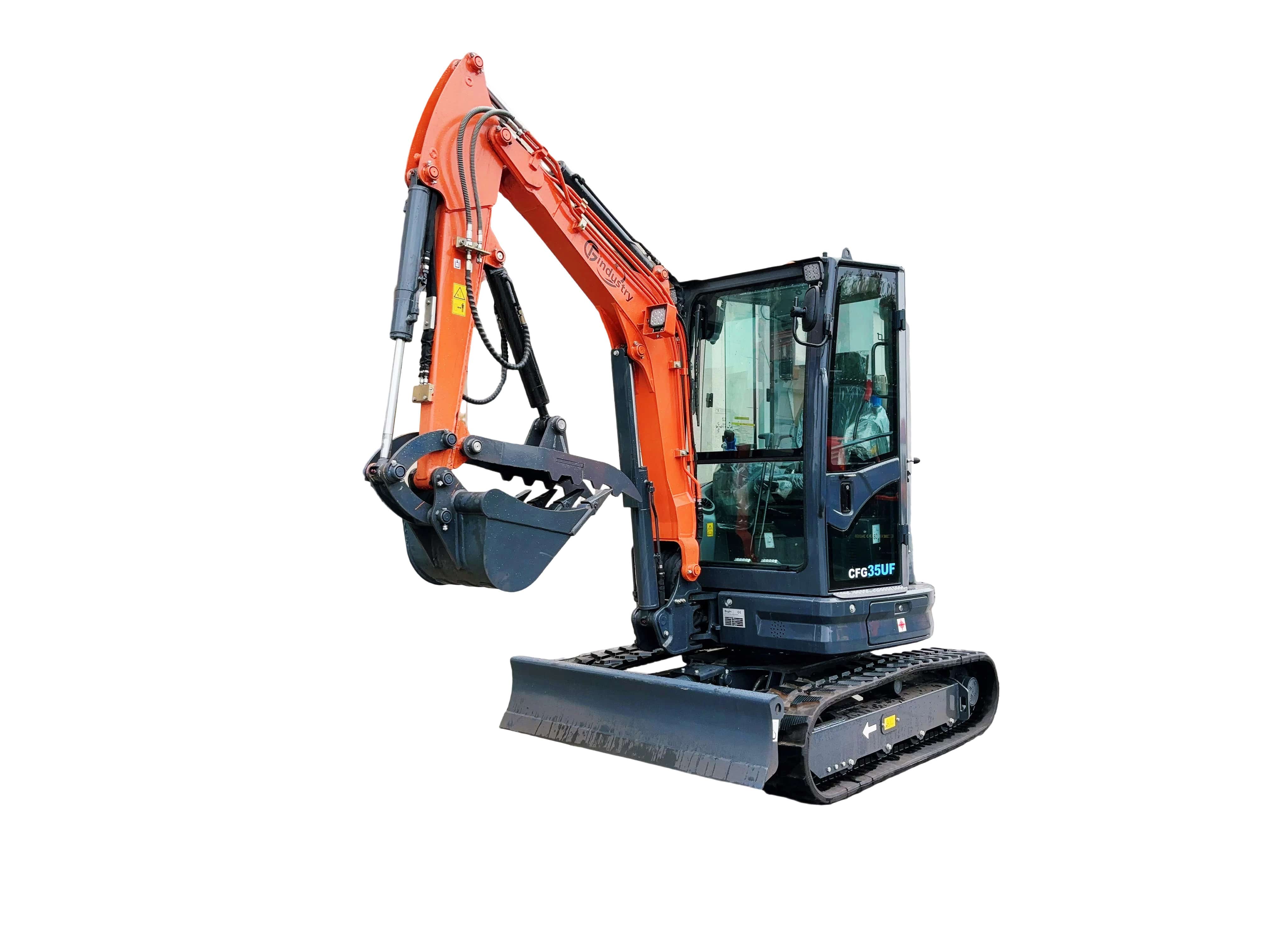

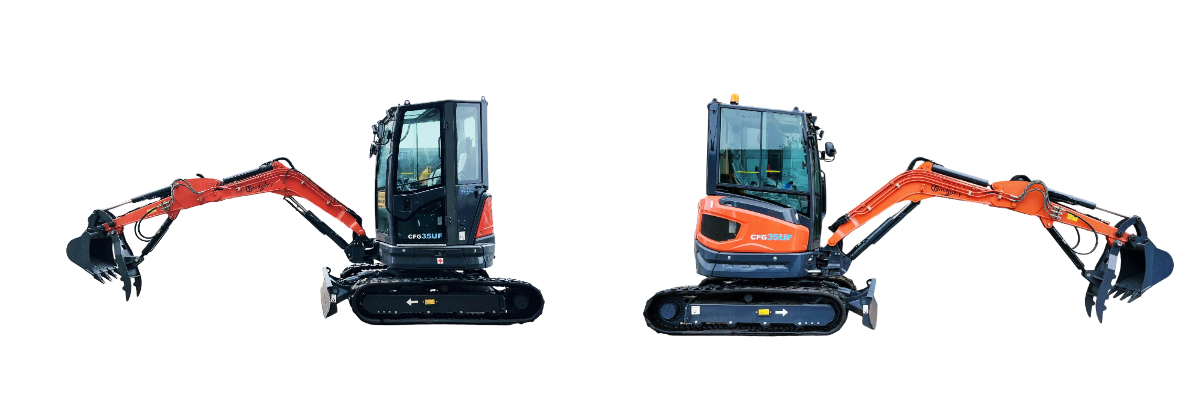

The CFG35UF Compact Excavator is engineered for high performance and versatility in confined spaces. Designed to tackle a wide range of agricultural, landscaping, and land reclamation tasks, it combines robust power with exceptional maneuverability.
This Excavator With an overall length of just 4150 mm and an operating weight of 2800 kg, this model excels in tight and challenging environments such as wastelands, sloping lands, and dense orchards.
Equipped with a reliable Kubota D1105 diesel engine, it delivers a rated power of 15.4 kW, ensuring strong and efficient performance for demanding digging and lifting operations.
Features an advanced piston pump hydraulic system, providing responsive and powerful control for all attachment functions, enhancing overall job site productivity.
Offers a maximum digging height of up to 4235 mm and a maximum digging radius of 4780 mm, allowing it to handle deep excavation and long-reach tasks effectively.
Ideal for multiple tasks including soil turning, land leveling, ground clearing, shrub removal, and tree root excavation in farms, gardens, and construction sites.
Includes a fuel tank capacity of 26 L for extended operation and a bucket capacity range of 0.04-0.13 m³ suited for various material handling needs.
Ideal For Farmers, landscapers, contractors, and rental services looking for a dependable, powerful, and agile compact excavator for versatile project requirements.
Product Details

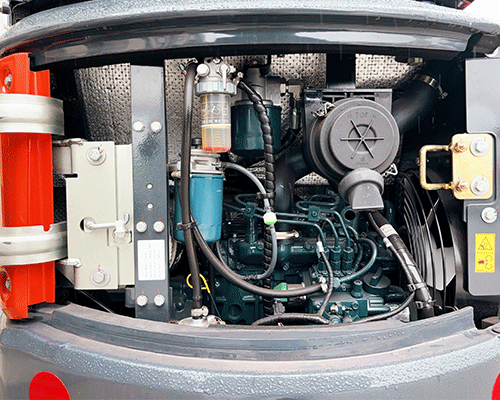

Full-Opening Engine CoverThe engine cover is designed to tilt upward fully, allowing direct access to the engine and key components for easier inspection and maintenance. |
|

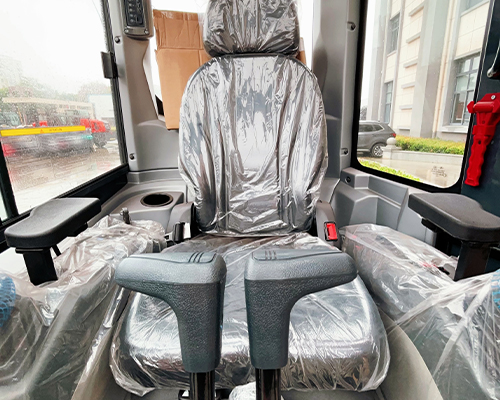

Spacious Driving ExperienceThe operator’s cab offers ample legroom and easy-to-reach controls. The driver’s seat is adjustable forward and backward for enhanced comfort during long working hours. |
|

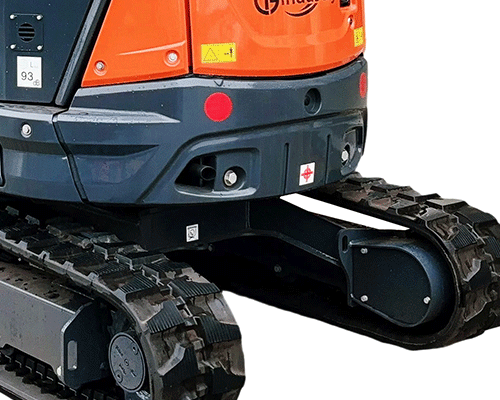

Reinforced ChassisBuilt using a one-piece forging process, the chassis is extended and reinforced for greater durability and structural strength. |
|

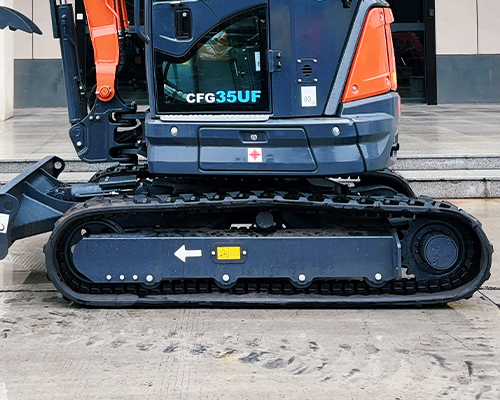

Variable Speed Motor Travel motor, supports high and low speed, more powerful. |
|

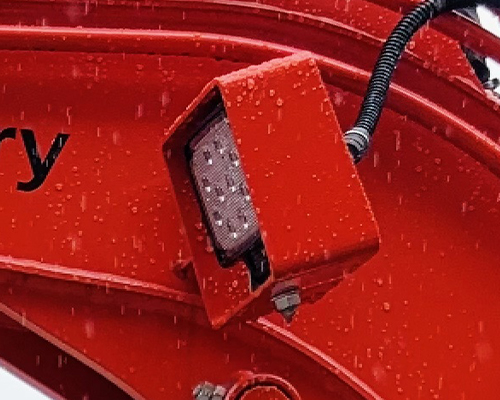

New LED Boom Work LightThe halogen lights are replaced with LED work lights mounted on the boom, providing brighter illumination with lower power consumption. |
|

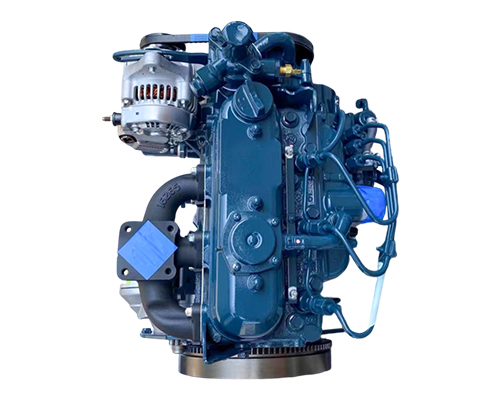

Kubota EngineEquipped with a reliable Kubota diesel engine rated at 15.4 kW, ensuring consistent performance and fuel efficiency. |
|
Product Specifications
Model Information | CFG35UF |
Working Range Parameters | |
Max. digging height | 4235/4120mm |
Max. dumping height | 3040/2925mm |
Max. digging depth | 2800/2595mm |
Max. vertical digging depth | 2590/2390mm |
Max. digging radius | 4780/4590mm |
Max. reach at ground level | 4665/4470mm |
Max. lifting height of dozer blade | 325mm |
Max. digging depth of dozer blade | 300mm |
Min. swing radius | 2055/2040mm |
Machine Dimension Parameters | |
Outline dimension (L×W×H) | 4150 × 1500 × 2510mm |
Wheelbase | 1560mm |
Overall length of crawler | 1990mm |
Platform ground clearance | 570mm |
Tail swing radius | 765mm |
Chassis width | 1500mm |
Track shoe width | 300mm |
Chassis ground clearance | 325mm |
Crawler height | 475mm |
Overall length | 4150mm |
Overall height of cab | 2510mm |
Upper-structure width | 1450mm |
Dozer blade dimension (L×W) | 1500 × 325mm |
Specifications | ||
| Operating weight | kg | 2800 |
| Bucket capacity | m³ | 0.04～0.13 |
| Engine | ||
| Engine Brand | Kubota | |
| Engine model | D1105 | |
| Rated power | kW/rpm | 15.4/2400 |
| Max. torque | N ·m/rpm | 71.4/1600 |
| Displacement | L | 1.123 |
| Hydraulic System | ||
| Main pump type | piston pump | |
| Max. flow rate of main pump | L/min | 67.2 |
| Rated set pressure | Mpa | 24.5 |
| Pilot pressure | Mpa | 3.3 |
| Performance | ||
| speed of gyration | rpm | 9 |
| Walking speed | km/h | 4.4/2.6 |
| Gradeability | % | 57 |
| Ground pressure | kPa | 27 |
| Fuel tank capacity | ||
| Fuel tank | L | 26 |
| Hydraulic tank | L | 24 |

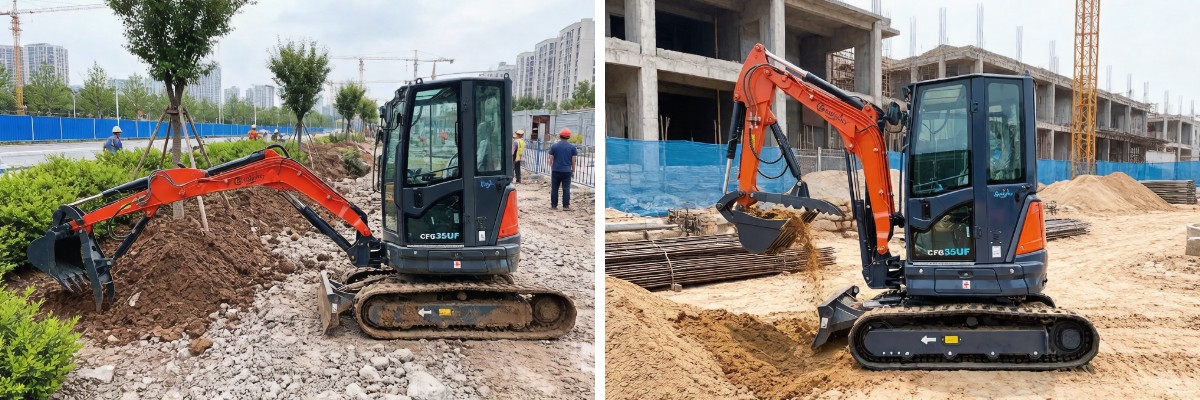

Applications
Land Leveling
Mini excavators are ideal for preparing fields and orchards by turning soil, leveling terrain, and clearing weeds and rocks — creating a ready foundation for planting and sowing.
Wasteland Reclamation
Even on small plots of wasteland or slopes, mini excavators can efficiently clear shrubs and roots to transform unused land into productive, cultivable soil.
Ridge and Ditch Excavation
These versatile machines can also construct ridges, drainage ditches, or irrigation channels, helping optimize farmland drainage and prevent waterlogging.
Packaging & Shipping
Our mini excavators are delivered with professional, export-grade packaging and logistics solutions to ensure optimal protection and secure global delivery.

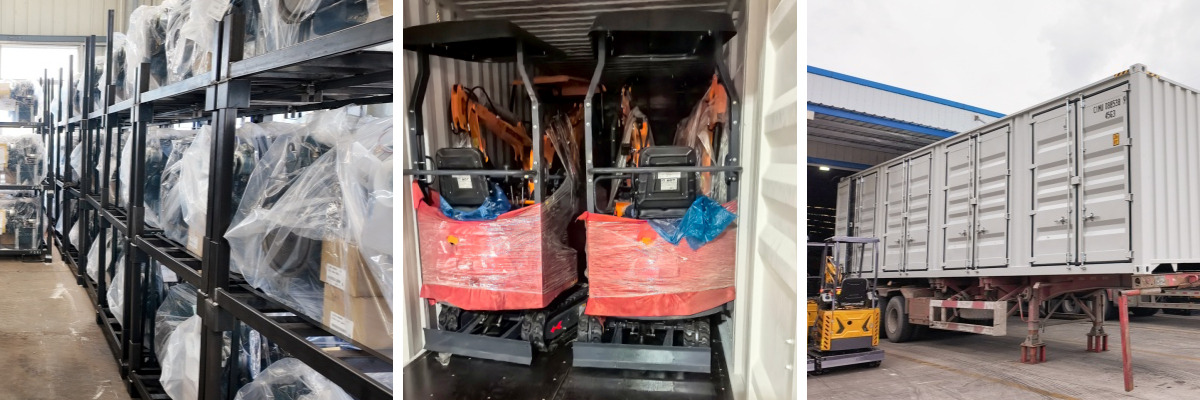

Robust Export Packaging
Each excavator is mounted on a reinforced steel frame and fully wrapped in protective plastic film, shielding critical components from dust, moisture, and minor impacts during transit.
Secure Container Loading
Units are methodically loaded into standard 20GP or 40HQ containers using forklifts and ramps, then firmly lashed and secured to prevent shifting—guaranteeing stable and safe transport by sea or land.
Company Profile
Founded in 2009, Yancheng KMX Machinery Manufacturing Co., Ltd. specializes in the production of construction and landscaping machinery. The company combines research and development, manufacturing, global sales, and after-sales service to offer reliable solutions to clients across the world.
Spanning an area of over 270,000 square meters and staffed by more than 500 skilled professionals, KMX has established overseas warehouses in Chicago and Houston to enhance its service in international markets, ensuring swift delivery, efficient logistics, and localized customer support.
Supported by a dedicated R&D team and holding 93 patents, KMX provides a diverse range of loaders, excavators, and landscaping equipment, all manufactured to meet international quality standards. Recognized as a National High-Tech Enterprise and a “Specialized and Innovative” Little Giant Enterprise, KMX stands out through its commitment to innovation and technical excellence.

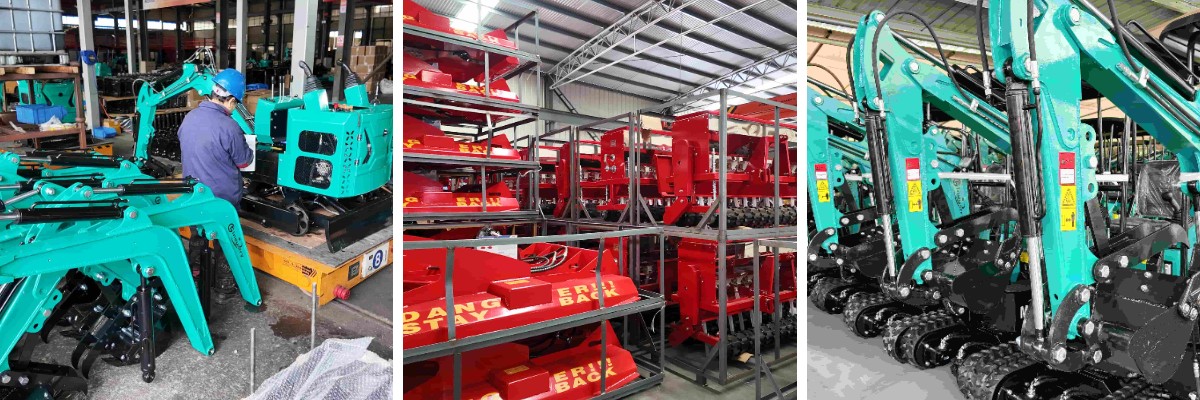

The company continuously invests in smart manufacturing and advanced technologies, such as automated laser cutting, CNC machining centers, robotic welding, and digital management systems including PLM and ERP. These facilities guarantee high efficiency, precision, and consistent product quality.
