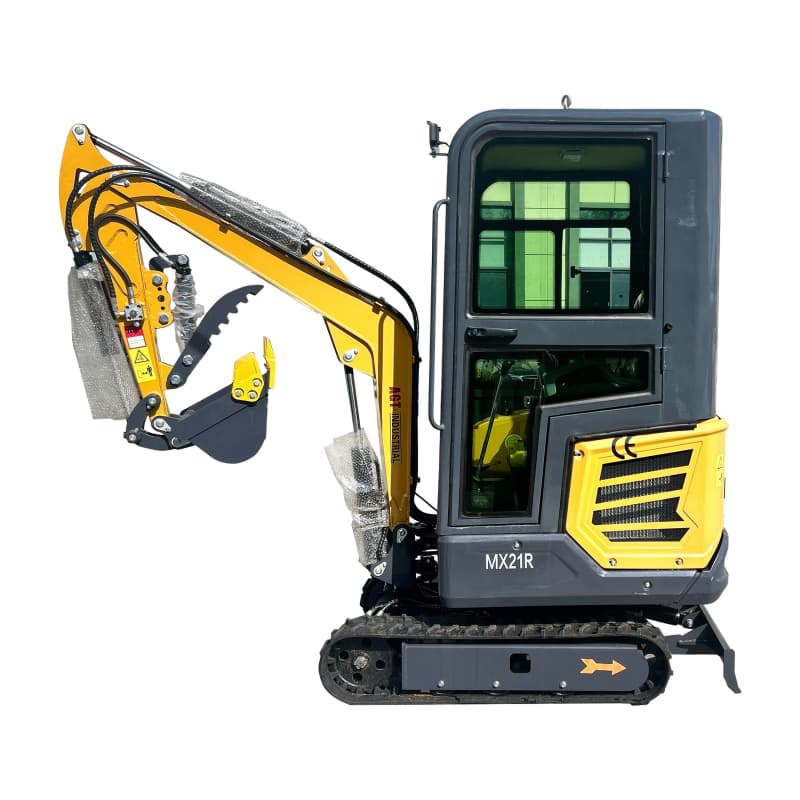

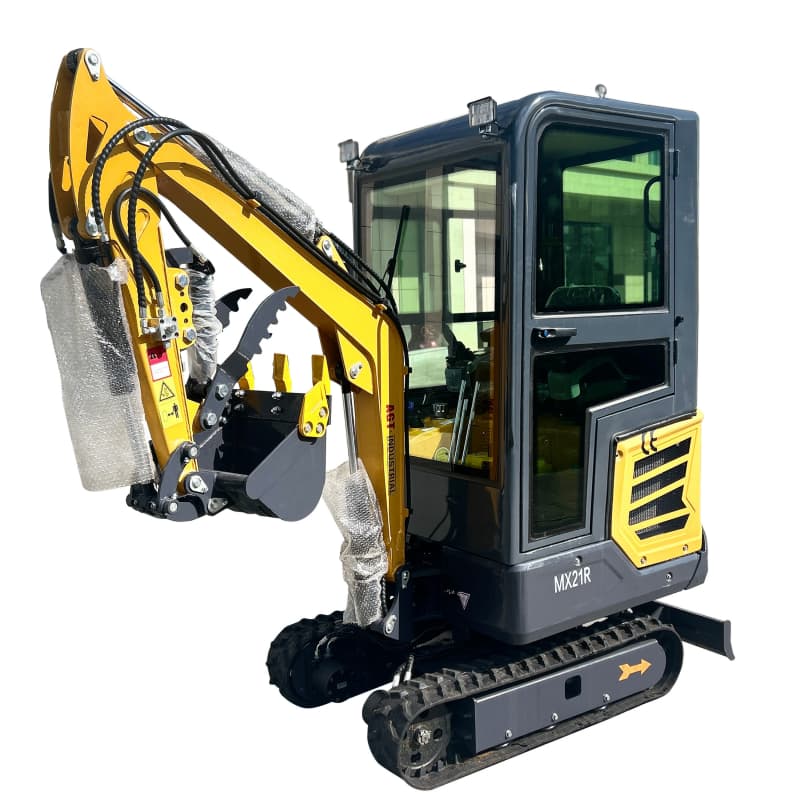

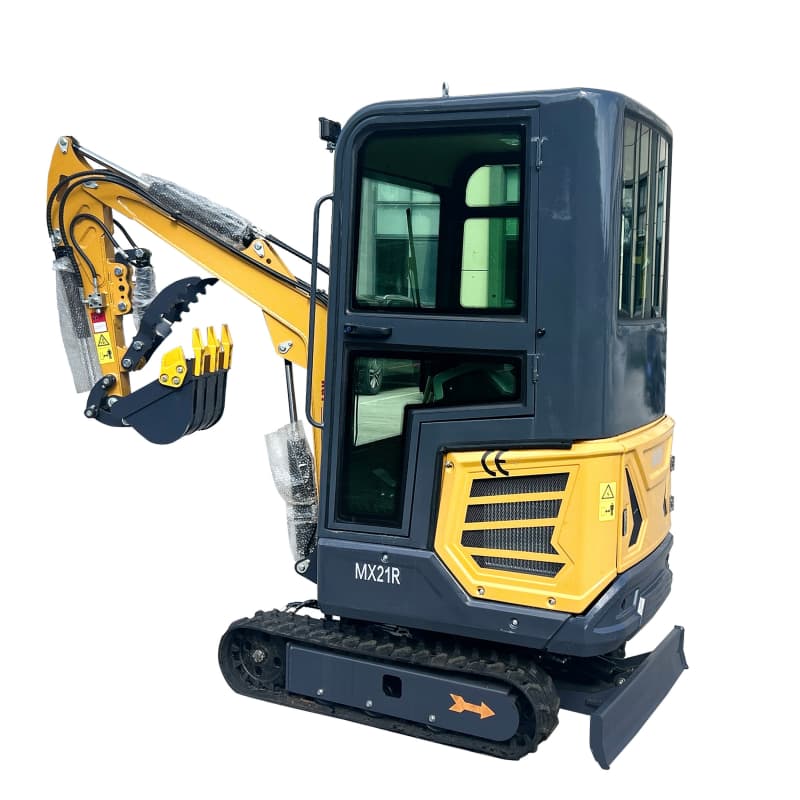

2 Ton Mini Digger
Compact & Versatile Design: With a working weight of 1284kg and a compact body, it excels in confined spaces and on varied terrains.
Robust Power & Efficiency: Features a 17kW Rato gasoline engine, ensuring strong digging force and reliable performance with standard 92# fuel.
Superior Excavation Performance: Offers extensive reach with a 3305mm digging radius, a 2257mm digging depth, and a 2890mm dumping height for enhanced productivity.
Exceptional Maneuverability: Boasts a 30% climbing ability and two-speed travel (0-2 km/h), providing excellent stability and control on slopes and rough ground.
Product Introduction
Product Details
Built−in oil pipe The oil pipe is hidden inside the boom, effectively reducing the risk of pipeline damage. |
|

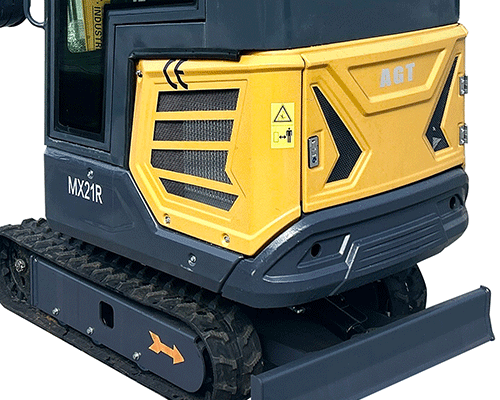

RATO engine The MX21R is equipped with a high-performance Rato gasoline engine that combines strong power output with outstanding reliability. Designed for low noise and minimal vibration, this engine also delivers remarkable fuel efficiency, ensuring both productivity and cost-effectiveness in various working conditions. |
|

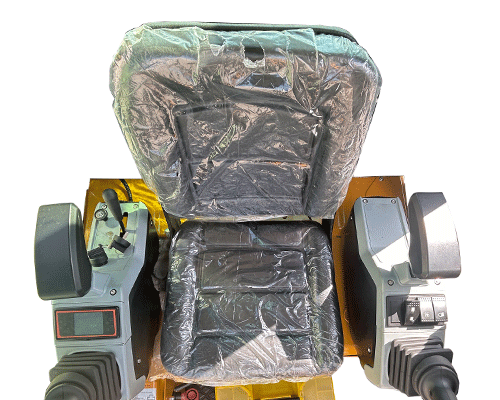

Ergonomic Operator Cabin Featuring generous legroom and an adjustable sliding seat, the cabin ensures comfortable operation and reduces fatigue during long working hours. |
|
Robot welding The large and small arms of the excavator are welded by robots, and the structural strength is increased by 8%. |
|

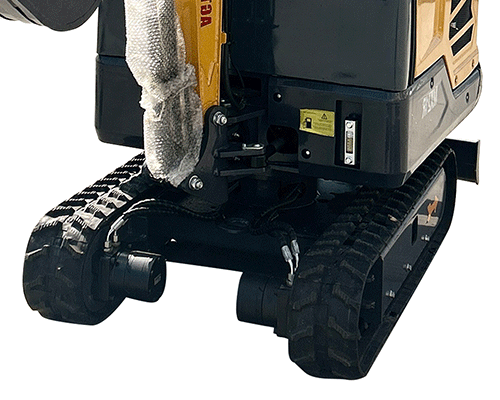

Variable speed motor With selectable high and low-speed functions, the drive motor supplies stronger power and greater versatility across different working scenarios. |
|

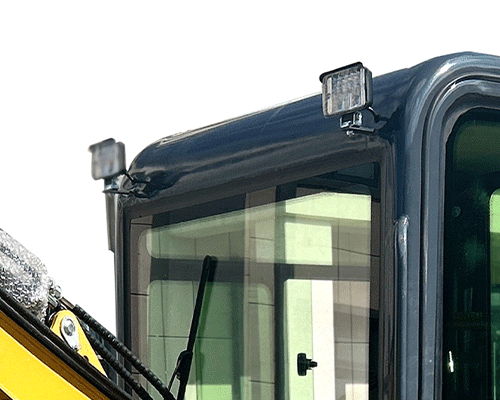

New LED Boom Work Light LED headlights, non-halogen headlights. |
|
Product Specifications
| Model Information Configuration Status √Standard, △Optional , ×None | MX21R | |
| Basic Performance Parameters | ||
| Working Weight(kg) | 1284 | |
| Bucket capacity(m³) | 0.03 | |
| Travel speed low/high speed(Km/h) | 0-2 | |
| Climbing ability(%) | 30 | |
| Turn speed(r/min) | 10 | |
| A:Maximum Digging Height(mm) | 2890 | |
| B:Maximum Unloading Height(mm) | 1958 | |
| C:Maximum Digging Depth(mm) | 2257 | |
| D:Maximum Vertical Excavation Depth(mm) | 2090 | |
| E:Maximum Excavation Radius(mm) | 3305 | |
| F:Minimum radius of Gyration(mm) | 1584 | |
| G:Minimum tail radius of Gyration(mm) | 849 | |
| H:Maximum Lifting height of Bulldozer | 288 | |
| I:Maximum Digging height of Bulldozer | 146 | |
| Equipment Body | ||
| J:Overall Length(mm) | 3200 | |
| K:Overall Width(mm) | 936 | |
| L:Overall Height(mm) | 2210 | |
| Bulldozer Width/Height(mm) | 1000/180 | |
| Engine | ||
| Engine Brand | Rato | |
| Engine model | R740 | |
| Maximum horsepower(ps) | 22.5 | |
| Maximum power(Kw) | 17 | |
| Maximum speed(rpm) | 3600 | |
| Number of cylinders | 2 | |
| Cooling method | Air cooling | |
| Engine oil replacement(L) | 1.6 | |
| Fuel type | Gasoline | |
| Fuel Label | 92# | |
| Fuel tank | ||
| Fuel tank(L) | 8.7 | |
| Hydraulic oil tank(L) | 14.2 | |
Applications

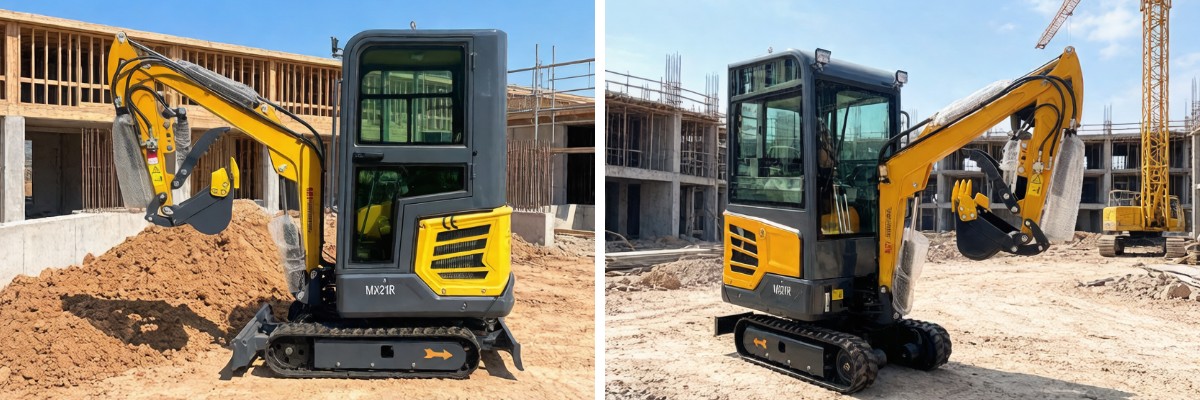

Urban & Municipal Operations
With a width of 936mm and near-zero tail swing, the MX21R is engineered for operation in restricted urban spaces. It maneuvers easily in residential zones, parklands, and along narrow streets, making it highly effective for utility trenching, garden installations, and sidewalk maintenance. The unit's powerful breakout force and precise control enable efficient work in mixed urban soil with minimal community impact.
Agricultural & Land Development
A capable asset for modern farm and land management, the MX21R handles tasks from channel digging and pond cleaning to stable and vineyard maintenance. The model’s 30% gradeability provides secure performance on sloped and uneven ground, while a 2,257mm digging depth accommodates a wide range of agricultural earthworks and water management projects.
Industrial & Material Handling
The compact design and excellent maneuverability of the MX21R make it a practical solution for industrial sites. It supports material transport, equipment setup, and maintenance work in tight factory, warehouse, and yard areas. Its ability to work both indoors and in congested outdoor spaces helps facilities optimize layout efficiency and maintain smooth operations.
Packaging & Shipping
Global Logistics & Packaging Solutions
Our 2-ton mini excavators are delivered worldwide using certified export packaging methods, ensuring complete protection throughout the logistics chain. We offer two customized packaging options to suit different shipping needs:
Option 1: Fully Enclosed Packaging
Each unit is mounted on reinforced steel skids and completely enclosed within a robust protective framework with overhead shielding. This solution provides maximum defense against harsh weather and potential impacts, making it ideal for long-distance sea transportation.
Option 2: KD (Knock-Down) Packaging
For optimized container space utilization and cost efficiency, key components are professionally disassembled and securely packaged using high-grade protective materials. This approach increases loading capacity while maintaining equipment integrity during transit.
All shipments are handled by experienced logistics teams using standardized containers (20GP/40HQ). Advanced lashing techniques and anti-movement bracing ensure perfect stability during maritime and overland transport, guaranteeing your equipment arrives in perfect working condition.
