1.6 Ton Excavator For Sale
Ultra-Compact Body: Slip through garden gates and greenhouse aisles effortlessly for efficient trenching tasks.
EPA-Certified Engine: Keeps emissions low, ideal for municipal and landscaping jobs.
Rubber Tracks: Work flush against walls without scuffing pavements, perfect for precision work.
Rapid Attachments: Swap buckets, augers, hammers, or grapples in minutes for versatile use.
One-Year Warranty: Backed by factory-direct pricing and customization options.
Product Introduction

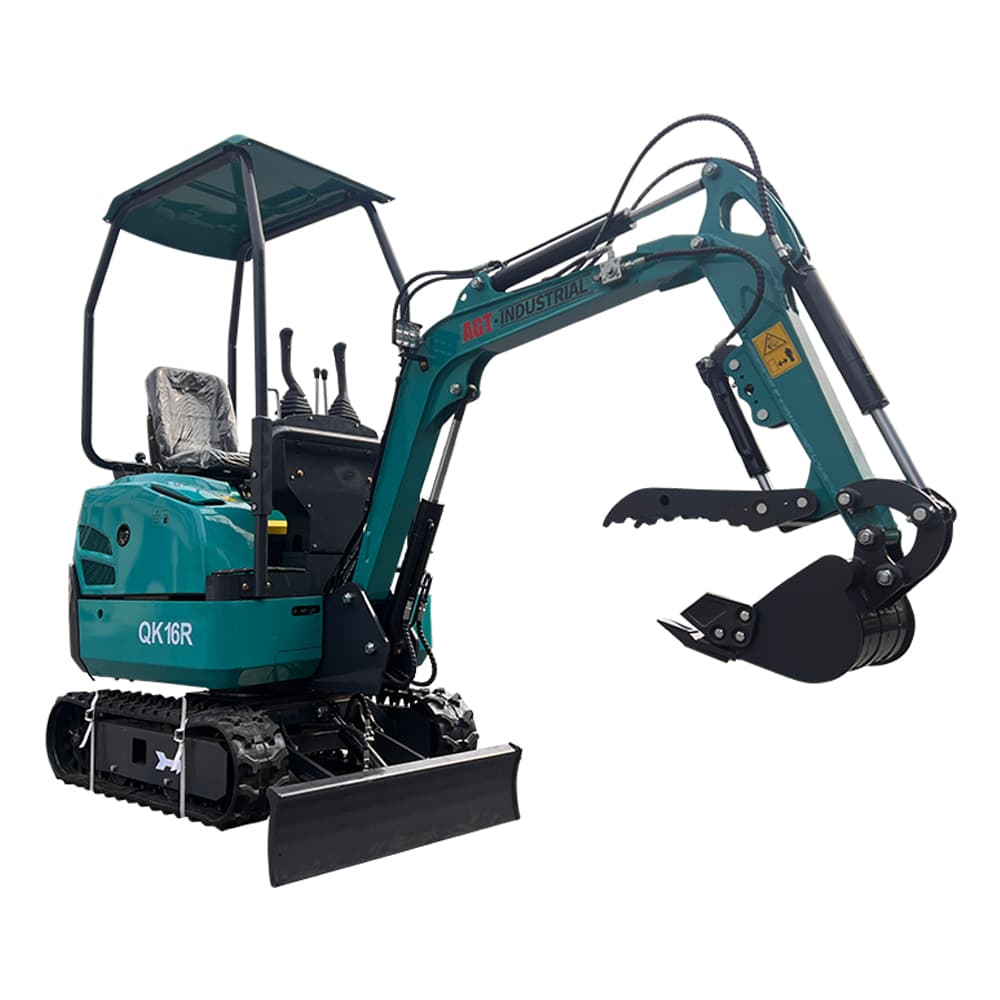

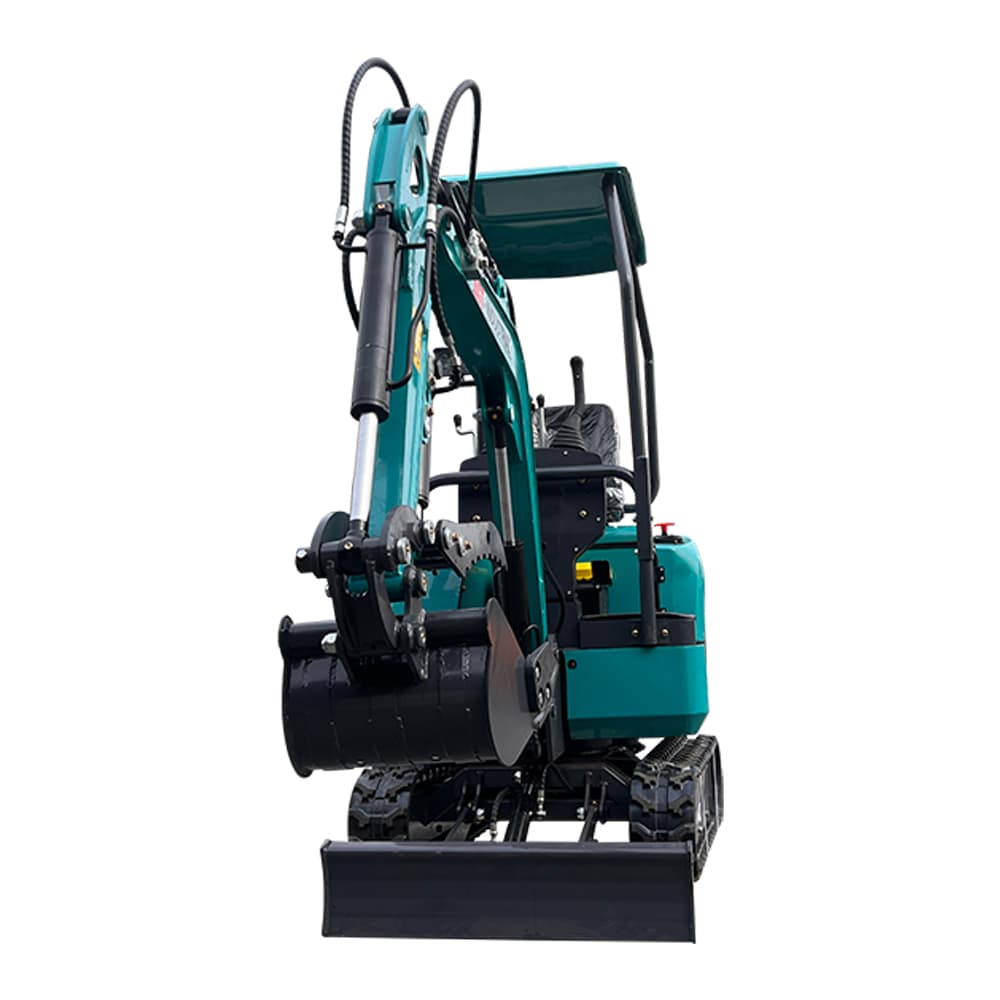

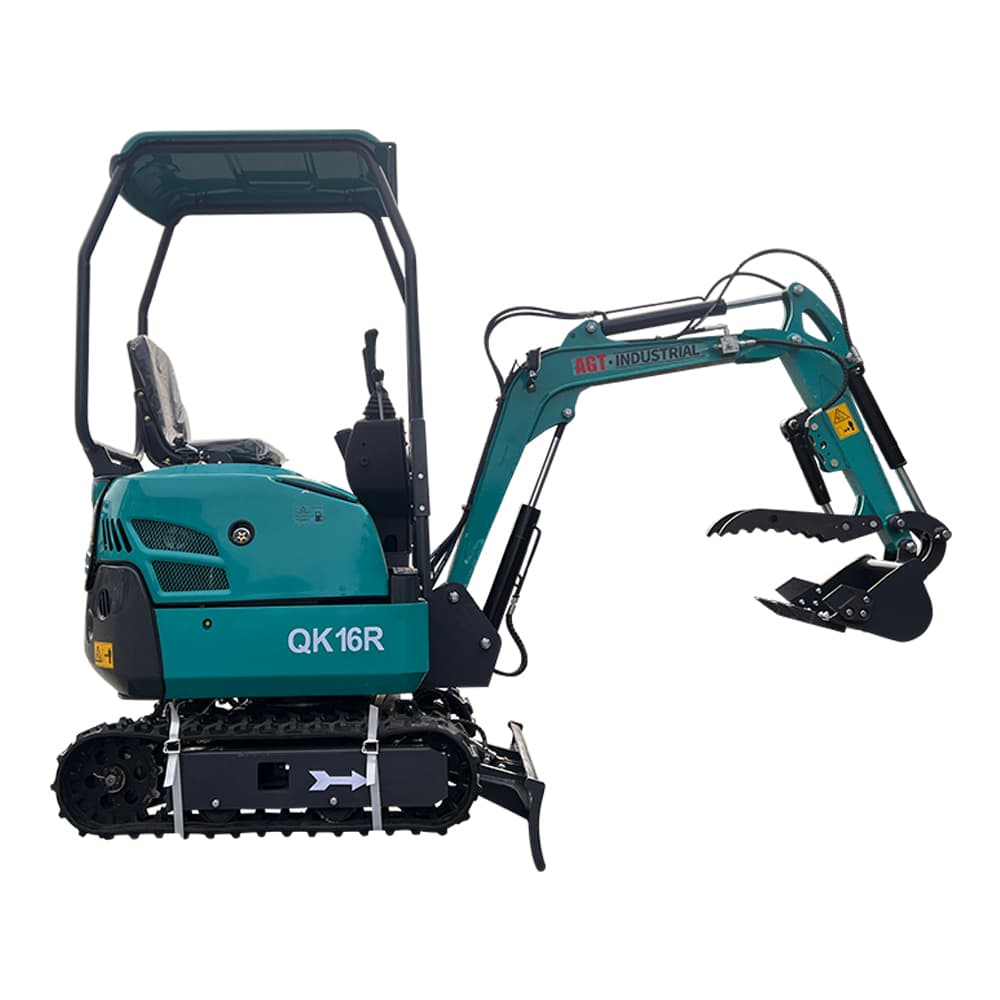

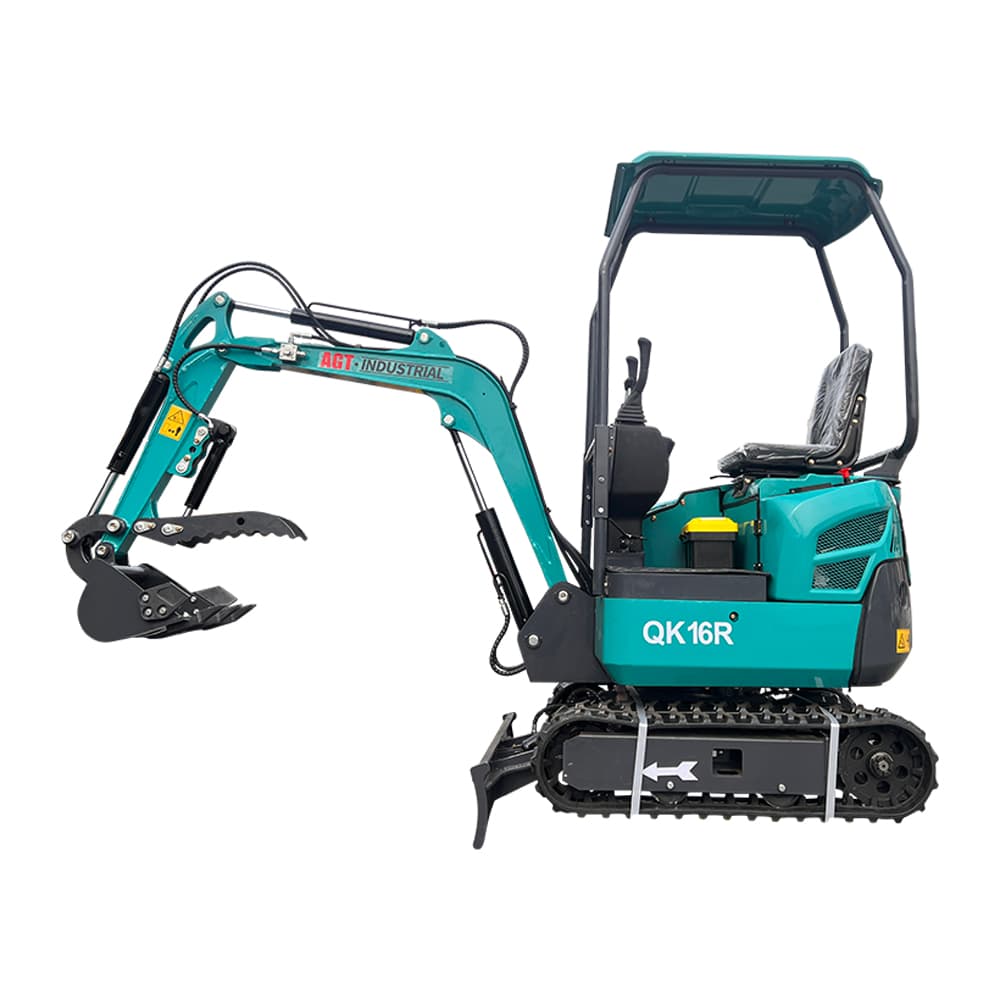

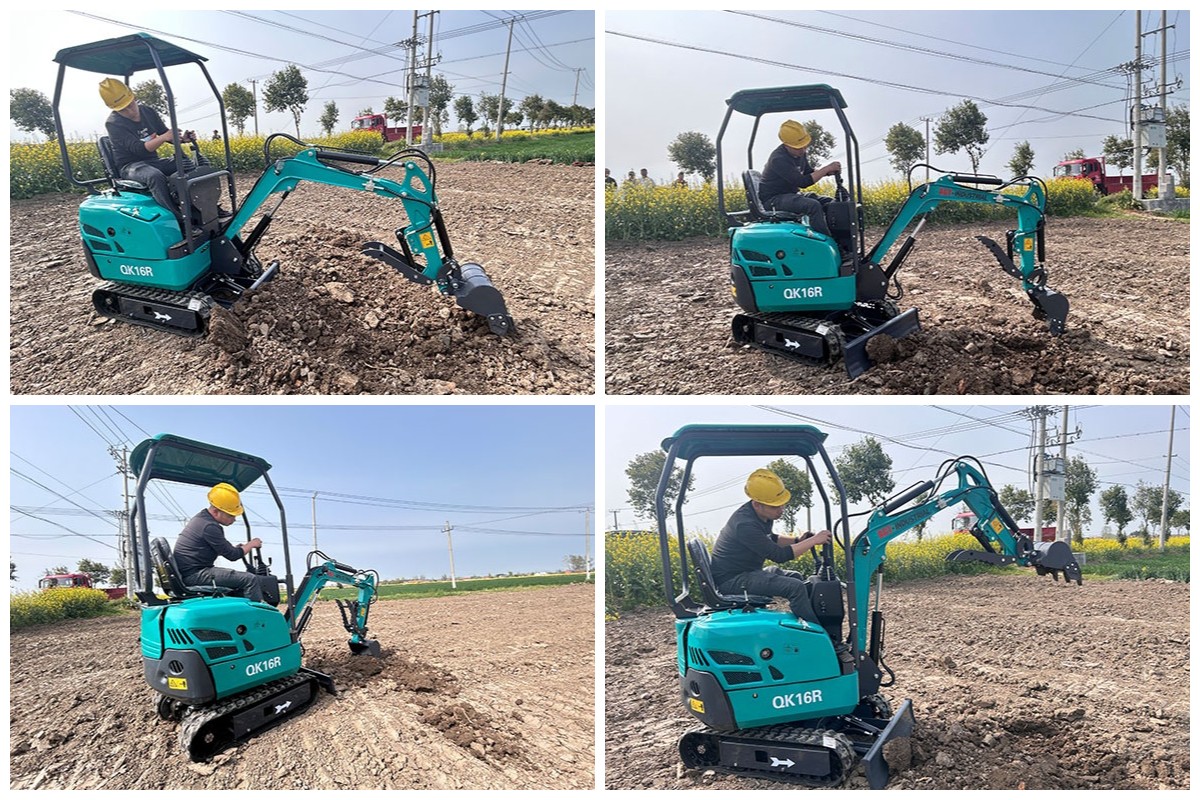

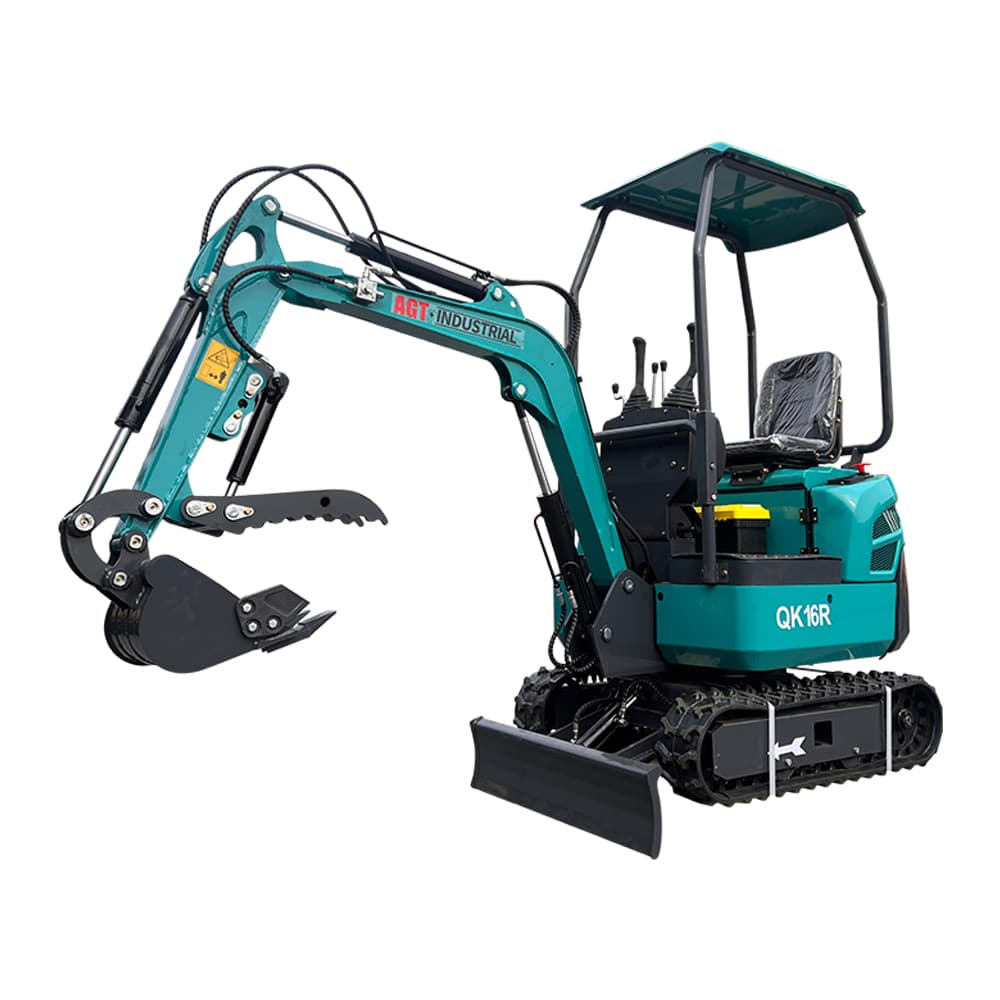

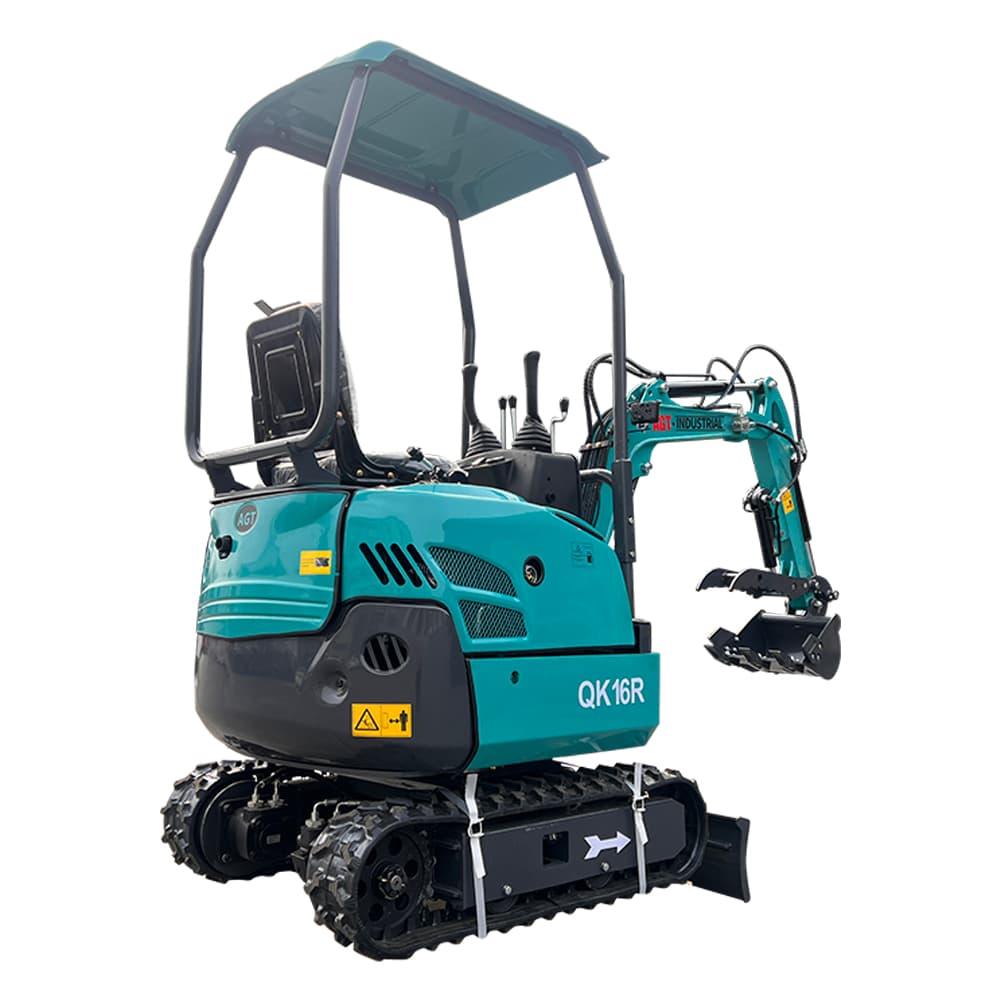

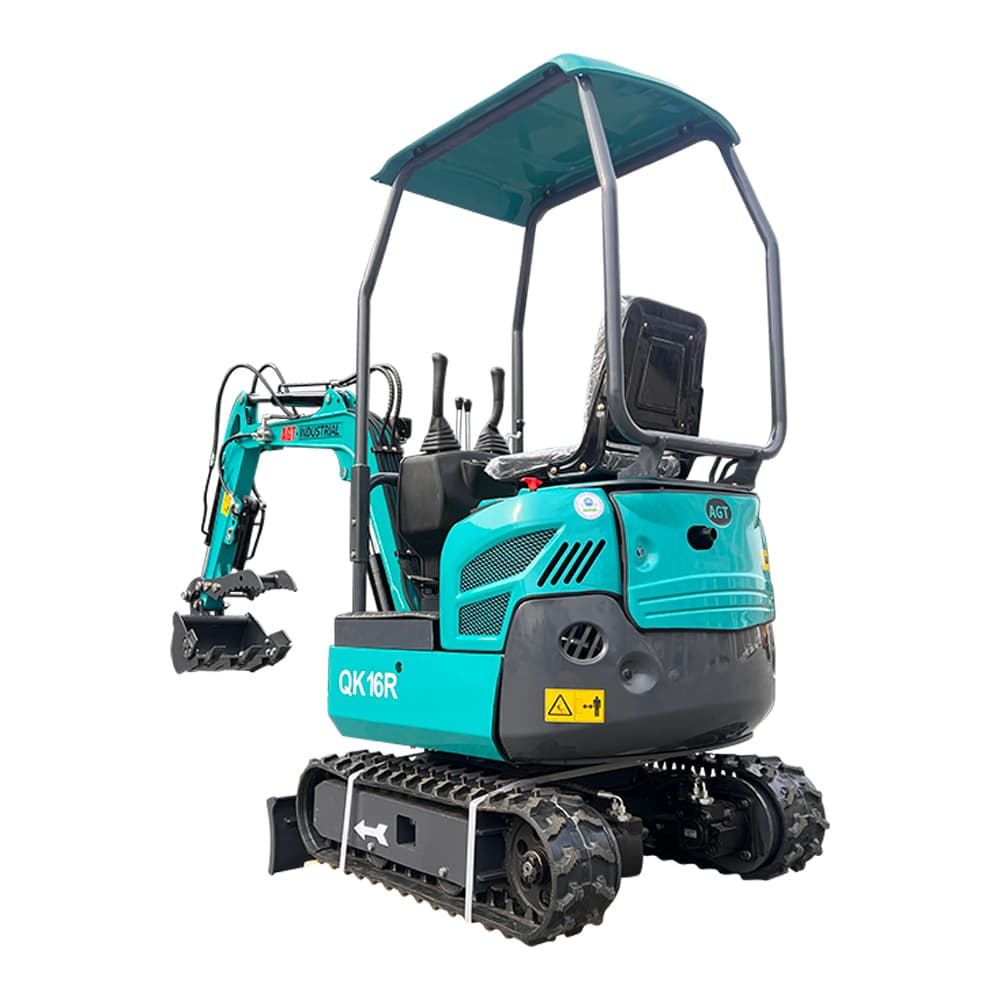

QK16R 0.98 t gasoline micro-excavator driven by 8.6 kW RATO R420D single-cylinder, air-cooled powerplant grants 1.69 m digging depth, 2.56 m digging height and 3.06 m reach while occupying only 958 mm overall width; zero-tail-swing geometry plus retractable undercarriage allow unit to pass through 1 m garden gates, standard doorways or between greenhouse rows without scuffing turf, making it ideal for backyard pools, basement dig-outs, urban utility repairs andlandscape sculpting where space is precious and surface protection mandatory.
Strength and uptime are engineered into every joint: robot-welded boom and dipper deliver eight-percent higher structural strength, internal hose routing eliminates snagging and burst risk, one-piece extended & thickened forged chassis resists twisting, and unique upside-down cylinder placement provides superior sealing, wear and corrosion resistance under high-pressure cycles; maintenance is simplified by a gas-assist flip-up rear hood that exposes engine, filters and hydraulic components at ground level, cutting daily check time to minutes and keeping the 20 L oil reservoir clean for longer service intervals.
Operator environment combines comfort with control: LED non-halogen work lights give dawn-to-dusk visibility, hydraulic-pilot intelligent joystick lets one finger command all functions, spacious foot platform and sliding seat reduce fatigue, and dual-speed 0–1.8 km/h travel motor with 15 % gradeability keeps pace with crews on slopes or pavement; quick-hitch plate accepts 0.03 m³ standard bucket plus optional 200–600 mm trenching, grading or ditch-cleaning attachments, while side-swing boom and 60° left/right slew create parallel trenches without repositioning—perfect for irrigation lines, cable burying, asphalt shaving, indoor demolition and roadside touch-ups, all shipped line-fresh in an export-ready, hot-dip-galvanized steel cradle vacuum-sealed for salt-spray protection.
Product Details

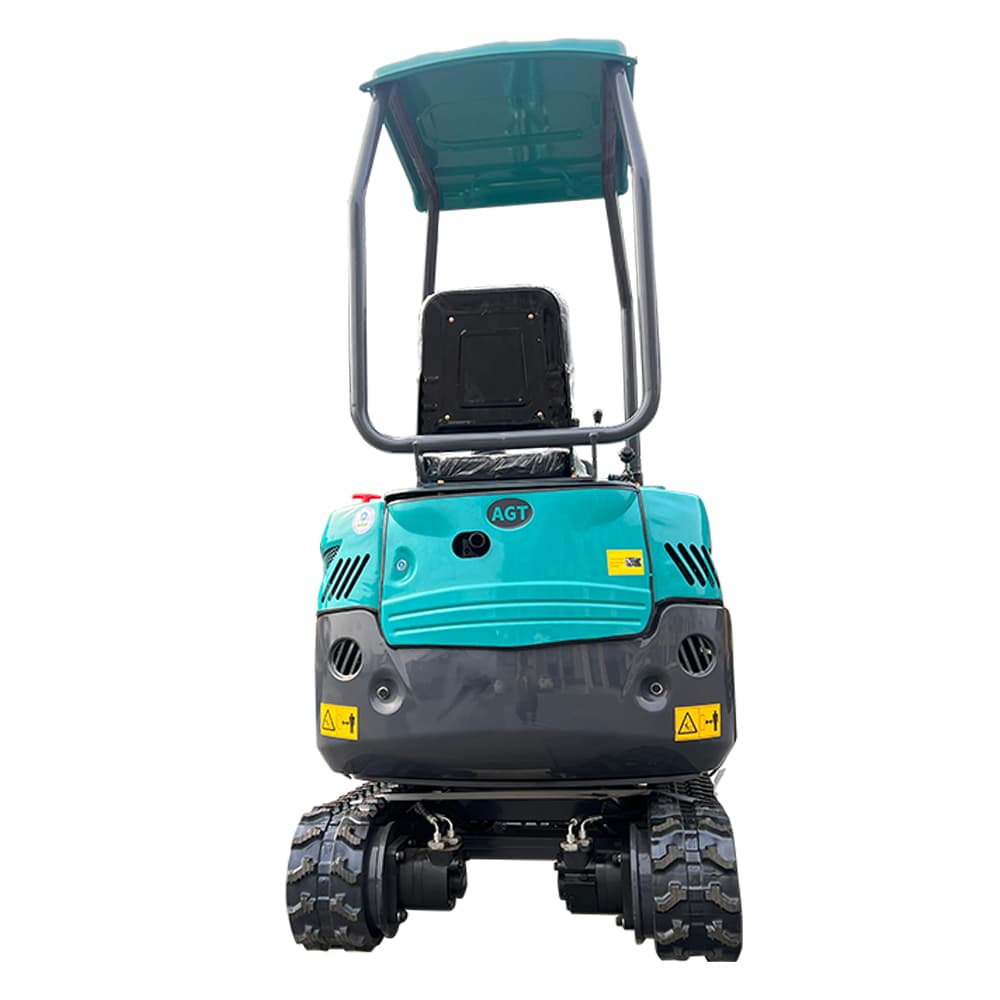

Full Opening Engine Cover Tilting the engine cover upward reveals the majority of the engine, giving quick, unobstructed access to all service points. |
|

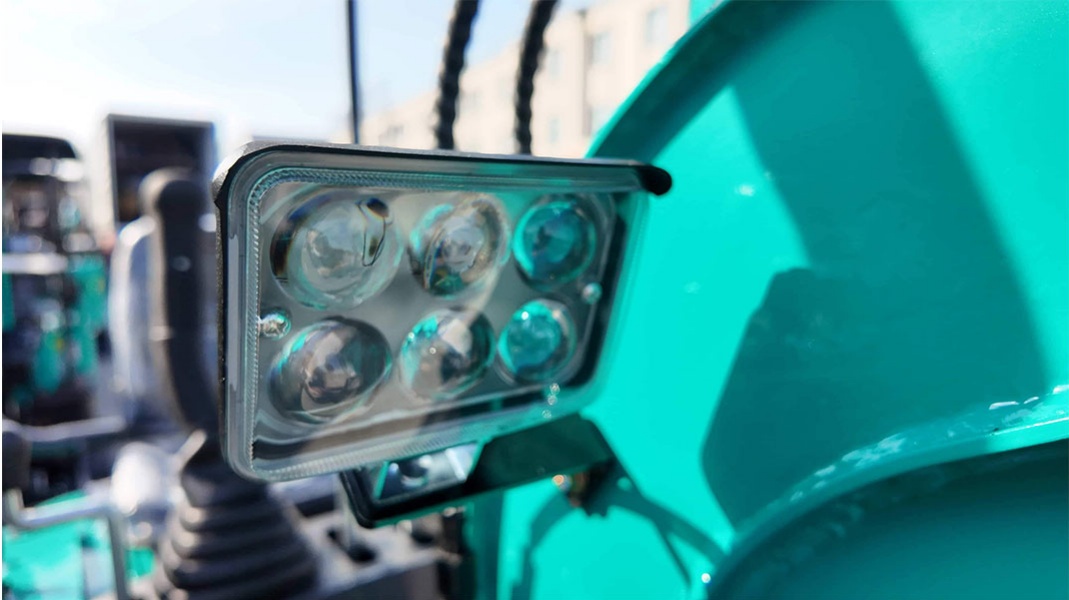

New LED Boom Work Light LED work lights—no halogen bulbs. |  |

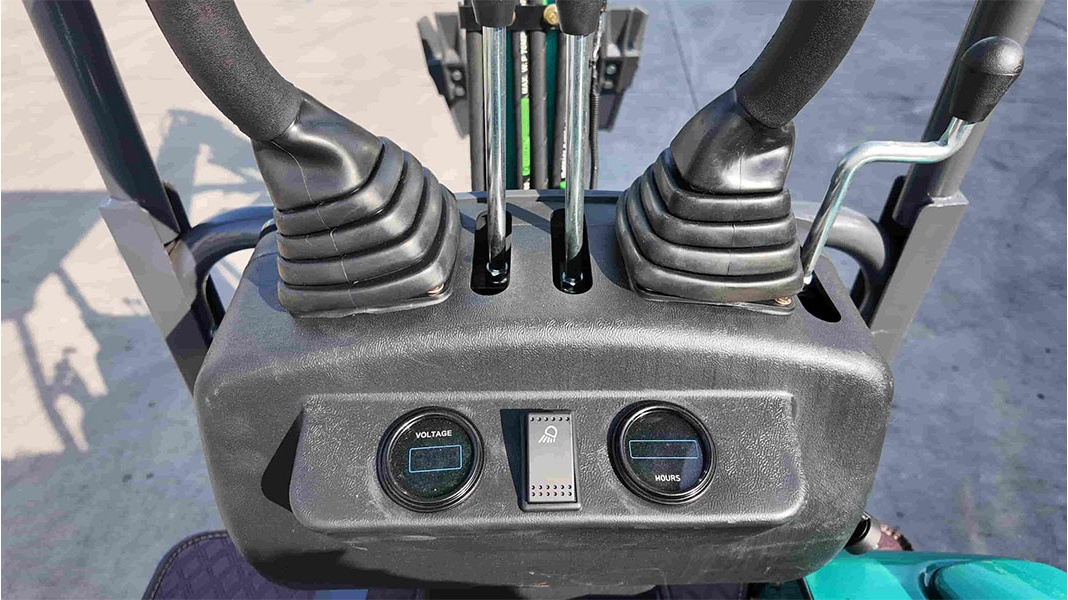

Spacious driving experience Generous legroom and intuitive controls; the seat slides fore-and-aft for custom comfort. |  |

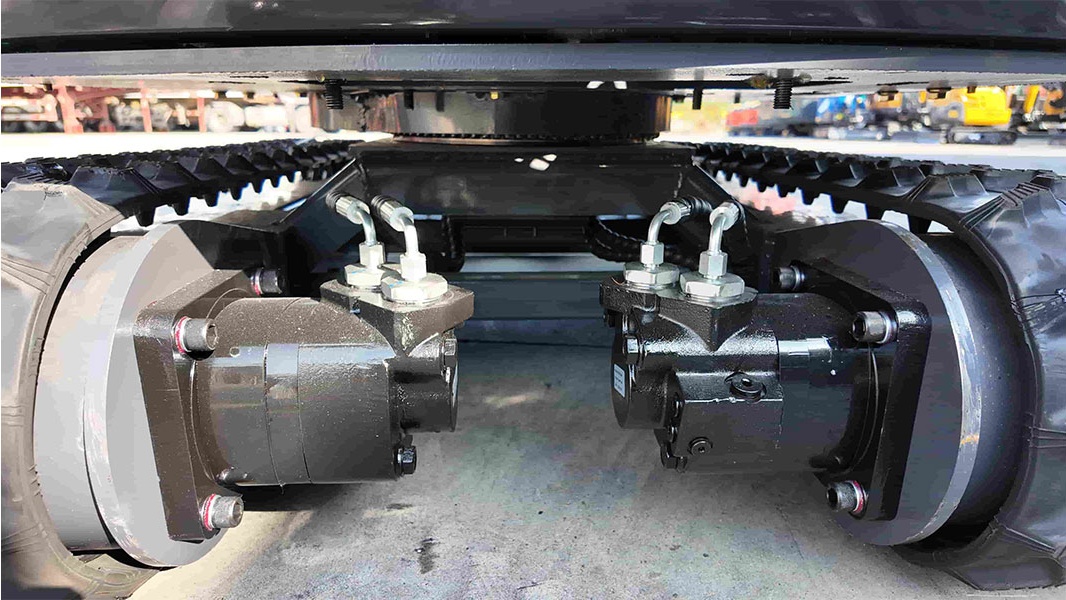

Variable speed motor Two-speed travel motor—high/low ranges—for stronger, more responsive propulsion. |  |

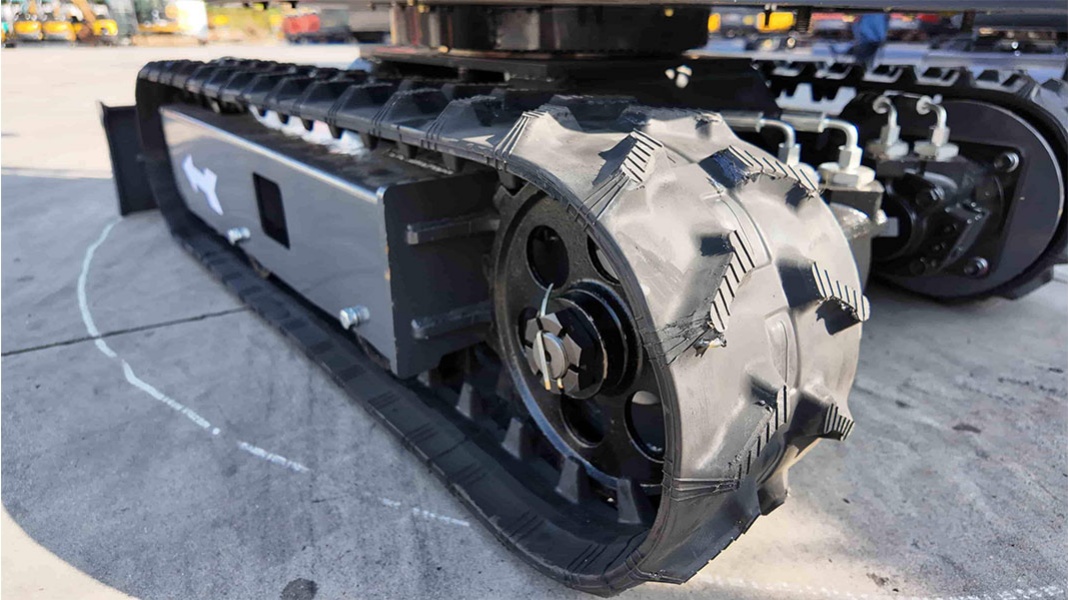

Thickened chassis Lengthened, reinforced chassis, fully forged in one piece for maximum strength. |  |

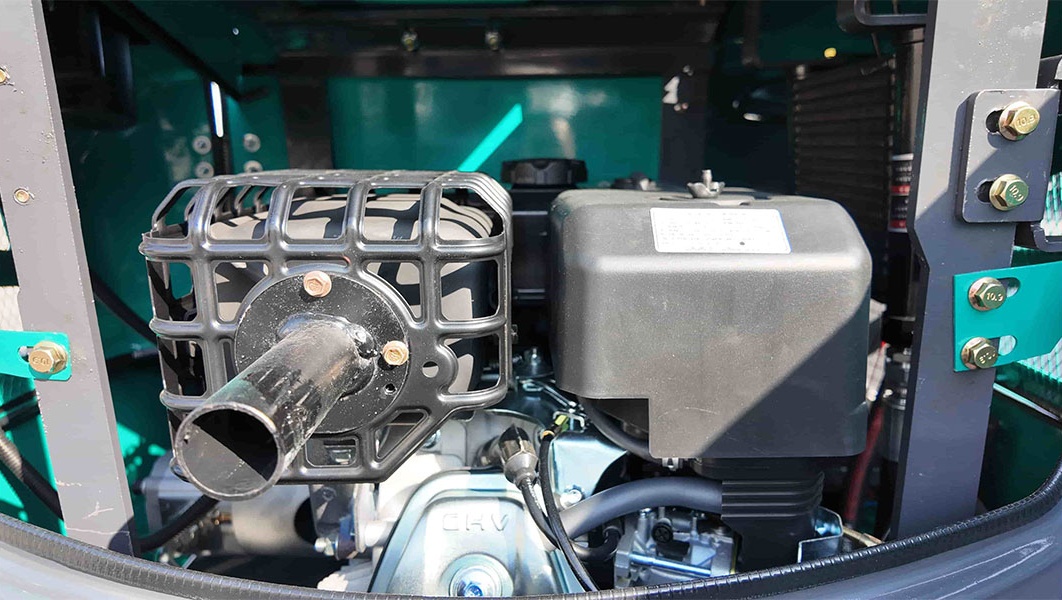

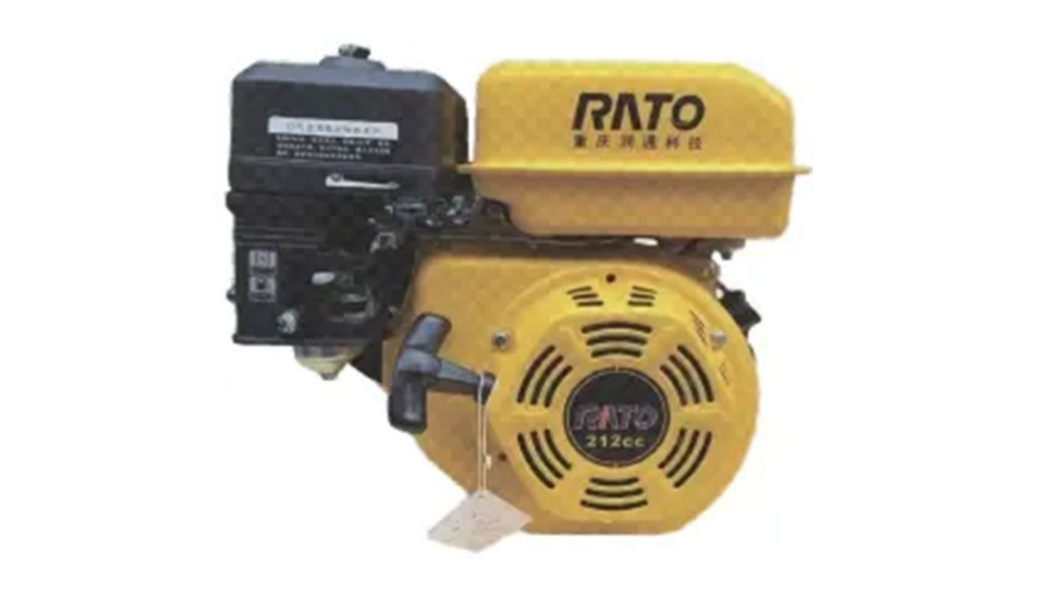

Rato engine Powerful and dependable, the QK16R Rato Gasoline engine delivers superior horsepower and performance. It offers low noise and vibration levels,excaptional fuel efficiency. |  |
Product Specifications
| Basic Performance Parameters | |
| Working Weight(kg) | 980 |
| Bucket capacity(m³) | 0.03 |
| Travel speed low/high speed(Km/h) | 0-1.8 |
| Climbing ability(%) | 15 |
| A:Maximum Digging Height(mm) | 2560 |
| B:Maximum Unloading Height(mm) | 1800 |
| C:Maximum Digging Depth(mm) | 1693 |
| E:Max. digging radius(mm) | 3060 |
| Side Swing | × |
| Side Swing Angle (L/R) | × |
| Undercarriage Expansion | × |
| Equipment Body | |
| J:Overall Length(mm) | 2925 |
| K:Overall Width(mm) | 958 |
| L:Overall Height(mm) | 2422 |
| Bulldozer Width/Height | 907/200 |
| Engine | |
| Engine Brand | Rato |
| Maximum power(Kw) | 8.6 |
| Cooling method | Fan cooling |
| Fuel Type | Gasoline |
| Fuel tank | |
| Fuel tank(L) | 6.6 |
| Hydraulic oil tank(L) | 10 |
Applications
Landscaping & Green-Space Projects
Navigate through 1.2-meter gates and work around delicate plantings without damaging turf.
Dig accurately sized tree pits to match root-ball specifications.
Create shallow swales and French-drain trenches for rain garden installations.
Efficiently remove old turf for quick lawn replacement.
Utility & Irrigation Installation
Lay water, gas, fiber-optic, or drip irrigation lines faster than walk-behind trenchers.
Reach a digging depth of 2.4 meters, sufficient to go below the frost line in most regions.
A 400-mm bucket ensures consistent trench width for rapid backfilling and compaction.
The side-swing boom allows trenching tight against curbs and paved surfaces.
Indoor & Low-Clearance Applications
Enter standard doorways on non-marking rubber tracks.
Excavate basement floors to increase headroom.
Break and remove interior concrete slabs using a hydraulic breaker.
Operate within 2.3-meter parking decks for infrastructure repairs.
Road & Municipal Maintenance
Complete tasks such as sidewalk panel replacement, pothole preparation, and signpost drilling within short work windows.
Zero tail-swing design allows operation within coned-off lanes.
Dual-speed travel (0–4 km/h) enables smooth pacing with crew on foot.
Ditch, Canal & Environmental Maintenance
Easily switch to a 600-mm ditching bucket or hydraulic rake.
Clear silt from irrigation channels without prior draining.
Place rip-rap accurately for bank stabilization.
Break thin concrete spillways and load debris directly into trucks.
Packaging & Shipping
Worldwide Shipping, Factory-Fresh Guarantee
Export-ready steel base
Every 1.8-ton machine is bolted to a hot-dip-galvanized skid and sealed in multilayer UV-proof film. Dust, salt spray, and deck moisture are locked out, so paint, glass, and hydraulics reach you line-fresh.
Drop-in container loading
Fork pockets and built-in ramps let one operator drive the unit straight into a 20GP or 40HQ—no loose pallets, no stray parts. Four-corner chains and ISO-rated tensioners anchor the undercarriage to the container floor, eliminating movement on rough seas or long rail hauls.
