5 Ton Digger
Compact Design: Ideal for small-scale construction tasks with a maximum digging radius of 3211mm.
High Efficiency: Equipped with a 28 PS Rato engine for robust performance and versatility.
Durable Construction: Built with a 1100kg machine weight, ensuring stability during operation.
Multi-Purpose Functionality: Versatile for tasks like excavating, crushing, and bulldozing.
User-Friendly Operation: Easy to transport and operate, making it ideal for narrow site work.
Product Introduction

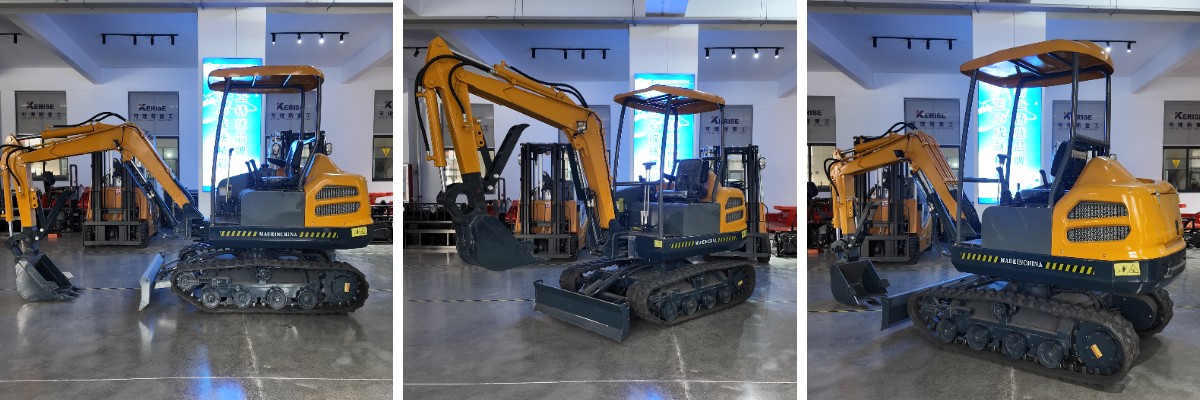

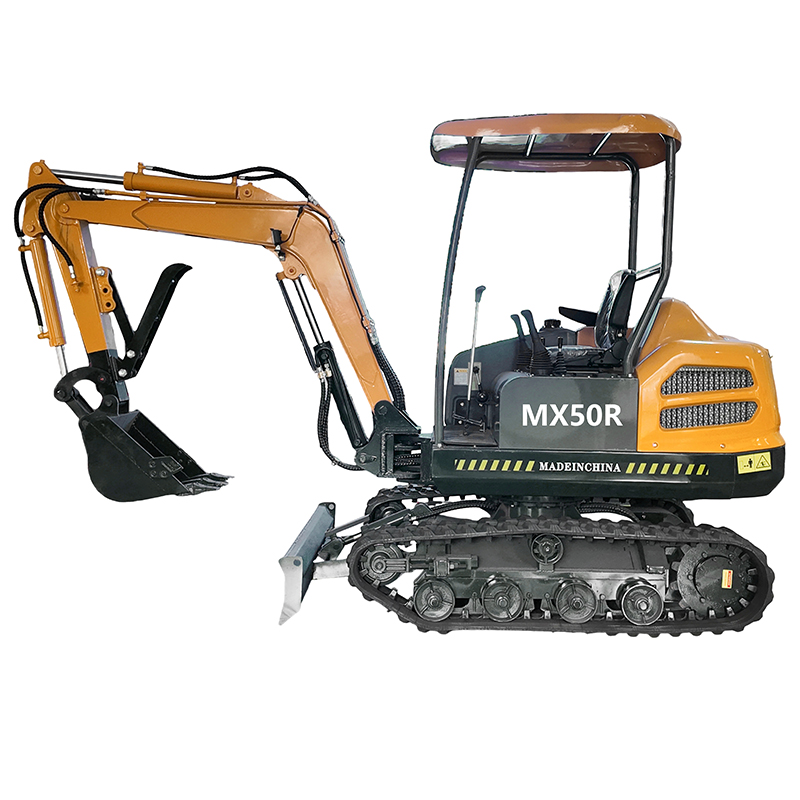

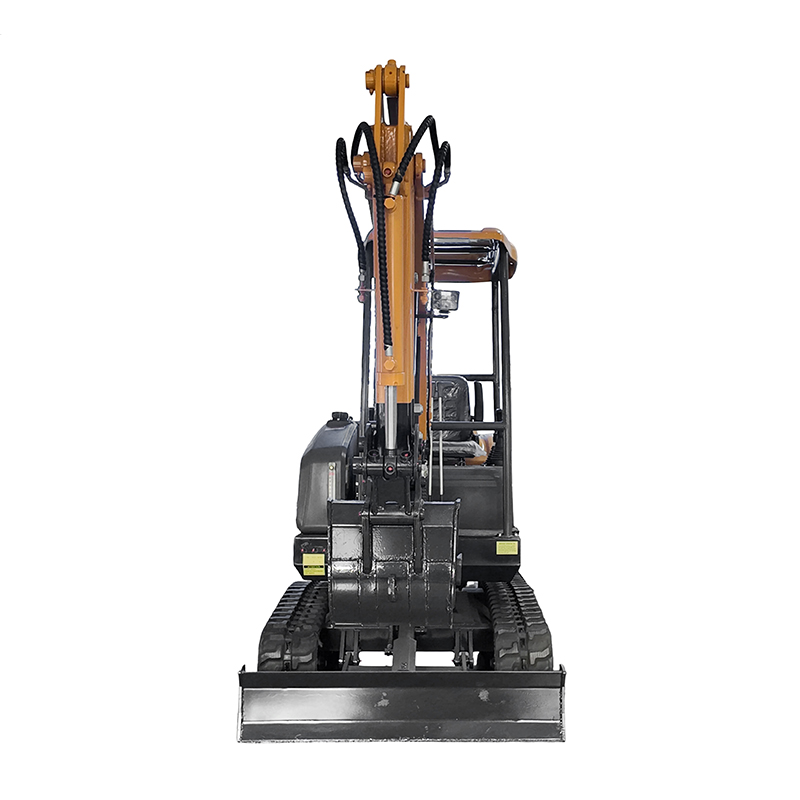

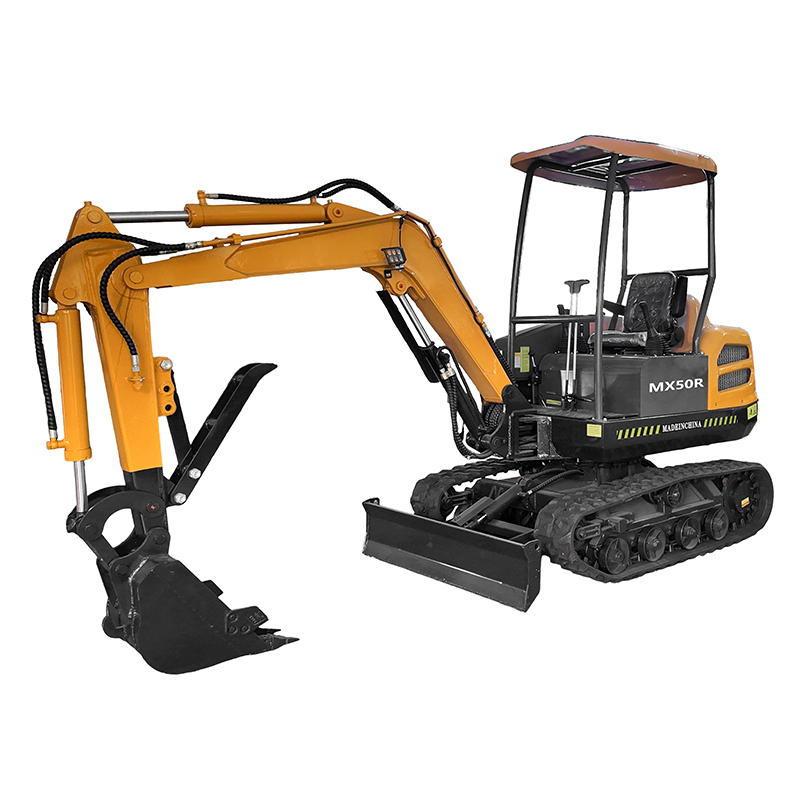

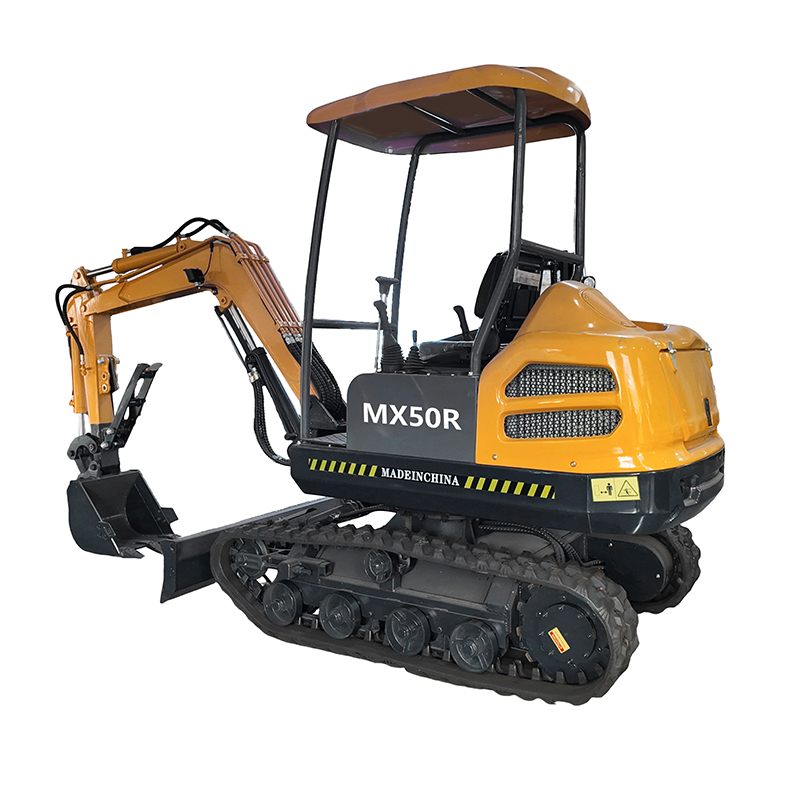

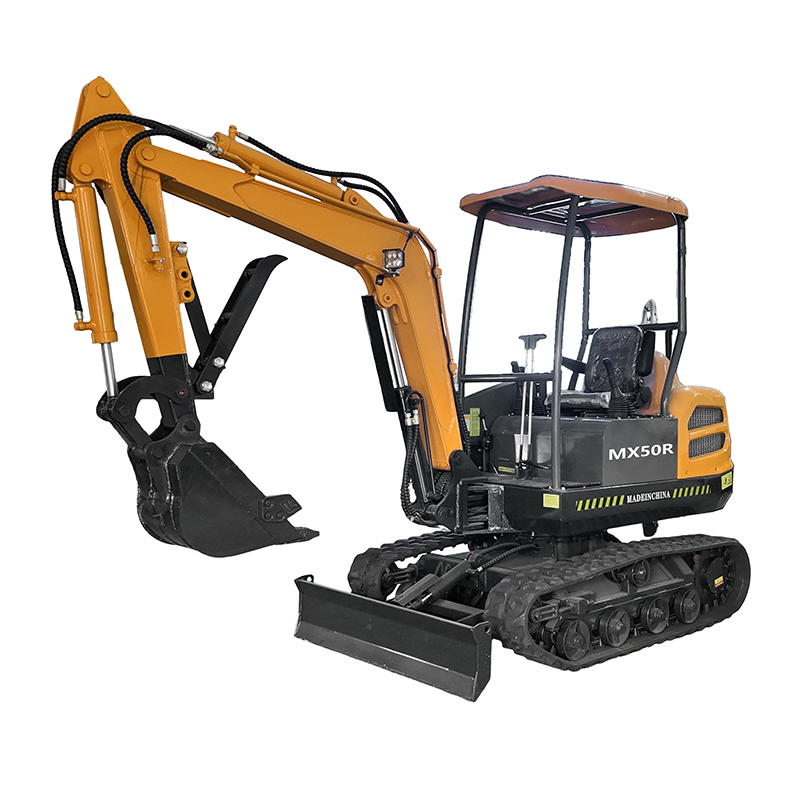

The MX50R 5-ton mini excavator is engineered for powerful performance and remarkable versatility in confined spaces. Powered by the reliable Rato 825 air-cooled gasoline engine (28 HP / 21 kW), it delivers a robust bucket digging force of 8.8 kN. With an operating weight of 1100 kg and a standard 0.23 m³ bucket, it handles demanding tasks with efficiency and ease. The machine's compact design—measuring only 2812 mm in length and 1140 mm in width—ensures superior maneuverability, enhanced by its minimal tail swing radius of 1247 mm. Built to tackle various landscapes, it offers a climbing ability of 30% and a dual-speed travel range of 0–2.0 km/h, making it equally capable in urban projects, landscaping, and agricultural settings.
Designed with operational excellence in mind, the MX50R excels with advanced engineering features. Key performance metrics include a maximum digging depth of 1983 mm, an excavation radius of 3211 mm, and a lifting height of 251 mm for its integrated bulldozer, enabling diverse applications from trenching to grading. It is equipped with a 28 L fuel tank and a 20 L hydraulic oil tank, supporting long working hours with minimal downtime. The intuitive machine layout and clear control interface facilitate ease of operation, while its low-maintenance engine (requiring only 1.1 L of oil) ensures cost-effective ownership. From its tight 2011 mm turning radius to its 30-degree climbing capability, every detail of the MX50R is optimized to deliver precision, durability, and high performance in the most challenging workspaces.
Product Details

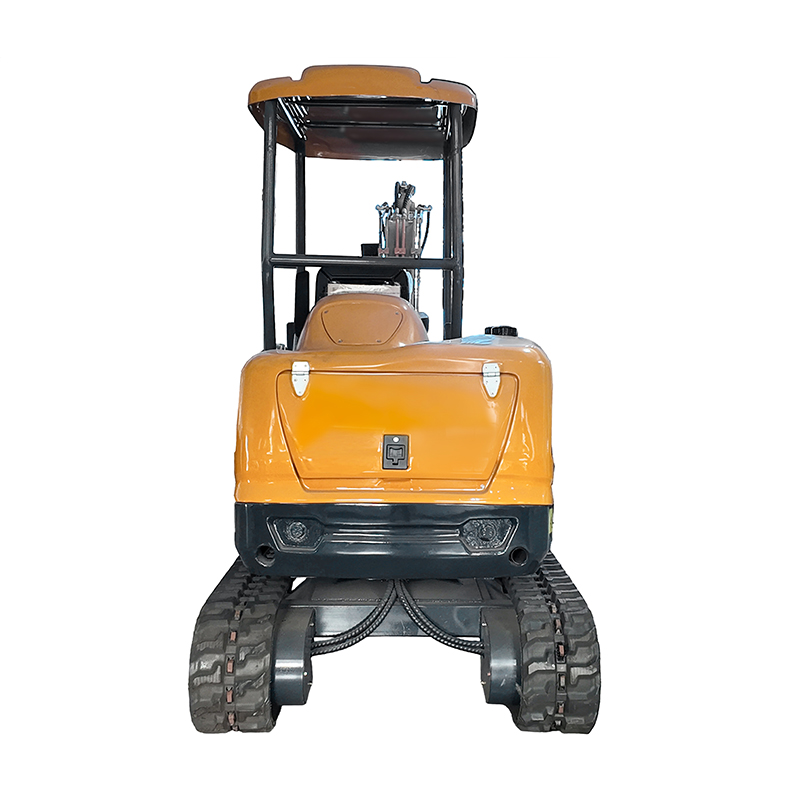

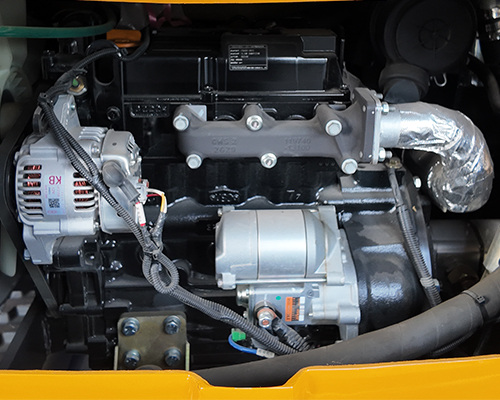

Full Opening Engine Cover The tilt-up engine cover provides wide access to the engine compartment, simplifying routine maintenance and component inspection. |
|

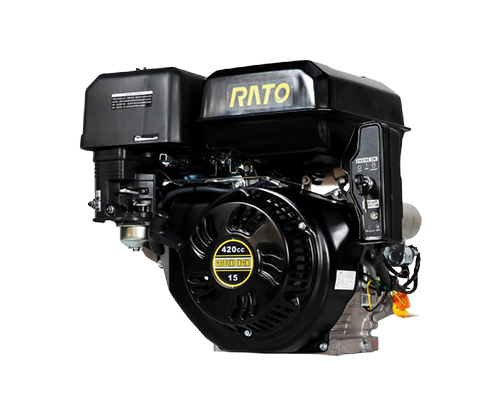

Rato engine Powered by a reliable Rato gasoline engine rated at 17 kW, this machine combines strong performance with low noise and vibration. Its exceptional fuel efficiency helps reduce operating costs while maintaining high power output. |
|

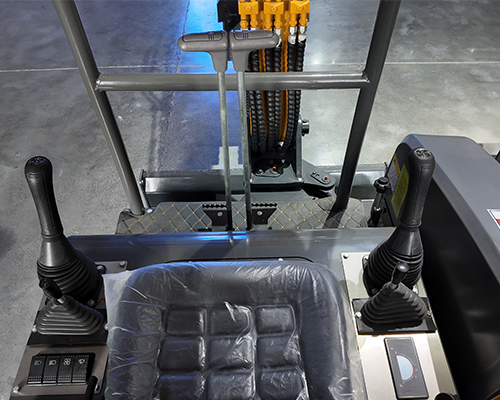

Spacious driving experience Designed with ample legroom and intuitive controls, the cabin ensures easy operation. The adjustable front-and-rear driver’s seat further enhances comfort during long working hours. |
|

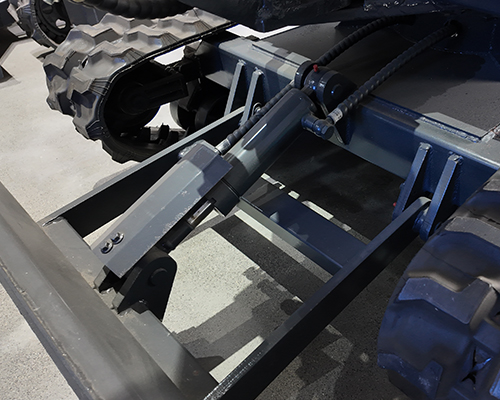

Thickened chassis Built with an extended and reinforced chassis through an overall forging process, the excavator delivers improved durability and structural integrity in demanding conditions. |
|
Variable speed motor Equipped with a travel motor that supports both high and low-speed settings, offering greater power and adaptability across various terrains and tasks. |
|

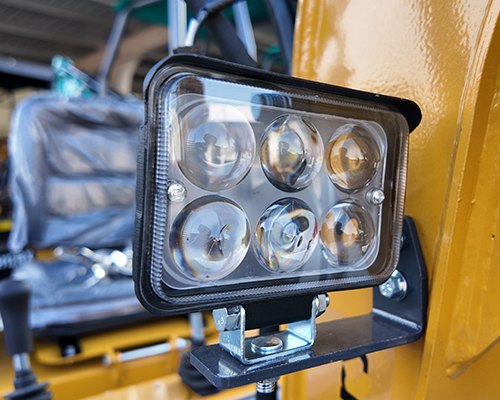

New LED Boom Work Light Non-halogen LED work lights are mounted on the boom, delivering brighter, longer-lasting illumination for safer operation in low-light environments. |
|
Product Specifications
Basic Performance Parameters | ||
Working Weight(kg) | 1100 | |
Bucket capacity(m³) | 0.23 | |
Travel speed low/high speed(Km/h) | 0-2.0 | |
Climbing ability(%) | 30 | |
Turn speed(r/min) | 9.8 | |
Maximum Digging force of Bucket (KN) | 8.8 | |
Maximum Digging force of Bucket Rod (KN) | 6 | |
A:Maximum Digging Height(mm) | 2755 | |
B:Maximum Unloading Height(mm) | 2180 | |
C:Maximum Digging Depth(mm) | 1983 | |
D:Maximum Vertical Excavation Depth(mm) | 1983 | |
E:Maximum Excavation Radius(mm) | 3211 | |
F:Minimum radius of Gyration(mm) | 2011 | |
G:Minimum tail radius of Gyration(mm) | 1247 | |
H:Maximum Lifting height of Bulldozer | 251 | |
I:Maximum Digging height of Bulldozer | 340 | |
Equipment Body | ||
J:Overall Length(mm) | 2812 | |
K:Overall Width(mm) | 1140 | |
L:Overall Height(mm) | 2400 | |
Bulldozer Width/Height(mm) | 1316/247 | |
Engine | ||
Engine Brand | Rato | |
Engine model | 825 | |
Maximum horsepower(ps) | 28 | |
Maximum power(Kw) | 21 | |
Maximum speed(rpm) | 3600 | |
Number of cylinders | 2 | |
Cooling method | Air cooling | |
Engine oil replacement(L) | 1.1 | |
Fuel type | Gasoline | |
Fuel Label | 92# | |
Fuel tank | ||
Fuel tank(L) | 28 | |
Hydraulic oil tank(L) | 20 | |

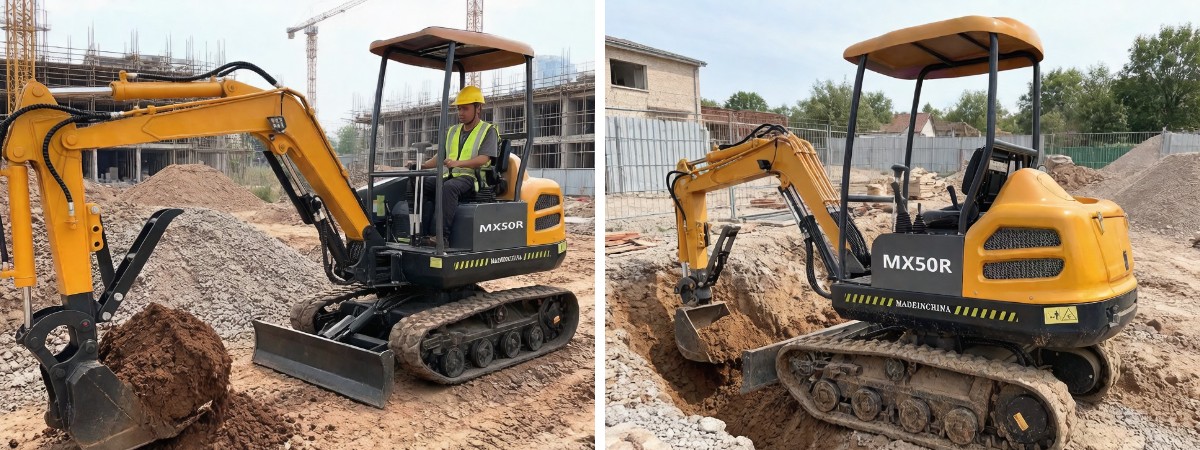

Applications
Landscaping & Garden Projects
The 5-ton mini excavator is ideal for a variety of landscaping tasks, including planting trees, shaping garden beds, digging drainage trenches, and renewing lawns. Thanks to its compact design, it can easily access residential yards, parks, and green spaces while minimizing ground disturbance and preserving delicate landscapes.
Trenching & Utility Installation
This machine delivers reliable performance in narrow-trench excavation, cable laying, and the installation of water or irrigation pipelines. It is widely used in utility projects, agricultural irrigation systems, and underground service work, offering precise control and producing clean, accurate trench profiles.
Indoor & Confined Space Operations
With its small footprint and excellent maneuverability, the 5-ton mini excavator performs exceptionally well in indoor demolition, basement excavation, and interior renovation projects. It operates efficiently in tight spaces inaccessible to larger equipment, making it a top solution for challenging confined environments.
Road Maintenance & Municipal Applications
Well-suited for urban infrastructure work, this excavator handles tasks such as sidewalk repairs, pavement cutting, foundation preparation, and general municipal upkeep. Its compact size and agility enable effective operation in restricted urban sites with minimal disruption to surrounding areas.
Concrete Breaking & Cleaning Tasks
When equipped with specialized attachments like breakers or cleaning buckets, the machine easily handles light concrete breaking, ditch cleaning, desilting, and canal maintenance. It serves as a versatile tool for environmental protection and water conservancy projects.

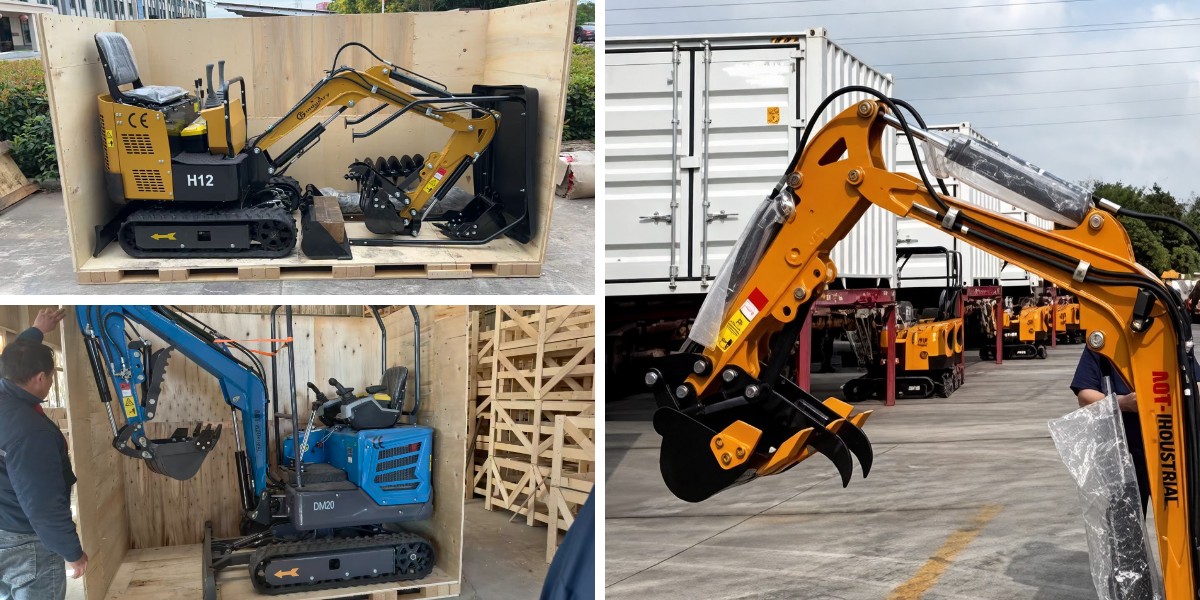

Packaging & Shipping
Professional Export-Grade Packaging & Logistics
At KMX, we understand that the journey from our factory to your job site is critical. That's why our mini excavators are handled with the utmost care, utilizing professional export-grade packaging standards and a meticulously managed logistics chain. This end-to-end approach guarantees maximum protection and the safe, timely delivery of your equipment, no matter where you are in the world.
Expert Container Loading & Stabilization
For optimal security during ocean freight, our machines are expertly loaded into standard shipping containers (20GP or 40HQ) by trained professionals. Using specialized equipment like forklifts and loading ramps, we ensure a smooth and damage-free transfer. Once inside the container, each excavator is meticulously secured using heavy-duty nylon lashing straps and timber chocks. This advanced tie-down technique locks the unit in place, completely eliminating any movement or shifting. The result is a perfectly stabilized cargo that can withstand the rigors of long-distance sea and land transportation, giving you complete peace of mind.
Customized Logistics Solutions
Our service doesn't stop at packaging. We offer flexible shipping solutions tailored to your project timeline and budget. Whether you require full container load (FCL), less than container load (LCL), or expedited air freight, our experienced logistics team will coordinate the most efficient and cost-effective route to your destination port or door.
