Small Wheel Loader

Product Introduction

The SDA-140W is a compact and highly efficient wheel loader engineered to deliver reliable performance in diverse material handling and loading applications. Designed with a focus on durability, versatility, and operator convenience, this model is suitable for a wide range of industries including construction, agriculture, warehousing, and municipal operations.

Equipped with a Rato gasoline engine providing a maximum power output of 8.6 KW. It runs on 92# fuel with an impressively low theoretical fuel consumption of 1.1 L/h, ensuring both strong performance and cost-effective operation.With a robust Rato gasoline engine delivering 8.6KW power and low fuel consumption of 1.1L/h, it ensures reliable performance. Key features include a 760kg working weight, 0.15m³ bucket capacity, 220kg maximum lifting force, and a maximum working height of 2300mm.

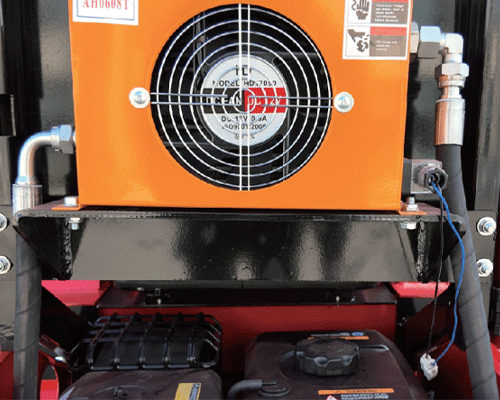

Its compact dimensions (2510mm length, 990mm width) and 23 * 85-12NHS wheels provide excellent stability and maneuverability in confined spaces. Additionalhighlights are a 6.6L fuel tank, 23L hydraulic oil tank, and fan cooling system for extended operation.

Product Details

Product Specifications

Applications of SDA-140W Skid Steer Loader

• Material Handling

  Efficiently transports bulk materials such as straw, feed, sand, and gravel. In agricultural settings, it significantly boosts workflow productivity and reduces dependency on manual labor.




• Garden & Landscape Maintenance

  Ideal for maintaining tidy outdoor spaces. The loader clears leaves, branches, and other garden debris with ease, and can also assist in planting and transplanting seedlings, supporting both cleanup and cultivation tasks.




• Site Clearance & Preparation

  Capable of leveling terrain, removing weeds, and clearing crop residues in fields and gardens. This ensures land is properly prepared for subsequent agricultural or construction activities.




• Logistics & Transportation Support

  Streamlines loading and unloading processes for various materials. When paired with tractors or other transport equipment, it optimizes logistics efficiency and accelerates task completion.

Packaging & Shipping

Logistics and Transportation Guide

Small skid steer loaders are typically transported over long distances using flatbed trucks or enclosed shipping containers to ensure safety and efficiency.

Transportation Methods

• Container Shipping

Enclosed containers provide optimal protection against rain, dust, and road vibrations. Machines can be shipped individually or grouped together using specialized transport frames for cost-effective batch transportation.

• Batch Shipping

Multiple units can be securely mounted on customized transport frames, allowing for efficient group transportation and reduced logistics costs.

Packaging Methods

• Wooden Crate Packaging

Fully enclosed wooden crates offer maximum protection for complete machines or critical components. This method is ideal for long-distance or international shipments, preventing impact and weather-related damage.

• Metal Frame Packaging

Lightweight yet sturdy metal frames secure the machine while minimizing space usage. This option is suitable for batch transport where loading efficiency and space optimization are priorities.

• Additional Protective Measures

Vulnerable components such as hydraulic arms, control handles, and tires are padded or wrapped with protective materials to minimize transit damage.

Loading and Securing Guidelines

• Pre-Transport Preparation: Ensure equipment is firmly secured to wooden crates or metal frames to prevent shifting or tipping during handling and transit.

• Stacking Guidelines: Smaller models may be stacked to optimize space, while larger units must be loaded individually to ensure safety and stability.

• Packaging Protocol: Complete all packaging procedures before transportation to guarantee secure and damage-free delivery.

Note: This guide provides standardized logistics recommendations. Actual transportation and packaging methods should be adjusted according to specific machine models, destination requirements, and carrier regulations.
