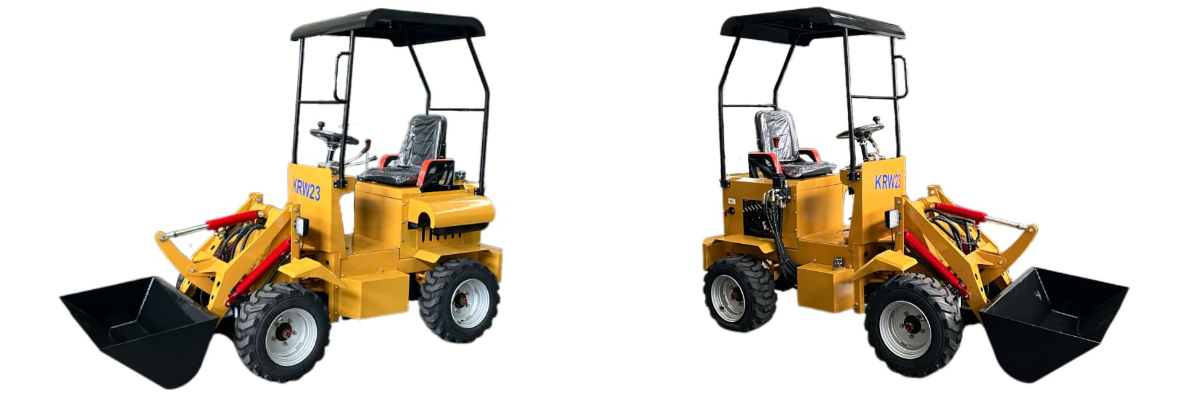

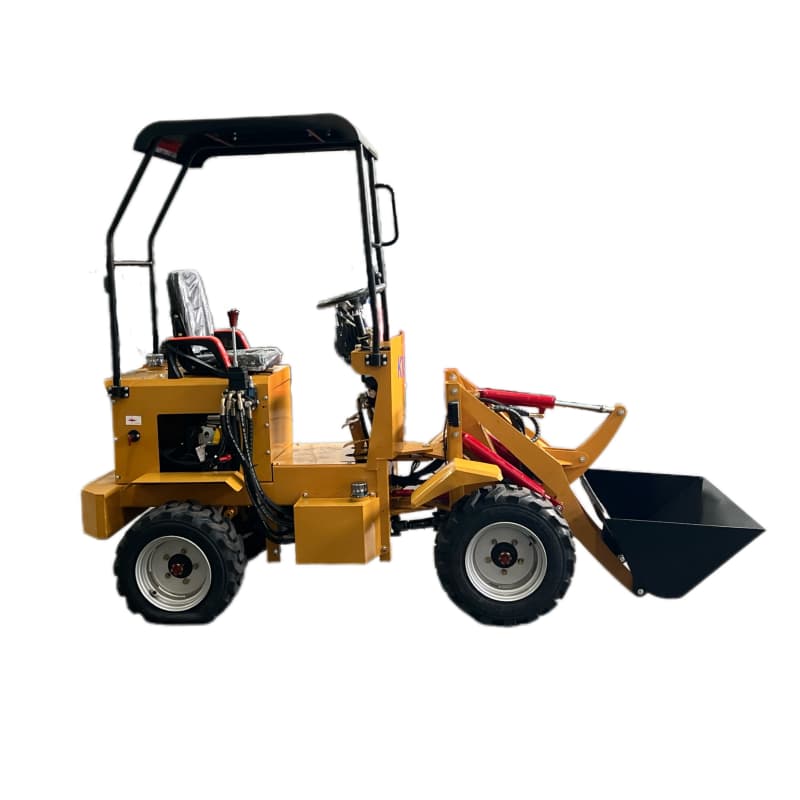

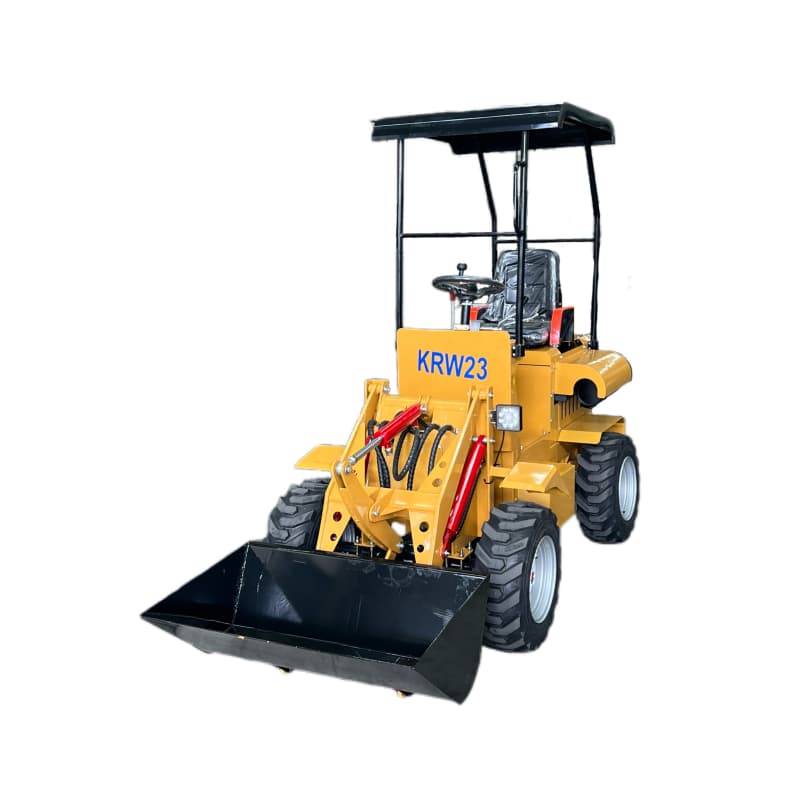

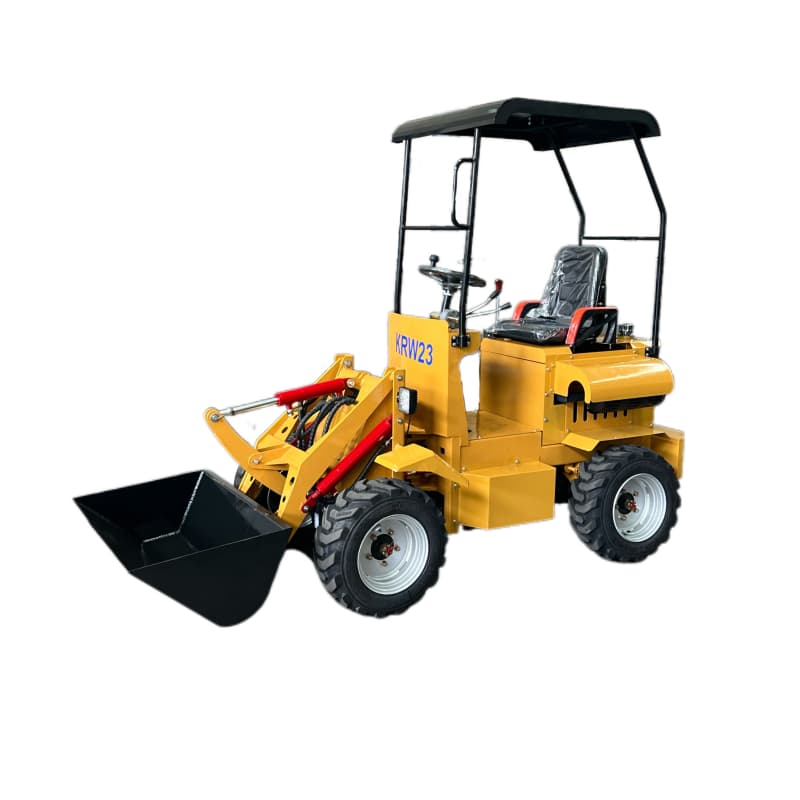

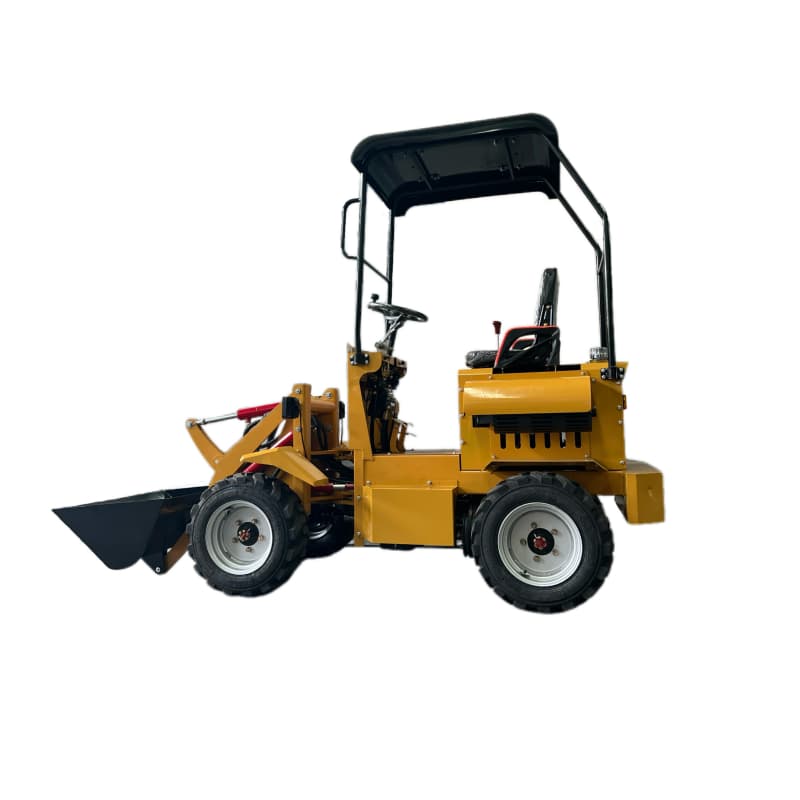

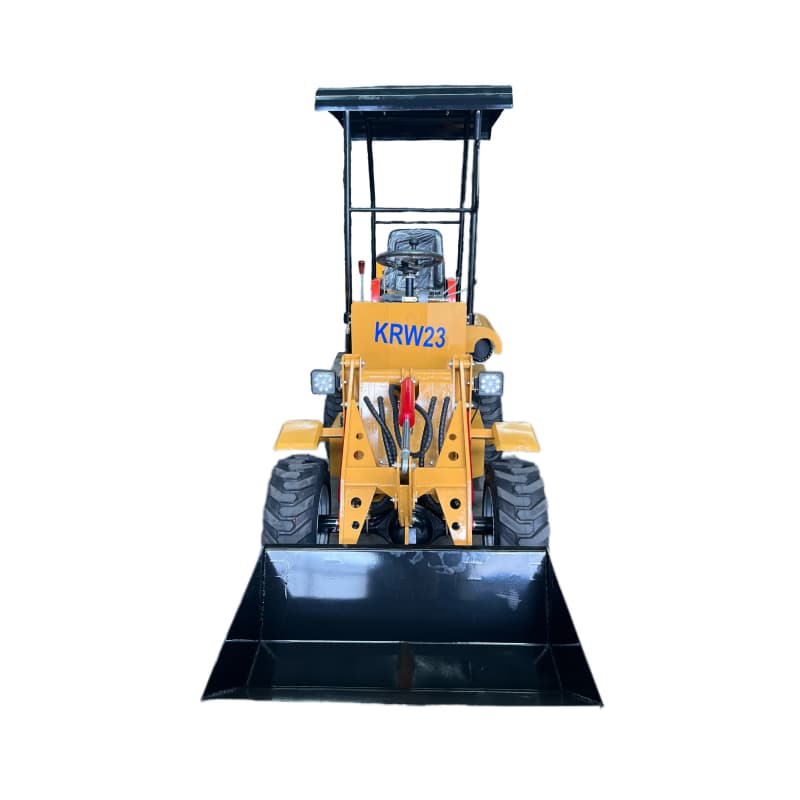

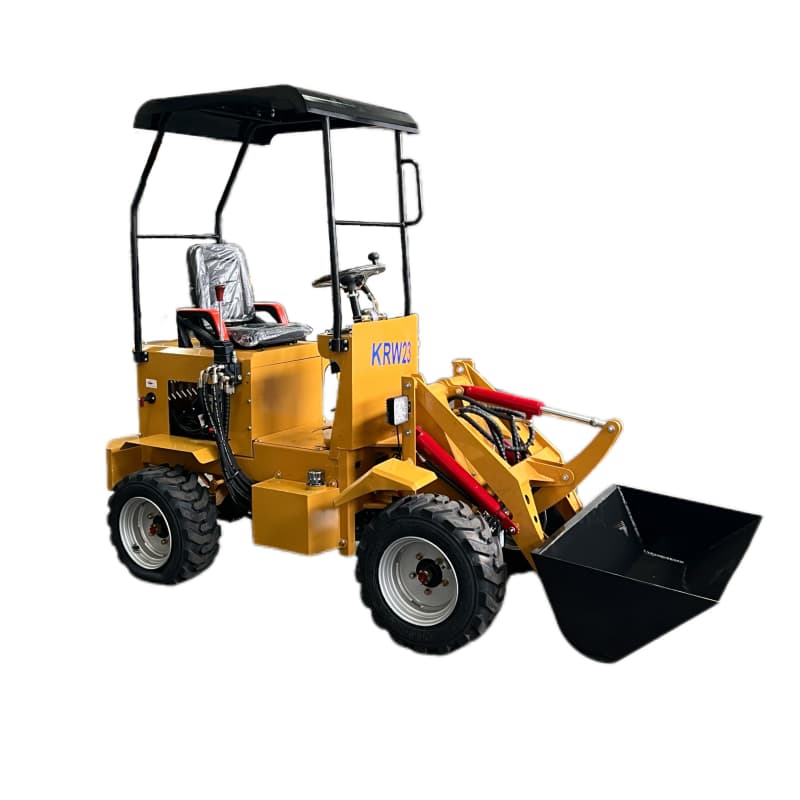

Compact Articulating Loader
Strong Power: Equipped with a powerful Rato engine delivering 16.8 kW of maximum power for efficient operation.
Flexible Mobility: Four-wheel drive allows for versatile maneuverability across various terrains in farmlands and gardens.
Efficient Workload Handling: Capable of quickly transporting materials and assisting in harvesting tasks, improving productivity.
Waste Cleanup: Removes debris effectively, maintaining cleanliness and tidiness in fields and gardens.
Product Introduction
The KRW23 is a compact and highly efficient excavator engineered for versatility in light to medium-duty applications, including landscaping, trenching, urban construction, and agricultural projects. Designed with maneuverability in mind, it features a narrow footprint and balanced weight distribution, making it ideal for operation in confined spaces. Key performance highlights include a substantial lifting capacity, efficient fuel consumption, and a responsive hydraulic system, all packaged in a user-friendly and robust machine suitable for both professional contractors and property owners.
The loader delivers reliable performance with a 24 HP Rato air-cooled gasoline engine running on 92# fuel, providing a theoretical fuel consumption of approximately 5 L/h. Its compact body measures 2600mm in length, 1100mm in width, and 2000mm in height, with a wheelbase of 1400mm and a working weight of 700 kg. The machine offers a bucket capacity of 0.25 m³, a maximum working height of 2300mm, and a maximum lifting force of 300 kg. The gear pump hydraulic system ensures smooth operation with a maximum flow rate of 20 L/min, while its dual travel speeds of 10/15 km/h enhance on-site mobility.
Built for durability and ease of use, the KRW23 incorporates a 90° bucket discharge angle and wide 23 * 8.5-12 wheels for stability across varied terrains. Its thoughtfully designed fuel and hydraulic systems include a 10L fuel tank and a 12.8L hydraulic oil tank, supporting extended operation with minimal downtime. The clear, ergonomic layout of controls and the machine’s accessible maintenance points further enhance productivity, making the KRW23 a dependable and cost-effective solution for a wide range of excavation and material-handling tasks.
Product Details
Full Opening Engine Cover Designed for quick servicing, the engine cover tilts back to make the engine and its key components readily accessible. |
|
Spacious Driving Experience This seat offers generous legroom and user-friendly operation. The driver's seat features fore-and-aft adjustment for enhanced comfort. |
|
Heat Dissipation The radiator's enhanced cooling efficiency minimizes potential harm to connected components. |
|

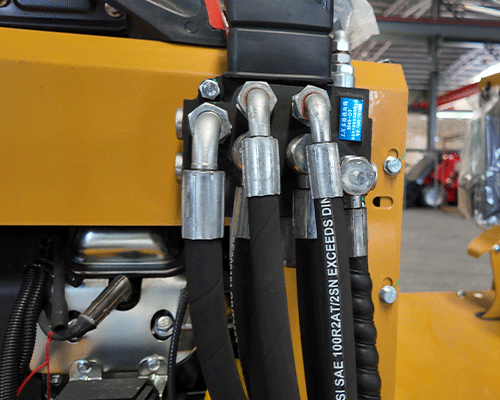

Hydraulic auxiliary tool joint Plug-type hydraulic auxiliary tool joint,hydraulic quick change. |
|

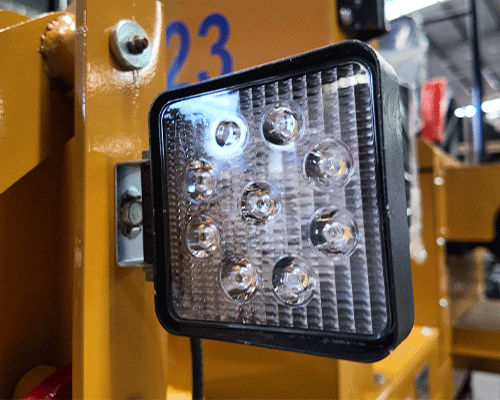

New LED Boom Work Light Equipped with advanced LED headlights, instead of conventional halogen ones. |
|

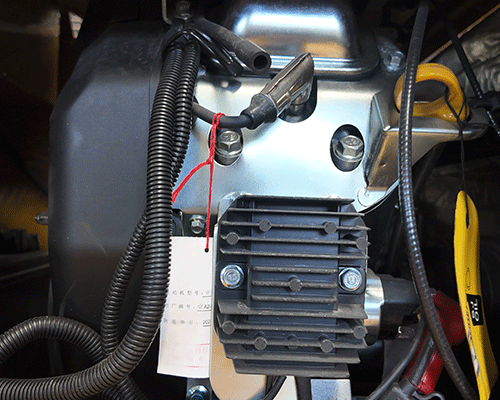

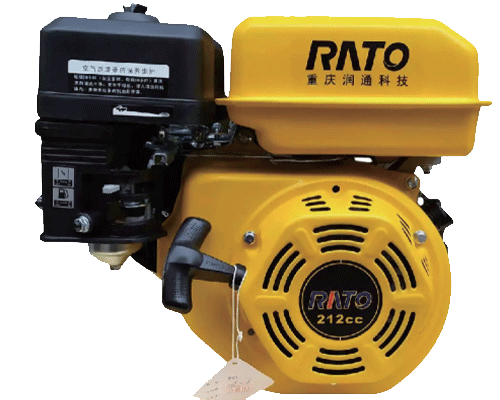

Rato Engine Boasting robust power and reliability, the SDA-140W Rato gasoline engine ensures high performance with low noise, minimal vibration, and excellent fuel economy. |
|
Rato Engine The KRW23 Rato gasoline engine provides strong, reliable performance with outstanding horsepower, low noise and vibration, and excellent fuel efficiency. |
|
Product Specifications
Model Information | KRW23 | |
Basic Performance Parameters | ||
Working Weight(kg) | 700 | |
Bucket capacity(m³) | 0.25 | |
Travel speed low/high(Km/h) | 10/15 | |
Maximum lifting force (Kg) | 300 | |
Maximum working height(mm) | 2300 | |
Maximum unloading height(mm) | 1650 | |
Wheelbase(mm) | 1400 | |
Bucket discharge angle(°) | 90° | |
Equipment Body | ||
Bucket width(mm) | 1000 | |
Overall Length(mm) | 2600 | |
Overall Width(mm) | 1100 | |
Overall Height(mm) | 2000 | |
Engine | ||
Engine Brand | Rato | |
Max. Horsepower(HP) | 24 | |
Cooling method | Air-cooled | |
Fuel Type | Gasoline | |
Fuel Grade | 92# | |
Theoretical fuel consumption(L/h） | 5 | |
Hydraulic system | ||
Main pump model | Gear pump | |
Max. flow rate of main pump(L/min) | 20 | |
Tracks | ||
Wheels | 23*8.5-12 | |
Fuel tank | ||
Fuel tank(L) | 10 | |
Hydraulic oil tank(L) | 12.8 | |
Applications
The compact and powerful four-wheel drive gasoline mini loader is an ideal work companion for various environments including farmland, gardens, and small to medium-sized farms. Below are key application scenarios where this equipment significantly enhances productivity and reduces manual labor.
1. Agricultural Material Transportation
Efficiently moves essential supplies such as fertilizers, seeds, animal feed, and farm tools across short to medium distances. This saves time and reduces physical strain, allowing users to focus on other important tasks.
2. Harvest Loading Assistance
Supports loading and transportation of harvested produce, including grains, fruits, vegetables, and straw. With its reliable lifting and hauling capacity, it helps accelerate post-harvest operations and improves workflow efficiency.
3. Field and Garden Waste Cleanup
Effectively removes unwanted debris such as fallen branches, weeds, rocks, and other obstacles from gardens, orchards, and farmland. This ensures a cleaner, safer, and more organized working space.

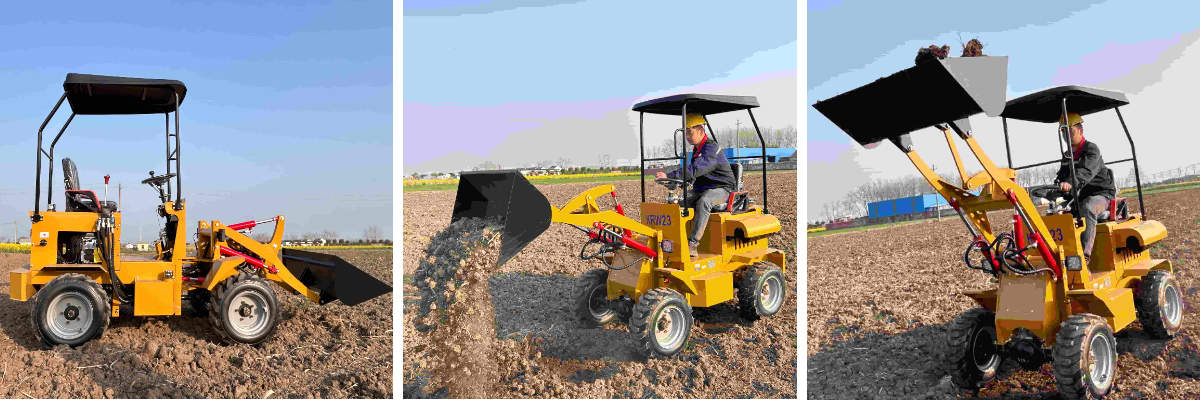

4. Land Leveling and Site Preparation
Uses the attached bucket to spread soil, flatten terrain, and prepare land for planting, animal housing, or setting up agricultural structures. Its maneuverability makes it suitable for working in confined or uneven areas.
Whether you are transporting materials, handling harvests, clearing debris, or preparing land, this mini loader offers versatile functionality designed to meet diverse agricultural and landscaping needs—all while delivering strong performance, ease of operation, and excellent mobility.
Packaging & Shipping
Logistics and Transportation Guide
Small skid steer loaders are typically transported over long distances using flatbed trucks or enclosed shipping containers to ensure safety and efficiency.
Transportation Methods
Container Shipping
Enclosed containers provide optimal protection against rain, dust, and road vibrations. Machines can be shipped individually or grouped together using specialized transport frames for cost-effective batch transportation.
Batch Shipping
Multiple units can be securely mounted on customized transport frames, allowing for efficient group transportation and reduced logistics costs.

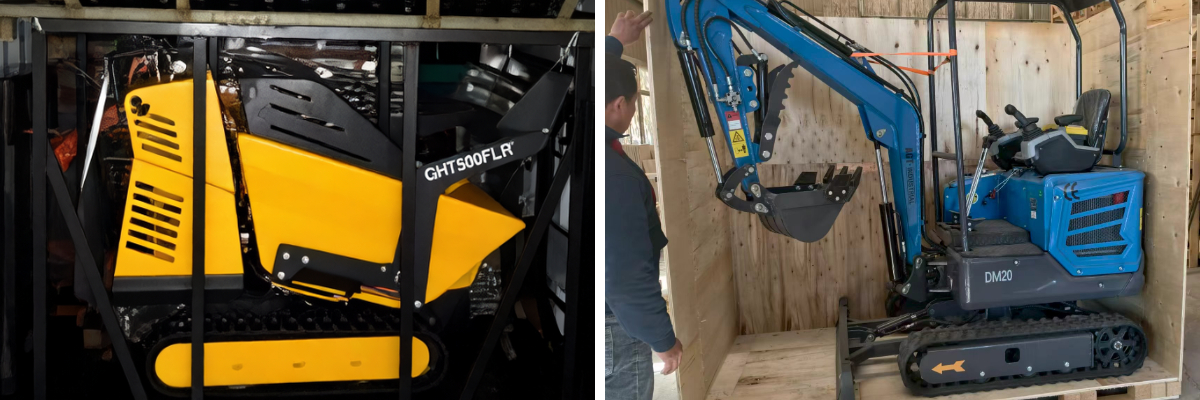

Packaging Methods
Wooden Crate Packaging
Fully enclosed wooden crates offer maximum protection for complete machines or critical components. This method is ideal for long-distance or international shipments, preventing impact and weather-related damage.
Metal Frame Packaging
Lightweight yet sturdy metal frames secure the machine while minimizing space usage. This option is suitable for batch transport where loading efficiency and space optimization are priorities.
Additional Protective Measures
Vulnerable components such as hydraulic arms, control handles, and tires are padded or wrapped with protective materials to minimize transit damage.
Loading and Securing Guidelines
Pre-Transport Preparation: Ensure equipment is firmly secured to wooden crates or metal frames to prevent shifting or tipping during handling and transit.
Stacking Guidelines: Smaller models may be stacked to optimize space, while larger units must be loaded individually to ensure safety and stability.
Packaging Protocol: Complete all packaging procedures before transportation to guarantee secure and damage-free delivery.
