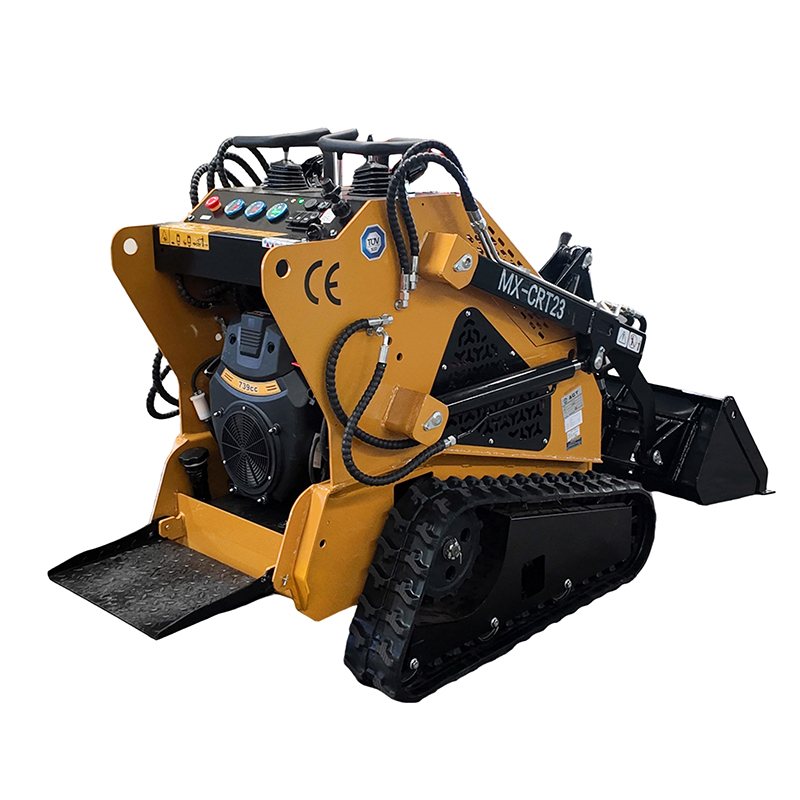

Compact Crawler Loader
Compact Design: Maneuverable in tight spaces with a 685kg weight and 4km/h speed.
Powerful Performance: Equipped with a 24PS Rato engine for efficient tasks.
Efficient Handling: Capable of lifting up to 200kg and reaching heights of 2285mm.
Reliable Operation: Ensures precision and reliability across various work environments.
Versatile Applications: Ideal for farms, gardens, and warehouses due to its compact size.
Product Introduction

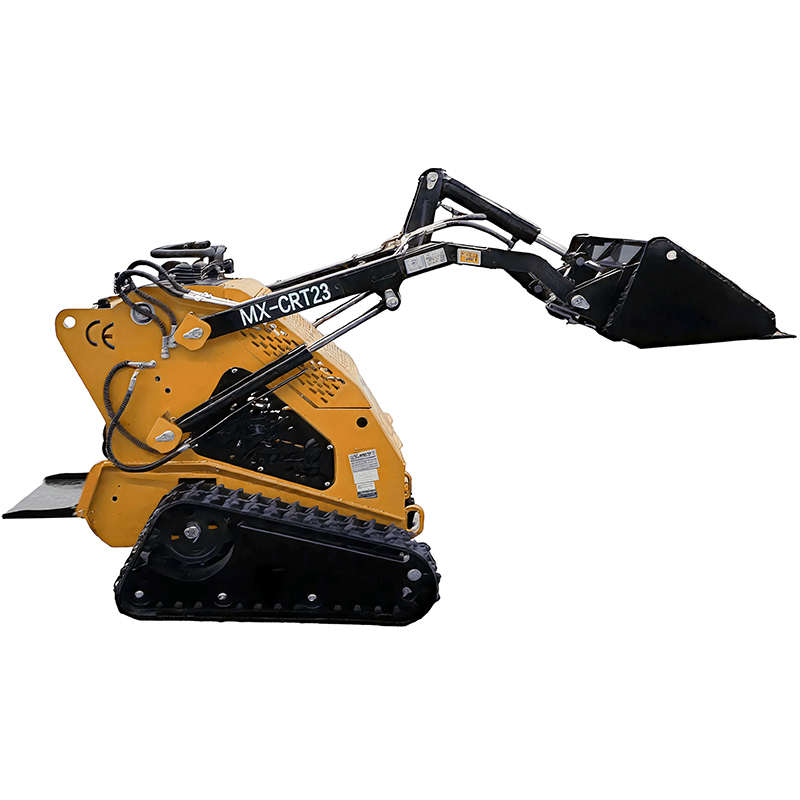

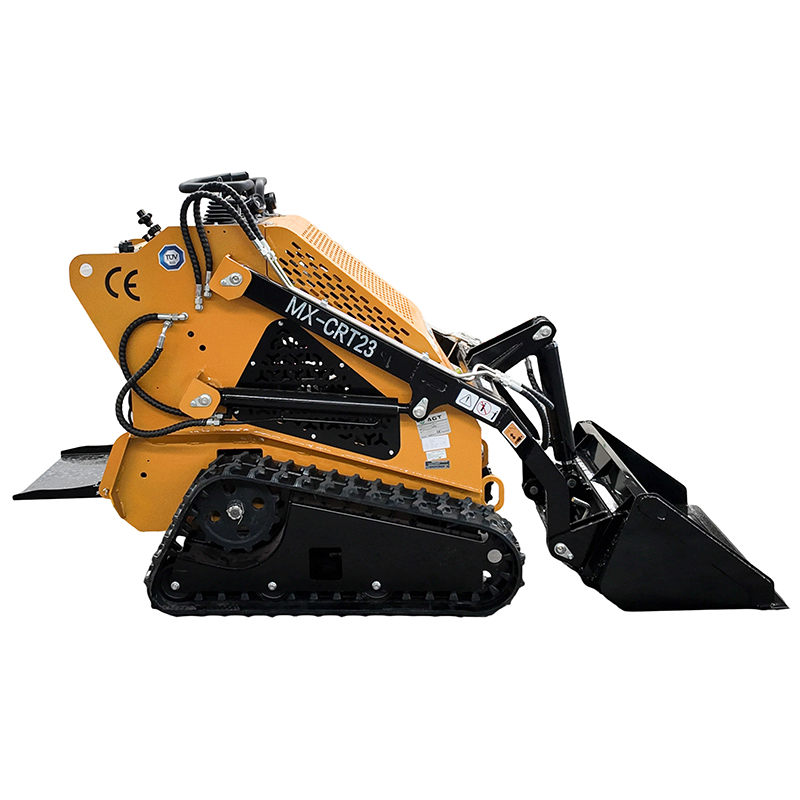

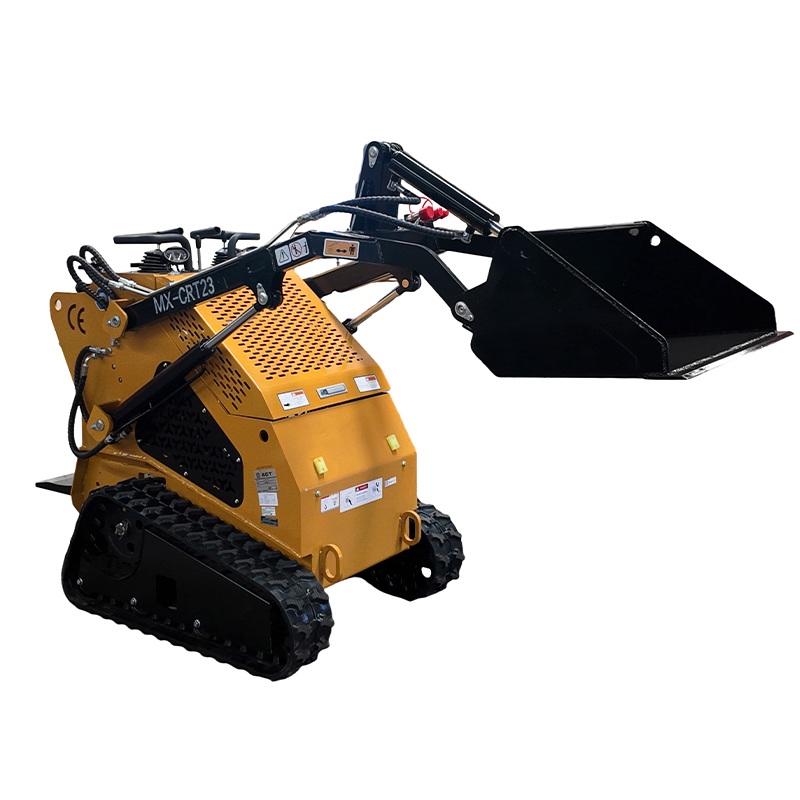

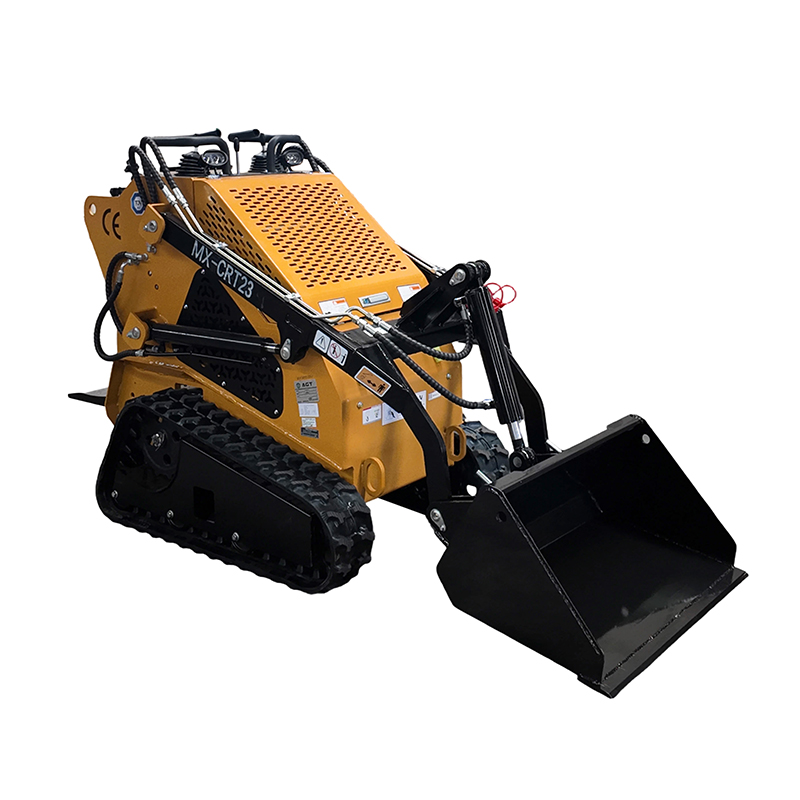

The MX-CRT23 is a compact and efficient machinery unit designed for material handling and light excavation tasks. With a working weight of 685 kg, it operates effectively using a 0.1 m³ bucket capacity, offering a balanced combination of maneuverability and functional power. Its core performance includes a travel speed of 4 km/h, a maximum lifting capacity of 200 kg, and a maximum working height of 2285 mm. The device ensures versatile operation with a substantial 1575 mm unloading height and a 661 mm loading reach at that height, making it suitable for confined or precision work areas. Key dimensional features, such as a 905 mm wheelbase and 163 mm ground clearance, further highlight its stability and adaptability across various terrains.
Powering the MX-CRT23 is a robust Rato R740D gasoline engine, delivering a maximum output of 24 horsepower (17 kW) at 3600 rpm. This twin-cylinder, fan-cooled engine runs on standard 92# fuel, ensuring reliable performance with an engine oil capacity of 1.6 L. The equipment is fitted with durable 180 * 72 * 37 rubber tracks for enhanced traction and minimal ground disturbance. For extended operation, it includes a 19.6 L fuel tank and a 33 L hydraulic oil tank, supporting continuous use in demanding conditions. Overall, the MX-CRT23 integrates efficient power, practical mobility, and ample fluid capacity, making it a dependable choice for small-scale industrial, agricultural, or construction applications.
Product Details

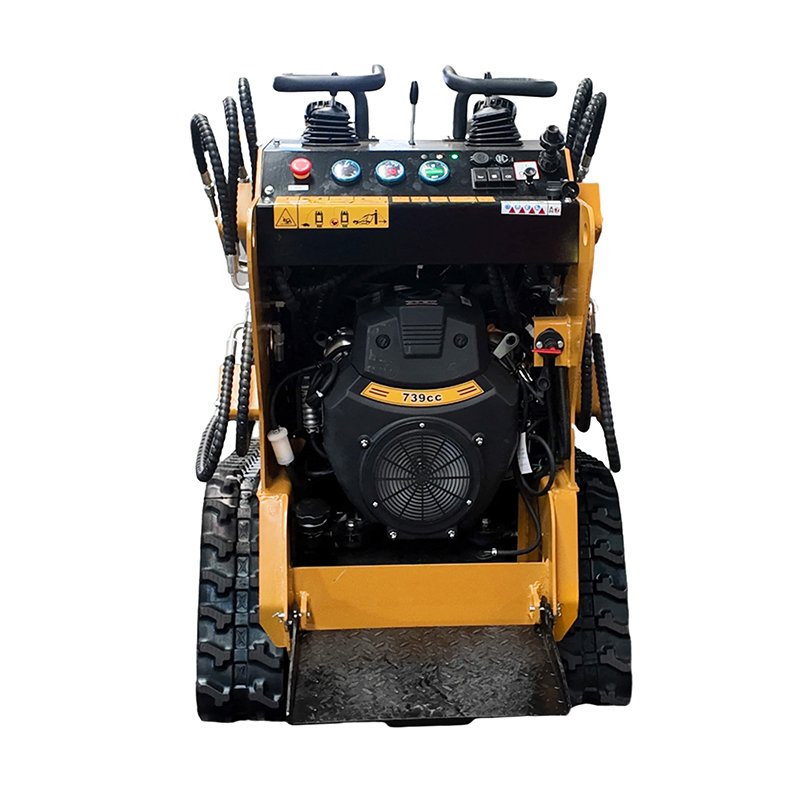

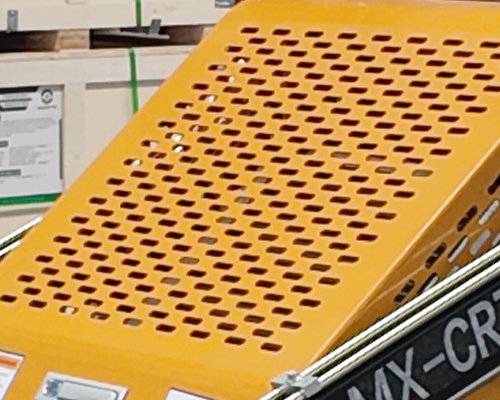

Full Opening Engine Cover The upward-tilting cover allows direct, unimpeded reach to most engine parts, greatly simplifying daily maintenance, inspections, and service work. |
|
Heat Dissipation With an upgraded radiator, this design accelerates heat removal to safeguard essential components and sustain high performance in tough operating environments. |
|

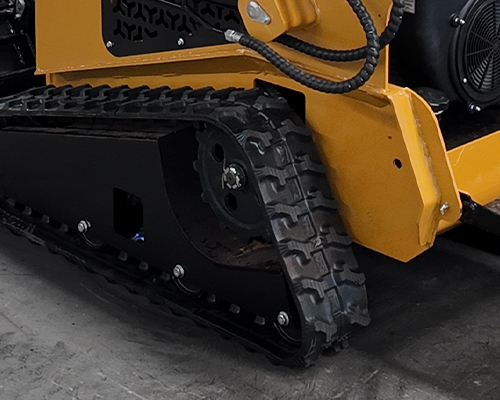

Variable Speed Motor This motor enables smooth transitions between high and low speeds, supplying adaptable power and exact control across varied tasks and site requirements. |
|

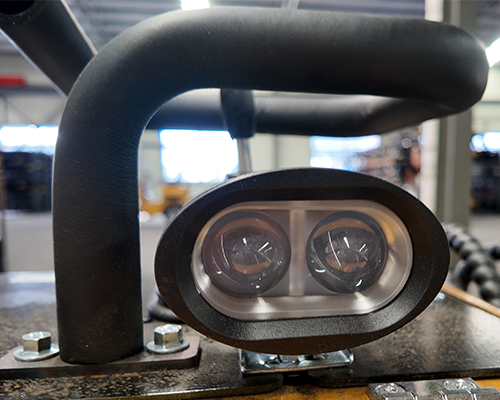

New LED Boom Work Light Featuring modern LED boom lamps (non‑halogen) that deliver brighter, more energy‑efficient, and durable light—improving visibility and safety in dim or dark worksites. |
|

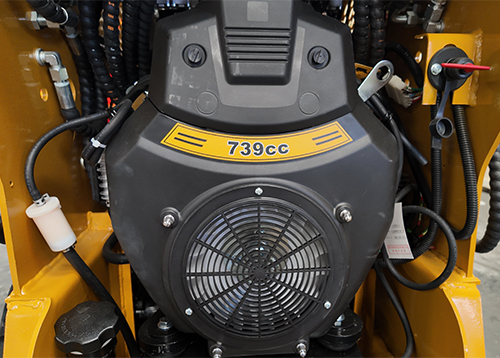

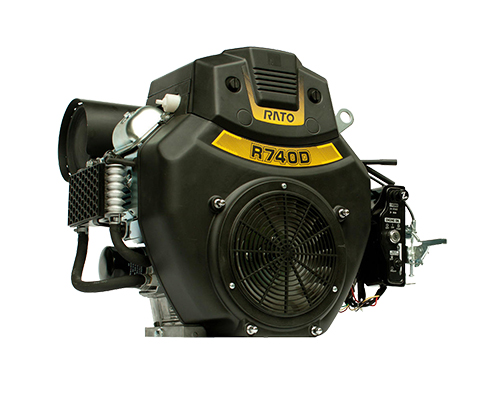

Rato Engine Built to provide strong horsepower and dependable operation, the RATO gasoline engine runs quietly with minimal vibration and achieves outstanding fuel economy. |
|

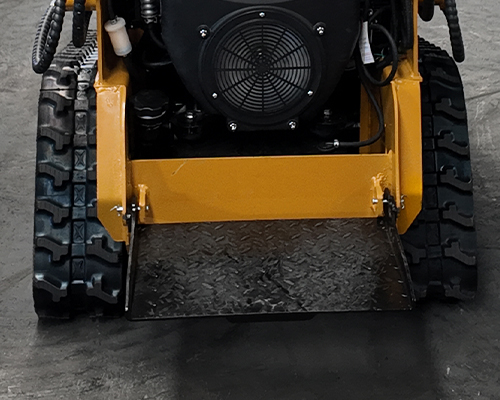

Spacious Operator Experience Offers ample leg space and user‑friendly controls for intuitive handling. The adjustable driver’s seat can be positioned forward or back, letting each operator tailor the setup for comfort during long shifts. |
|
Product Specifications
Basic Performance Parameters | ||
Working Weight(kg) | 685 | |
Bucket capacity(m³) | 0.1 | |
Travel speed low/high speed(Km/h) | 4 | |
Maximum lifting force (Kg) | 200 | |
Maximum working height(mm) | 2285 | |
Maximum pin height (mm) | 1967 | |
Maximum unloading height(mm) | 1575 | |
Loading distance at maximum unloading height (mm). | 661 | |
Wheelbase(mm) | 905 | |
Ground clearance(mm) | 163 | |
Bucket discharge angle | 23° | |
Equipment Body | ||
Bucket width(mm) | 1120 | |
Overall Length(mm) | 2135/2432 | |
Overall Width(mm) | 904 | |
Overall Height(mm) | 1364 | |
Body width(mm) | 810 | |
Slewing radius(mm) | 1493 | |
Engine | ||
Engine Brand | Rato | |
Engine model | R740D | |
Maximum horsepower(ps) | 24 | |
Maximum power(Kw) | 17 | |
Maximum speed(rpm) | 3600 | |
Number of cylinders | 2 | |
Cooling method | Fan cooling | |
Engine oil replacement(L) | 1.6 | |
Fuel Type | Gasoline | |
Fuel Grade | 92# | |
Tracks | ||
△-Rubber (bandwidth*pitch*number of sections) | 180*72*37 | |
Fuel tank | ||
Fuel tank(L) | 19.6 | |
Hydraulic oil tank(L) | 33 | |

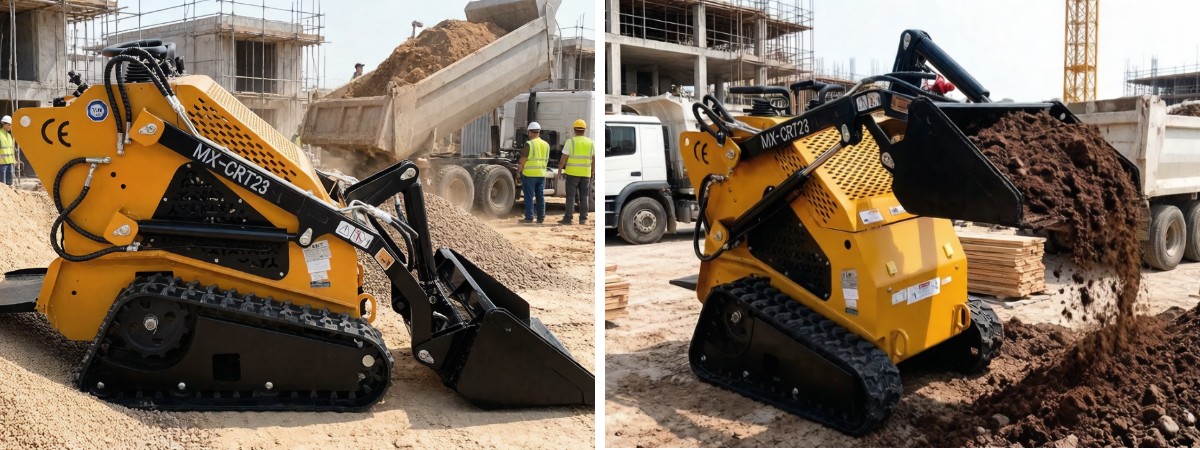

Applications
Landscaping & Garden Maintenance
Designed for landscaping and gardening applications, this compact skid-steer loader excels in transporting materials, performing light excavation, grading surfaces, and renewing lawns. With its tight turning radius and agile handling, it readily accesses residential yards, parks, and landscaped areas while minimizing soil disruption and protecting delicate turf.
Trenching & Utility Operations
Combining superior maneuverability with precise control, the unit delivers dependable support for utility work such as backfilling, moving supplies, and aiding pipeline installation. It is frequently employed in agricultural irrigation projects and municipal underground service tasks, enhancing productivity in tight or limited-access zones.
Indoor & Restricted-Space Applications
The loader’s low-profile design and reduced ground pressure enable effective use in interior demolition, basement cleanup, and building renovation. Capable of operating in cramped areas where larger machinery cannot fit, it is particularly well-suited for demanding indoor settings like warehouses, factories, and retrofit locations.
Road & Municipal Maintenance
Adapted for urban infrastructure upkeep, this machine assists with sidewalk repairs, debris collection, snow clearance, and routine city maintenance. Its compact size and nimble handling allow efficient operation in congested urban zones with little disruption to traffic, and available LED lighting supports safe use during early-morning or evening hours.
Material Handling & Site Restoration
When configured with attachments such as breakers, pallet forks, or cleaning buckets, the loader capably performs light concrete demolition, cleans drainage ditches, removes silt, and clears waste. It acts as a flexible resource for environmental remediation, water-conservation projects, and post-construction site recovery.

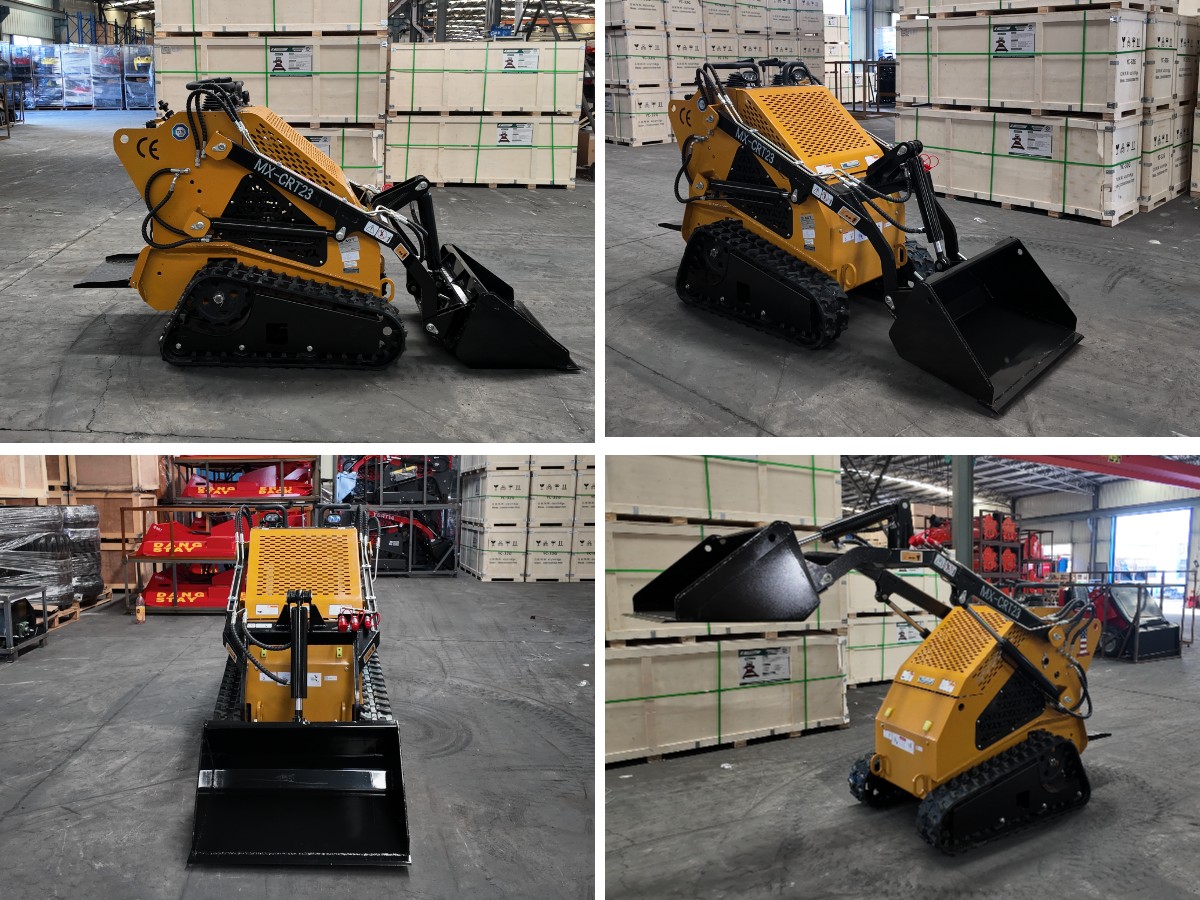

Packaging & Shipping

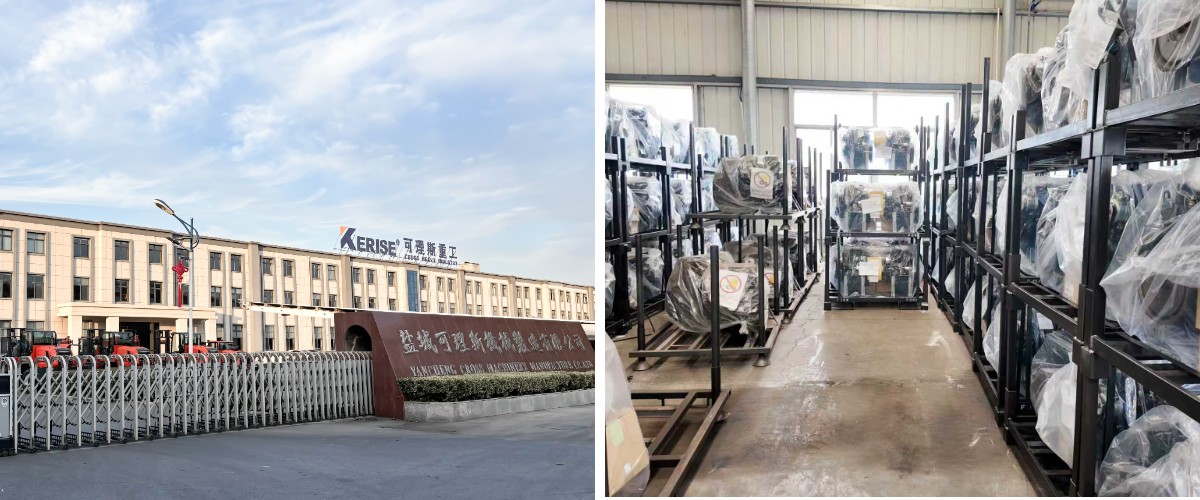

Company Profile
