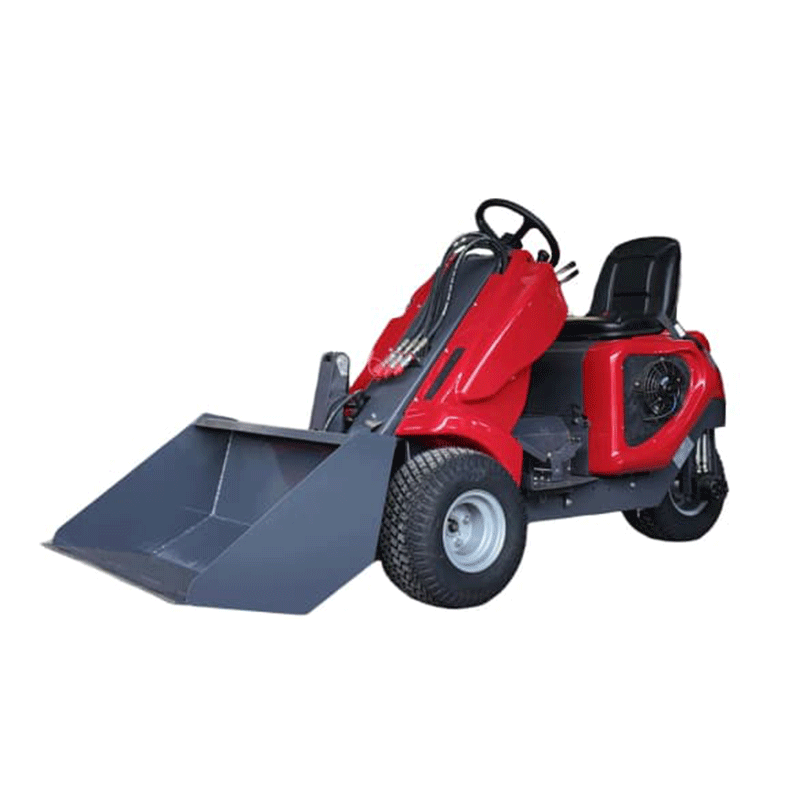

Compact Wheel Loaders
Compact & Highly Maneuverable: With a working weight of only 460kg and a compact body, it excels in operating within confined spaces.
Strong Lifting Capacity: Delivers a powerful 400kg maximum lifting force for efficient material handling.
Impressive Reach: Achieves a maximum working height of 1880mm, facilitating effective stacking and loading tasks.
Reliable & Powerful Engine: Equipped with a robust 24HP Rato gasoline engine, featuring simple air-cooled maintenance.
Product Introduction

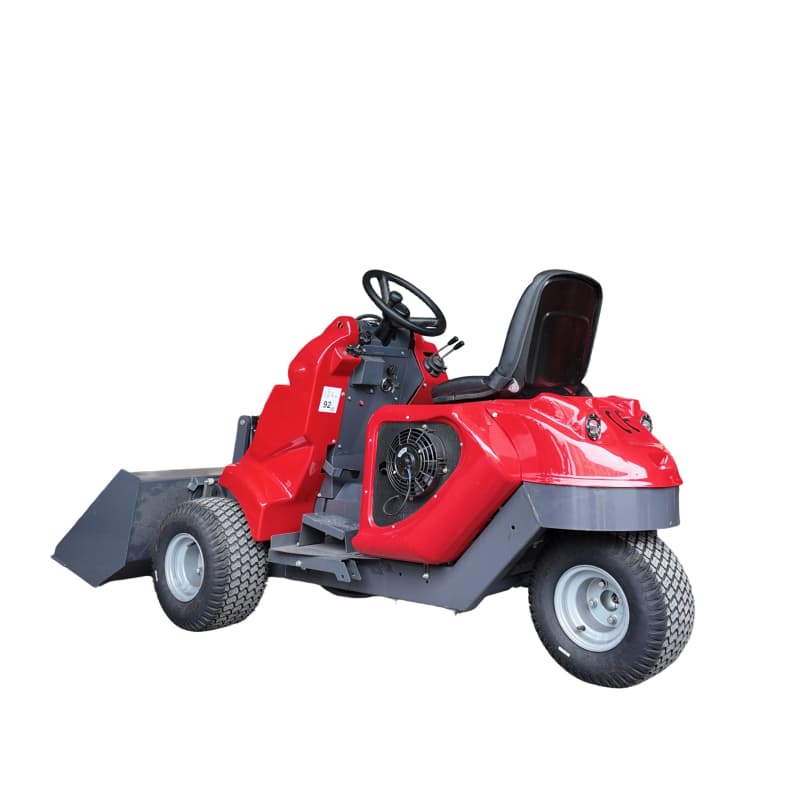

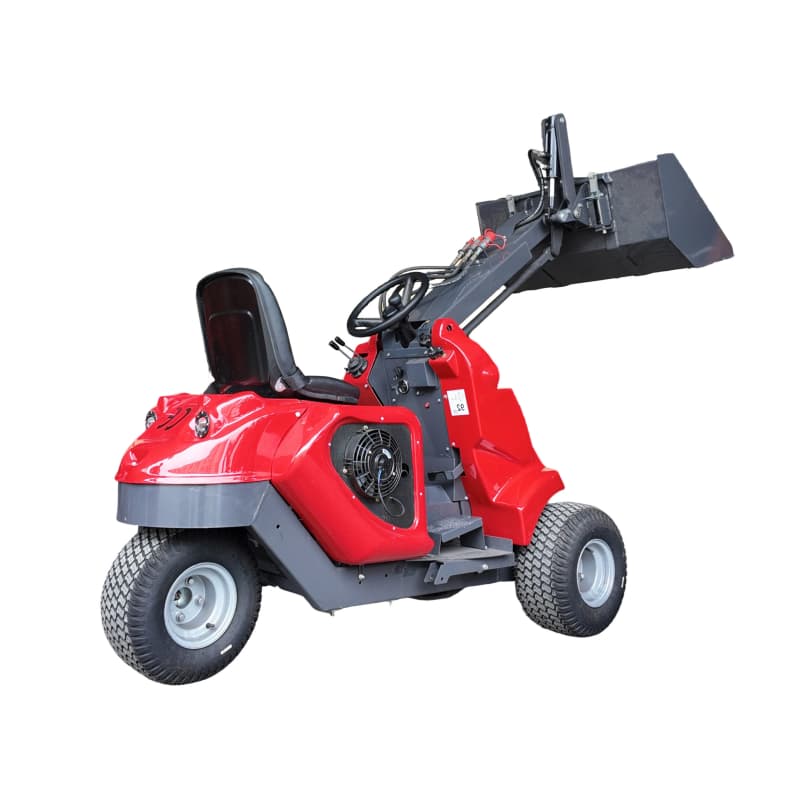

The HR230 is a high-performance compact loader designed for efficiency and reliability in a wide range of material handling and light construction tasks. With a balanced design that emphasizes power, stability, and operational economy, it is an ideal solution for confined spaces and demanding work environments.
Robust Performance: Powered by a reliable 24HP Rato air-cooled gasoline engine, it delivers strong performance with a maximum lifting force of 400 kg and a travel speed of up to 12 km/h.
Superior Maneuverability & Reach: Its compact dimensions (Length: 1854mm, Width: 993mm) and lightweight design (460 kg) allow for excellent accessibility. With a maximum working height of 1880mm, it handles stacking and loading tasks with ease.
Stable & Efficient Operation: A 993mm wheelbase ensures stability during movement and lifting. The efficient hydraulic system (29 L/min gear pump) provides responsive control.
Cost-Effective Operation: Using standard 92# gasoline and featuring a theoretical fuel consumption of 5 L/h, the HR230 is designed for lower running costs and simpler maintenance.
This machine combines essential power with practical design, making it a dependable and productive asset for your operational needs.
Product Details
Full Opening Engine Cover The entire engine cover tilts up, allowing for full and easy access to engine components. |
|

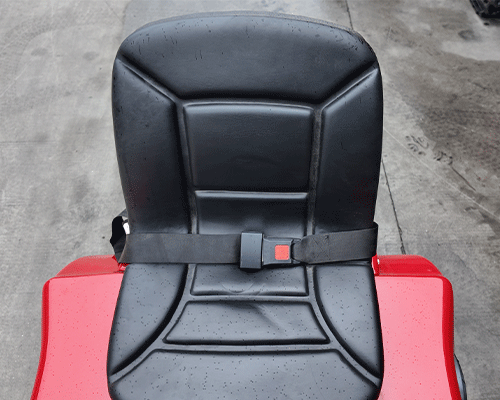

Spacious Driving Experience Operator comfort is prioritized with optimized legroom for easy movement and an ergonomically designed seat featuring fore-and-aft adjustment. |
|
Heat Dissipation Optimized cooling by the radiator helps ensure accessory durability and extended lifespan. |
|
Variable Speed Motor The travel motor is equipped with dual-speed capability (high/low), delivering greater power and operational flexibility. |
|

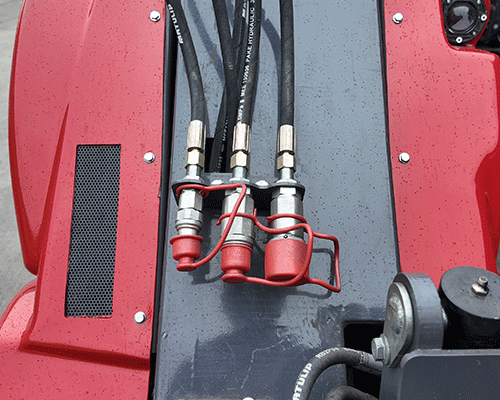

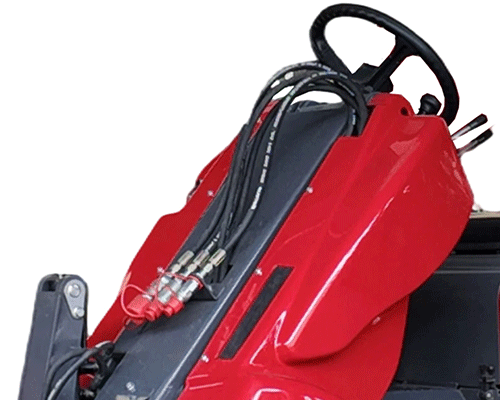

Hydraulic auxiliary tool joint Plug-type hydraulic auxiliary tool joint, hydraulic quick chang. |
|

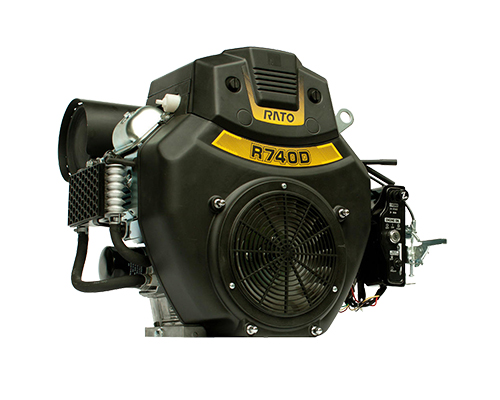

Rato Engine Power and dependable, the HR230 Rato Gasoline engine delivers superior horsepower and performance. It offers low noise and vibration levels, exceptional fuel efficiency. |
|
Product Specifications
Model Information | HR230 | |
Basic Performance Parameters | ||
Working Weight(kg) | 460 | |
Bucket capacity(m³) | 0.12 | |
Travel speed (Km/h) | 12 | |
Maximum lifting force (Kg) | 400 | |

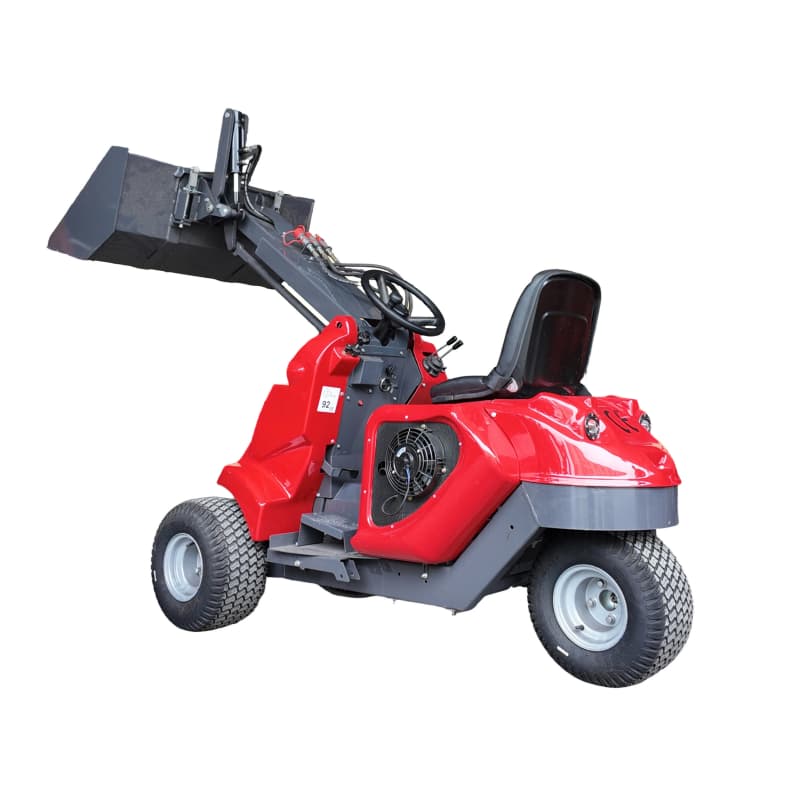

Maximum working height(mm) | 1880 | |
Maximum unloading height(mm) | 1435 | |
Wheelbase(mm) | 993 | |
Bucket discharge angle | 20 | |
Equipment Body | ||
Bucket width(mm) | 1110 | |
Overall Length(mm) | 1854 | |
Overall Width(mm) | 993 | |
Overall Height(mm) | 1304 | |
Engine | ||
Engine Brand | Rato | |
Max. Horsepower(HP) | 24 | |
Cooling method | Air-cooled | |
Fuel Type | Gasoline | |
Fuel Grade | 92# | |
Theoretical fuel consumption(L/h） | 5 | |
Hydraulic system | ||
Main pump model | Gear pump | |
Max. flow rate of main pump(L/min) | 29 | |
Motor Displacement(L/h） | 160/315 | |
Tracks | ||
Wheels | 18*9.50-8 | |
Fuel tank | ||
Fuel tank(L) | 90 | |
Hydraulic oil tank(L) | 10 | |
Applications
The H230 compact loader is engineered to tackle a wide range of tasks across industries, combining agility with reliable performance. Whether you’re working in tight urban spaces, agricultural settings, or light construction sites, the H230 delivers power and precision where it’s needed most.
Construction & Material Handling
Ideal for moving gravel, sand, or debris on residential builds and small commercial sites. Its compact size allows easy maneuvering between structures and stored materials.

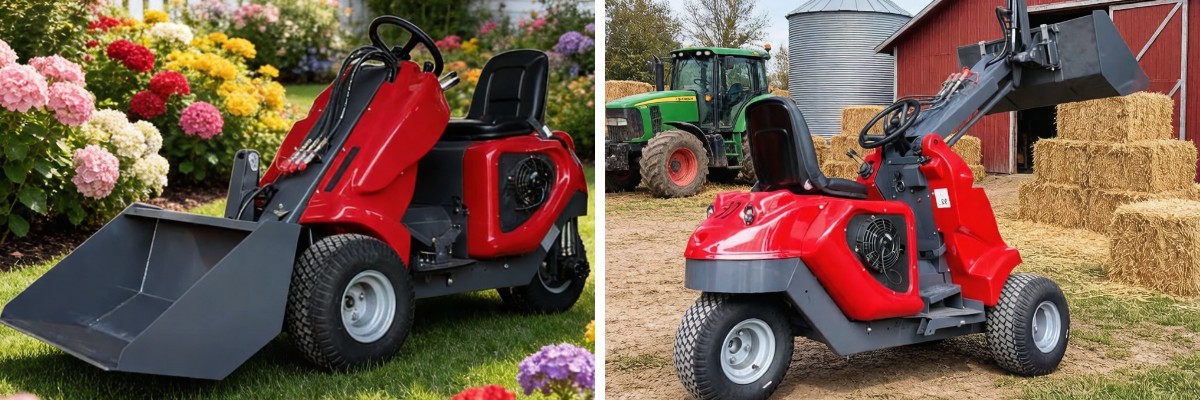

Landscaping & Grounds Maintenance
Perfect for transporting soil, mulch, or pavers in gardens, parks, and estates. The adjustable seat and smooth controls reduce operator fatigue during long landscaping projects.
Agricultural & Farm Support
From cleaning barns to loading feed or hay, the H230 handles diverse farm chores efficiently. The robust engine and dual-speed travel motor provide traction and power on uneven terrain.
Snow Removal & Light Utility Work
With quick-attach options for blades or buckets, it clears driveways, parking lots, and walkways in winter—and transitions seamlessly to other seasonal tasks.
Packaging & Shipping
Professional Export-Grade Packaging & Logistics
At KMX, we place the highest priority on ensuring that every piece of equipment travels securely and reliably from our production line to your operational site. To achieve this, we adhere to export-level packaging specifications and maintain a fully controlled, end-to-end logistics process, designed to safeguard each mini excavator throughout its journey. From the moment it leaves our facility to its final arrival, our dedicated approach ensures your machinery is handled with the greatest attention and reaches you safely and punctually, no matter the destination.

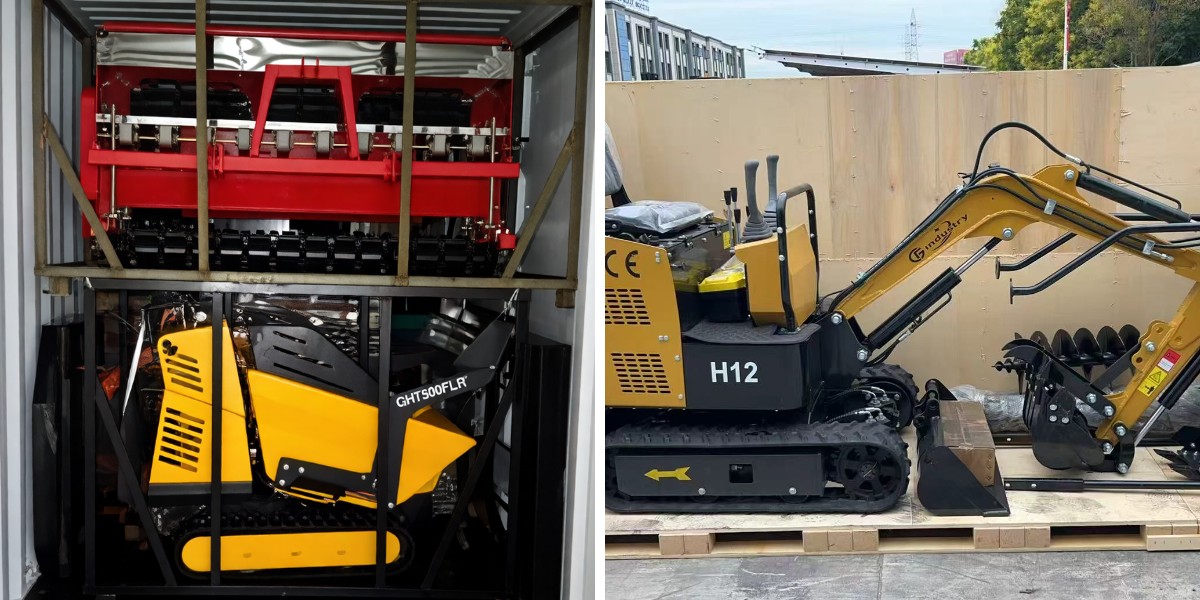

Expert Container Packing and Secure Fixing
To guarantee complete protection during maritime transport, our certified team utilizes specialized tools including forklifts and loading ramps to carefully place machinery inside standard containers (20GP or 40HQ). Once loaded, a reinforced multi-point restraint system—featuring industrial-grade nylon straps and precision-cut timber braces—is applied to immobilize the equipment, preventing any movement during transit. This engineered securing method ensures resilience against the demands of extended sea and overland shipping, offering you full confidence from departure to arrival.
Tailored Logistics Planning
Our commitment goes beyond superior packaging. Based on your project timeline and financial parameters, we provide adaptable shipment methods: whether you require Full Container Load (FCL), Less than Container Load (LCL), or time-sensitive air freight, our skilled logistics specialists will design the most streamlined and economical routing to your port of entry or directly to your designated site.
