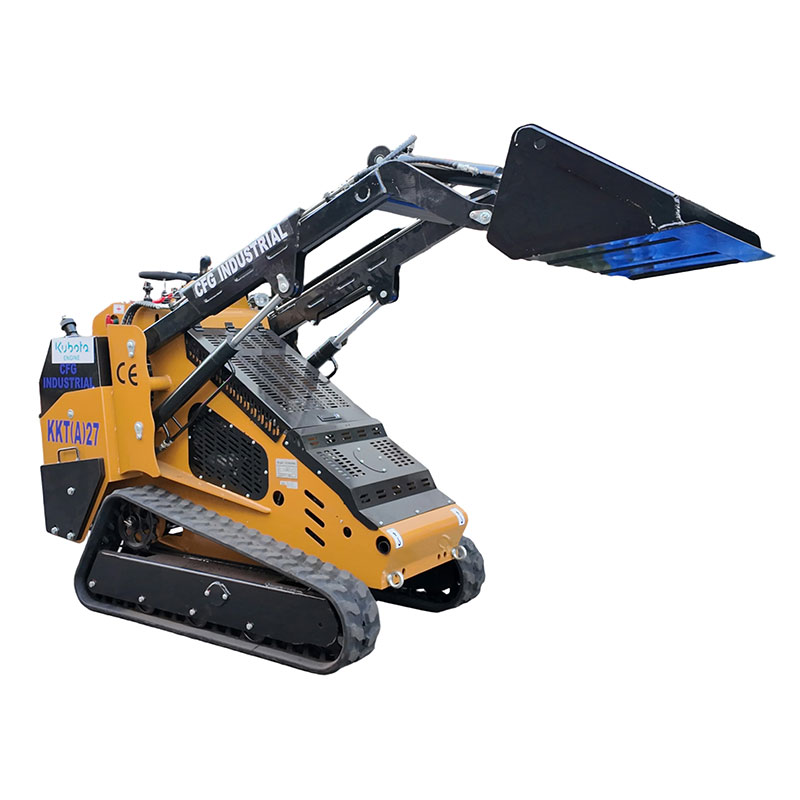

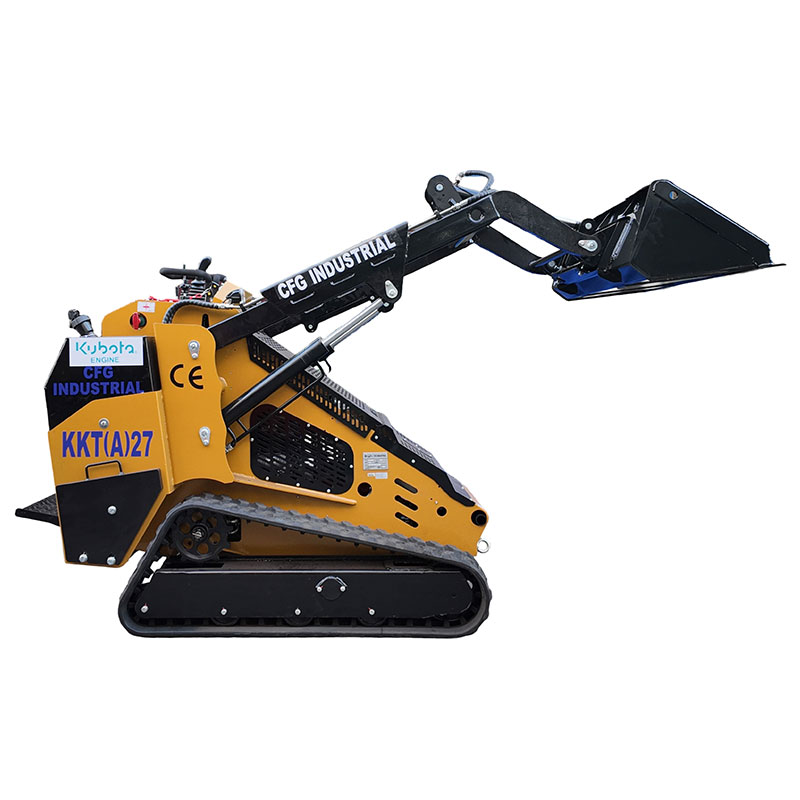

Mini Front Track Loader
High-Performance EPA Certification: Ensures environmental compliance and reliability.
Kubota Engine: Reliable power for efficient operation.
27 HP Engine: Provides ample power for heavy-duty tasks.
1-Year Warranty: Peace of mind with extended coverage.
Compact Design: Ideal for tight spaces and maneuverability.
Product Introduction

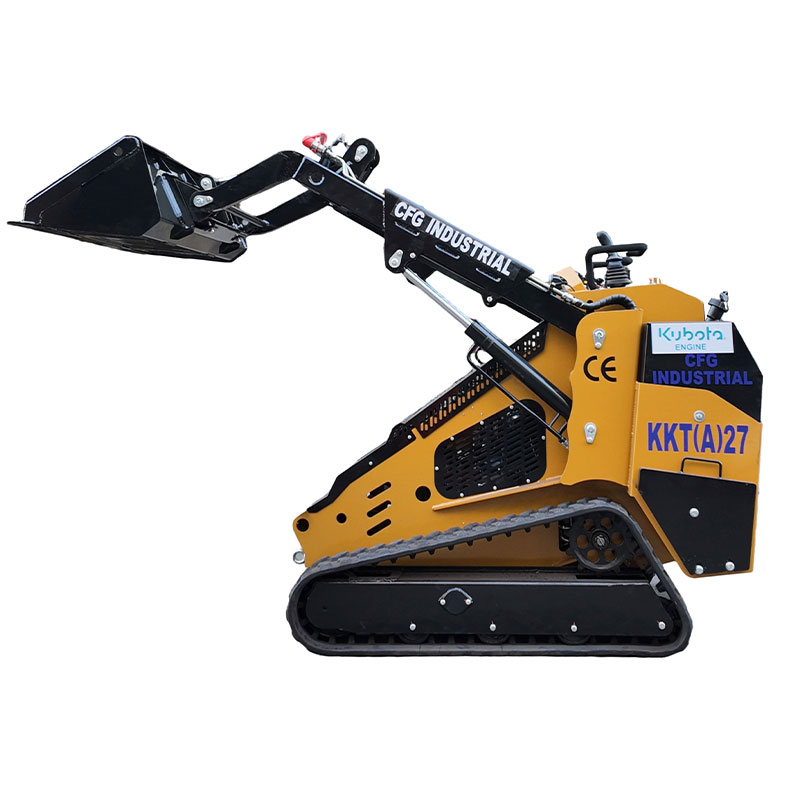

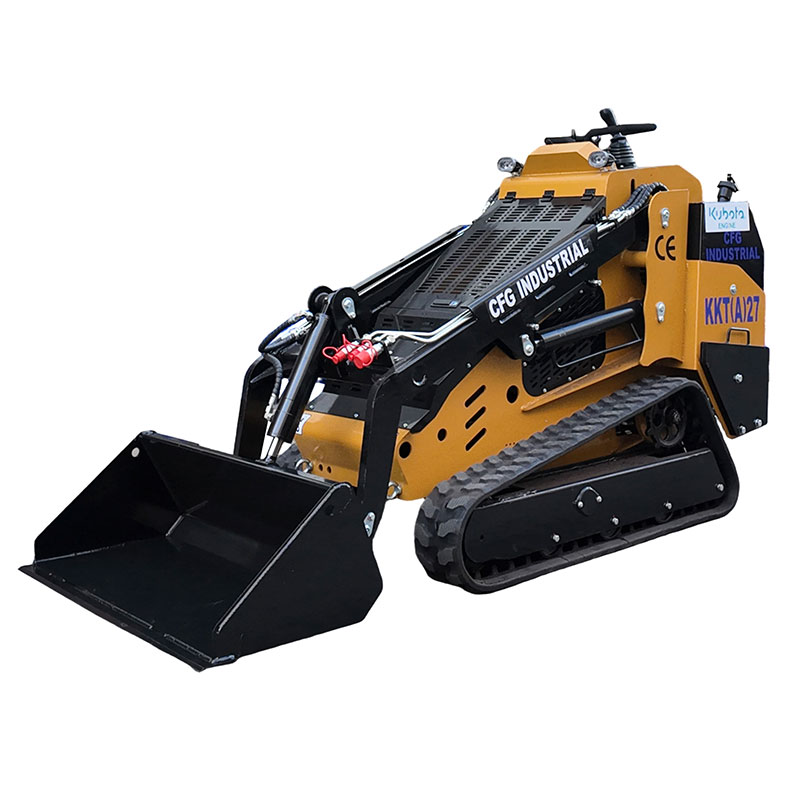

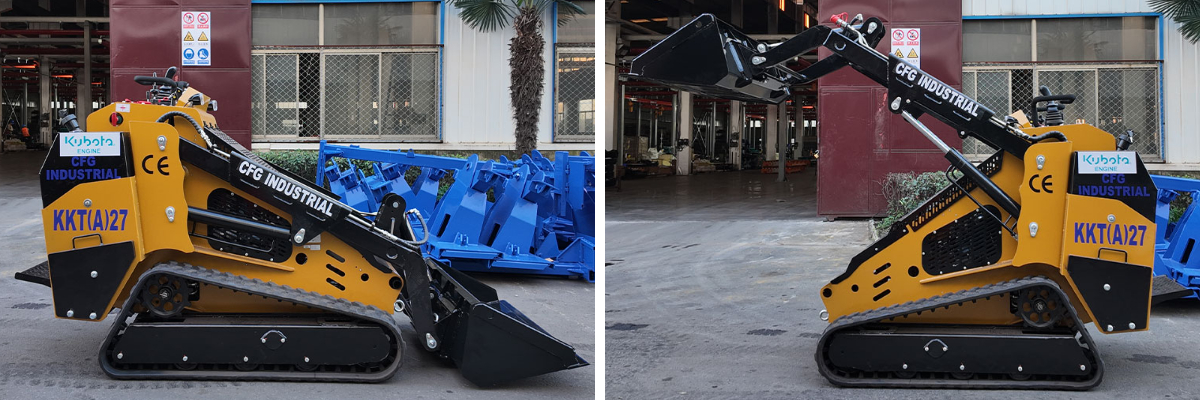

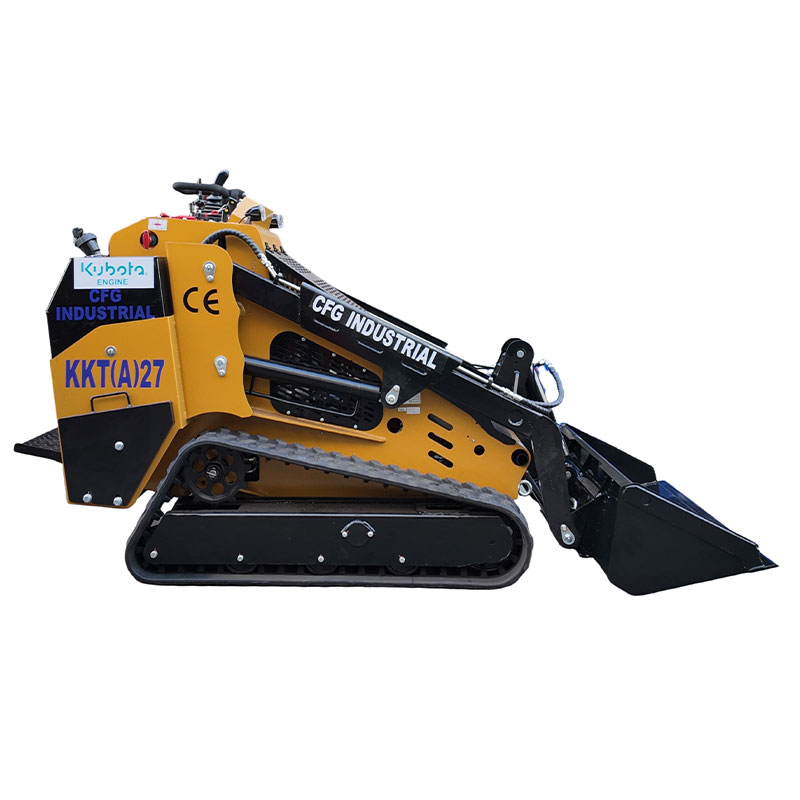

The KKT27 is a highly efficient compact loader designed to deliver powerful performance in confined spaces. With a working weight of 1300 kg and a standard bucket capacity of 0.2 m³, it strikes the perfect balance between strength and maneuverability. Key performance metrics, such as a maximum lifting force of 400 kg, a travel speed of 4.7 km/h, and a generous ground clearance of 230 mm, ensure it tackles a wide range of material handling, landscaping, and construction site tasks with stability and ease.
Its compact dimensions—an overall length of 2752 mm, width of 1040 mm, and height of 1610 mm—allow it to operate effortlessly in tight areas where larger equipment cannot. Power is reliably supplied by a Kubota D1105 water-cooled diesel engine, generating 27 HP with a low theoretical fuel consumption of 5.1 L/h. The model runs on durable rubber tracks (200 * 72 * 45) and is supported by ample 35-liter tanks for both fuel and hydraulic oil, enabling extended operational runtime with minimal refueling stops.
Built for durability and straightforward operation, the KKT27 is configured to meet diverse job requirements, with clear standard and optional features. It uses standard 0/-10# diesel fuel, ensuring broad compatibility. Combining a robust design from a trusted engine brand with practical specs like a 2695 mm maximum working height, the KKT27 loader is the dependable, versatile, and economical choice for contractors and operators who need a capable machine that excels in productivity and space efficiency.
Product Specifications
| Model Information Configuration Status √Standard, △Optional ,×None Abnormal data in red | ||||||
| Basic Performance Parameters | Working Weight(kg) | 1300 | ||||
Bucket capacity(m³) | 0.2 | |||||
| Travel speed low/high speed(Km/h) | 4.7 | |||||
| Maximum lifting force (Kg) | 400 | |||||
| Maximum working height(mm) | 2695 | |||||
| Maximum unloading height(mm) | 1625 | |||||
| Ground clearance(mm) | 230 | |||||
| Wheelbase(mm) | 1055 | |||||
| Body | J Overall Length(mm) | 2752 | ||||
| K Overall Width(mm) | 1040 | |||||
| L Overall Height(mm) | 1610 | |||||
| Body Width(mm) | 954 | |||||
| Bucket width(mm) | 1040 | |||||
| Engine | Engine Brand | KubotaD1105 | ||||
| Max. Horsepower(HP) | 27 | |||||
| Theoretical fuel consumption(L/h) | 5.1 | |||||
| Cooling method | Water cooling | |||||
| Fuel Grade | 0/-10# | |||||
| Fuel Type | Diesel | |||||

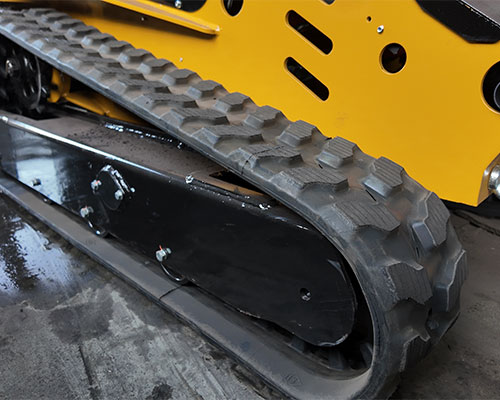

| Tracks | △-Rubber (bandwidth*pitch*number of sections) | 200*72*45 | ||||
| Fuel tank | Fuel tank(L) | 35 | ||||
| Hydraulic oil tan(L) | 35 | |||||
Product Details

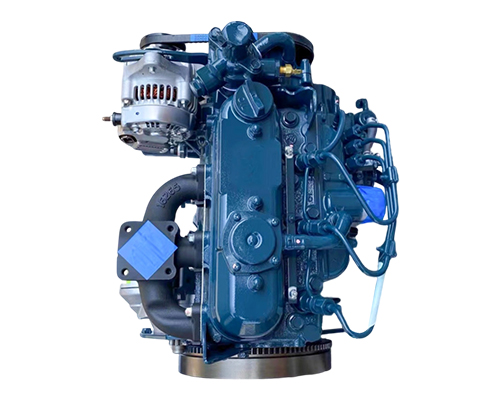

KUBOTA Engine Powerful and dependable, the KKT27 Kubota Diesel engine delivers superior horsepower and performance. It offers low noise and vibration levels, and exceptional fuel efficiency. |
|
Spacious driving experience Plenty of legroom, easy to operate; the driver's seat can be adjusted front and back, providing greater comfort. |
|

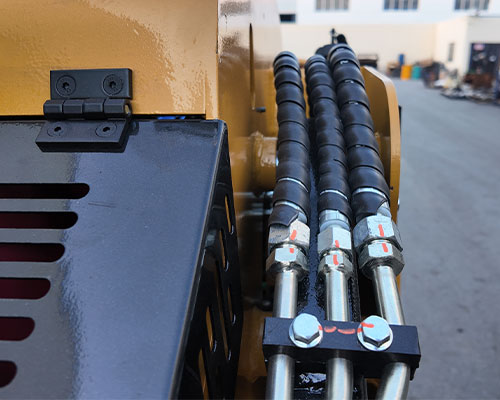

Hydraulic auxiliary tool joint Plug-type hydraulic auxiliary tool joint, hydraulic quick change. |
|
Variable Speed Motor Travel motor, supports high and low speed, more powerful. |
|

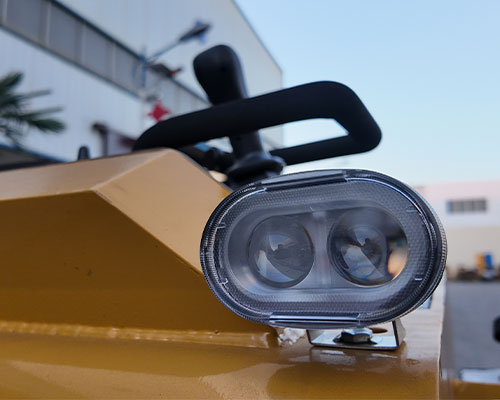

New LED Boom Work Light LED headlights, non-halogen headlights |
|

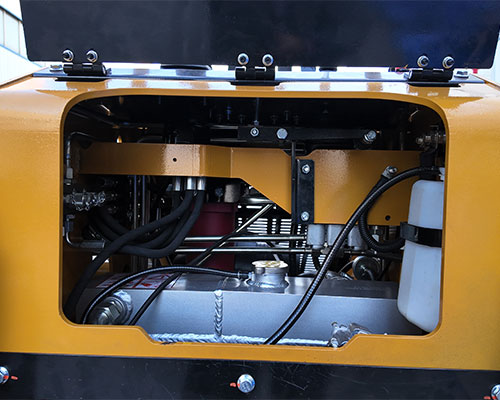

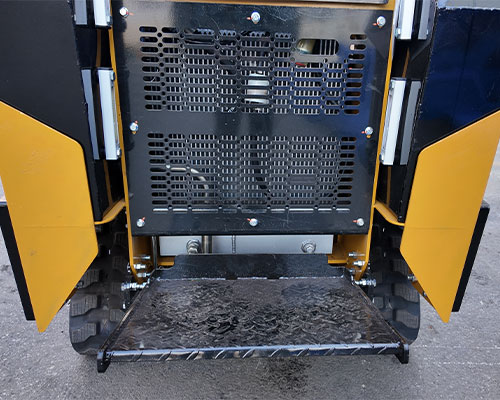

Full Opening Engine Cover The engine cover's tilt-up operation exposes most of the engine, providing easier access to components. |
|

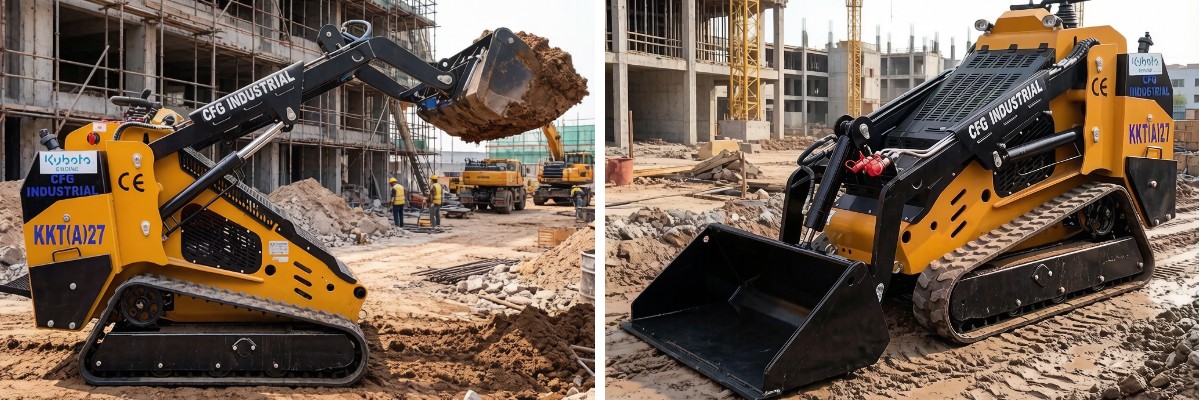

Applications
Landscaping & Garden Operations
Designed for gardening and landscape maintenance, this compact skid-steer loader effectively handles material delivery, shallow digging, grading, and turf restoration. Its small turning circle and responsive steering enable access to private gardens, parks, and maintained green areas with minimal soil compaction and surface damage.
Trenching & Utility Assistance
Combining superior agility and precise handling, the unit delivers reliable utility support, including trench backfilling, pipe-laying assistance, and material transfer. Commonly employed in agricultural irrigation setups and municipal underground utility tasks, it enhances productivity in tight or constrained job sites.
Interior & Restricted-Space Tasks
With its low-profile structure and reduced ground pressure, the loader works effectively in interior demolition, basement cleanouts, and indoor renovation. It can maneuver in areas that are inaccessible to larger machinery, making it especially suitable for challenging settings like warehouses, industrial plants, and retrofit projects.
Road & Municipal Upkeep
Adapted for urban infrastructure maintenance, the machine assists with sidewalk repair, debris cleanup, snow removal, and routine municipal duties. Its compact footprint and agile operation allow efficient performance in congested city zones with little interference to traffic flow, while available LED lighting supports work in low-light conditions.
Material Handling & Site Clearance
When configured with attachments such as breakers, pallet forks, or cleanup buckets, the loader capably performs light concrete demolition, cleans drainage channels, removes silt, and collects debris. It acts as a flexible resource for environmental restoration, water management initiatives, and post-construction site rehabilitation.
