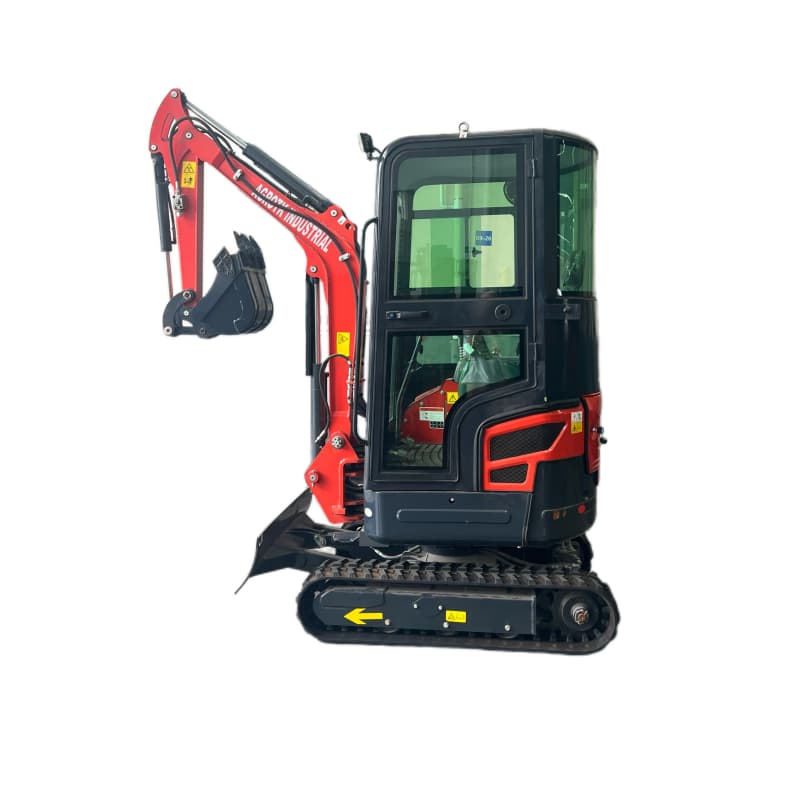

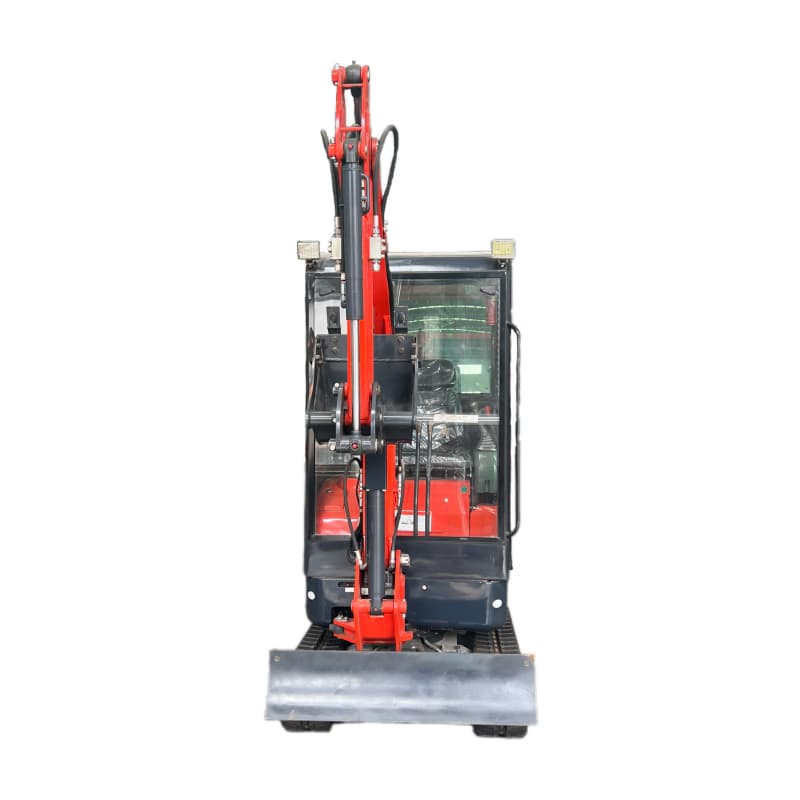

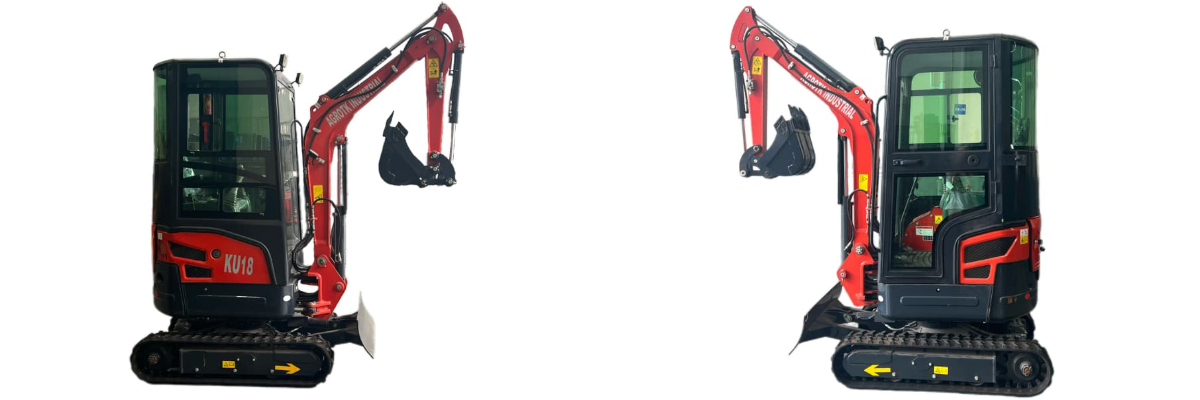

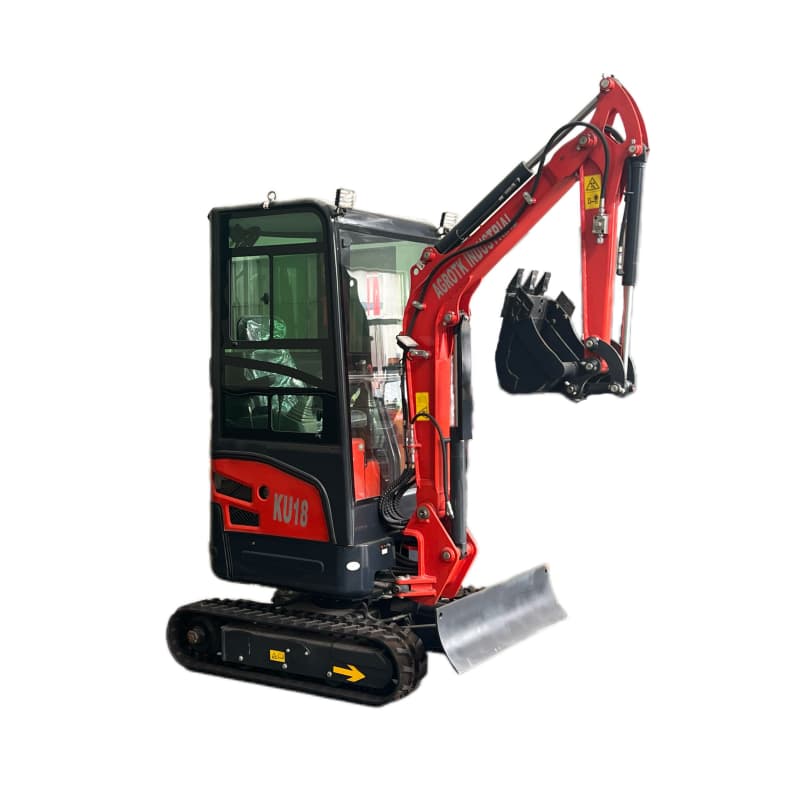

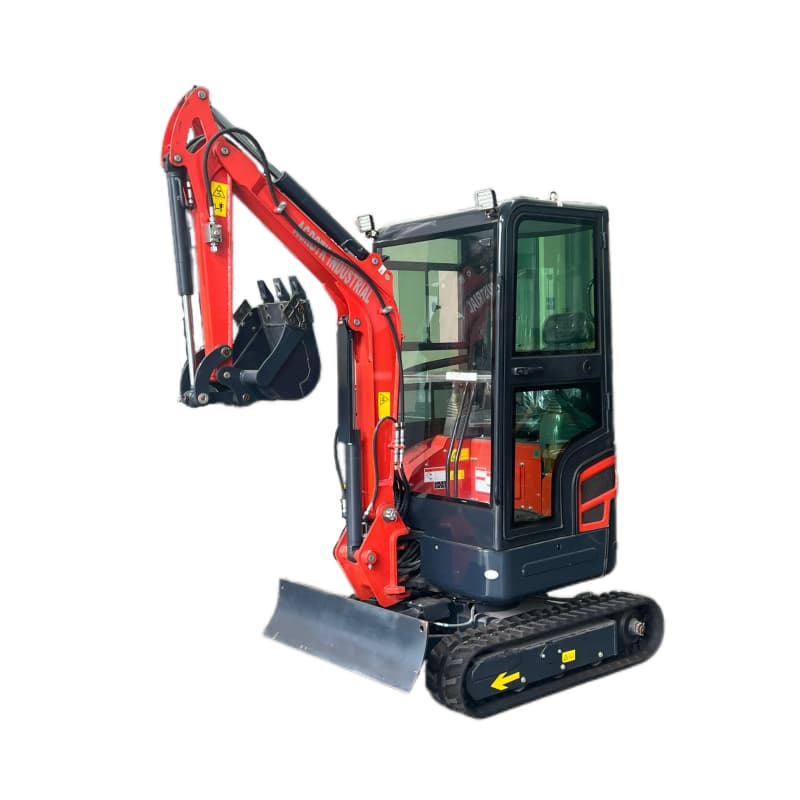

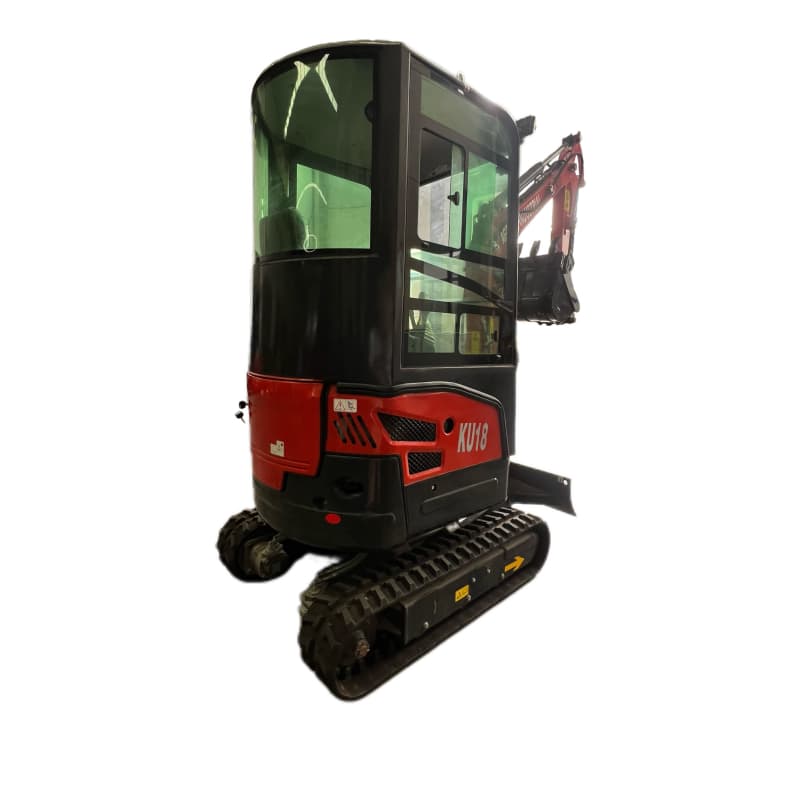

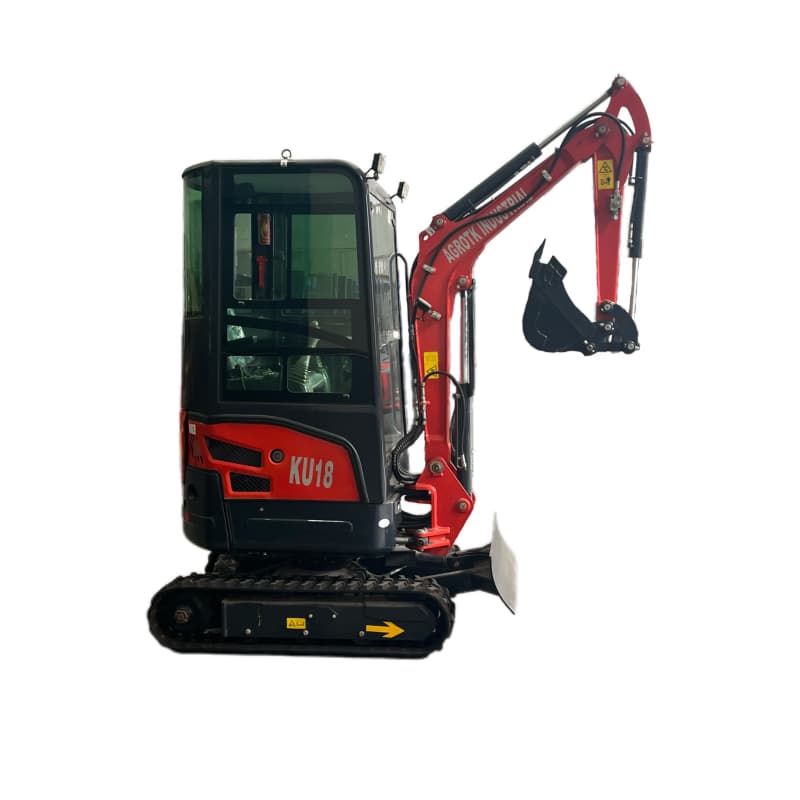

1.8 Tonne Excavator

Powerful Yet Compact: Combines a robust 10.2kW Kubota diesel engine with a lightweight 1.5-ton chassis, delivering strong performance in tight spaces.

Exceptional Reach & Digging: Offers a deep 2120mm digging depth and wide 3640mm radius, maximizing versatility for trenching and groundwork.

Superb Maneuverability: With a narrow 1110mm width and 30% gradeability, it easily navigates confined sites, gates, and uneven terrain.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Introduction

The KU18 excels as a highly compact yet effective mini excavator, perfectly suited for a variety of light-duty applications. Engineered with a balanced working weight of 1520 kg and powered by a reliable Kubota diesel engine delivering 10.2 kW, it provides consistent, efficient performance. Its 0.04 m³ bucket capacity is designed for precise material handling, while the impressive maximum digging height of 3310 mm ensures excellent reach for tasks in landscaping, utilities, and general site preparation.

Designed for versatility in confined spaces, the KU18 boasts a narrow 1110 mm width and a robust 30% gradeability, allowing it to navigate tight urban job sites, gates, and uneven terrain with ease. With a two-speed travel system reaching up to 3.5 km/h, it moves quickly between tasks. Its substantial digging radius of 3640 mm and maximum digging depth of 2120 mm enhance productivity, while a 2370 mm maximum unloading height supports efficient loading and material placement.

Constructed with operator convenience and long-term reliability in mind, the KU18 features a water-cooled engine for stable operation in varying conditions and a 17-liter fuel tank for extended work cycles. Its 13-liter hydraulic oil capacity supports smooth and responsive system performance. Designed with a clear, user-oriented layout and essential dimensions—including a 3300 mm overall length and 2360 mm height—it provides a practical, dependable solution for daily operations with minimal maintenance requirements.

Product Specifications

Basic Performance Parameters	Weight(kg):	1520
	Bucket capacity(m³):	0.04
	Walking speed Low/High speed(Km/h):	2/3.5
	Gradeability(%):	58(30)
	speed of gyration(r/min)	9
	Maximum digging force of the bucket(KN):	13.8
	Maximum digging force of boom(KN):	7.5
	Maximum excavation height(mm):	3310
	Maximum unloading height(mm):	2370
	Maximum Digging Depth(mm):	2120
	Maximum vertical excavation depth(mm):	1535
	Maximum digging radius(mm):	3640
	Minimum radius of gyration(mm):	1660
	Minimum gyration radius of the tail(mm):	715
	Maximum lifting height of bulldozer	260
	Maximum digging height of bulldozer	190
	side swing angle(left/right)	60/50
Size	Dimensions	330011102360mm
	Tread width(mm):	875
	Track gauge(mm):	695
	Bulldozer width/height(mm):	1120/258
Engine	Engine Brand:	Kubota
	Engine model:	D722-E4B-SXN-1
	Maximum power(Kw):	10.2
	Maximum Rotation Speed(rpm):	2500
	Number of cylinders:	3
	Cooling method:	water-cooling
	Engine oil change volume(L):	3.8
	Fuel type:	diesel
	Fuel label:	0#
Hydraulic System	Main pump type/model:	gear pump/13
	Rated set pressure(Mpa):	17
	Max. flow rate of main pump(L/min):	32.5
	multi-way valve:	9-way hydraulic control multi way valve
	Rated set pressure(Mpa):	16
	Walking hydraulic motor type:	BM6-390
	Walking Motor Brand:	Olide
	Motor Displacement:	390
	Rotary hydraulic motor type:	OLD-245
	Displacement:	245
Track	Rubber (track width * pitch * number of sections):	2307243
configuration	ceiling, armrest, Counterweight
configuration	Tensioning form	Hydraulic tensioning
Tank	fuel tank(L):	17
Tank	hydraulic tank(L)	13

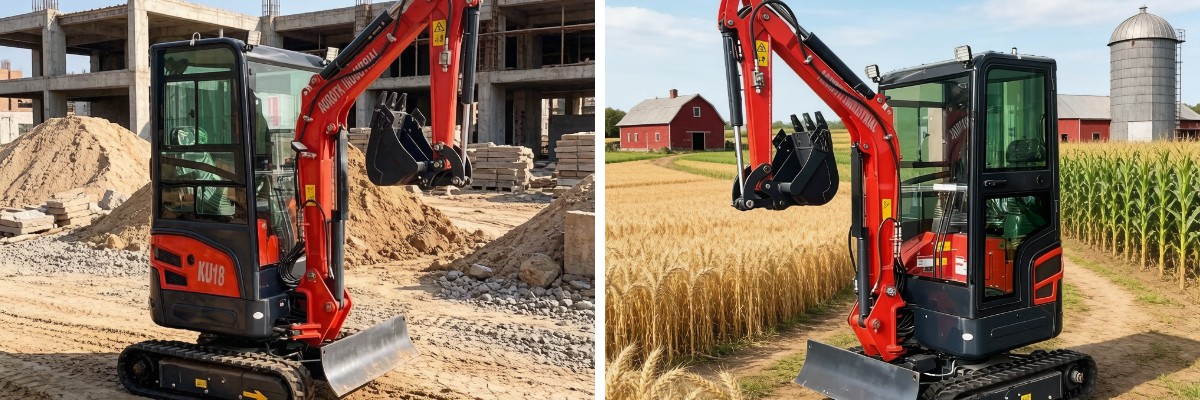

Applications

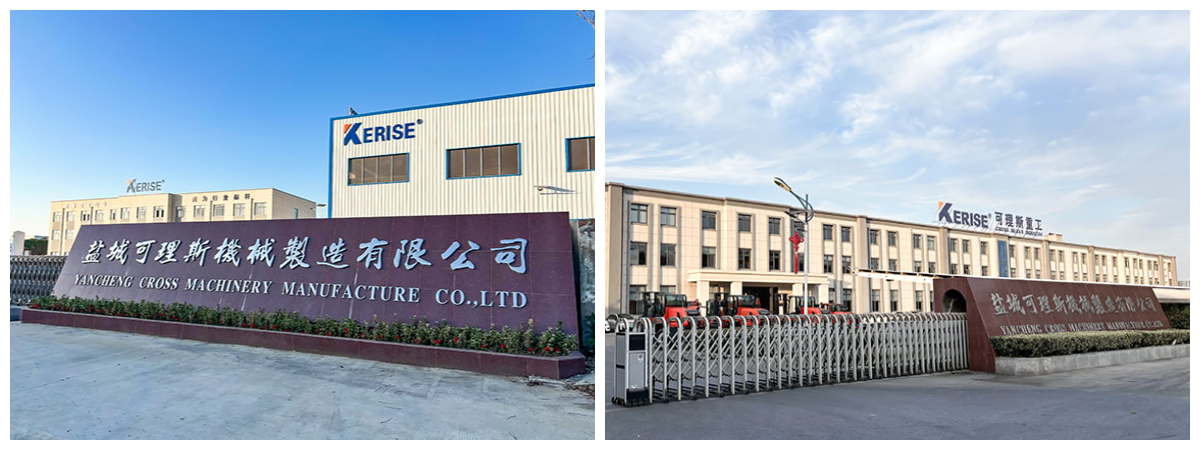

Company Profile

Yancheng Kerise Machinery Manufacturing Co., Ltd., established in 2009, is an integrated engineering manufacturer specializing in R&D, production, export, and after-sales service. The company covers more than 270,000 m² and employs over 500 staff. In the United States it operates two proprietary warehouses-Chicago and Houston-totaling 100,000 m². A dedicated R&D team continuously designs and refines construction machinery products that remain synchronized with global first-tier brands. Kelisi maintains an international quality management system and holds 93 invention and utility-model patents.
