5 T Excavator
Strong Engine: EPA certified Rato engine delivers reliable performance.
Compact Design: 1200kg weight for efficient maneuverability.
Versatile Usage: Ideal for digging, crushing, and bulldozing tasks.
Hydraulic System: Enhances machine flexibility and operational efficiency.
Quick Hitching: Allows fast attachment changes for versatile use.
Product Introduction

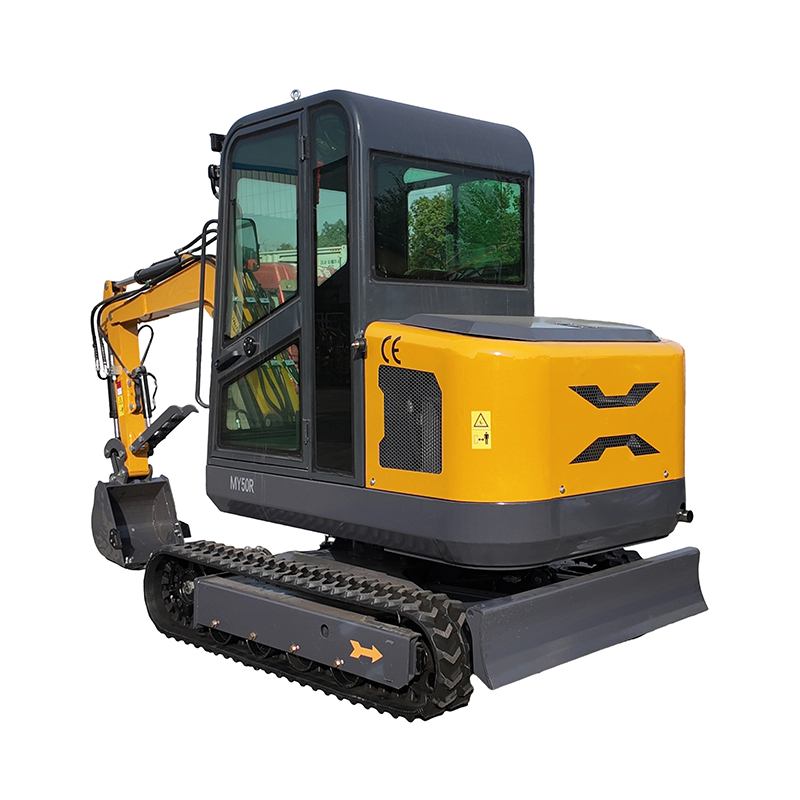

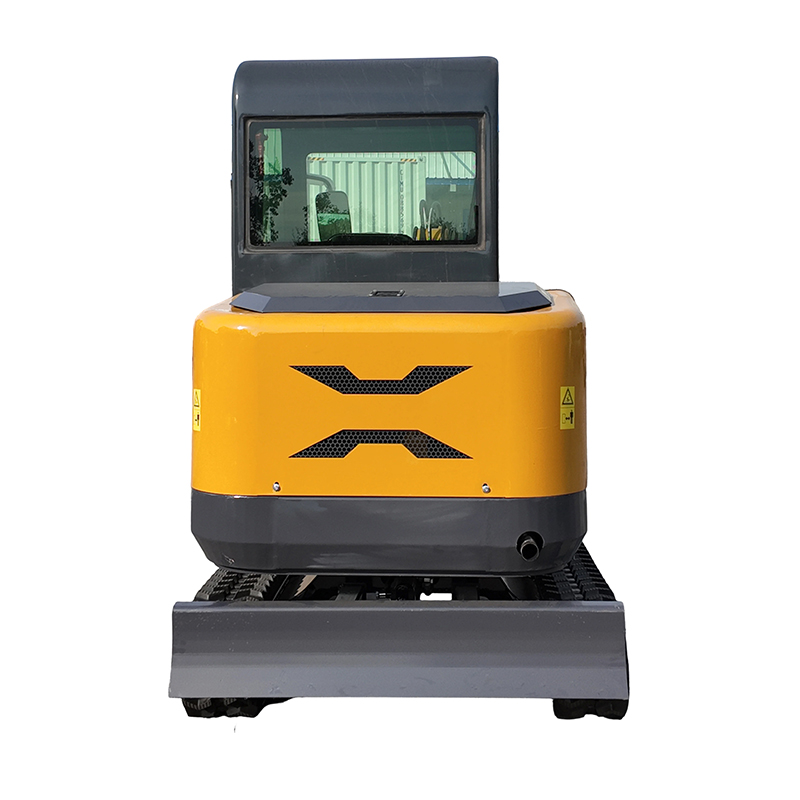

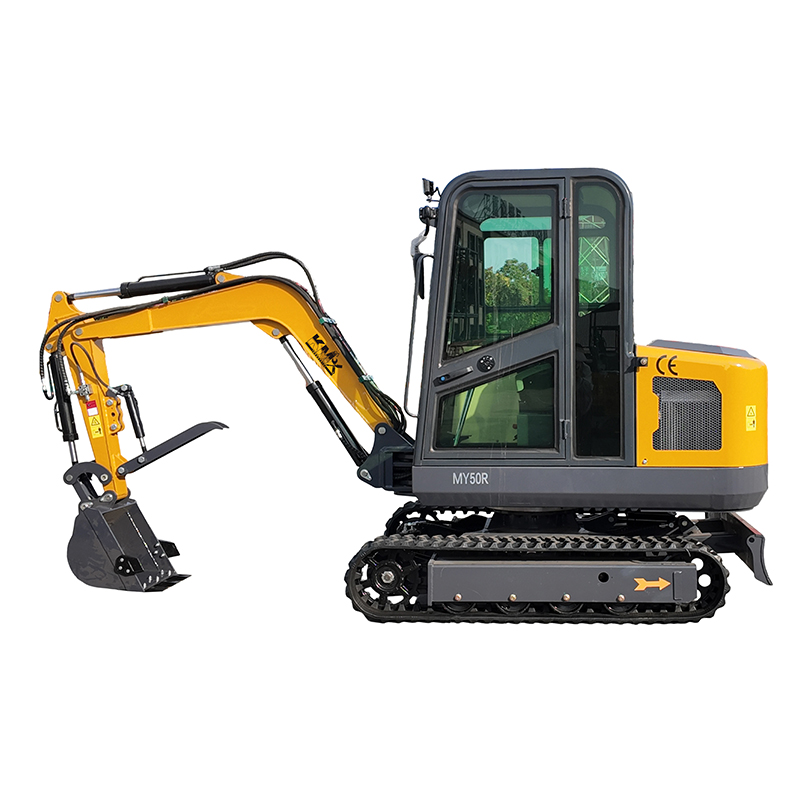

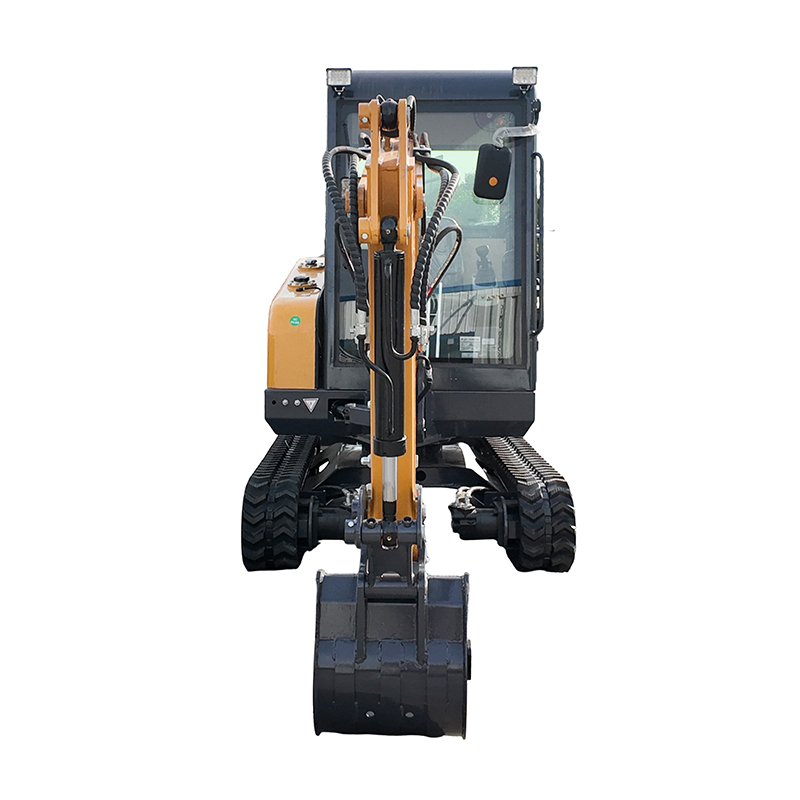

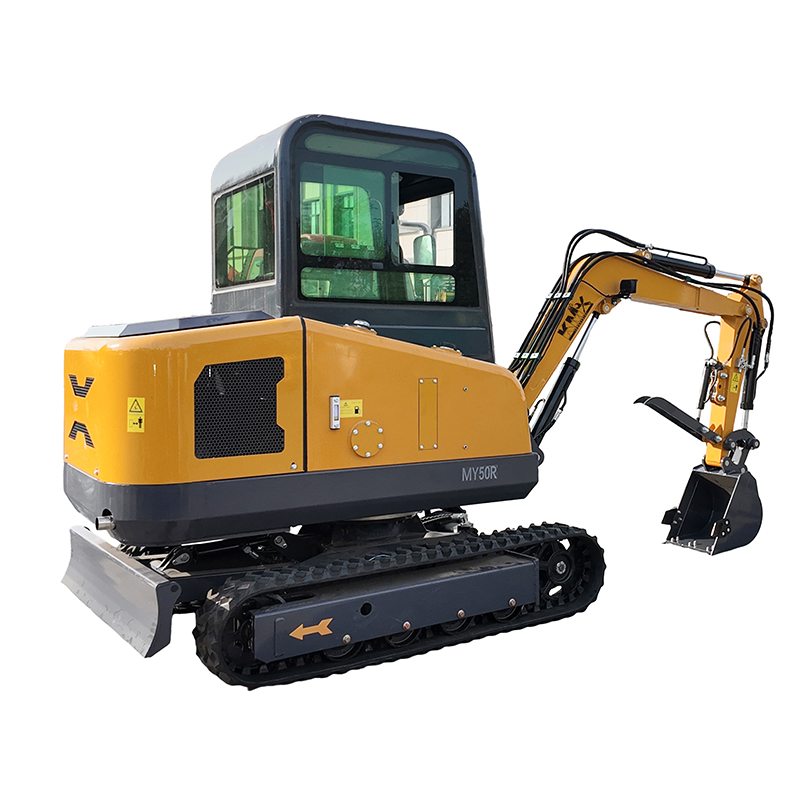

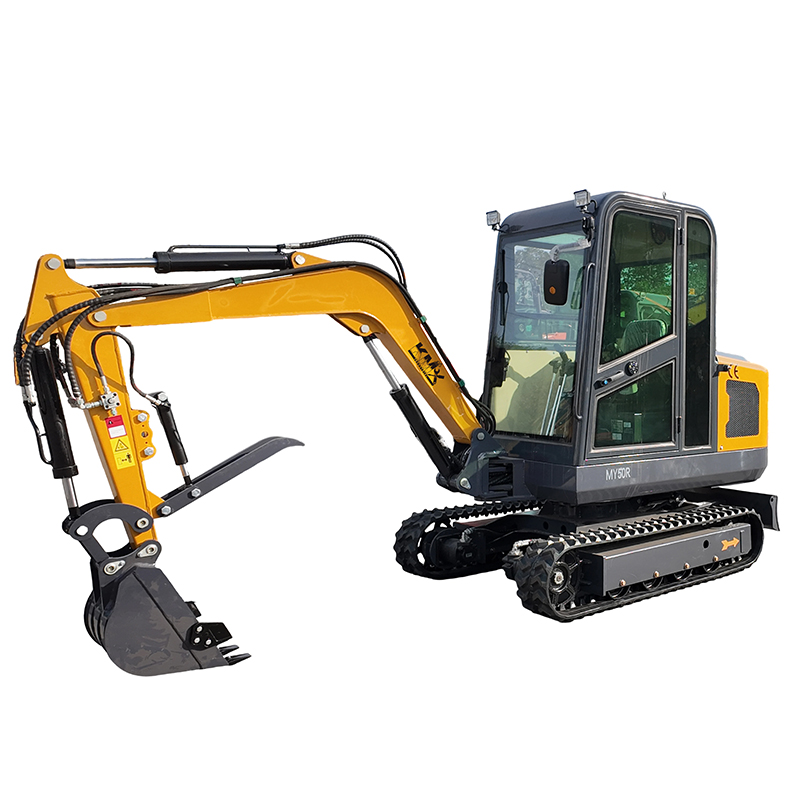

The MY50R is a compact and versatile excavator model designed for high performance in confined spaces. It features a working weight of 1,200 kg and is equipped with a 0.23 m³ bucket, making it ideal for light to medium-duty excavation, landscaping, and utility work. Powered by a reliable Rato engine that delivers 9.8 kW of maximum power, the machine offers efficient fuel consumption and robust operation. Its compact dimensions—an overall length of 2,755 mm, width of 1,210 mm, and height of 2,420 mm—ensure excellent maneuverability, supported by a tight turning radius. With key performance metrics including a maximum digging depth of 1,983 mm and a travel speed of up to 8.8 km/h, the MY50R balances productivity and agility for various construction and agricultural applications.
Engineered for durability and precision, the MY50R excels in performance with its advanced hydraulic system and ergonomic design. It boasts a maximum digging force of 30 kN at the bucket and 28 kN at the arm, enabling efficient material handling and excavation. The model's climbing ability reaches 30%, and it operates at a turn speed of 9.8 r/min, ensuring stability and control on challenging terrains. Additional features include a bulldozer attachment with a width of 1,370 mm and height of 236 mm, enhancing its versatility for grading and leveling tasks. With a fuel tank capacity of 33 liters and a hydraulic oil tank of 25 liters, the MY50R is built for extended operation, while its air-cooled, 2-cylinder engine meets rigorous environmental and efficiency standards. This machine is an optimal choice for contractors seeking reliability in small-scale projects.
Product Details
Full Opening Engine Cover The upward-tilting engine cover grants comprehensive access to the engine bay, streamlining maintenance checks and component servicing. |
|

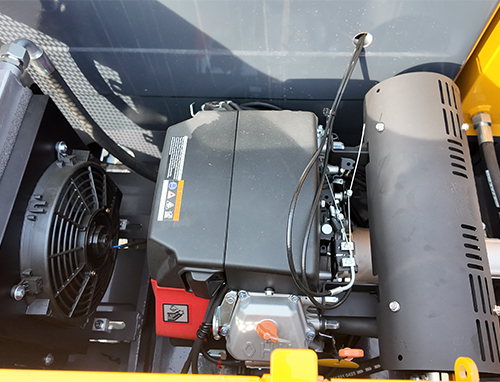

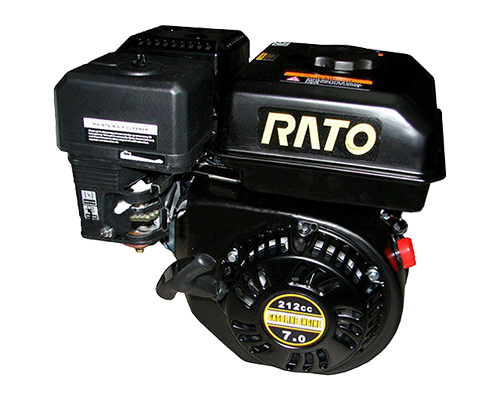

Rato engine Driven by the dependable MY50R Rato gasoline engine, which ensures consistent power, minimal noise and vibration, and outstanding fuel economy. |
|

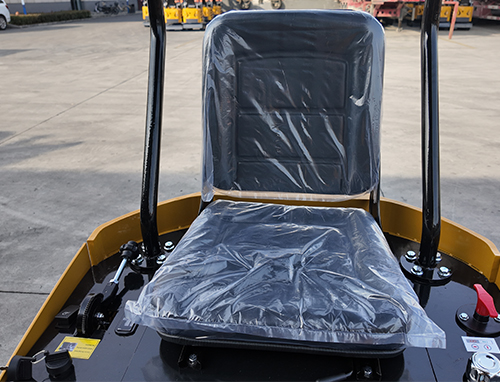

Spacious driving experience Crafted with generous legroom and user-friendly controls for effortless operation. The adjustable driver’s seat (forward/backward) enhances comfort during extended work sessions. |
|

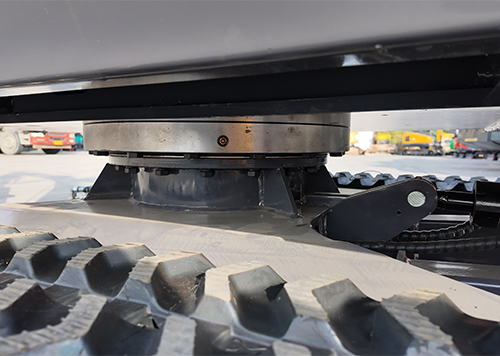

Thickened chassis Incorporates a lengthened and reinforced chassis built via a unified forging technique, boosting structural integrity and long-term resilience. |
|
Variable speed motor Features a dual-mode travel motor that enables both high and low-speed operation, providing increased power delivery and versatile handling across diverse terrains. |
|

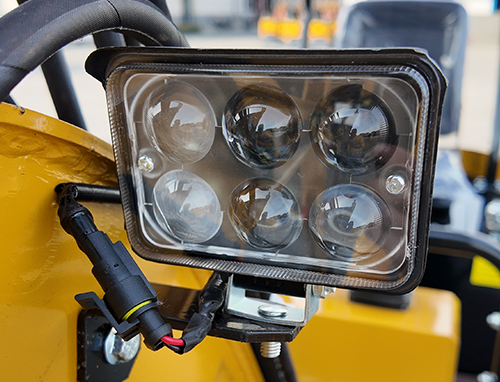

New LED Boom Work Light Outfitted with efficient LED work lights (non-halogen) that deliver superior brightness and an extended operational lifespan. |
|
Product Specifications
Basic Performance Parameters | ||
Working Weight(kg) | 1200 | |
Bucket capacity(m³) | 0.23 | |
Travel speed low/high speed(Km/h) | 0-2.0 | |
Climbing ability(%) | 30 | |
Turn speed(r/min) | 9.8 | |
Maximum Digging force of Bucket (KN) | 8.8 | |
Maximum Digging force of Bucket Rod (KN) | 6 | |
A:Maximum Digging Height(mm) | 2755 | |
B:Maximum Unloading Height(mm) | 2180 | |
C:Maximum Digging Depth(mm) | 1983 | |
D:Maximum Vertical Excavation Depth(mm) | 1983 | |
E:Maximum Excavation Radius(mm) | 3318 | |
F:Minimum radius of Gyration(mm) | 2413 | |
G:Minimum tail radius of Gyration(mm) | 1313 | |
H:Maximum Lifting height of Bulldozer | 251 | |
I:Maximum Digging height of Bulldozer | 340 | |
Equipment Body | ||
J:Overall Length(mm) | 2895 | |
K:Overall Width(mm) | 1210 | |
L:Overall Height(mm) | 2420 | |
Bulldozer Width/Height(mm) | 1370/236 | |
Engine | ||
Engine Brand | Rato | |
Engine model | 825 | |
Maximum horsepower(ps) | 28 | |
Maximum power(Kw) | 21 | |
Maximum speed(rpm) | 3600 | |
Number of cylinders | 2 | |
Cooling method | Air cooling | |
Engine oil replacement(L) | 1.1 | |
Fuel type | gasoline | |
Fuel Label | 92# | |
Fuel tank | ||
Fuel tank(L) | 33 | |
Hydraulic oil tank(L) | 25 | |

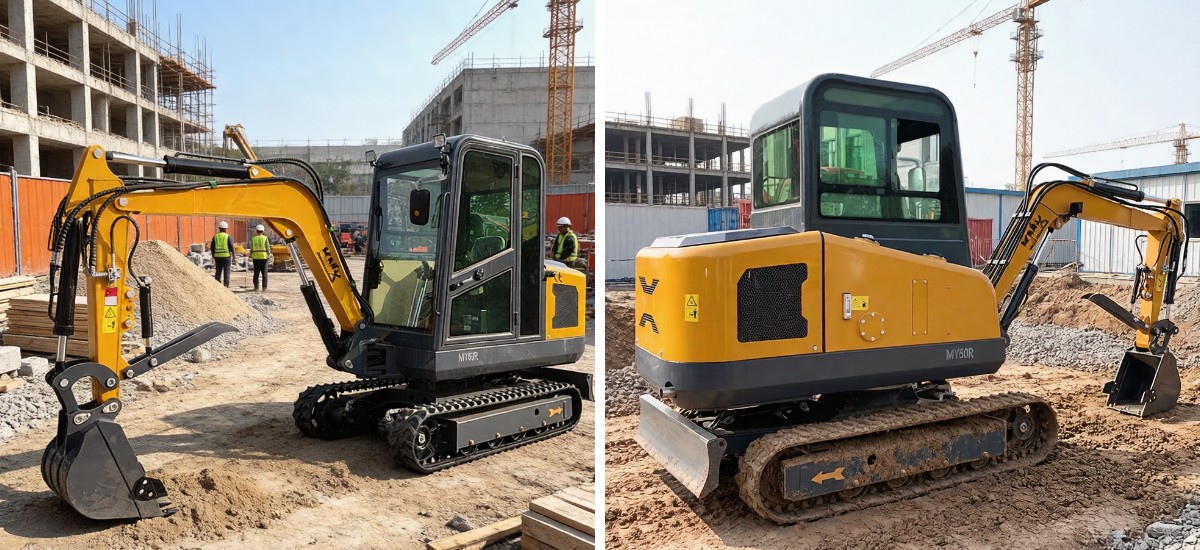

Applications
Packaging & Shipping
Professional Export-Grade Packaging & Logistics
At KMX, we understand that the journey from our factory to your job site is critical. That's why our mini excavators are handled with the utmost care, utilizing professional export-grade packaging standards and a meticulously managed logistics chain. This end-to-end approach guarantees maximum protection and the safe, timely delivery of your equipment, no matter where you are in the world.

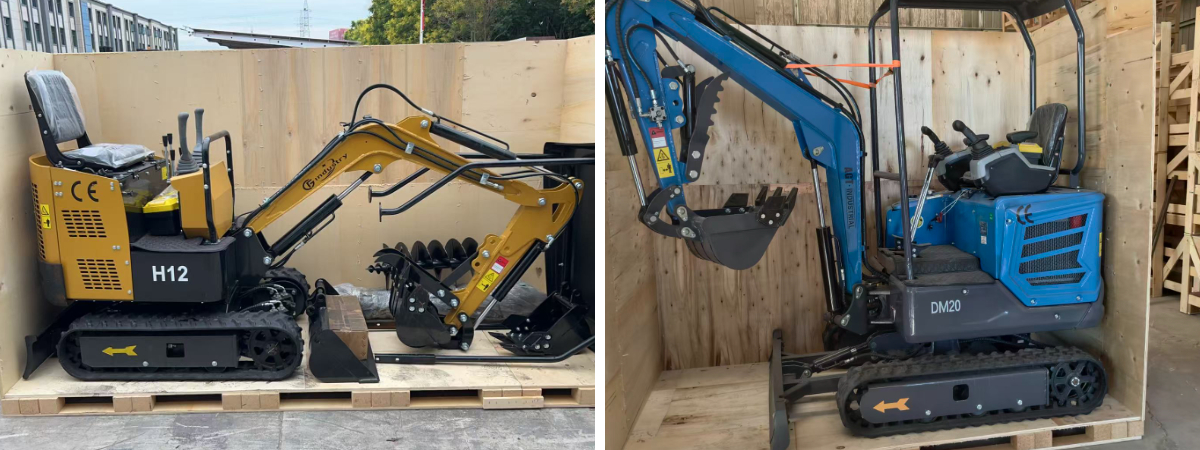

Expert Container Loading & Stabilization
For optimal security during ocean freight, our machines are expertly loaded into standard shipping containers (20GP or 40HQ) by trained professionals. Using specialized equipment like forklifts and loading ramps, we ensure a smooth and damage-free transfer. Once inside the container, each excavator is meticulously secured using heavy-duty nylon lashing straps and timber chocks. This advanced tie-down technique locks the unit in place, completely eliminating any movement or shifting. The result is a perfectly stabilized cargo that can withstand the rigors of long-distance sea and land transportation, giving you complete peace of mind.
Customized Logistics Solutions
Our service doesn't stop at packaging. We offer flexible shipping solutions tailored to your project timeline and budget. Whether you require full container load (FCL), less than container load (LCL), or expedited air freight, our experienced logistics team will coordinate the most efficient and cost-effective route to your destination port or door.
Company Profile

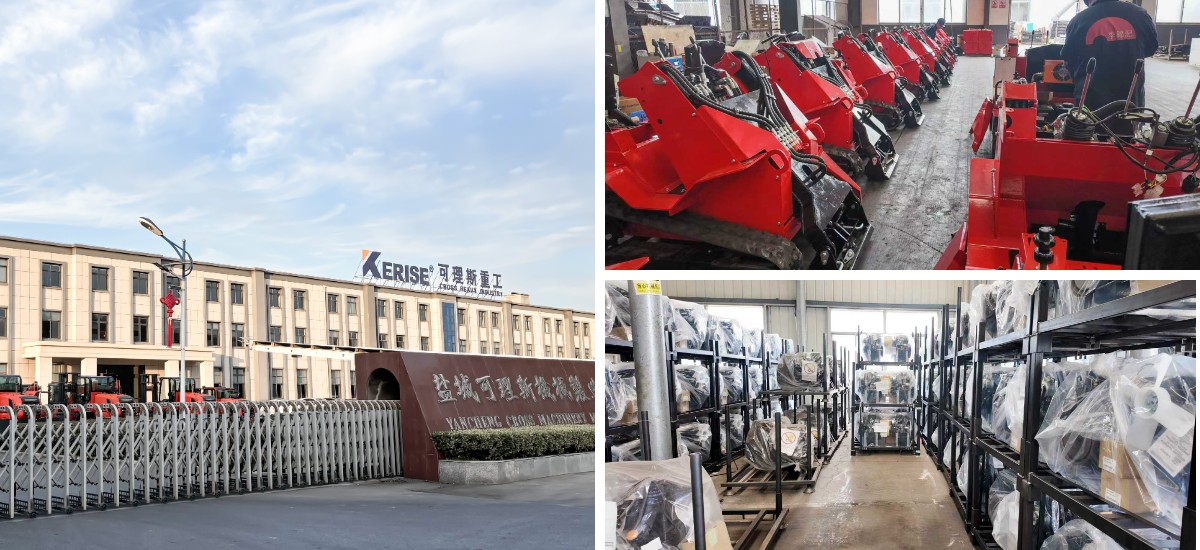

Established in 2009, Yancheng KMX Machinery Manufacturing Co., Ltd. has emerged as a premier manufacturer in the construction and landscaping machinery sector. We seamlessly integrate research and development, manufacturing, global sales, and after-sales service into a unified and efficient operation. Our state-of-the-art production facility, covering an area exceeding 270,000 square meters, is supported by a highly skilled team of over 500 professionals dedicated to excellence.
