Compact Wheel Loader
Powerful & Efficient Performance：Equipped with a reliable Kubota 25 HP diesel engine.
Excellent Reach & Maneuverability：Offers a maximum working height of 3695 mm and a maximum unloading height of 2080 mm, allowing it to perform elevated tasks with ease.Compact dimensions (L4300 x W1160 x H2436 mm) and a tight wheelbase of 1534 mm ensure superior agility in tight spaces.
Productive & Versatile Operation：Standard 0.3 m³ bucket capacity balances digging power and load management for high productivity.Fitted with robust 10.0/75-15.3 wheels for excellent traction and ground clearance (235 mm).
Product Introduction
The Model H190 is a versatile and highly efficient compact excavator, engineered for maximum productivity in confined spaces. Combining robust power with intelligent design, it delivers the perfect balance of performance, maneuverability, and low operating cost.
Performance at a Glance:
Engine: Powered by a reliable and fuel-efficient 25HP Kubota water-cooled diesel engine, achieving a remarkably low theoretical fuel consumption of 1.6 L/h.
Strength & Stability: With an operating weight of 2,000 kg and a maximum lifting force of 1,000 kg, it provides exceptional stability and handling power for demanding tasks.
Dimensions & Mobility: Its compact body (4.3m length x 1.16m width) and a tight 1,534mm wheelbase ensure superior agility and access to tight job sites, complemented by a travel speed of 16 km/h.
Reach & Capacity: It offers an impressive maximum working height of 3,695mm and is equipped with a standard 0.3 m³ bucket for efficient material handling.
Durability & Runtime: The unit features robust 10.0/75-15.3 wheels with 235mm ground clearance, supported by ample 30L fuel and hydraulic oil tanks for extended operation.
Ideal for: landscaping, utility work, residential construction, and agricultural projects where space, efficiency, and reliability are paramount.
Product Details

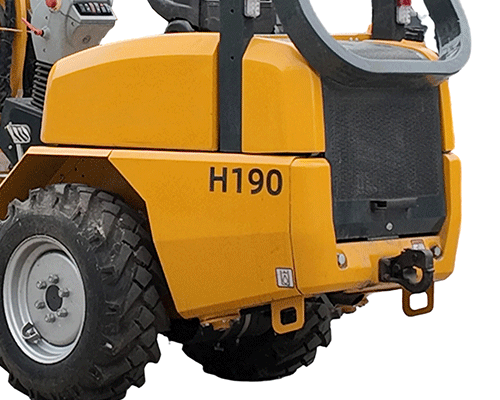

Full Opening Engine Cover The swing-up engine cover design provides direct and unobstructed access to key engine components, significantly streamlining maintenance procedures. |
|

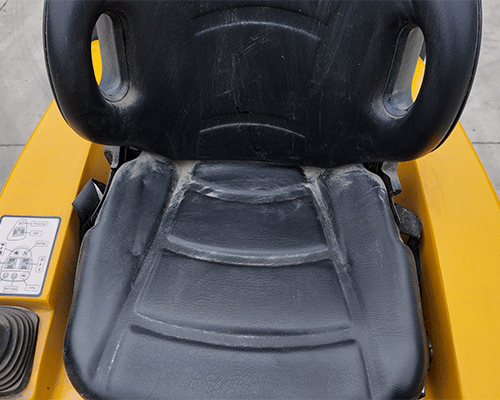

Spacious Driving Experience The operator’s station is designed with generous legroom and an ergonomic layout for ease of operation. The driver’s seat features full fore-aft adjustability, ensuring optimal positioning and enhanced comfort during extended use. |
|

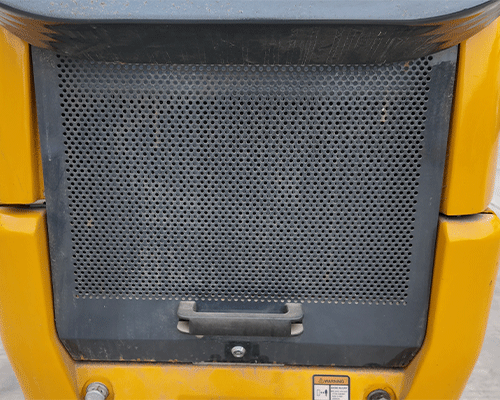

Heat Dissipation The radiator enhances cooling efficiency, effectively lowering accessory temperatures and extending their service life. |
|
Variable Speed Motor The travel motor features a dual-speed design, delivering powerful performance across both high-speed mobility and low-speed precision control. |
|

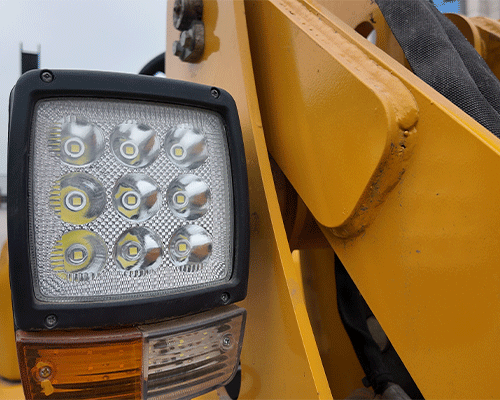

New LED Boom Work Light The machine is equipped with standard LED headlights, providing superior brightness and efficiency compared to conventional halogen bulbs. |
|
KUBOTA Engine Combining robust power with proven reliability, the H190 Kubota Diesel engine provides outstanding horsepower and performance. It operates with significantly reduced noise and vibration while achieving exceptional fuel economy. |
|
Product Specifications
| Model Information Configuration Status √Standard, △Optional , ×None | H190 | |
| Basic Performance Parameters | ||
| Working Weight(kg) | 2000 | |
| Bucket capacity(m³) | 0.3 | |
| Travel high speed(Km/h) | 16 | |
| Maximum lifting force (Kg) | 1000 | |
| Maximum working height(mm) | 3695 | |
| Max. unloading height(mm) | 2080 | |
| Wheelbase(mm) | 1534 | |
| Ground clearance(mm) | 235 | |
| Equipment Body | ||
| Overall Length(mm) | 4300 | |
| Overall Width(mm) | 1160 | |
| Overall Height(mm) | 2436 | |
| Bucket Width(mm) | 1050 | |
| Body Width(mm) | 870 | |
| Engine | ||
| Engine Brand | Kubota | |
| Max. Horsepower(HP) | 25 | |
| Cooling method | Water-cooling | |
| Fuel Type | Diesel | |
| Fuel Grade | 0# | |
| Theoretical fuel consumption(L/h） | 1.6 | |
| Tracks | ||
| Wheels | 10.0/75-15.3 | |
| Fuel tank | ||
| Fuel tank(L) | 30 | |
| Hydraulic oil tank(L) | 30 | |
Applications
The Model H190 is engineered to tackle a wide range of material handling and site management tasks with power, precision, and efficiency. Combining a robust design with exceptional agility, it is the ideal solution for agricultural, landscaping, and general utility work.
Material Handling & Transport
Efficient Bulk Handling: Expertly transports materials like straw, feed, sand, and gravel. Its strong lifting capacity and stability significantly boost productivity in agricultural and industrial settings, reducing reliance on manual labor.
Garden & Landscape Maintenance
Keep Spaces Tidy: Easily clears leaves, branches, and garden debris. With quick-attach compatibility, it also assists in planting and transplanting tasks, making it a versatile tool for both cleanup and cultivation.
Site Clearance & Preparation
Ready Land for Use: Levels terrain, removes weeds, and clears crop residues effectively. Whether preparing fields for planting or sites for construction, the H190 ensures land is optimally prepared for the next phase of work.
Packaging & Shipping
At KMX, we understand that the safe and timely delivery of your equipment is essential to your project's success. That’s why every machine is handled with professional export-grade packaging and shipped through a carefully coordinated logistics system, ensuring complete protection from dispatch to arrival—no matter your location.
Secure Container Loading & Stabilization
Each unit is skillfully loaded into standard 20GP or 40HQ containers using specialized equipment. Once positioned, the excavator is immobilized with heavy-duty straps and custom timber bracing, forming a multi-angle restraint system that prevents movement throughout long-haul transit. This method guarantees your equipment remains secure and undamaged, even over extended sea and land journeys.
Tailored Logistics Services
We provide flexible shipping options—including FCL, LCL, and air freight—to align with your timeline and budget. Our logistics experts design the most efficient and economical routing to your port or jobsite, ensuring reliable and timely delivery.
