Product Introduction

Ultra-Compact Backhoe for Tight Spaces

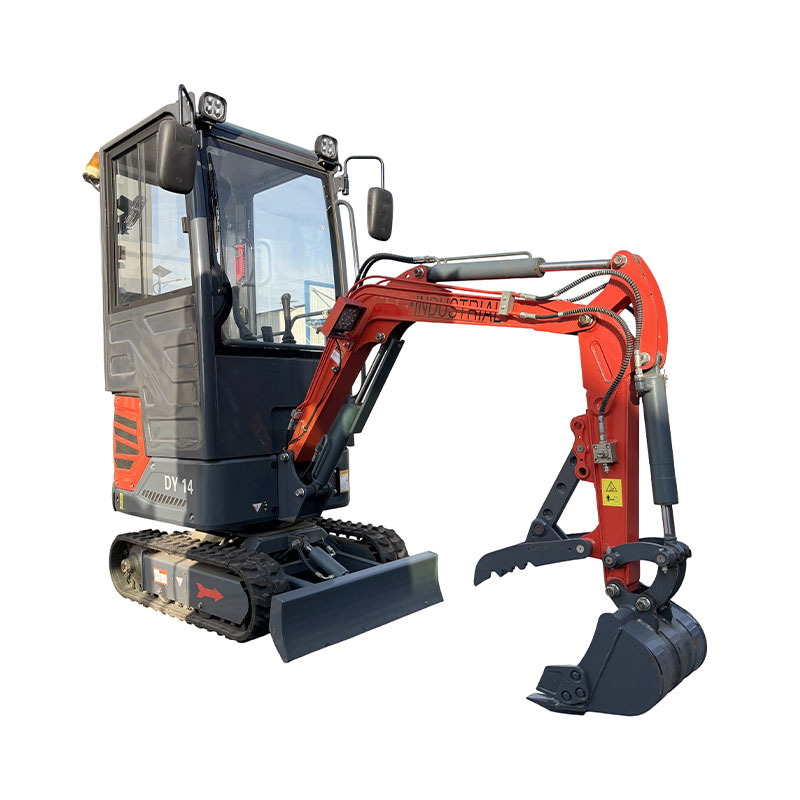

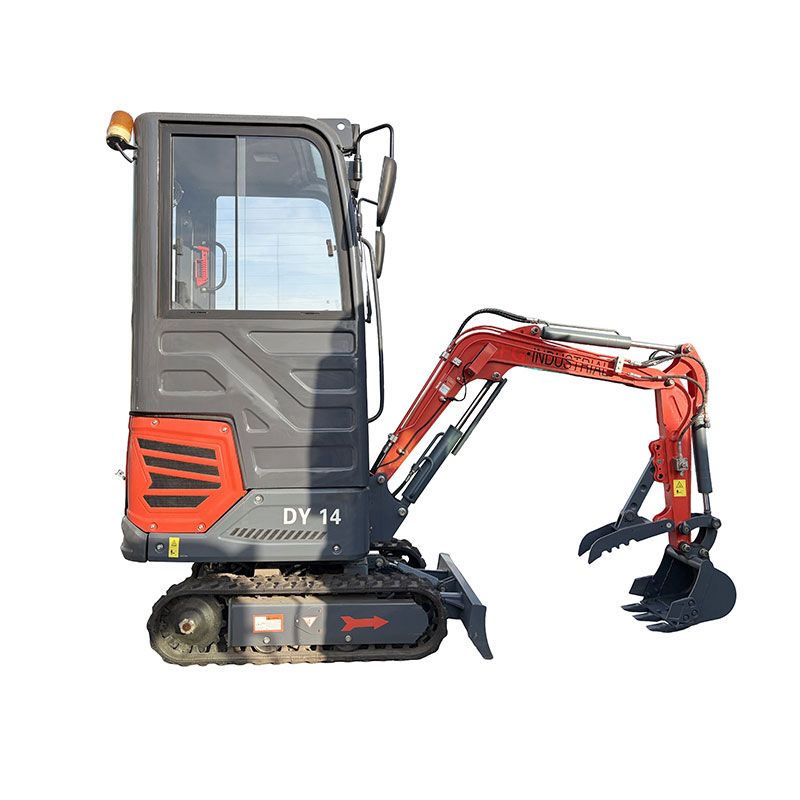

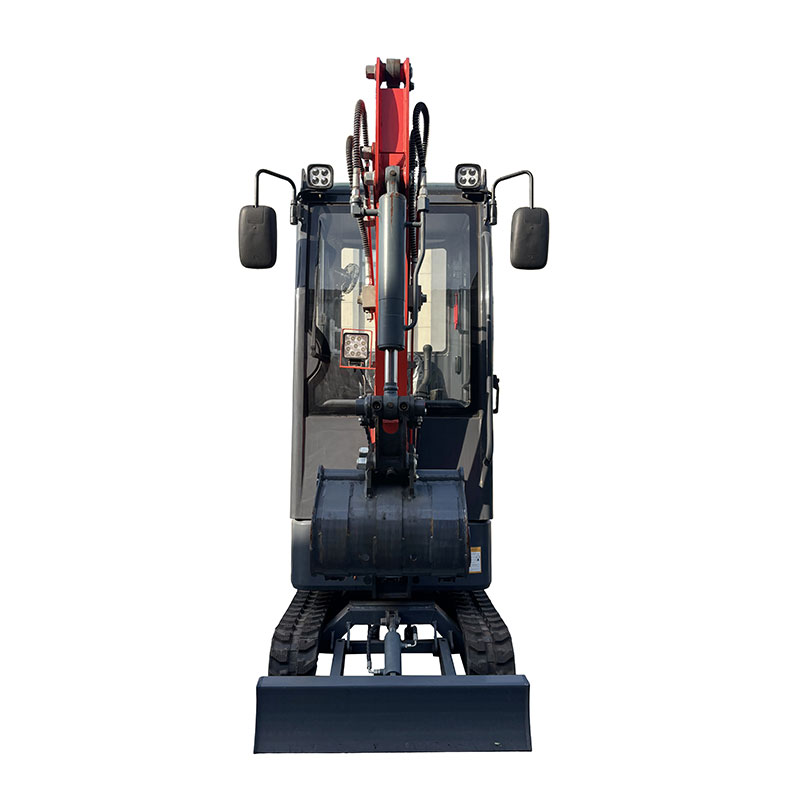

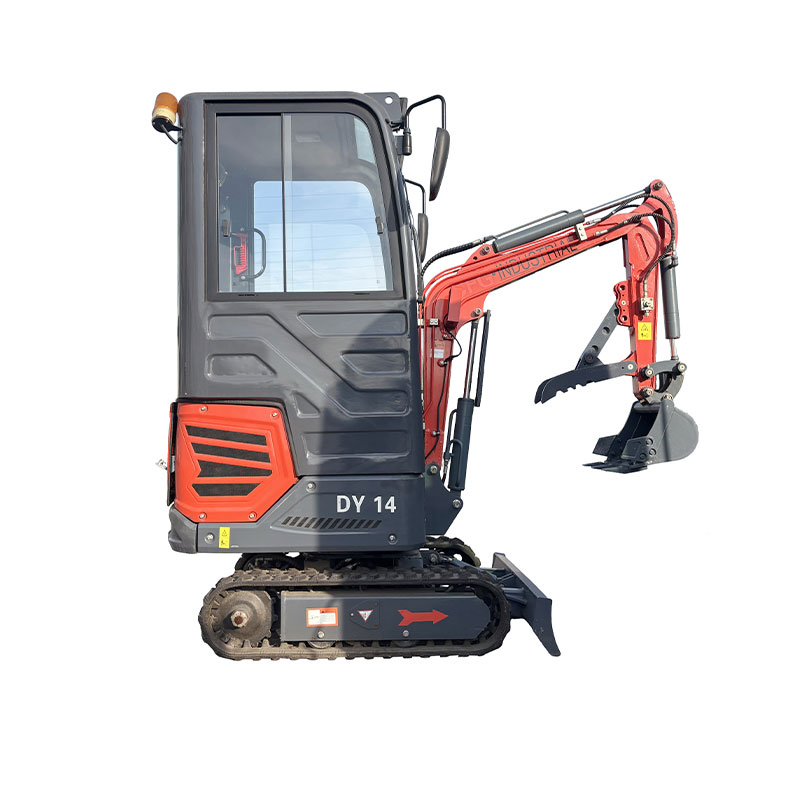

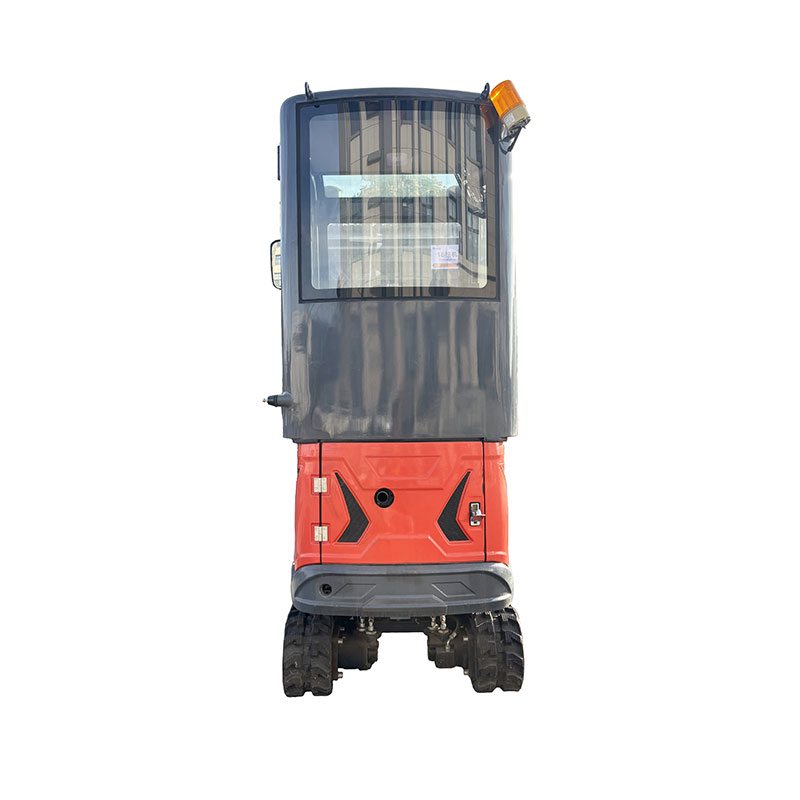

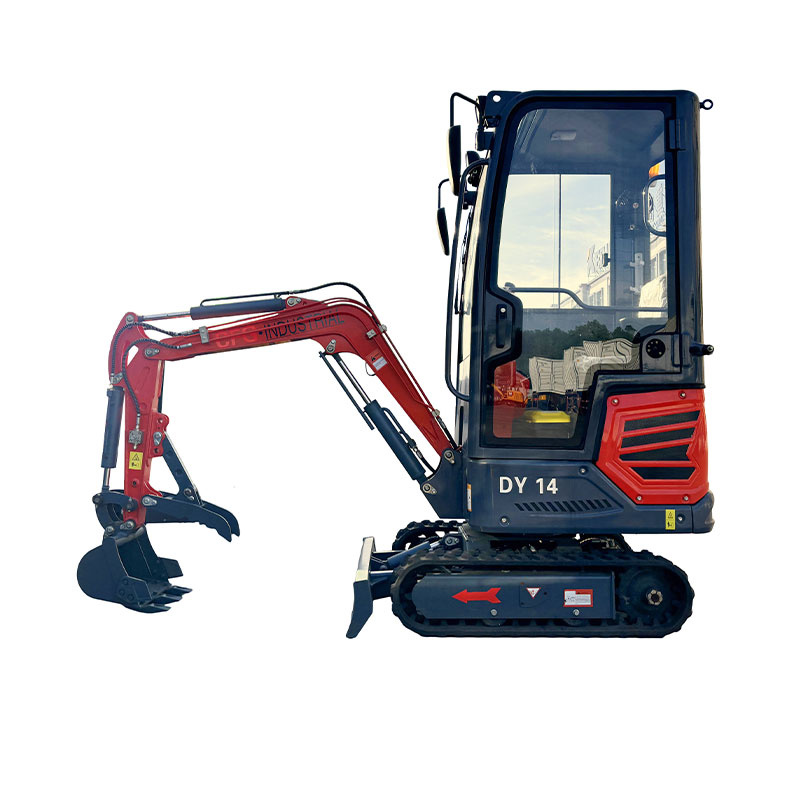

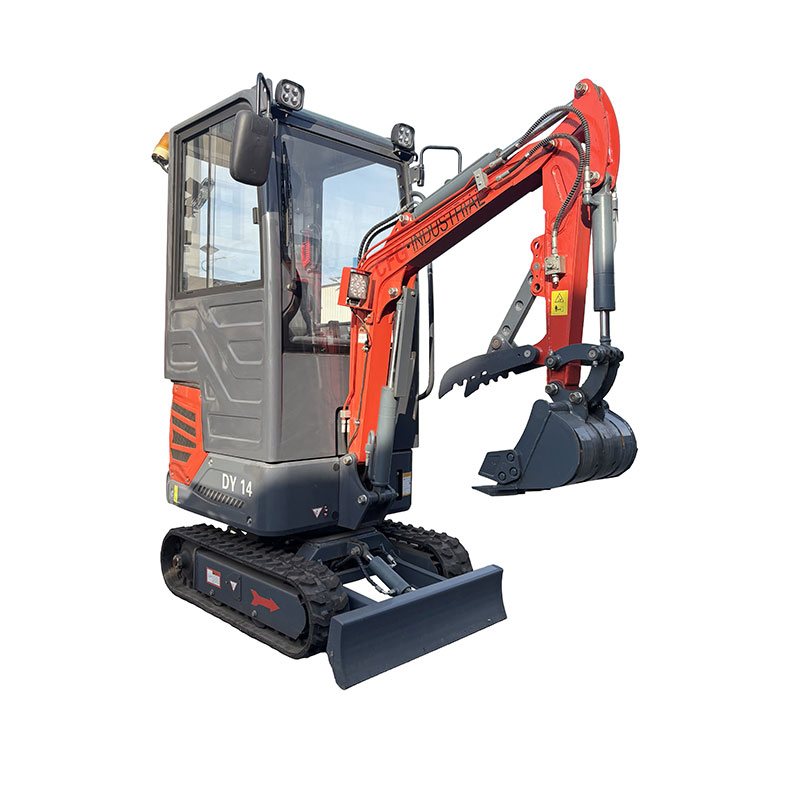

The DY14 is an ultra-compact mini excavator specifically engineered for confined construction, landscaping, and utility applications where space is limited. Featuring a 0.022 m³ bucket capacity and backhoe working device configuration, this lightweight machine delivers agile performance with a 6.5 kN maximum digging force. Its minimal footprint—2,870 mm length, 930 mm width, and 2,030-2,285 mm height—enables access through narrow passages and doorways. With a travel speed of 1.2 km/h and impressive 30° climbing ability, the DY14 navigates tight job sites confidently. The 9 rpm slewing speed ensures quick positioning, making it ideal for indoor renovations, backyard projects, and municipal maintenance in restricted areas.

Efficient Power and Hydraulic System

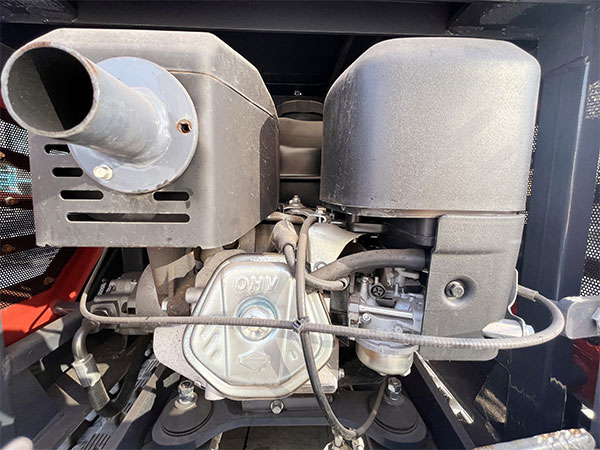

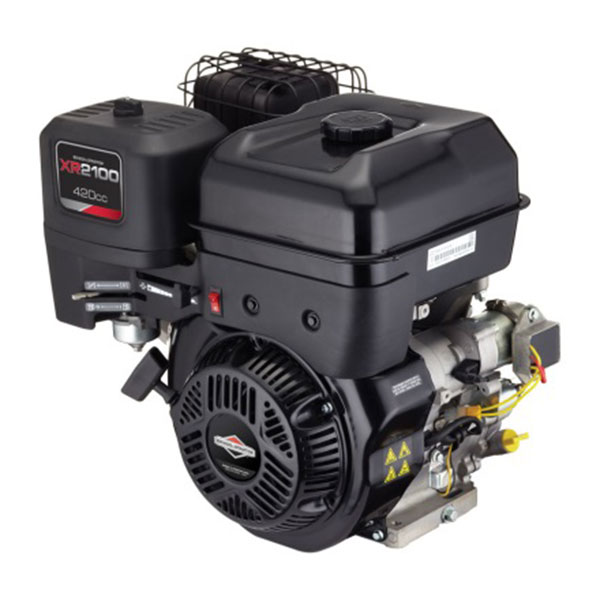

Powering the DY14 is a responsive 420cc engine delivering 13.5 kW at 3,600 rpm, providing sufficient power for light excavation tasks while maintaining fuel efficiency. The reliable gear pump hydraulic system operates at 16 MPa working pressure with 18 L/min flow, delivering smooth, precise control for delicate operations. The grease cylinder track tensioning system ensures consistent rubber track performance and easy maintenance. With an 18-liter hydraulic tank, 1.1-liter engine oil capacity, and 6.6-liter fuel tank, the DY14 optimizes fluid capacity for extended operation periods, minimizing downtime in professional applications.

Practical Design and Low Ground Pressure

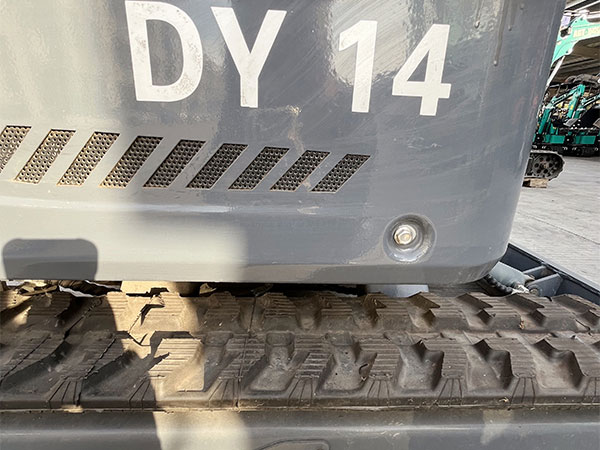

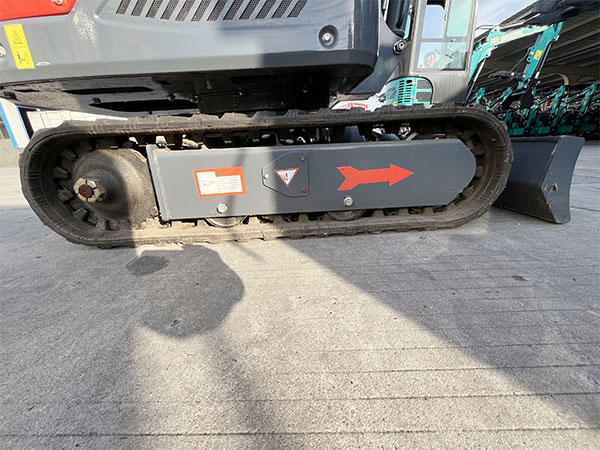

The DY14 features 180 mm rubber tracks with 746 mm center distance, providing excellent traction while maintaining ultra-low 0.4 kgf/cm² ground pressure for sensitive surfaces. The 937 mm by 210 mm bulldozer blade with 240 mm cleaning depth and 170 mm ground clearance enables efficient grading and site preparation. With 405 mm platform clearance, this excavator handles uneven terrain smoothly. The optional ceiling configuration (2,285 mm with/2,030 mm without) adds versatility for indoor and outdoor use. These thoughtful design elements make the DY14 an ideal entry-level solution for contractors seeking affordable, maneuverable excavation capability.

Product Details

Product Specifications

Applications

Landscaping & Green-space Renovation

Pass through 1.2-meter gateways and maneuver around delicate plantings without damaging a single blade of turf.

Excavate tree-planting pits to the exact depth required for root-ball placement.

Grade shallow drainage swales and dig trenches for French drain systems to support rain-garden installations.

Remove worn sod efficiently for immediate lawn replacement.

Utility & Irrigation Installation

Lay water, gas, fiber-optic or drip-irrigation lines faster than manual trenching equipment.

The 2.4-meter digging depth reaches below the frost line in most geographic regions.

The 400-millimeter bucket ensures consistent trench width for efficient backfilling and compaction.

The offset boom design allows trenching tight against existing pavement edges.

Indoor & Restricted-clearance Operations

Pass through standard doorways on non-marking rubber tracks that protect finished flooring.

Excavate basement floors to increase overhead clearance.

Demolish and remove interior concrete slabs using the hydraulic breaker.

Access multi-story parking facilities with 2.3-meter height restrictions for car-pool lane repairs.

Urban & Roadside Maintenance

Repair sidewalk sections, prepare pothole patches, and bore sign-post holes—completing work between traffic-light cycles.

Zero tail-swing geometry keeps the machine within traffic-cone boundaries.

Two-speed travel (0–4 km/h) maintains pace with walking crews.

Waterway, Drainage & Environmental Projects

Equip the 600-millimeter ditching bucket or hydraulic rake attachment.

Remove sediment from irrigation channels while water remains flowing.

Position rip-rap material for bank stabilization and erosion protection.

Break up thin concrete spillway structures and load removal debris directly into awaiting trucks.

Packaging & Shipping

Export-certified steel base

Each 1.8-ton unit secures to a hot-dip-galvanized skid and encloses in multi-layer UV-resistant film. Dust, salt spray, and deck humidity remain sealed outside, ensuring paint, glass, and hydraulic components arrive in pristine condition.

Drive-in container loading

Integrated fork pockets and entry ramps enable a single operator to drive the machine directly into a 20GP or 40HQ container—no scattered pallets, no detached components. Four-point chains and ISO-certified tensioners fasten the undercarriage to the container deck, preventing shifting during turbulent ocean crossings or extended rail transit.
