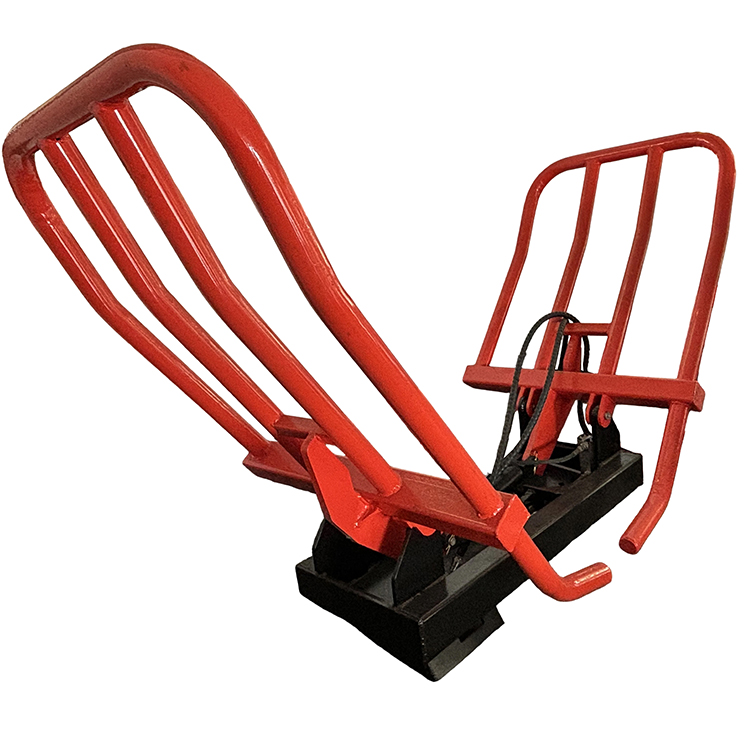

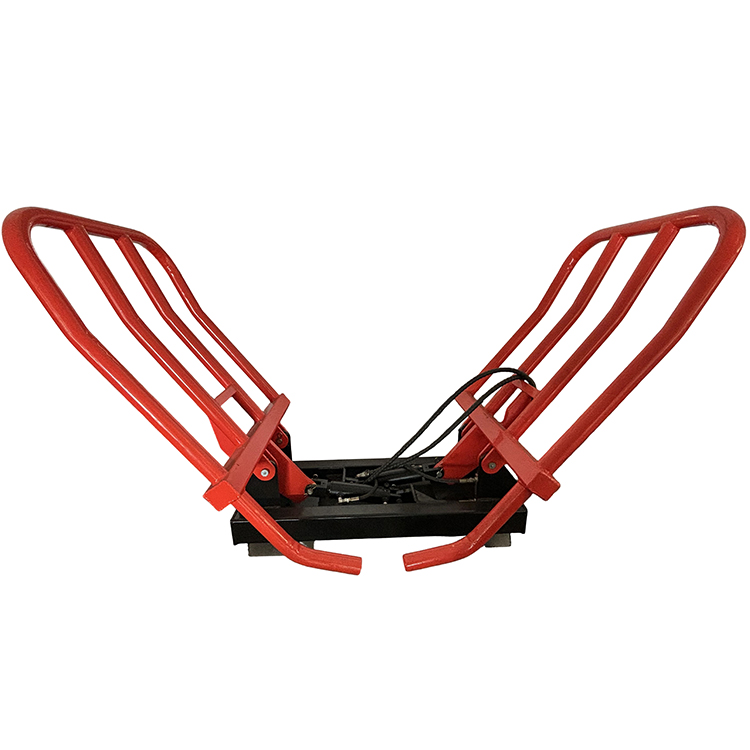

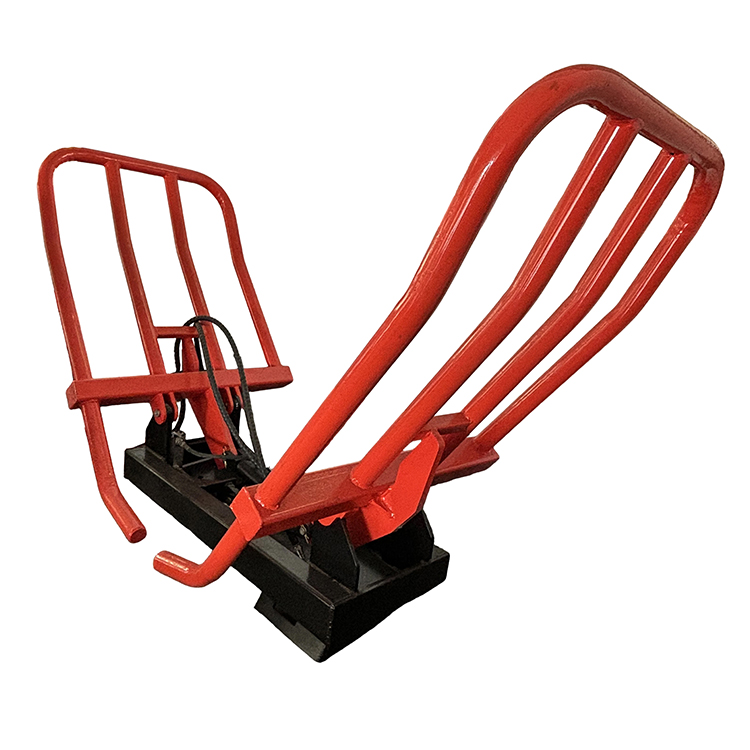

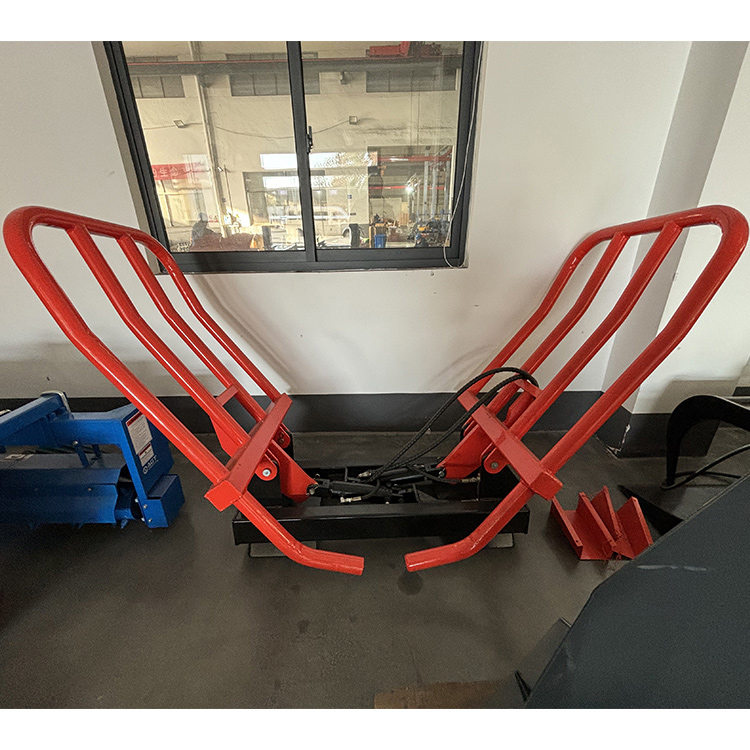

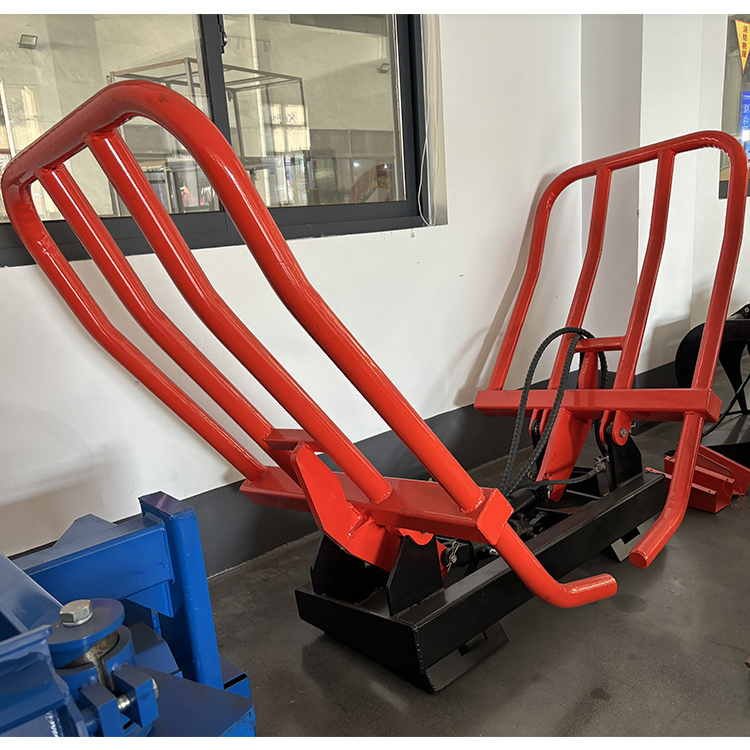

Loader Bale Handler
Product Features:
Round bale handler with universal skid steer mounts.
Constructed of pipe to minimize the risk of puncturing your wrapped bales.

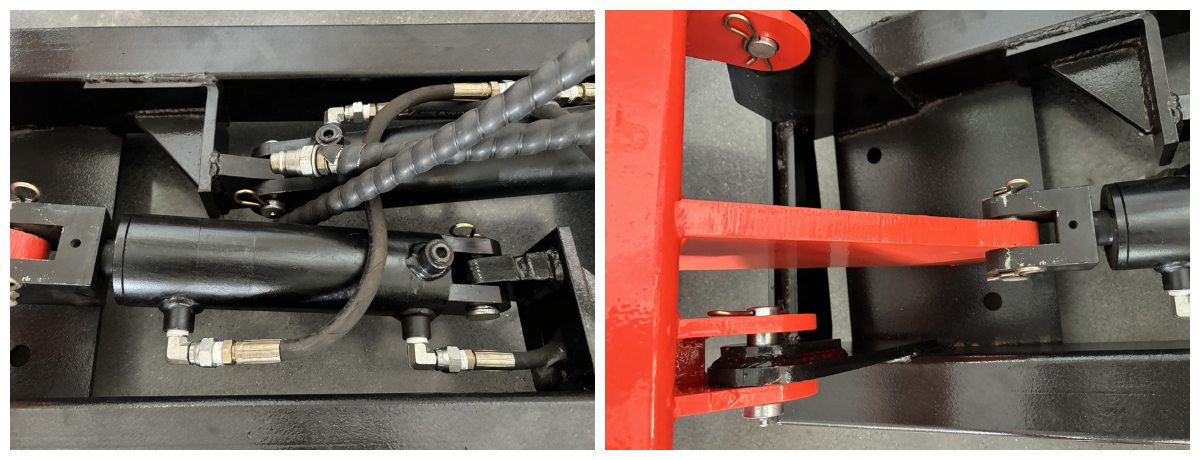

It handles bales with a diameter of 4' to 5' and features a single 2.5" cylinder to provide the strength needed to handle wet bales.
Product Introduction
Loader Bale Handler has the characteristics of simple structure, easy operation, light weight, easy maintenance, and high work efficiency. Suitable for the various physical demands of soft pack goods, such as shredded cloth, paper, cotton, wool, hay, industrial waste, and other soft pack items.
Selling Point
1.This Bale Handler is primarily designed for use on agricultural loaders, promoting efficient crop handling with its versatile application.

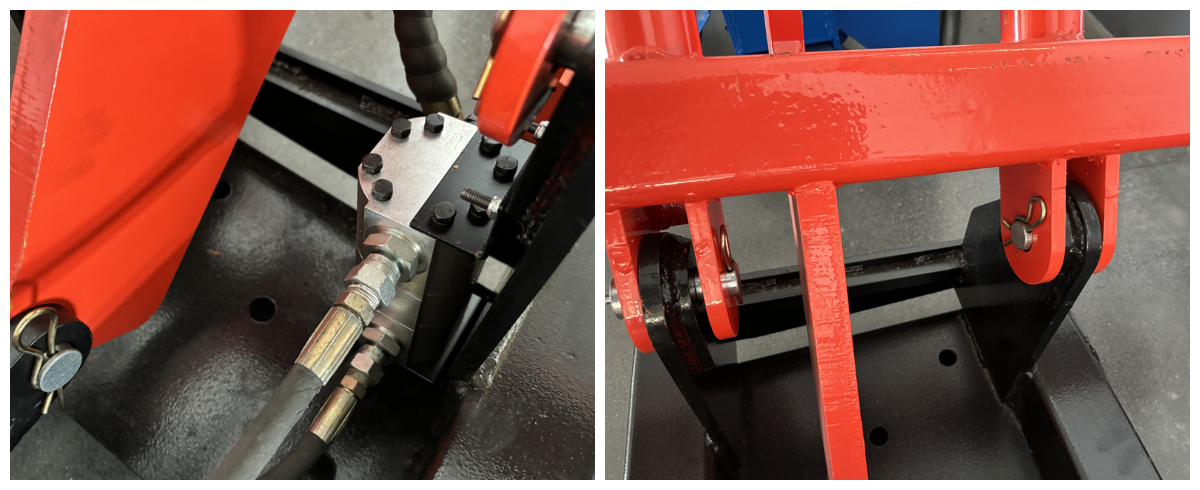

2.The machine boasts a powerful hydraulic system that is capable of handling a wide range of bales with ease, further enhancing its versatility.
3.The Bale Handler comes with a 700mm-high by 1800mm-long arm, ensuring optimal reach and capacity for handling large bales up to 2500kg.
Product Specifications
Model | BH01 |
Power | 70 Hp |
Weight | 260 Kg |
Diameter of haystack | 700-1800 MM |
Lifting time of movable arm | 10S |
Hitch | Skid Steer |
Packaging & Shipping
Transportation Methods
The four in one bucket is packaged with iron frame.
It can be shipped as a complete machine in a container, or multiple units can be secured on transport frames for batch shipping.
Container transport provides protection against rain and dust, and reduces damage caused by road vibrations.
Packaging Methods
Wooden Crate Packaging: Provides full enclosed protection for the entire machine or key components, suitable for long-distance transport or export. Protects the equipment from impacts and weather conditions.
Metal Frame Packaging: Uses a metal frame to secure the whole machine, saving space and facilitating loading and unloading. Suitable for batch transport.
Additional Protection: Key components such as the hydraulic arm, control handles, and tires may be padded or wrapped with protective materials to prevent damage during transport.
Loading and Securing
Before transport, the equipment is secured on wooden crates or metal frames to prevent sliding or tipping during handling and transport.
Smaller models can be stacked for shipment, while larger models must be loaded individually to ensure safety. Packaging should be completed before transportation.
