6 Ton Excavator
High Operating Efficiency: Ensures quick and effective performance for industrial tasks.
Advanced Yanmar Engine: Meets Euro V emissions standards, offering power and environmental friendliness.
Load-Sensitive System: Enhances maneuverability and efficiency in diverse terrains.
Tailless Slewing: Ideal for tight spaces, ensuring safe operation in confined areas.
Customizable Auxiliary Pipelines: Meets the needs of various attachments and configurations.
Product Introduction
The TZ60 is a robust and versatile 6-ton class excavator built to deliver exceptional performance across a wide range of demanding applications. Engineered for both power and efficiency, it features a strong working weight of 6,150 kg and is powered by a reliable Yanmar 4TNV94L diesel engine, providing 35.9 kW of maximum power with water-cooled reliability. Its well-balanced design ensures stability and strength, making it a dependable partner for construction, landscaping, utility, and industrial tasks.
This model excels with superior digging capabilities, offering a maximum digging depth of 3,815 mm, a maximum digging height of 5,805 mm, and an extended digging radius of 5,998 mm. Equipped with a 0.23 m³ bucket, it handles material efficiently, while the dual-speed travel system (2.4/4.1 km/h) and excellent 35% gradeability provide outstanding mobility and traction on rough or sloped terrain. The inclusion of a standard 1,960 mm wide bulldozer blade further enhances its versatility for backfilling and leveling work.
Designed for operator comfort and operational efficiency, the TZ60 combines a compact footprint (6,088 mm length × 1,960 mm width) with a clear view and easy controls. Its generous 128-liter fuel tank and 80-liter hydraulic oil tank support extended work cycles with less downtime. Whether trenching, loading, lifting, or grading, the TZ60 delivers the power, reach, and reliability needed to maximize productivity on any job site.
Product Details

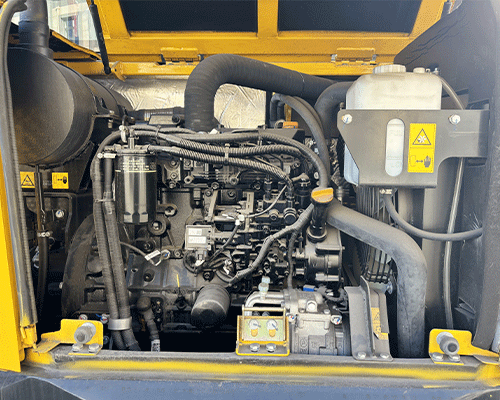

Full Opening Engine Cover The tilt-up engine cover provides wide access to the engine compartment, simplifying routine maintenance and component inspection. |
|

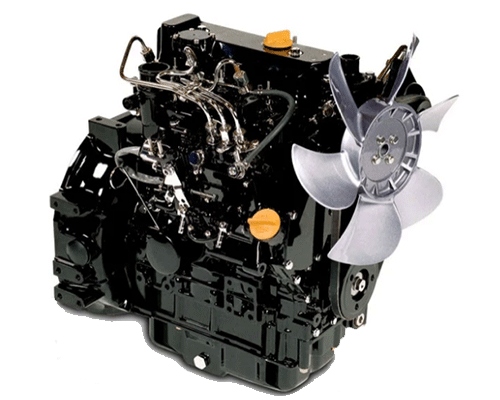

Kubota engine Powerful and dependable, the TZ60 Kubota diesel engine delivers superior horsepower and performance. It offers low noise and vibration levels, exceptional fuel efficiency. |
|

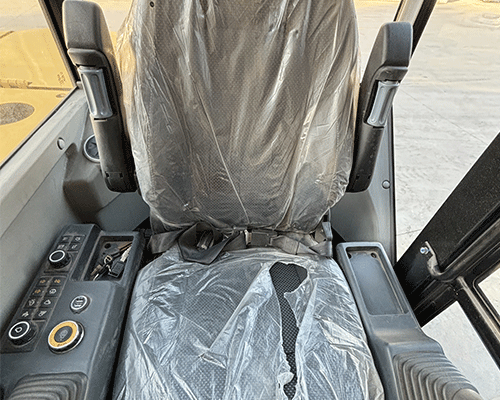

Spacious driving experience Designed with ample legroom and intuitive controls, the cabin ensures easy operation. The adjustable front-and-rear driver’s seat further enhances comfort during long working hours. |
|

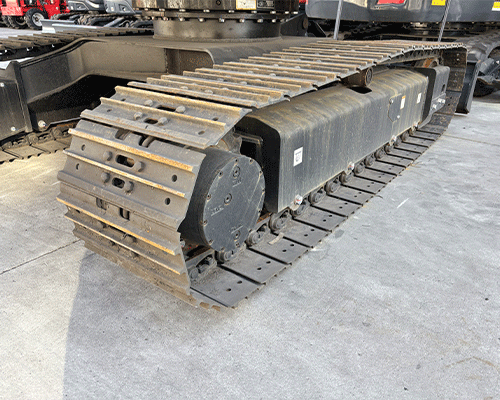

Variable Speed Travel Motor The travel motor features high and low speed settings, delivering enhanced power and responsiveness across different working conditions |
|

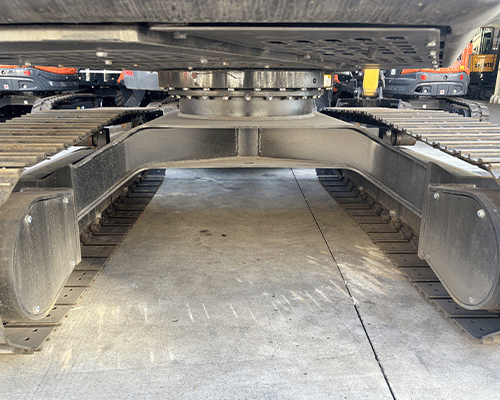

Reinforced Undercarriage A comprehensively extended and reinforced chassis, manufactured through an integral forging technique for superior durability. |
|

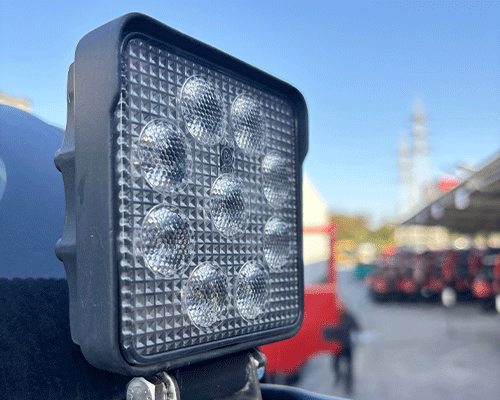

New LED Boom Work Light Non-halogen LED work lights are mounted on the boom, delivering brighter, longer-lasting illumination for safer operation in low-light environments. |
|
Product Specifications
Model Information | TZ60 | |
Basic Performance Parameters | ||
Working Weight(kg) | 6150 | |
Bucket capacity(m³) | 0.23 | |
Travel speed low/high speed(Km/h) | 4.1-2.4 | |
Climbing ability(%) | 35 | |
Maximum Digging Height(mm) | 5805 | |
Maximum Unloading Height(mm) | 4070 | |
Maximum Digging Depth(mm) | 3815 | |
Max. digging radius(mm) | 5998 | |
Equipment Body | ||
J:Overall Length(mm) | 6088 | |
K:Overall Width(mm) | 1960 | |
L:Overall Height(mm) | 2686 | |
Bulldozer Width/Height | 1960/- | |
Engine | ||
Engine Brand | Yanmar4TNV94L | |
Maximum power(Kw) | 35.9 | |
Cooling method | Water cooling | |
Fuel Type | Diesel | |
Fuel tank | ||
Fuel tank(L) | 128 | |
Hydraulic oil tank(L) | 80 | |
Applications
Landscaping & Garden Works
The 6-ton mini excavator is perfectly suited for garden and landscaping tasks such as tree planting, garden shaping, drainage trenching, and lawn renovation. Its compact design allows easy entry into residential yards, parks, and green spaces, ensuring minimal ground disturbance and preserving delicate landscapes.
Trenching & Utility Installation
This machine performs with high reliability in narrow-trench excavation, cable laying, and water or irrigation pipeline installation. It is widely used in utility projects, farm irrigation systems, and underground service work, offering precise control and producing clean trench profiles.
Indoor & Confined Space Construction
With its small footprint and excellent maneuverability, the 6-ton mini excavator excels in indoor demolition, basement excavation, and interior renovation projects. It operates efficiently in tight spaces where larger equipment cannot access, making it ideal for challenging confined environments.
Road Maintenance & Municipal Works
The excavator is well-suited for urban infrastructure tasks including sidewalk repair, pavement cutting, foundation preparation, and general municipal maintenance. Its size and agility allow it to work effectively in restricted urban job sites with minimal disruption.
Concrete Breaking & Cleaning Operations
When equipped with specialized attachments such as breakers or cleaning buckets, the machine handles light concrete breaking, drainage ditch cleaning, desilting, and canal maintenance with ease. It serves as a versatile tool for environmental protection and water conservancy projects.
