1.3 Tonne Excavator
Compact Design: Ideal for small-scale farming operations and tight spaces.
High Gradeability: Can navigate slopes up to 30%, making it versatile for various terrains.
Strong Hydraulics: Equipped with a 16 MPa hydraulic system for powerful digging and moving capabilities.
Efficient Fuel Consumption: Designed for economical operation with a 6.6-liter fuel tank.
Easy Transport: Compact size allows for convenient storage and transportation.
Product Introduction
Product Details
Variable Speed Travel Motor The travel motor features high and low speed settings, delivering enhanced power and responsiveness across different working conditions. |
|
| |

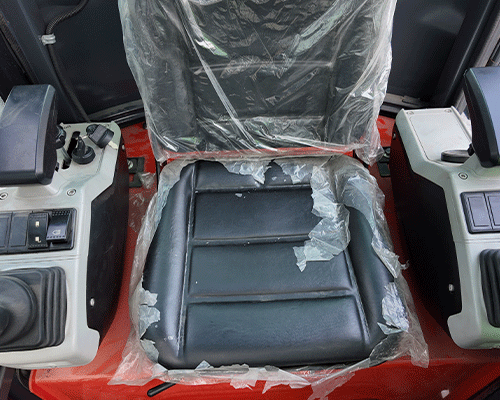

Spacious driving experience Generous legroom ensures comfortable operation; the adjustable driver's seat slides forward and backward, enhancing overall seating comfort. |
|

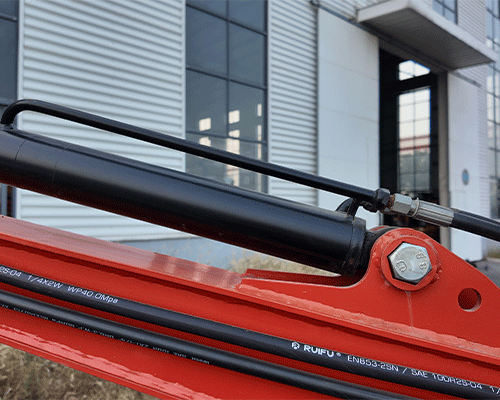

Enhanced Lateral Swing Boom System The boom assembly incorporates a bidirectional lateral swing function, enabling horizontal movement to substantially increase the working envelope. This innovative design provides greater operational flexibility in confined spaces and complex working conditions. |
|

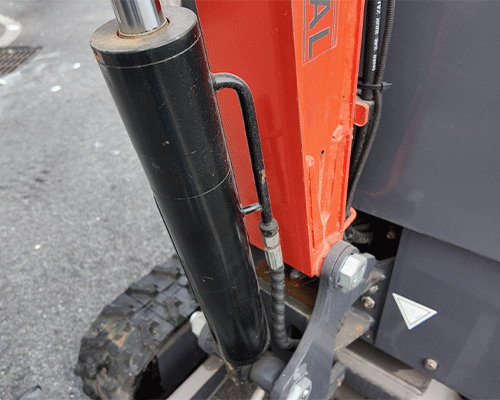

Upper Cylinder Configuration Featuring an elevated cylinder layout, this design provides enhanced protection for critical components, effectively extending service life while improving overall durability. The strategic positioning minimizes external impact exposure and optimizes maintenance accessibility. |
|

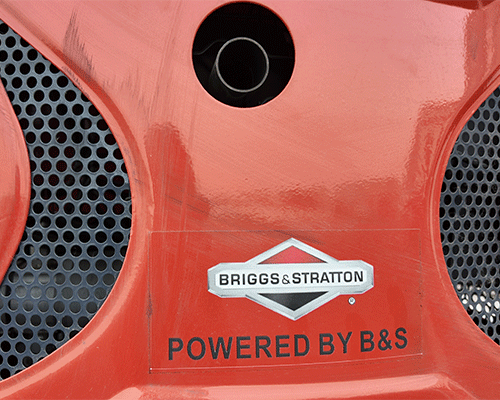

B&S Engine Powerful and dependable, the B&S gasoline engine delivers superior horsepower and performance. It offers low noise and vibration levels, exceptional fuel efficiency. |
|
Product Specifications
| Model Information Configuration Status √Standard, △Optional , ×None | DM13X-C | |
| Basic Performance Parameters | ||
| Working Weight(kg) | 900 | |
| Bucket capacity(m³) | 0.03 | |
| Travel speed low/high speed(Km/h) | 0-0.2 | |
| Climbing ability(%) | 30 | |
| A:Maximum Digging Height(mm) | 2795 | |
| B:Maximum Unloading Height(mm) | 1863 | |
| C:Maximum Digging Depth(mm) | 1684 | |
| E:Max. digging radius(mm) | 3112 | |
| Side Swing | √ | |
| Side Swing Angle (L/R) | 30 | |
| Undercarriage Expansion | × | |
| Equipment Body | ||
| J:Overall Length(mm) | 2738 | |
| K:Overall Width(mm) | 935 | |
| L:Overall Height(mm) | 2209 | |
| Bulldozer Width/Height | 907/200 | |
| Engine | ||
| Engine Brand | B&S | |
| Maximum power(Kw) | 13.5 | |
| Cooling method | Fan cooling | |
| Fuel Type | Gasoline | |
| Fuel tank | ||
| Fuel tank(L) | 6.6 | |
| Hydraulic oil tan(L) | 18 | |
Applications
Landscaping & Green-space Refurbishment
Glide through 1.2-metre gates and maneuver around prize-winning rose beds without damaging the turf.
Tree pit excavation to precise root-ball depth
Shallow swale and French-drain trenches for rain-garden installations
Stripping old sod for instant lawn restoration
Utility & Irrigation Lines
Install water, gas, fibre-optic or drip-irrigation networks more quickly than a walk-behind trencher.
2.4 m digging depth penetrates below the frost line in most regions
400 mm bucket ensures uniform width for rapid back-filling and compaction
Side-swing boom maintains trenches parallel to existing pavements
Indoor & Low-clearance Work
Pass through a standard doorway and operate on rubber tracks that won't scuff tile surfaces.
Basement excavation for increased headroom
Interior concrete slab removal using hydraulic breaker
Car-pool lane maintenance inside parking structures with only 2.3 m clearance
Roadside & Municipal Repairs
Sidewalk slab replacements, pothole preparation, sign-post holes—completed before the next traffic light cycle.
Zero tail-swing keeps the machine within lane cones
Dual-speed travel (0–4 km/h) matches the pace of work crews
Ideal for canal, ditch, and environmental cleanup tasks, the H13R allows you to quickly swap its bucket for a 600 mm ditching blade or hydraulic rake. It can desilt irrigation channels without the need to drain them, place rip-rap for erosion control, and even break up thin concrete spillways—loading the resulting debris directly into a waiting dump truck.
Packaging & Shipping
To guarantee our mini excavators reach your worksite in flawless, operation-ready condition, we adhere to a rigorous export-grade packaging and shipping procedure. This systematic approach ensures complete protection across the entire global supply chain.
Advanced Protective Packaging
Each unit is securely fixed on industrial-grade steel pallets and entirely enclosed with heavy-duty, waterproof plastic wrapping. This robust packaging solution provides comprehensive defense against moisture, contamination, and physical damage during transportation, maintaining the equipment's structural and mechanical integrity.
Optimized Container Transport
For ocean shipments, the excavators are precision-loaded into standard 20-foot or 40-foot high-cube containers using specialized lifting equipment and loading systems. Within the container, each machine is professionally fastened with industrial-grade tie-down straps and reinforced wooden blocks, eliminating any potential movement and ensuring secure international delivery.
