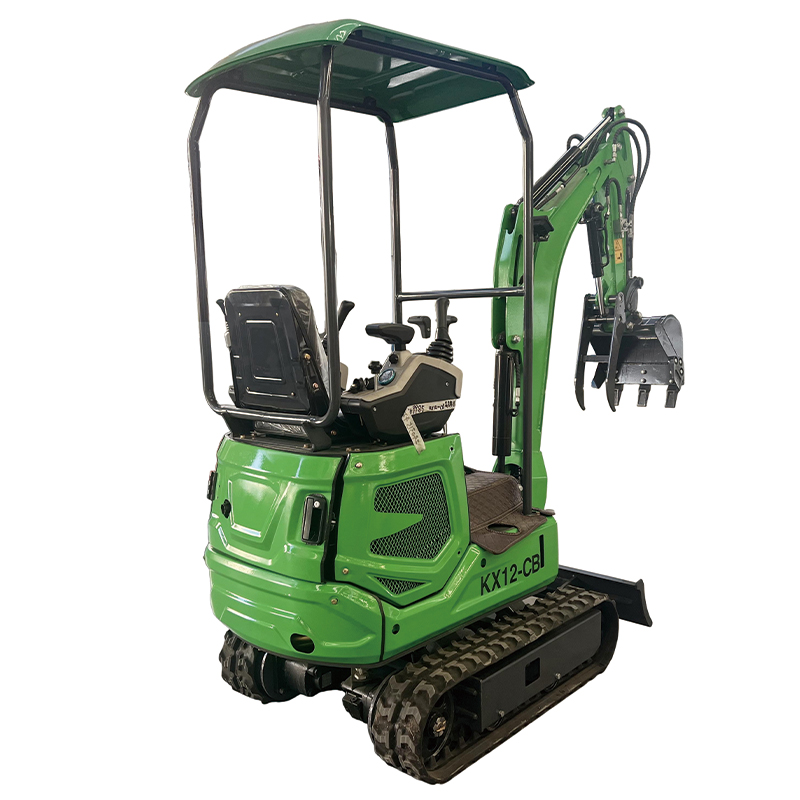

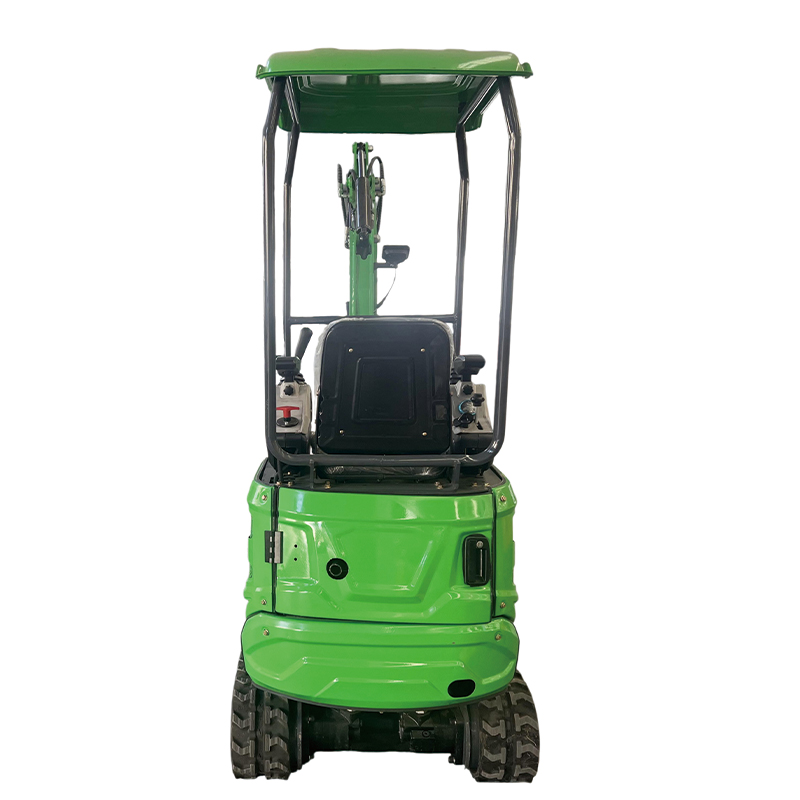

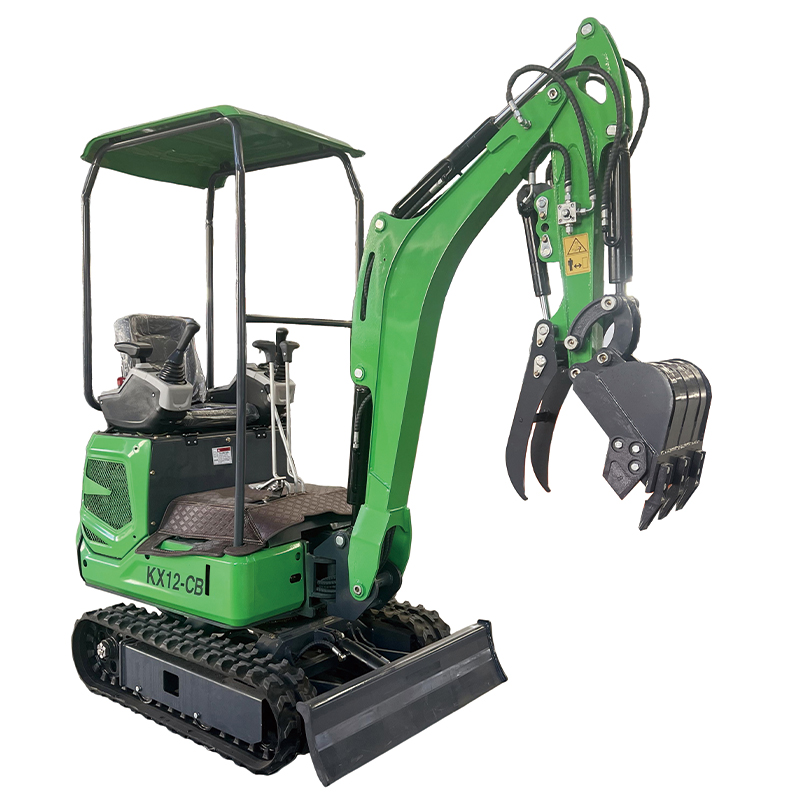

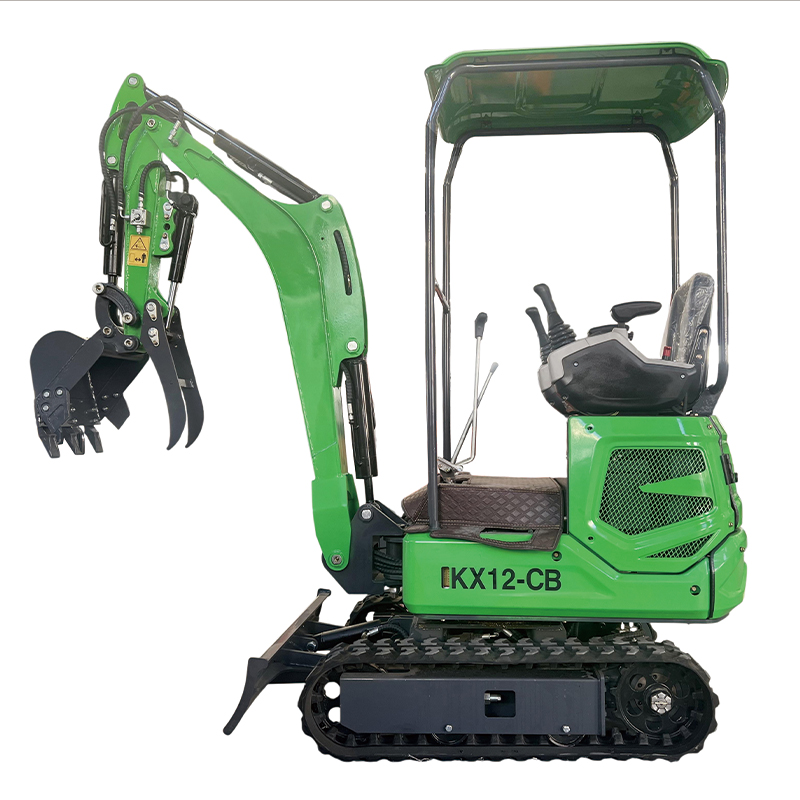

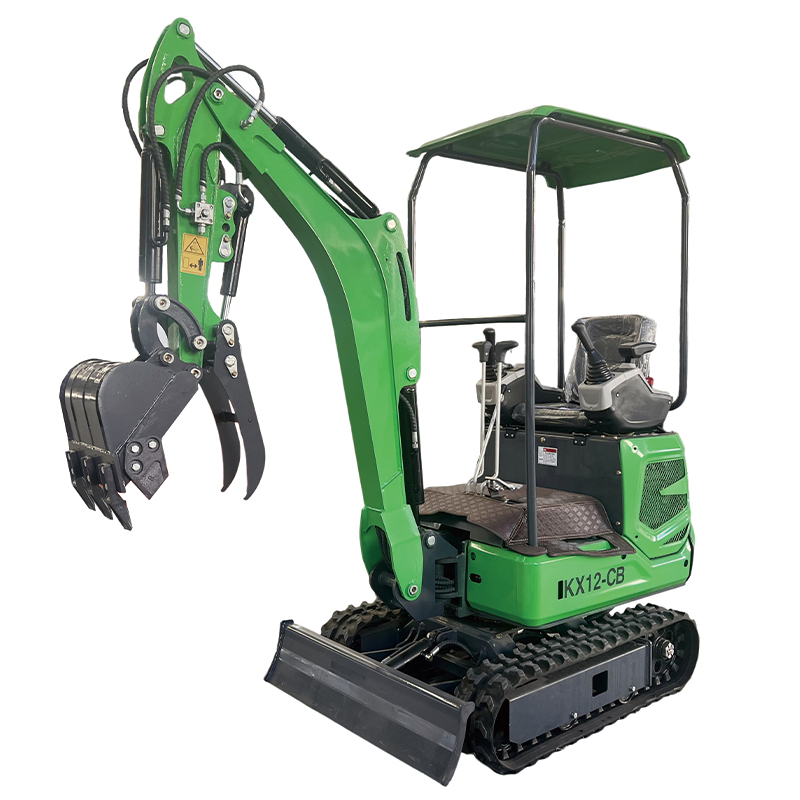

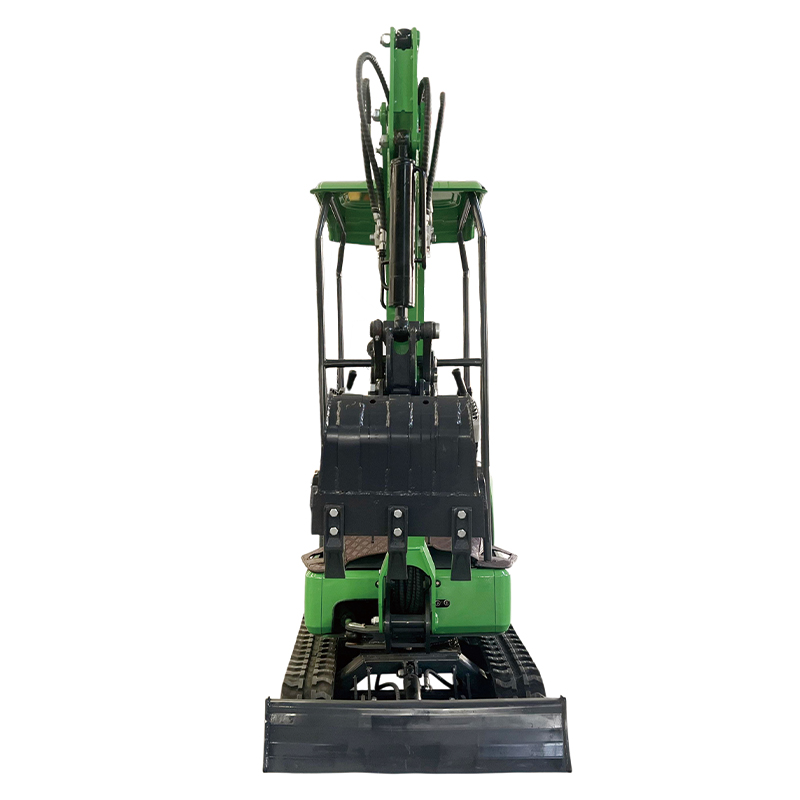

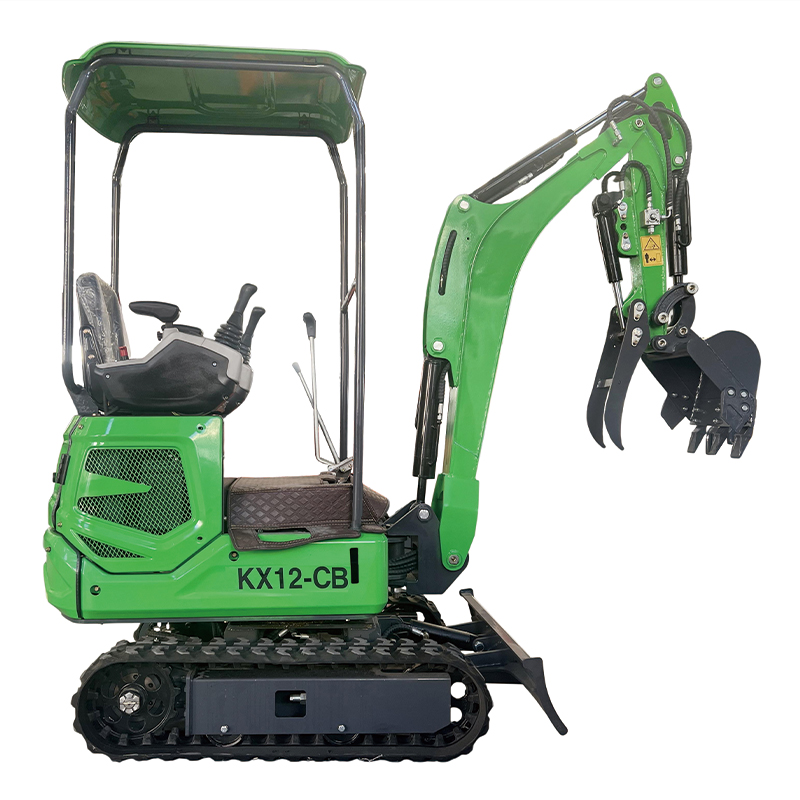

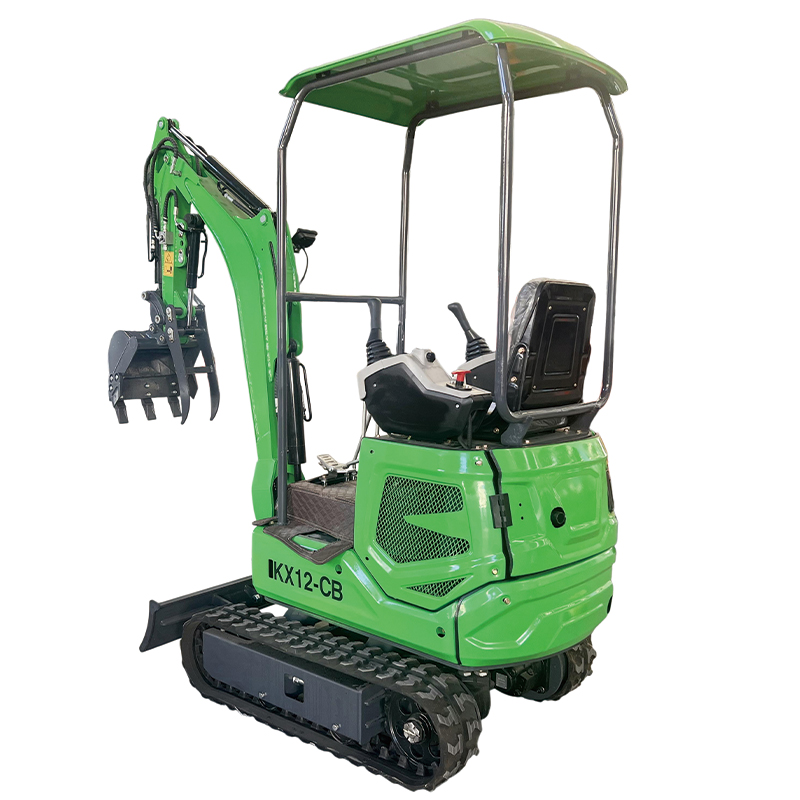

1.2 Ton Mini Excavator
B&S Gasoline Engine (9.8 kW): Powerful, reliable performance with low noise, low vibration, and high fuel efficiency.
German Three-Way Hydraulic Pump: Original “one pump, one control” system for precise operation and higher efficiency.
Upper Cylinder Design: Better protection and longer service life for improved machine durability.
Reinforced Forged Chassis: Extended, thickened structure for strength, stability, and heavy-duty use.
Dual-Speed Travel Motor: High and low speed modes for optimized power and mobility.
User-Friendly & Easy Maintenance: Hydraulic pilot control, spacious foot area, TLED headlights, and easy-open rear cover.
Product Introduction
KX12-CDB 1.2 Ton Mini Excavators are provided with excavating,crushing, ditch cleaning, drilling and bulldozing with their attachments quick hitched and thus its utilization up greatly. In addition, they are easy to operate and transport and flexible to work at narrow site.
This type of Mini Excavators are mainly applied to: farming,landscaping, ditching and fertilization in garden, vegetable greenhouse agricultural transformalion indoor demolition small earthwork civil engineering road recovery basement and indoor construction, concrete breaking, burying of cable, laying of water supply line, garden cultivation, desilting and others.
The excavator are equipped with B&S gasoline Engine or BRIGGS & STRATTON Gasoline Engine.

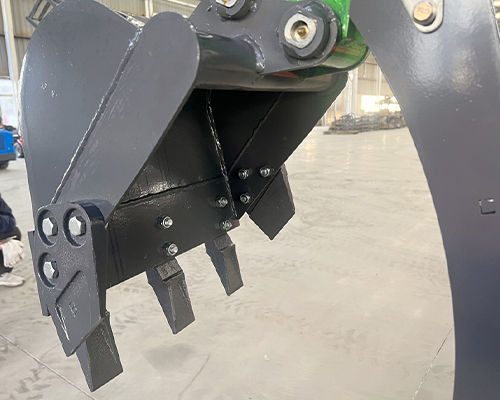

KX12-CDB 1.2 Ton Mini Excavators are able to equipped with multiple work equipment, such as quick hitch, log grapple, ripper, leveling bucket, auger and narrow bucket, as well as optional roof, radiator and others, so as to meet your needing.
Product Details

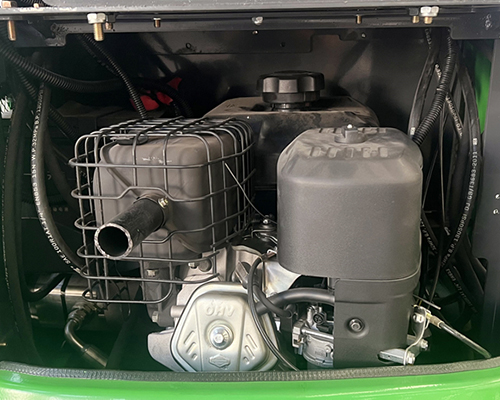

Full Opening Engine Cover The engine cover' s tilt-up operation exposes most of the engine-providing easier access to components. |
|

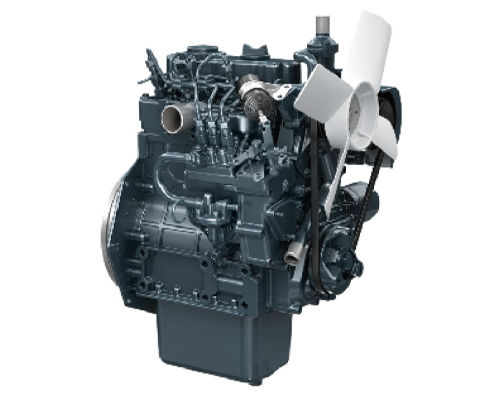

B&S engine Powerful and dependable, the XK12 B&S diesel engine delivers superior horsepower and performance. It offers low noise and vibration levels,excaptional fuel efficiency. Power:9.8kw |
|

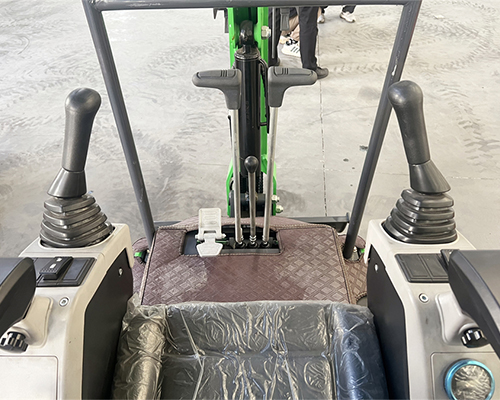

Spacious driving experience Plenty of legroom, easy to operate; the driver's seat can be adjusted front and back, providing greater comfort. |
|

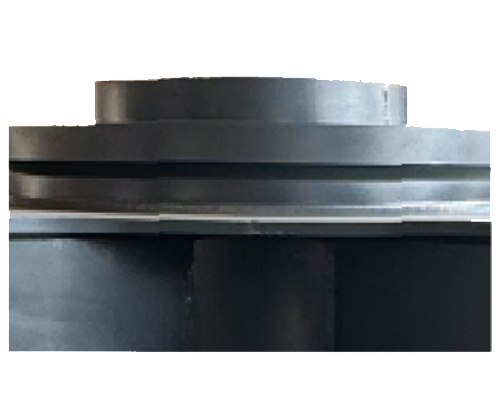

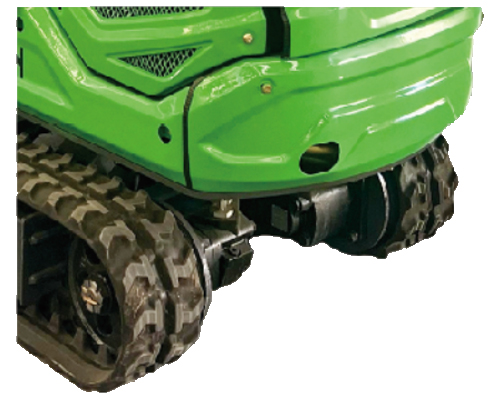

Thickened chassis Extended and thickened chassis overall forging process. |
|
Variable speed motor Travel motor, supports high and low speed, more powerful |
|

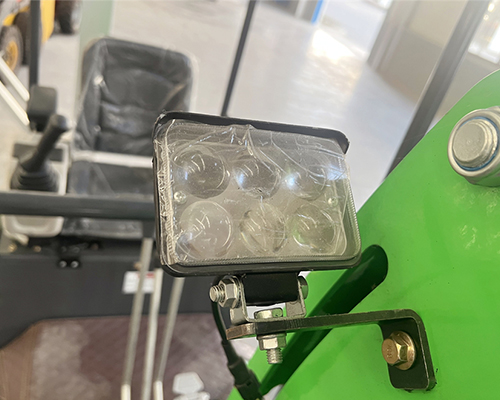

New LED Boom Work Light LED headlights,non-halogen headlights |
|

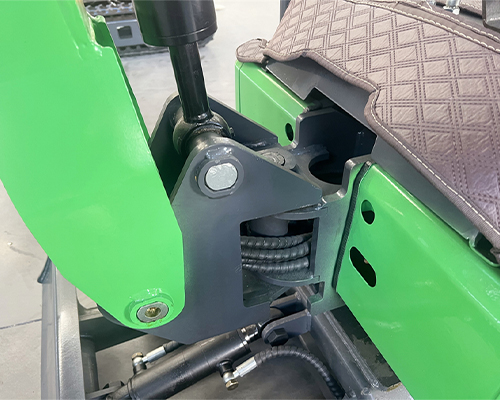

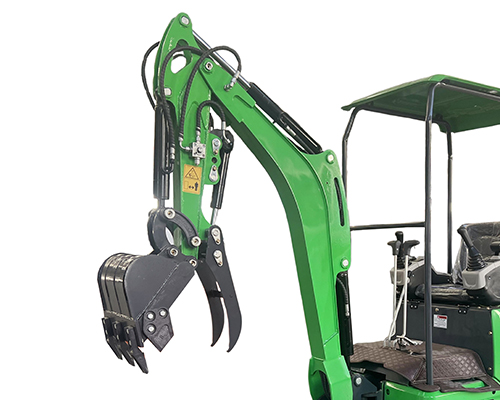

| Lateral swing of the upper arm The boom can swing left and right,providing a wider range of operation. |
 | Cylinder up to The whole vehicle adopts the upper cylinder design to better protect the cylinder, extend the cylinder life, and increase the durability. |
| Robot welding The large and small arms of the excavator are welded by robots,and the structural strength is increased by 8% |

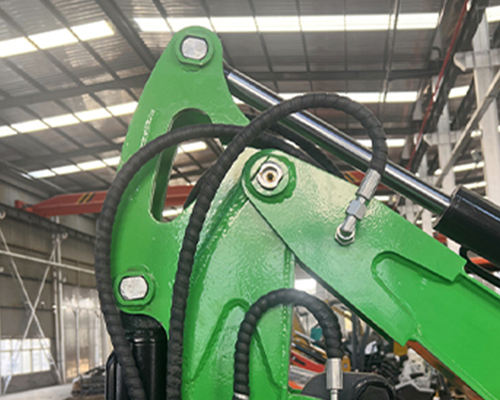

| Built-in oil pipe The oil pipe is hidden inside the boom, effectively reducing the risk of pipeline damage. |
| Extra-long reach; efficient coverage Industry-leading boom design, extended and thickened, can swing left and right, and the working radius is increased by18%. |
Product Specifications
Basic Performance Parameters | Engine | ||
Operating Weight (kg) | / | Engine Brand | B&S |
Bucket Capacity (m³) | 0.03 | Engine Model | 13.5 HP |
Travel Speed (Low/High) (km/h) | 0–1.8 | Max Horsepower (ps) | / |
Gradeability (%) | 11 | Max Power (kW) | 9.8 |
Swing Speed (r/min) | / | Rated Speed (rpm) | 3600 |
Max Bucket Digging Force (kN) | / | Number of Cylinders | 1 |
Max Arm Digging Force (kN) | / | Cooling Method | Air-cooled |
Max Digging Height A (mm) | 2900 | Engine Oil Capacity (L) | 1.1 |
Max Dumping Height B (mm) | 2100 | Fuel Type | Gasoline |
Max Digging Depth C (mm) | / | Fuel Grade | 95# |
Max Vertical Digging Depth D (mm) | / | Theoretical Fuel Consumption (L/h) | 0.5–1.2 |
Max Digging Radius E (mm) | 3250 | Tank Capacity | |
Min Swing Radius F (mm) | 1470 | Fuel Tank Capacity (L) | 5.5 |
Min Tail Swing Radius G (mm) | 800 | Hydraulic Oil Tank Capacity (L) | 18 |
Dozer Blade Max Lifting Height H (mm) | 190 | Hydraulic System | |
Dozer Blade Max Digging Depth I (mm) | 190 | Main Pump Type / Model | Gear Pump / 06 |
Configuration | Main Pump Brand | Tianjin Xingzou | |
Cab | / | Rated Pressure (MPa) | 16 |
Canopy | ● | Max Main Pump Flow (L/min) | 21.6 |
Armrest | / | Control Valve | 8-spool control valve |
Quick Coupler | / | Control Valve Brand | Taiheng |
Side Swing | ● | Rated Pressure (MPa) | 16 |
Telescopic Function | ● | Travel Hydraulic Motor Type | BM6-315 |
Ripper | / | Travel Motor Brand | Koen / Liyuan |
Log Grapple | / | Motor Displacement | 315 |
Ripper Attachment | / | Swing Hydraulic Motor Type | BM2-315 |
Hydraulic Breaker | / | Displacement | 315 |
Counterweight | / | Machine Dimensions | |
Track Tensioning Method | Mechanical tensioning | Overall Length J (mm) | 3240 |
Air Conditioning | / | Overall Width K (mm) | 990 |
Tracks | Overall Height L (mm) | 2200 | |
Rubber Track (Width × Pitch × Links) | 180 × 72 × 37 | Wheelbase M (mm) | 930 |
Steel Track (Width × Pitch × Links) | / | Track Gauge N (mm) | 810 |
Rubber Pads | / | Dozer Blade Width / Height (mm) | 950 / 235 |

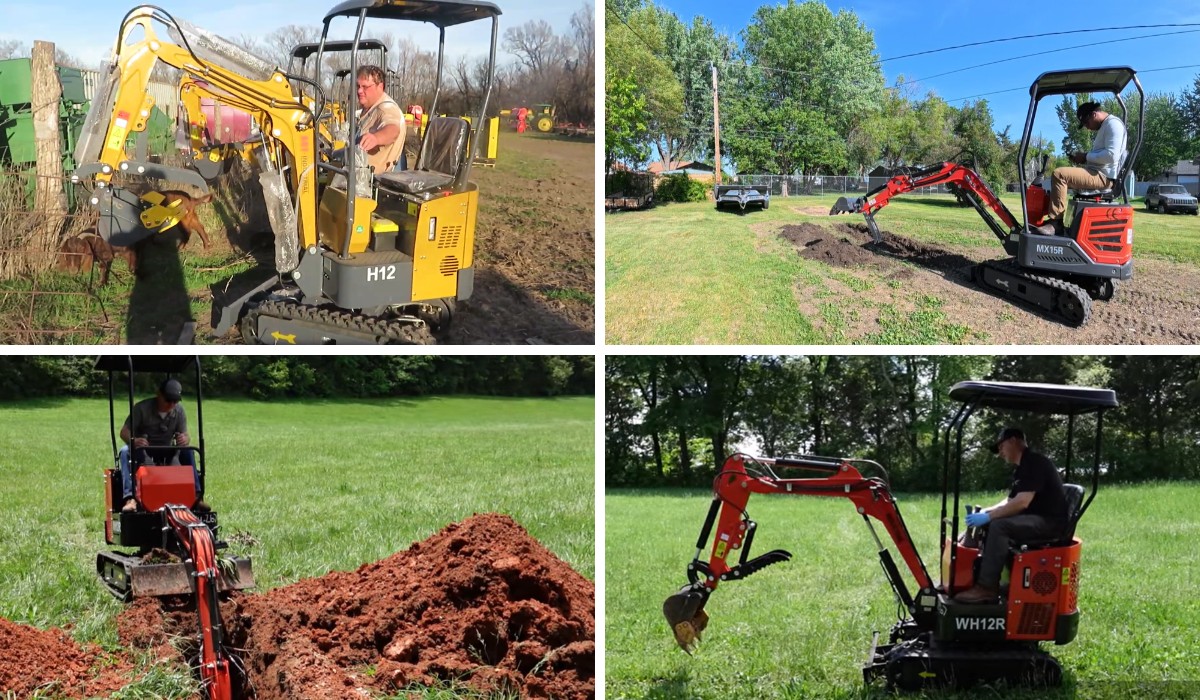

Applications
This mini excavator is designed for multi-purpose applications, offering high efficiency, flexibility, and reliable performance in confined and light-duty work environments. It is widely used across agriculture, landscaping, construction, and utility projects, making it an ideal solution for professional contractors and private users.
Landscaping & Garden
For landscaping and garden construction, this mini excavator is ideal for tree planting, garden cultivation, drainage trenching, and lawn renovation. Its small footprint allows easy access to residential gardens, parks, and green areas with minimal ground disturbance.
Trenching & Utility Installation
The machine performs efficiently in ditch digging, cable burying, and water supply pipeline installation. It is widely applied in utility construction, irrigation systems, and underground service projects requiring accurate trench depth and width.
Indoor Construction & Demolition
Thanks to its compact design, this mini excavator is suitable for indoor demolition, basement construction, and interior renovation. It can handle small earthwork and civil engineering projects in narrow or limited spaces where larger excavators are not practical.
Road Maintenance & Infrastructure
This mini excavator is used for road repair, pavement recovery, foundation preparation, and municipal maintenance, particularly in urban environments or restricted job sites.
Concrete Breaking & Desilting
Equipped with compatible attachments, it is suitable for concrete breaking, canal cleaning, drainage maintenance, and desilting operations. It is widely applied in irrigation channels, riverbank maintenance, and environmental projects.

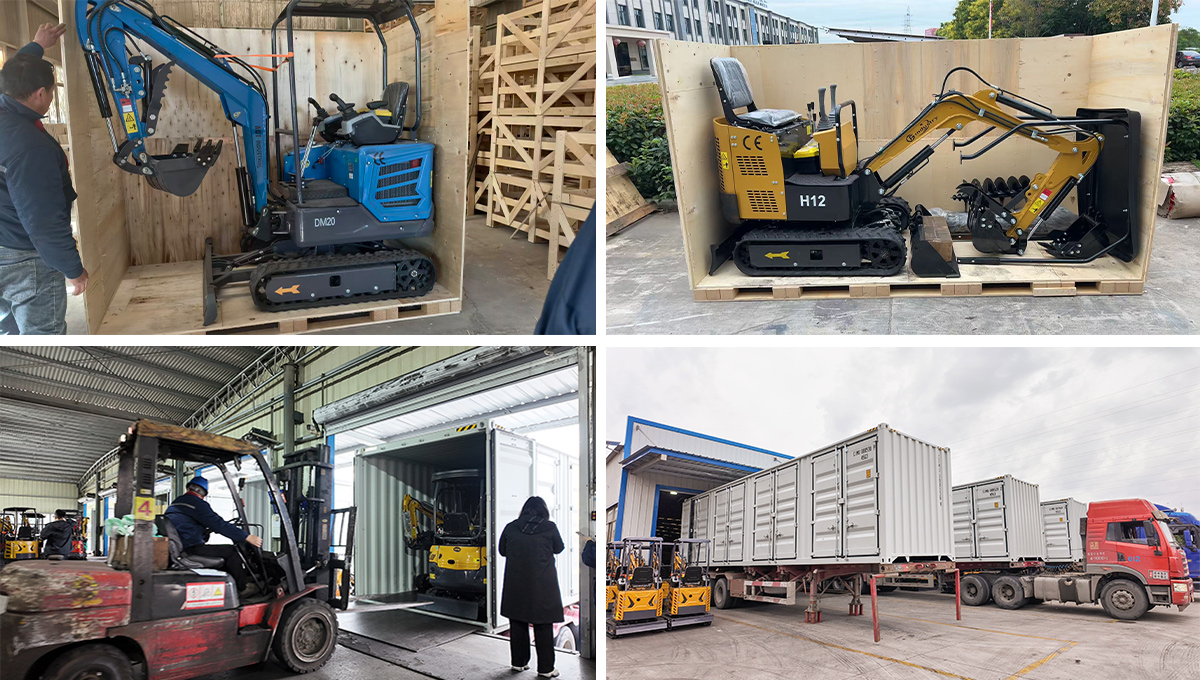

Packaging & Shipping
Our mini excavators are delivered using professional export-grade packaging and shipping methods, ensuring maximum protection during transit and safe delivery to customers worldwide.
Secure Packaging
Each machine is mounted on a sturdy steel frame and wrapped with protective plastic film. This safeguards critical components against dust, moisture, and minor impacts, maintaining the machine's integrity during long-distance transport.

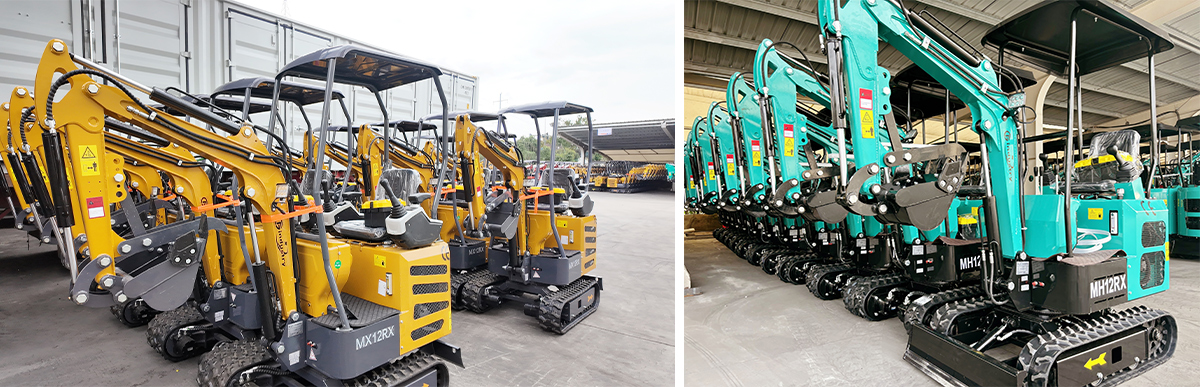

Container Loading
Mini excavators are loaded directly into standard 20GP or 40HQ shipping containers using forklifts and ramps. Every unit is firmly secured with professional lashing, preventing movement during sea or land transport and ensuring safe arrival.
