Mini Skid
High Operating Efficiency: Ensures quick and effective earthmoving tasks.
Compact Design: Easy to maneuver around tight spaces for precise work.
Rato Engine: Reliable power source for consistent performance.
Low Travel Speed: Safe and stable operation at low speeds for precision.
Customizable Options: Ideal for various farming and construction applications.
Product Introduction

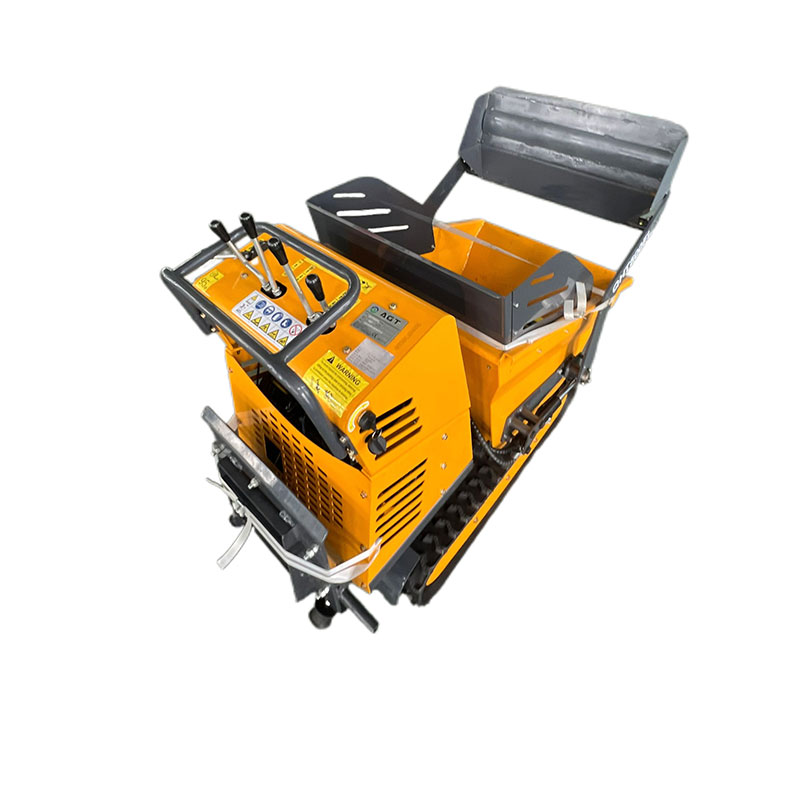

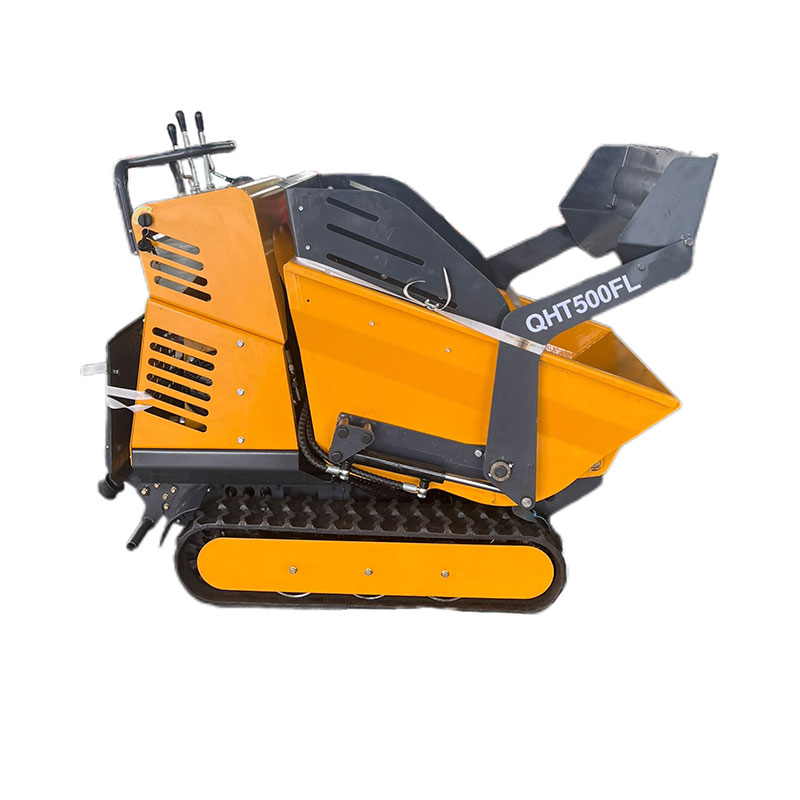

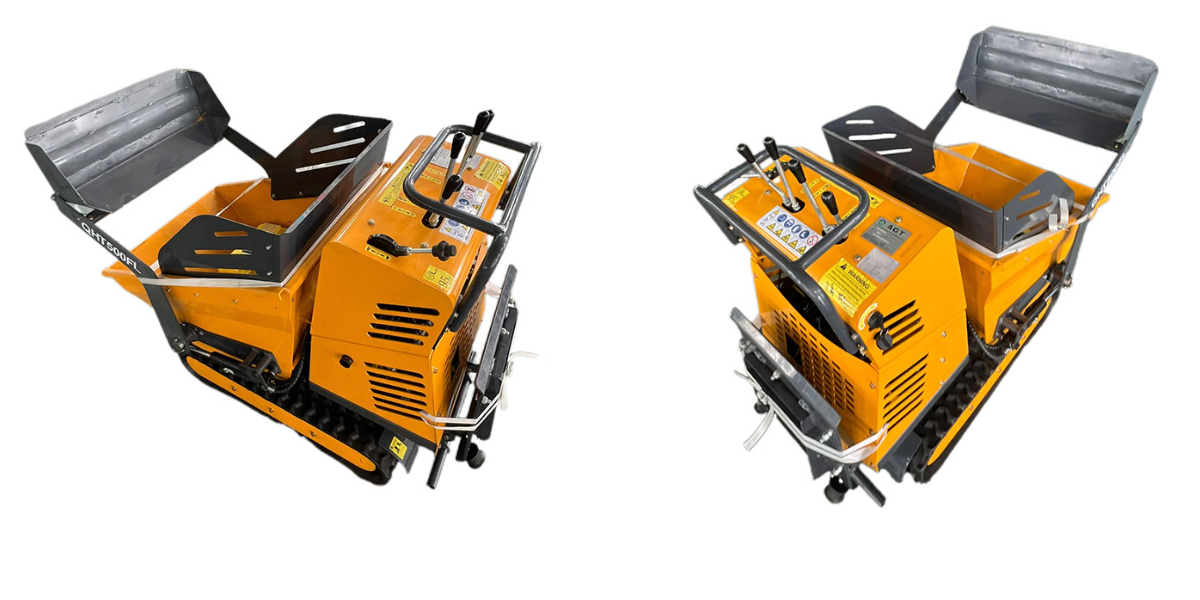

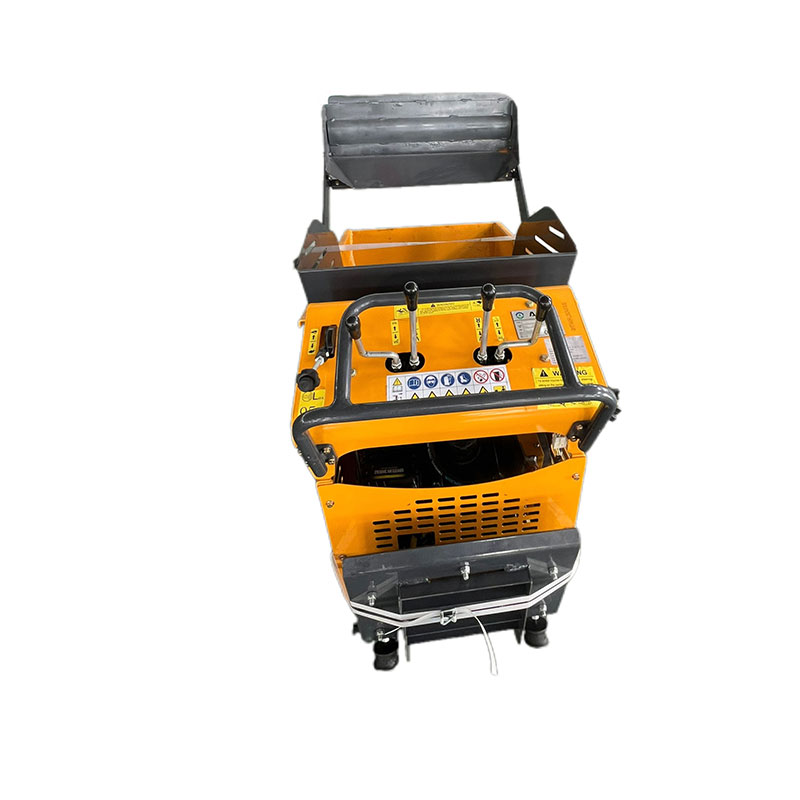

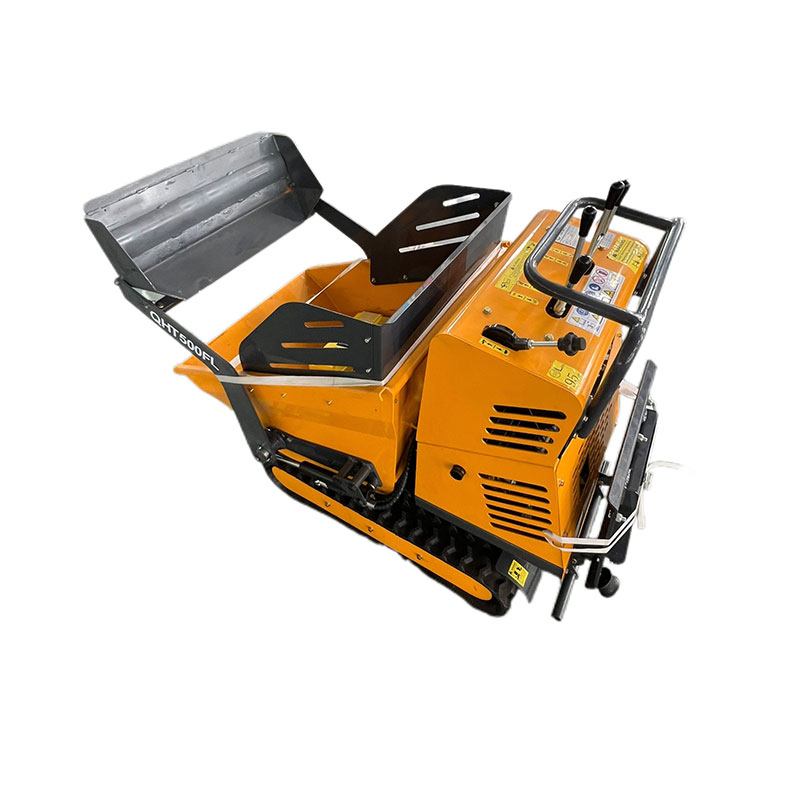

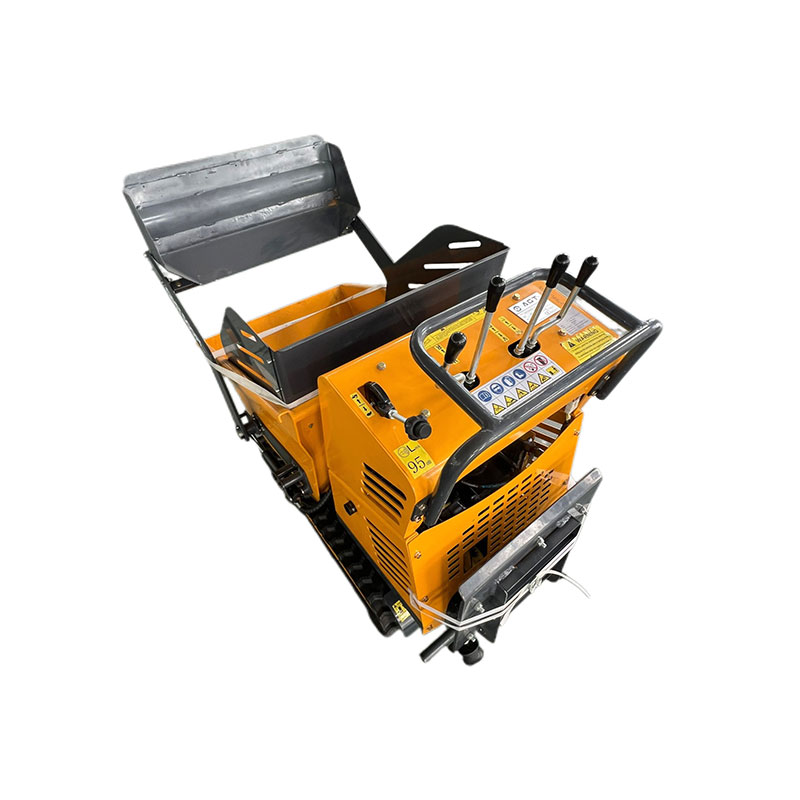

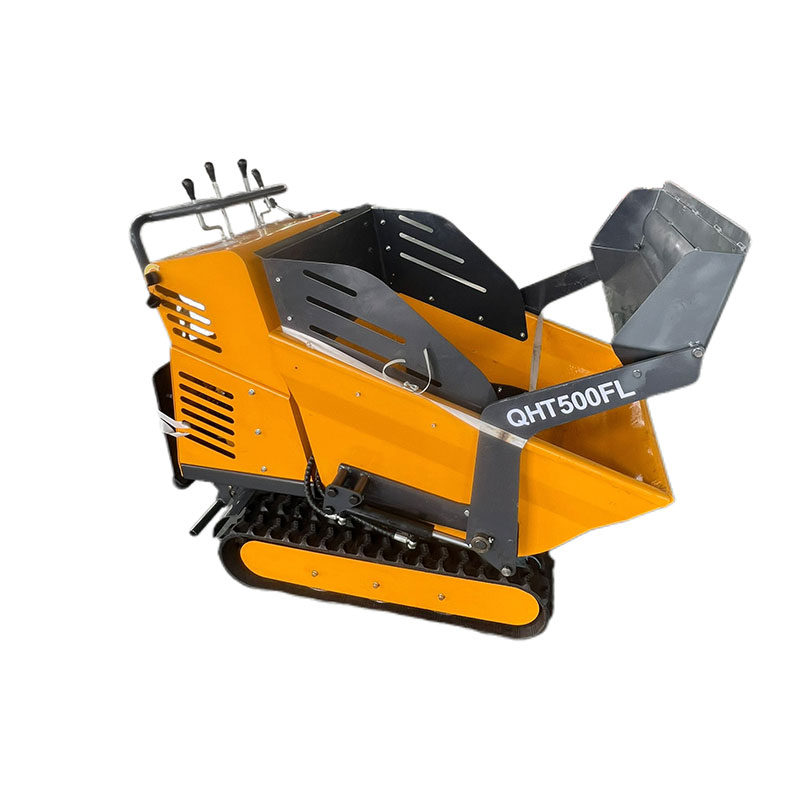

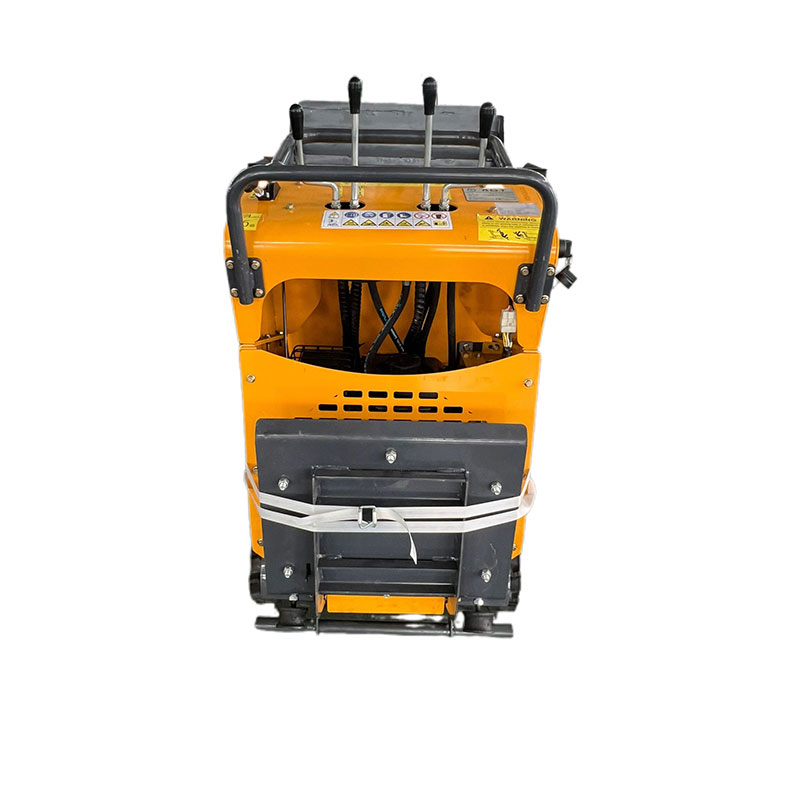

The QHT500FL is an ultra-compact mini excavator designed for light-duty tasks in extremely confined spaces. Weighing just 470 kg with a 0.03 m³ bucket capacity, this portable machine delivers a maximum unloading height of 910 mm and 50 kg lifting force. Powered by a Rato gasoline engine producing 4.1 kW at 3,600 rpm with fan cooling, it offers efficient performance and easy maintenance. Its minimal footprint—1,620 mm length, 960 mm width, and 1,250 mm height—enables access through narrow doorways and tight job sites. With 180×60×38 rubber tracks, 3-liter fuel tank, and 14-liter hydraulic oil tank, the QHT500FL is ideal for homeowners, small contractors, and indoor applications requiring lightweight, maneuverable excavation capability.
Product Details
Full Opening Engine Cover The engine hood features a forward-tilt design, exposing key engine components for simplified maintenance and inspection. |
|

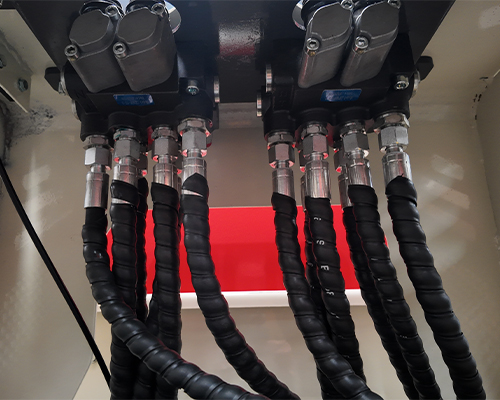

Hydraulic Auxiliary Tool Joint Featuring a plug-type hydraulic quick-change interface, this joint system enables rapid and secure connection of hydraulic auxiliary tools with minimal downtime. Designed for ease of use and tool compatibility, it enhances operational flexibility and productivity across a variety of job-site applications. |
|

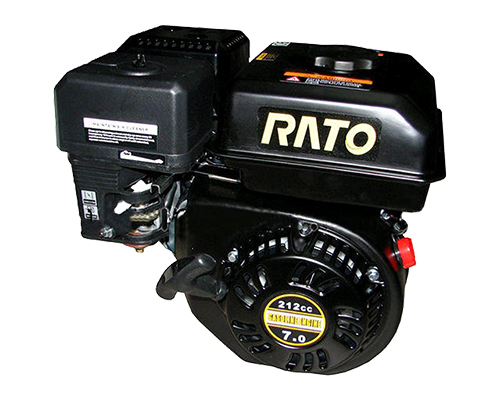

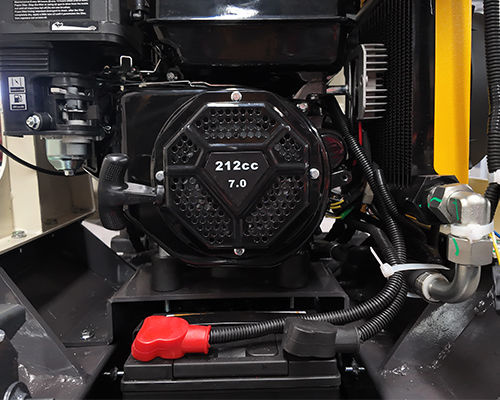

Rato Engine Built for reliability and performance, the Rato gasoline engine combines strong horsepower output with low noise, minimal vibration, and high fuel efficiency. |
|

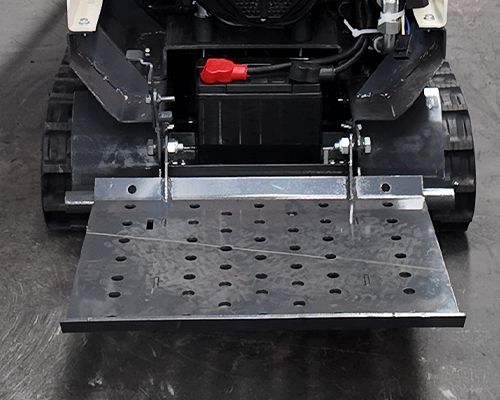

Spacious Driving Experience Generous legroom and intuitive controls ensure comfort during operation. The adjustable driver’s seat can be moved forward or backward to suit individual preferences. |
|
Product Specifications
Basic Performance Parameter | |
Working Weight(kg) | 470 |
Bucket capacity(m³) | 0.03 |
Travel speed low/high speed(Km/h) | 0.5 |
Maximum lifting force (Kg) | 50 |
Maximum unloading height(mm) | 910 |
Wheelbase(mm) | 810 |
Bucket discharge angle | 55° |
Equipment Bod | |
Bucket width(mm) | 490 |
Overall Length(mm) | 1620 |
Overall Width(mm) | 960 |
Overall Height(mm) | 1250 |
Body width(mm) | 960 |
Engin | |
Engine Brand | Rato |
Maximum power(Kw) | 4.1 |
Max. speed(rpm) | 3600 |
Cooling method | Fan cooling |
Engine oil change quantity(L) | 0.5 |
Fuel Type | Gasoline |
Fuel Grade | 92# |
Track | |
△-Rubber (bandwidth*pitch*number of sections) | 180*60*38 |
Fuel tan | |
Fuel tank(L) | 3 |
Hydraulic oil tank(L) | 14 |
